Canare XJ3F-TRC-BCJ XLRF to BNC 110-75 Ohm Digital Audio Impedance Transformer

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

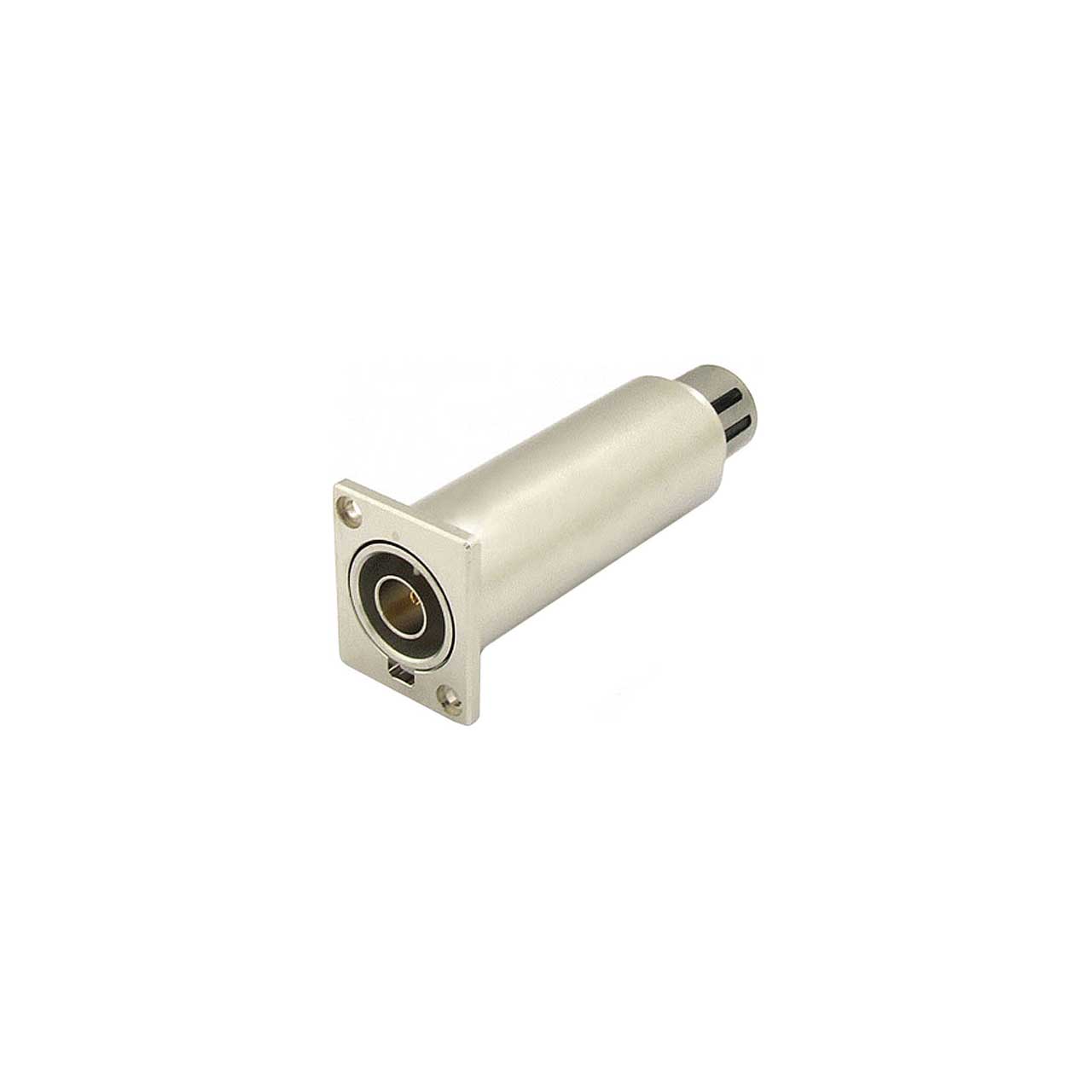

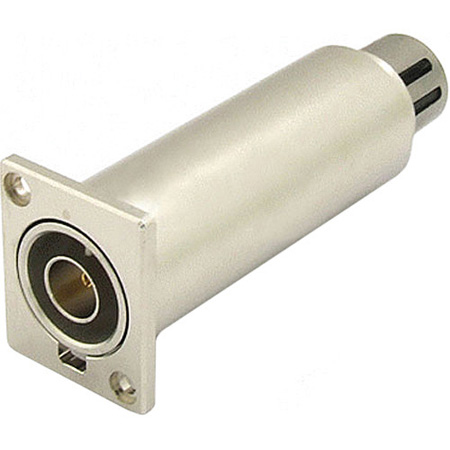

    Canare XJ3F-TRC-BCJ XLRF to BNC 110-75 Ohm Digital Audio Impedance Transformer

    Item #: XJ3F-TRB-BCJ   •   MFG #: XJ3F-TRB-BCJ








    Transformers:





    Share!

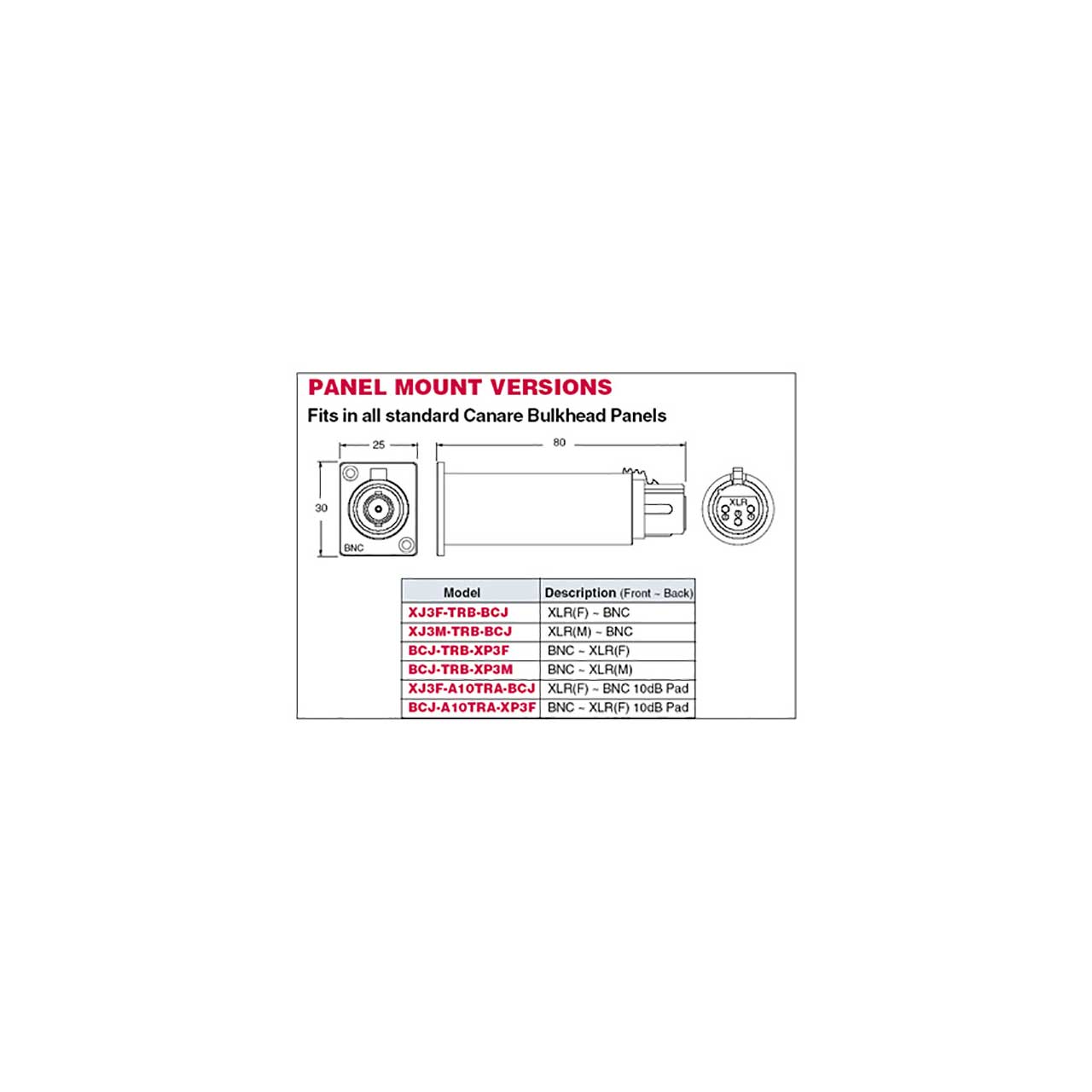

    110 - 75 ohm Impedance TransformerPanel Mount Version


    • Features

      • SMPTE 276M and AES3 Transmission Standard
      • Coaxial transmission of 2 Channel Digital Audio
      • Allows longer cable runs than 110 ohm twisted pair
      • AES/EBU Signal distribution using Canare 75 ohm Video Patchbays
        APPLICATIONS:
      • Post Production Suites
      • Recording Studios
      • AES/EBU Digital Audio Routing
        GENERAL SPECIFICATIONS
      • Bandwidth: 0.1 - 6MHz
      • Maximum Voltage: 5Vp-p
      • VSWR: <1.1
      • Insertion Loss: <0.3dB
      • 110 ohm Port (Balanced): XLR3 Female 1-Shell, 2-Hot, 3-Cold
      • 75 ohm Port (Unbalanced): Canare 75 ohm BNC Receptacle
