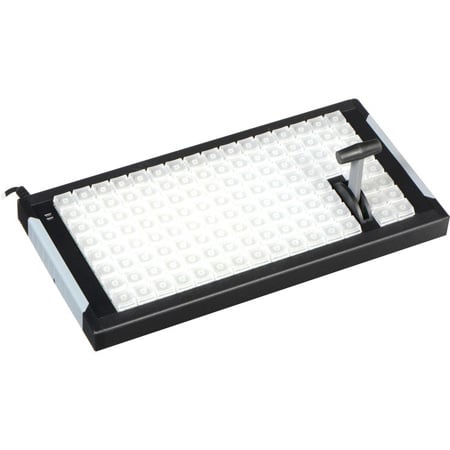

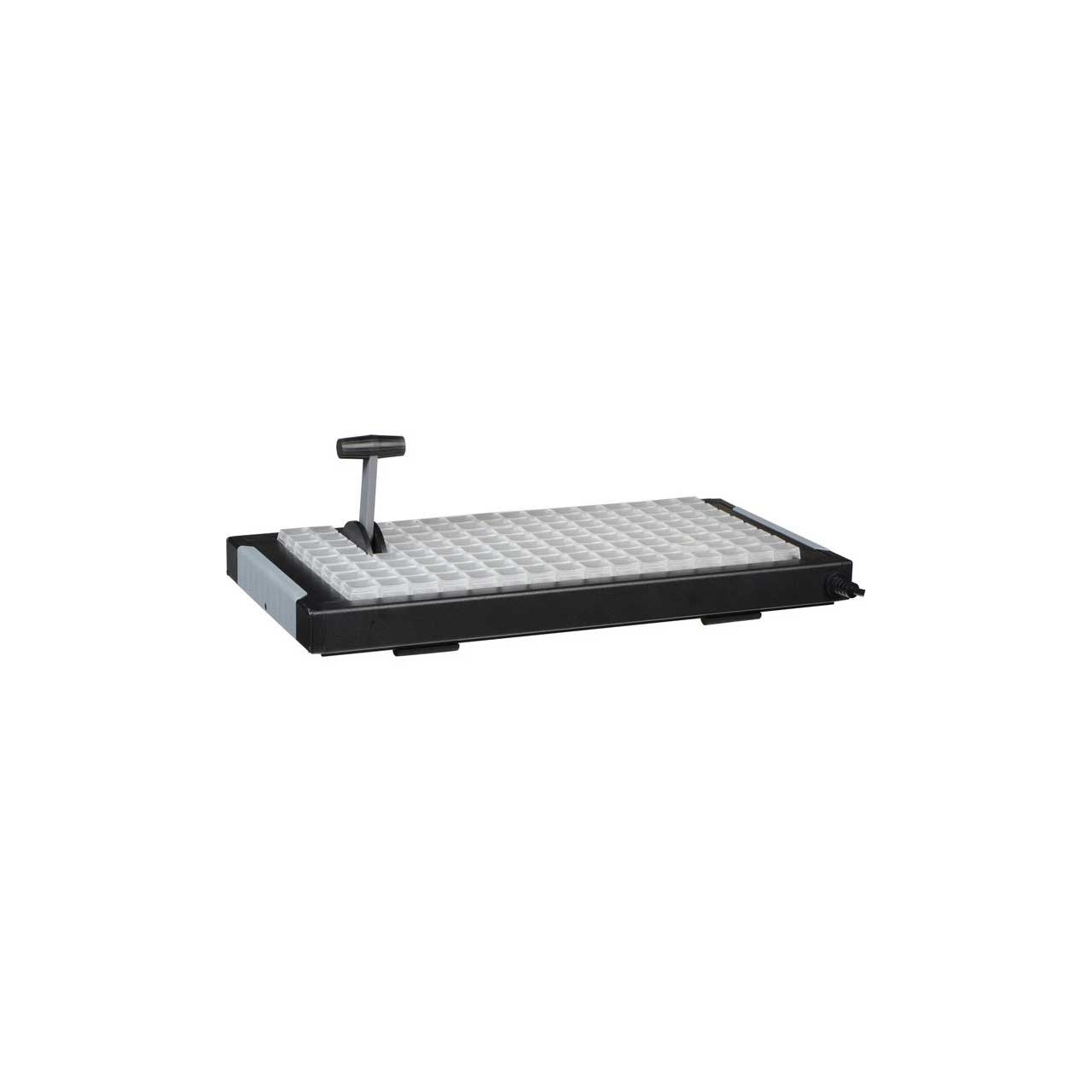

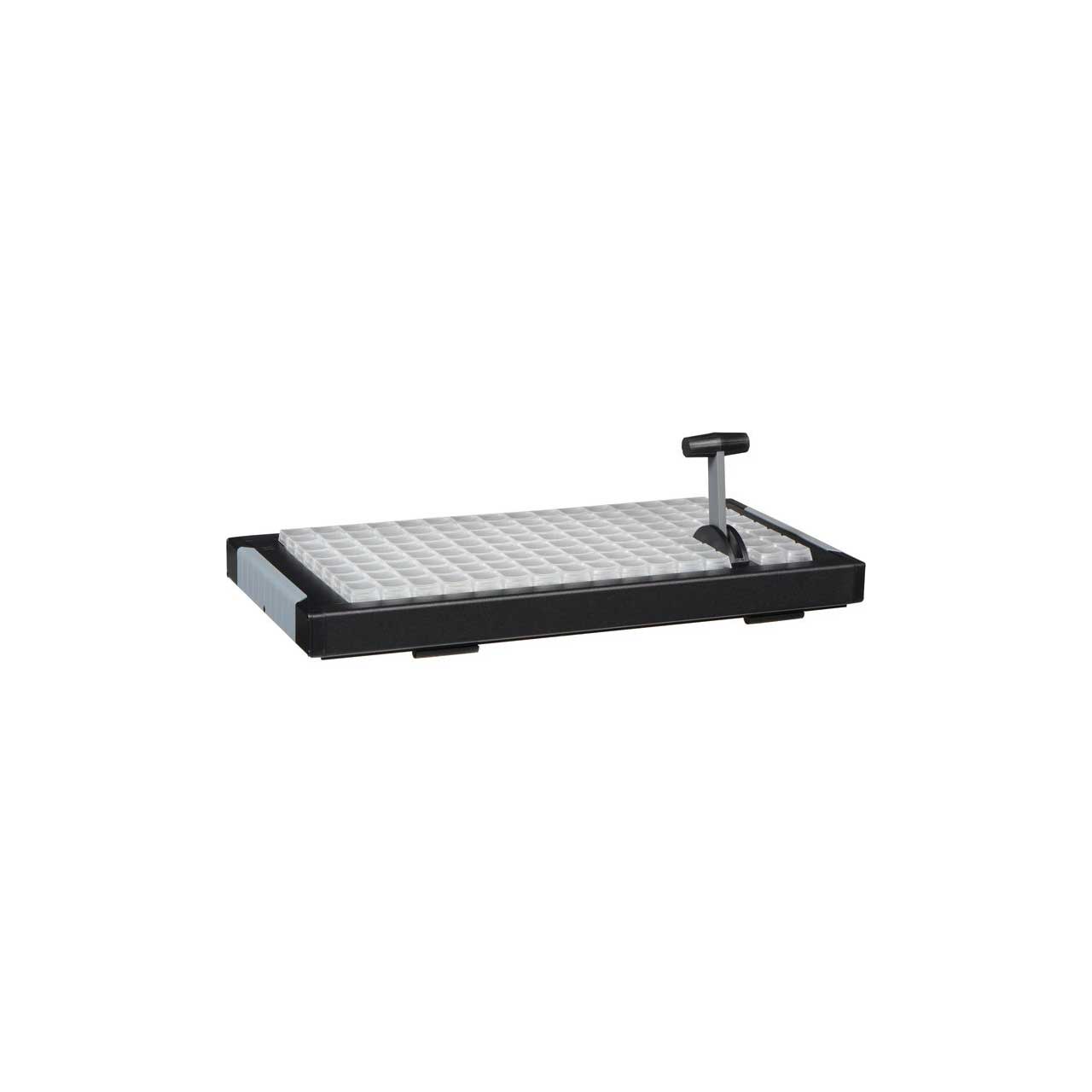

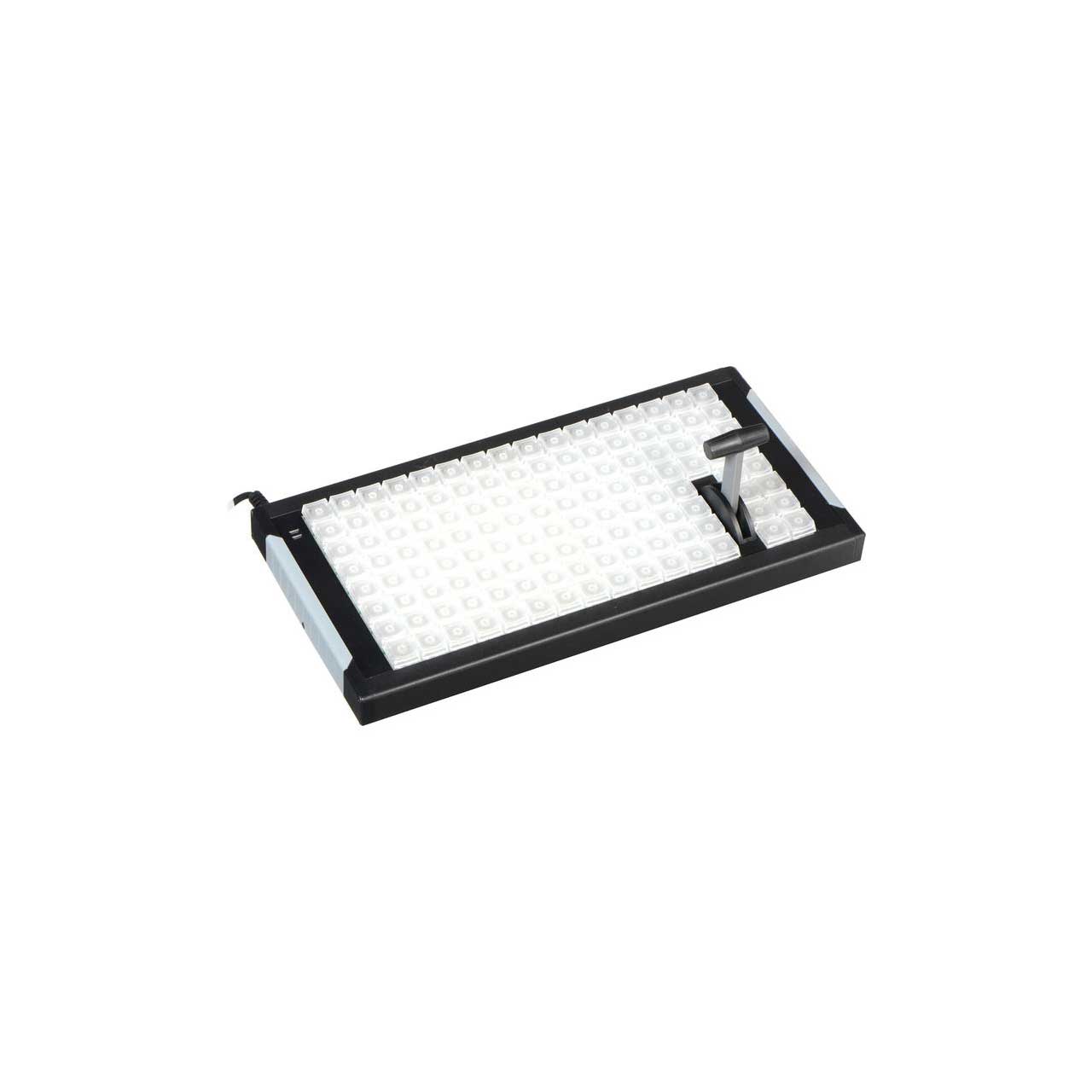

X-keys XKE-124 T-Bar USB Keyboard

ITEM #: XK-1370-UFB124-R MFG #: XK-1370-UFB124-R

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$839.95

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    XK-1370-UFB124-R - Overview

    One hundred twenty-four keys with an embedded T-bar fader to create the perfect control panel for your application. Keys may be replaced by blockers or indicators to create an intuitive layout for live or post production video control.

    • Features:

      • Smooth, reliable fader input with 124 keys
      • Free SDK and code samples for Windows, Linux, and Android
      • Addressable backlighting or indicators in each key position
      • Smooth and solid T-bar reports 0-255 linear position value
      • Heavy duty extruded aluminum case with powder coated finish
      • Addressable blue and red backlighiting for each key
      • USB connection to computer
      • Also offers unique USB HID data reports for full integration
      • A wide range of key caps and blockers available

    • Specifications:

      • Operating System: Use: Any OS via USB HID | Programming: Windows XP through 10, Mac OS X 10.4 through 10.10
      • Free Programming Software: Windows: P.I. Engineering SDK; Mac: ControllerMate for X-keys
      • Free Software Development Kits; Windows (C++, C#, VB.NET); Linux (C++); Android (Java); Raw HID (any language/OS)
      • Emulation Modes: HID keyboard, HID mouse, HID game controller
      • Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
      • Number of Keys: 124 single keys
      • Actuation Force: Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
      • Key Cap Type: Relegendable with Cherry MX compatible stem
      • Key Cap Size: 0.625” (16mm) sq.
      • Key Spacing: 0.75" O.C.
      • Optional Keys: 2X1, 1X2, 2X2
      • Backlighting: 124 blue and 124 red LEDs, individually addressable
      • Connector: Wired USB 2.0 standard “A” plug
      • Cord Length: 56” (1.42 m)
      • Dimensions: 14" x 7.3" x 1.8"
      • Weight: 4.7lbs
      • USB type: USB 1.1 compatible through 3.0
      • Power Source: USB port, nominal voltage = 5 VDC
      • Current Draw: NO backlight: 37 mA , Blue backlight full: 176 mA, Red backlight full: 265 mA, All backlights full: 358 mA
      • Temperature Range: -20 to 60 °C
      • Memory Capacity: Approximately 21,000 keystrokes or commands in onboard memory
      • Humidity: 80% Rh non-condensing
      • Environmental Rating: IP 40, typical indoor office environment
      • Certifications: FCC class B, CE, RoHS, WEEE compliant

    • GTIN:

      0703273013707
