X-Keys XBA-5008-JSM-R XBE-12 Jog Shuttle with RGB-Backlit Macro Keypad

ITEM #: XK-XBA5008-JSM-R MFG #: XBA-5008-JSM-R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
X-Keys
Free Shipping with $49 Minimum Order

Our Price:

$244.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

XBA-5008-JSM-R - Overview

Smooth Timeline Navigation Brought to Life!

Elevate your editing experience with the X-Keys XBE-12 Jog Shuttle, a versatile and programmable keypad designed for seamless control that features a Jog & Shuttle control embedded within. Take command of your workflow with customizable keys that are easily programmable.

Jog & Shuttle
X-keys Jog & Shuttle devices combine programmable keys with a dual-input jog wheel and shuttle ring, providing precise timeline control for video, audio, and other professional applications. Fully compatible with MacroWorks, SDK integration, and hardware mode, they allow streamlined, customizable control for editing and production workflows.

XBE Series
The XBE Series features fully RGB-backlit, modular controls that can be customized for color-coded visibility, function indicators, or workflow organization. XBE devices are designed to be assembled together in a variety of configurations held within a single aluminum enclosure, for unique layouts that match your exact needs with controls where you want them.

  • Features:

    • Jog & Shuttle Dial Smooth rotation with programmable zones
    • 12 Programmable Keys Trigger macros or application commands

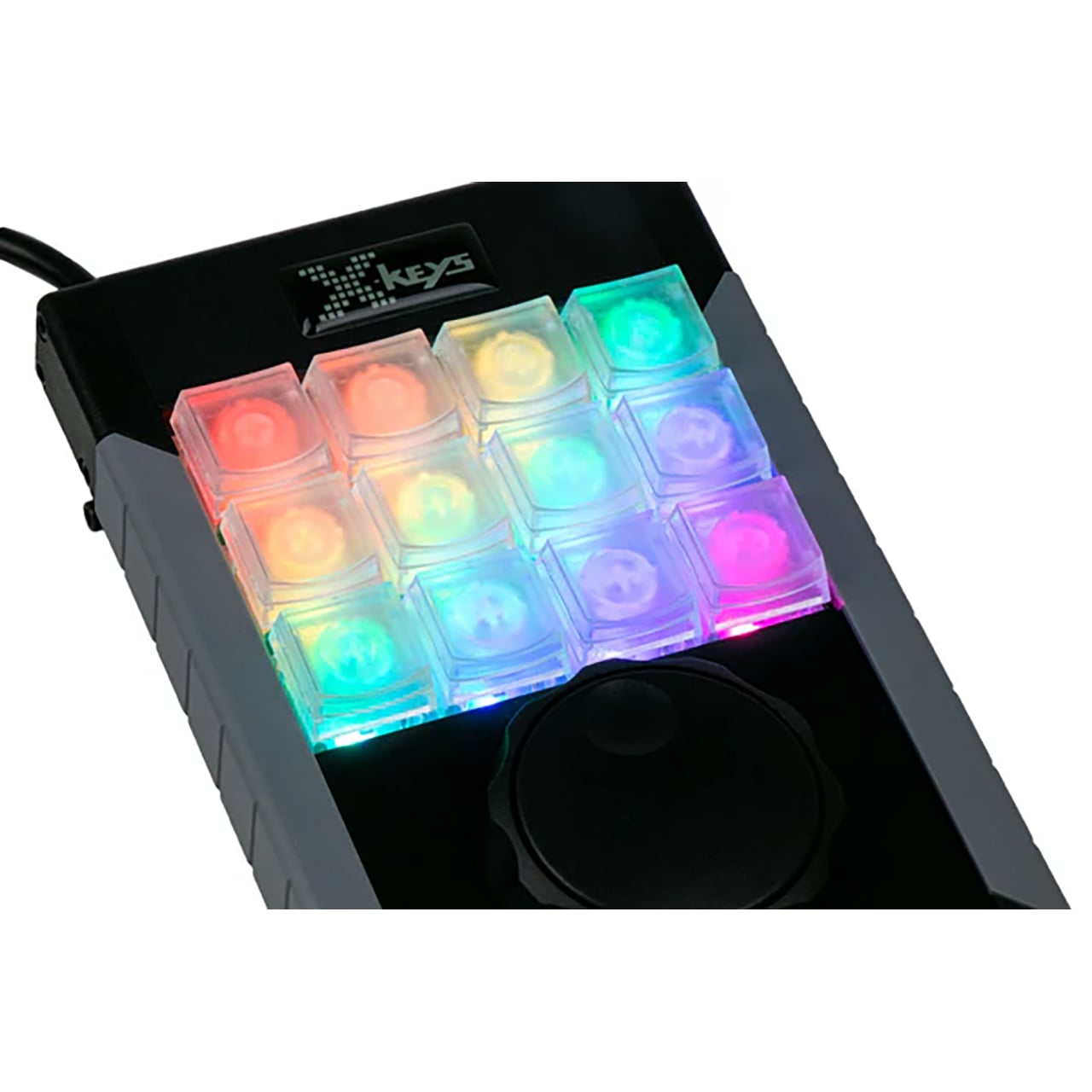

    • RGB Backlighting Full-color illumination for flexible visual feedback and customization
    • USB connects via standard USB

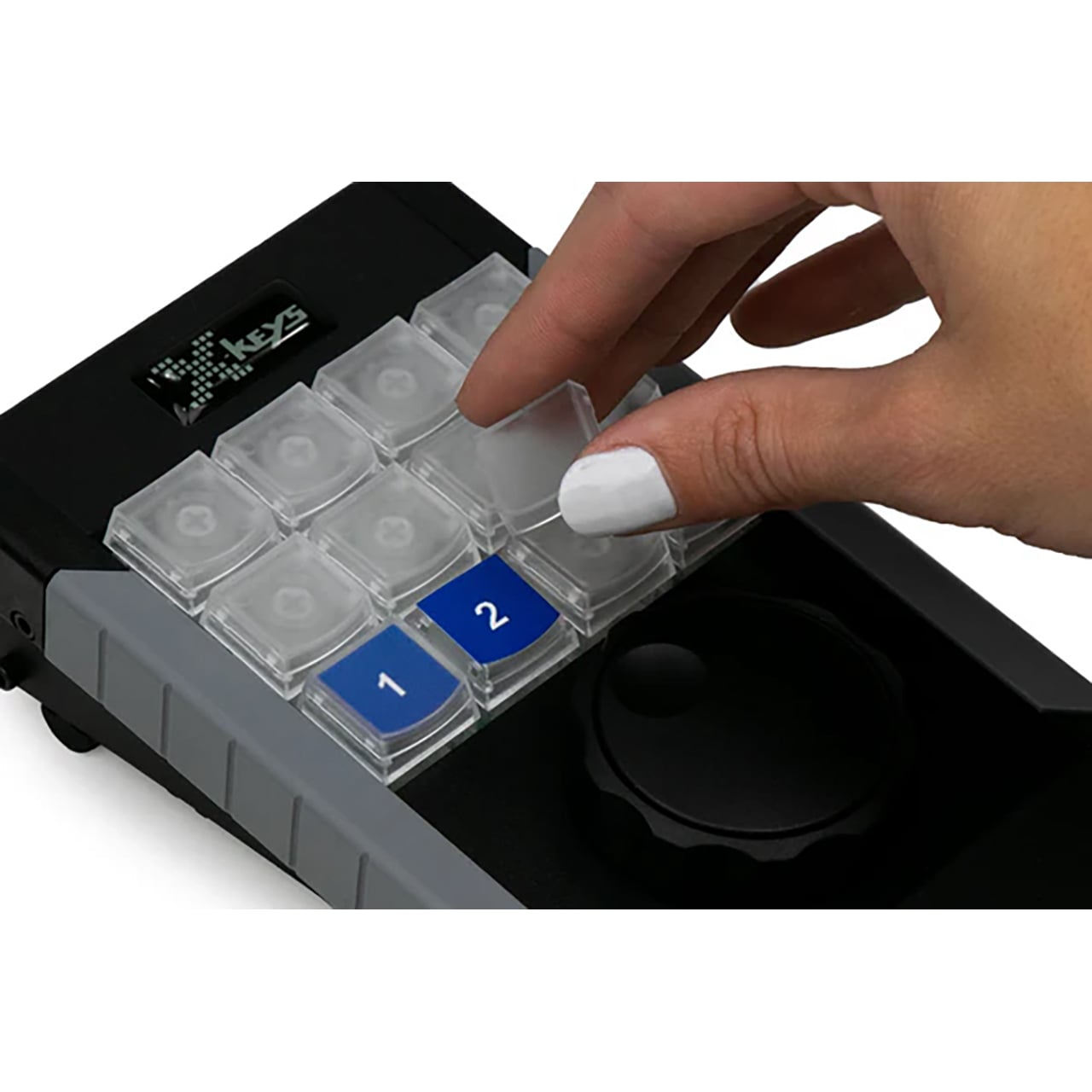

    • Relegendable/Custom Layout lets the user customize key placement and legends
    • Free Programming Software Windows, Mac, and browser-based macro support
    • Free SDKs Integrate with custom applications


  • Specifications:

    • Emulation Modes: HID keyboard, HID mouse, HID game controller
    • Jog Control: 10 detents, independent clockwise and counterclockwise commands
    • Shuttle Control: 15 programmable zones - 7 clockwise, 7 counter-clockwise, and 1 at zero
    • Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
    • Number of Keys: 12 single keys
    • Actuation Force: Approx. 2.5oz (72g) break-over, approx. 1.5oz (42g) hold
    • Keycaps: 0.625" (16mm) square; relegendable with Cherry MX compatible stem
    • Key Spacing: 0.75" O.C.
    • Optional Keys: 2x1, 1x2, 2x2, and 1x1 blocker
    • Backlighting: 2x RGB LEDs per switch, 24x total, individually addressable

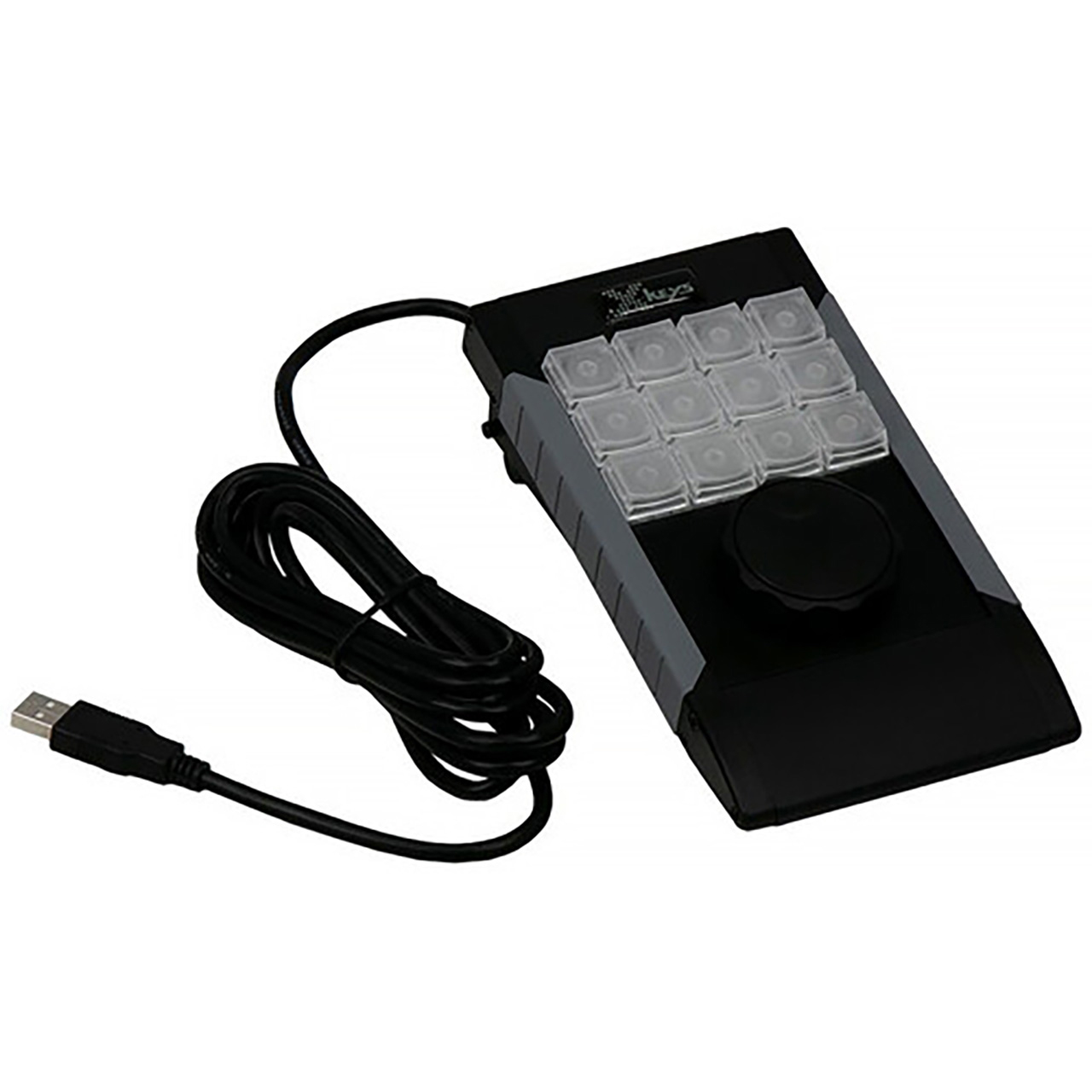

    • Connector: Wired USB standard "A" plug
    • Cord Length: 118" (3m)

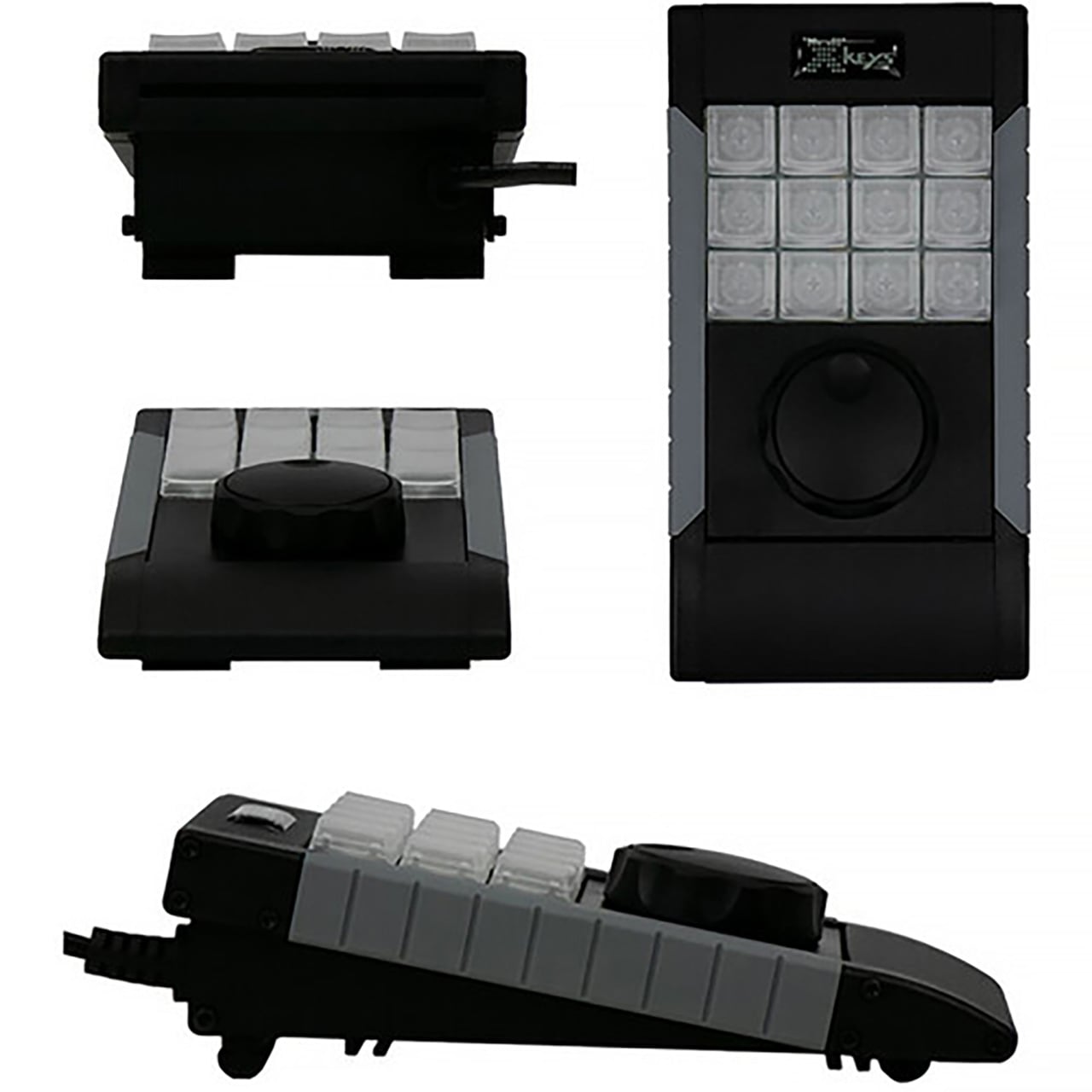

    • Dimensions: 7" x 3.75" x 2" (178mm x 95mm x 50mm)
    • Weight: 19oz (540g)
    • USB Type: USB 1.1 compatible through 3.2 Type-C with adapter
    • Power Source: USB port, nominal voltage = 5VDC
    • Current Draw:
      - No Backlight: 18mA
      - Blue Backlight Full: 38mA
      - Red Backlight Full: 57mA
      - All Backlights: 75mA
    • Temperature Range: -4°F - 140°F (-20°C - 60°C)
    • Memory Capacity: Approximately 21,000 keystrokes or commands in onboard memory
    • Memory Type: EEPROM, non-volatile (retains memory for over 200 years)
    • Environmental Rating: IP40, typical indoor office environment
    • Certifications: FCC class B, CE, Declaration of Conformity, WEEE compliant
