Laird XLM4-XLF4 Neutrik XLR 4-Pin Male to Female Canare L-2T2S Power Cable - 25 Foot

ITEM #: XLM4-XLF4-25 MFG #: XLM4-XLF4-25

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$40.95

Our Price:

$36.95

Availability: In Stock
iAvailability Description Popup


XLM4-XLF4-25 - Overview

Reliability in power delivery is essential for professional video production, whether on set, in the studio, or out in the field. The Laird XLM4-XLF4 Series of power cables is engineered to ensure clean, stable D.C. power for equipment that utilizes Sony's 4-Pin XLR D.C. power pinout. These cables combine durability, flexibility, and superior shielding to reduce noise and maintain signal integrity in demanding broadcast and production environments.

Fitted with Neutrik 4-Pin XLR connectors, each cable ensures secure power transmission and long-lasting mechanical reliability. Neutrik's precision contact design and latch-locking mechanism prevent accidental disconnection, while providing lifecycle endurance exceeding 1,000 mating cycles.

  • Features:

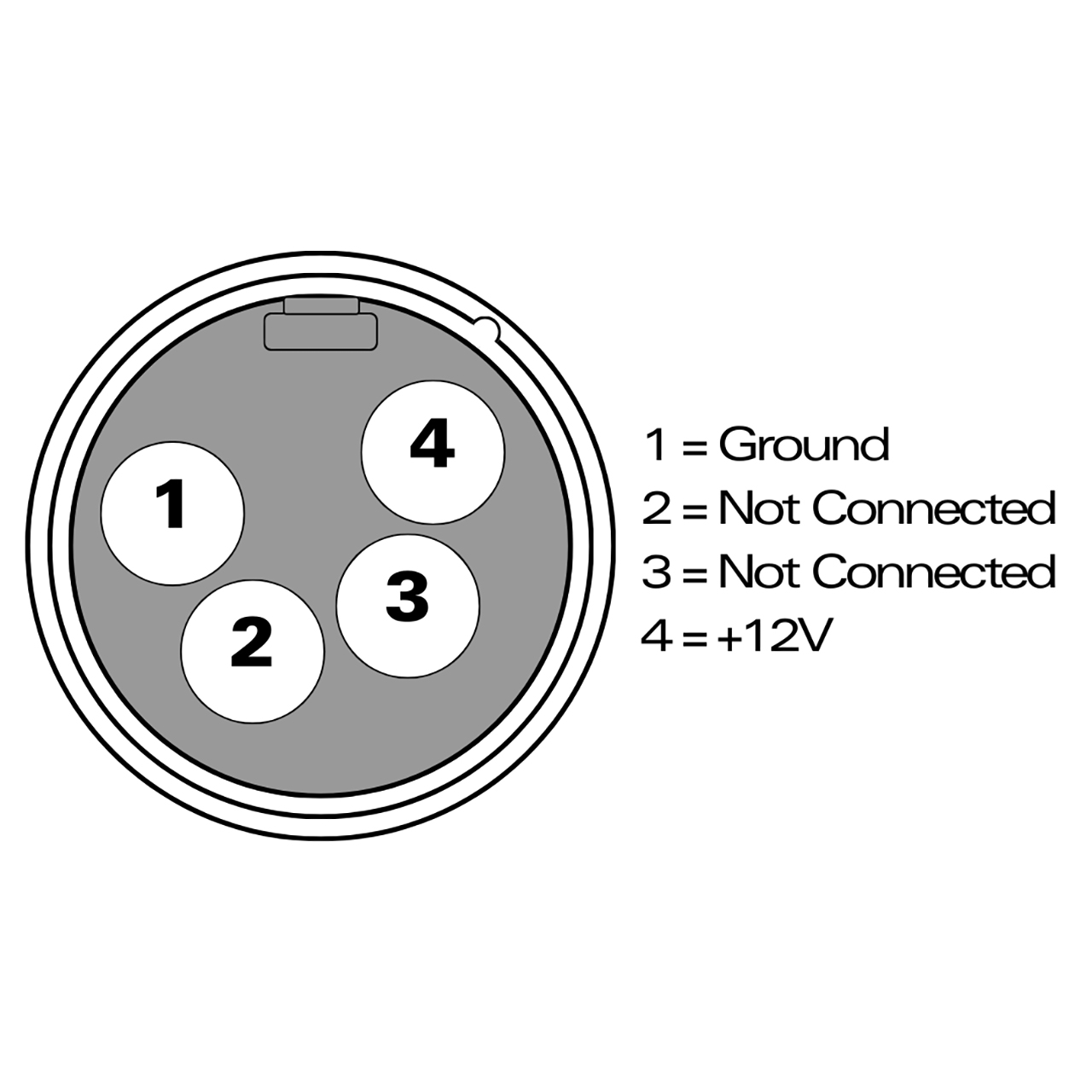

    • Wired According to Sony 4-Pin XLR D.C. Power Pinout
    • Canare L-2T2S blocks EMI and RFI and reduces handling noise
    • Highly flexible and durable PVC Jacket
    • High-quality Neutrik 4-Pin XLR Connectors

  • Specifications:

      Canare L-2T2S
    • Number of Conductors: 2
    • Conductor Material: Annealed Copper
    • Conductor AWG: 23
    • Conductor O.D.: 0.02" (0.72mm)
    • Insulation Material: Crosslinked Polyethylene
    • Insulation Thickness: 0.01" (0.50mm)
    • Insulation O.D.: 0.068" (1.72mm)
    • Pair/Quad Strand Pitch: ≤0.79
    • Filler Material: Cotton
    • Overall Tape Material: Paper Tape
    • Overall Tape Thickness: 0.001" (0.05mm)
    • Shield Material/Coverage%: Tinned Annealed Copper/94%
    • Sheath Type: PVC
    • Sheath Thickness: 0.03" (1.0mm)
    • Sheath O.D.: 0.24" (6.0mm)
    • Rated Voltage: AC 60
    • Conductor DCR (Ω/1000ft): ≤19.8
    • Shield Conductor DCR (Ω/1000ft): ≤9.4
    • Insulation Resistance between Conductors (MΩ·3000ft): ≥1000
    • Tensile Strength (MPa): ≥11.0

      Neutrik 4-Pin XLR Connector
    • Capacitance Between Conductors: ≤ 7 pF
    • Contact Resistance: ≤ 3 mΩ
    • Dielectric Strength: 1.5 kVdc
    • Insulation Resistance: > 10 GΩ
    • Rated Current per Contact: 10A
    • Rated Voltage: < 50 V
    • Insertion Force: ≤ 20 N
    • Withdrawal Force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Locking Device: Latch lock
    • Protection Class: IP40

  • Warranty:

    • Limited Lifetime
