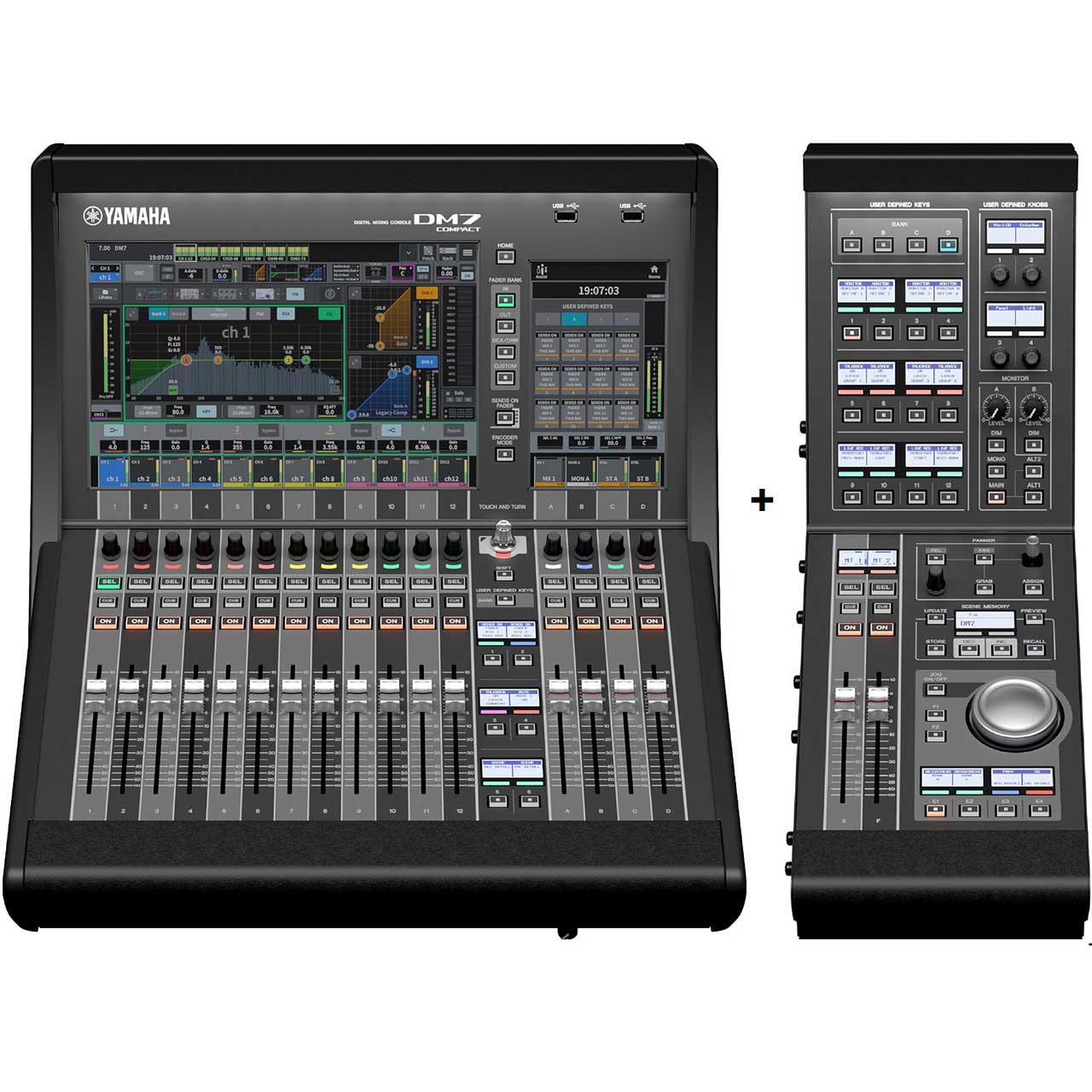

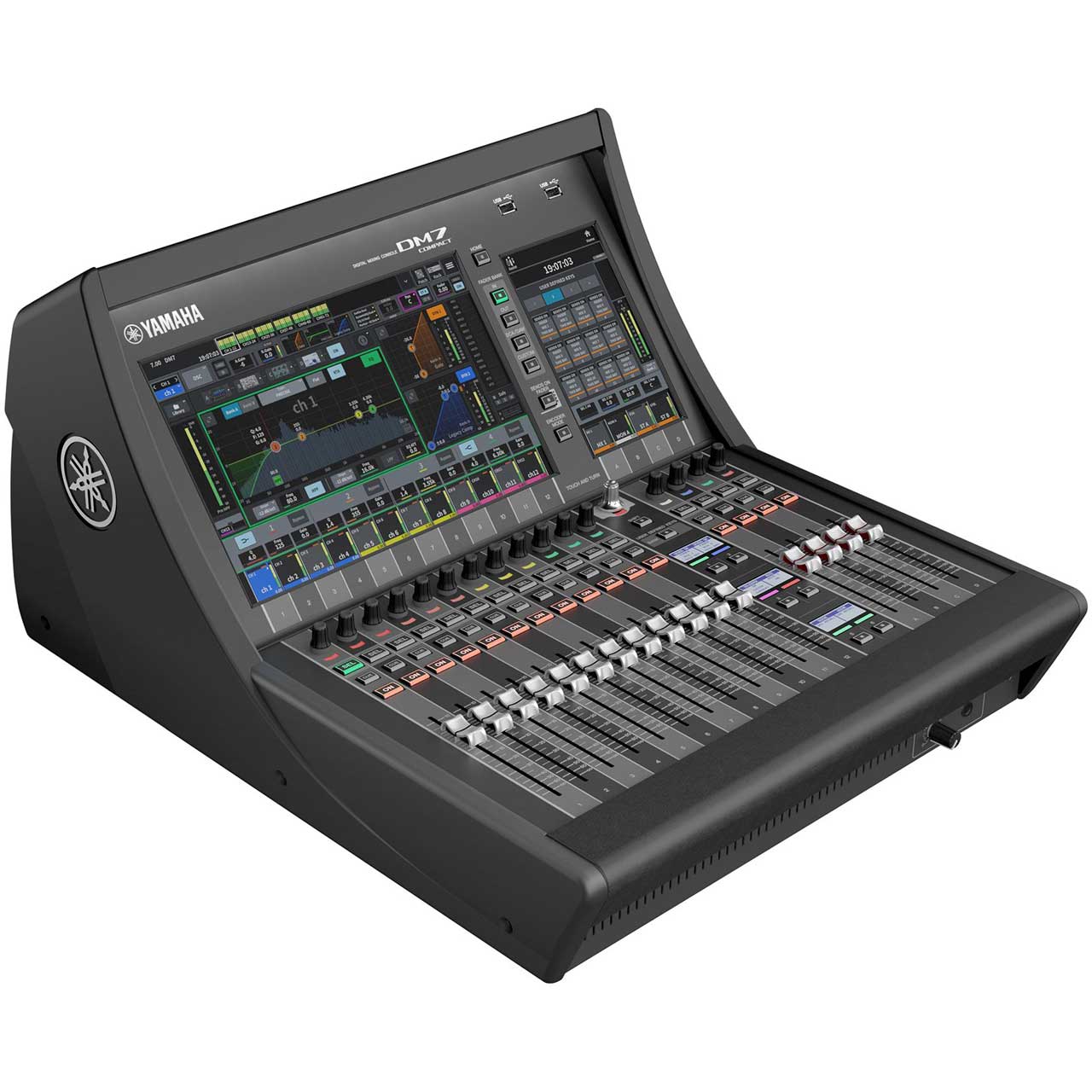

Yamaha DM7C-EX Compact Dante Enabled Professional 72-Channel Digital Mixer with CTL-DM7 Control Expansion

ITEM #: YMH-DM7C-EX MFG #: DM7C-EX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$24,000.00

Our Price:

$17,295.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


DM7C-EX - Overview

72-channel Compact Mixing Console with additional Control Expansion Unit

Driven by Music. Defined by Quality.
More than 30 years since the release of Yamaha's first digital mixer, the DMP7, the landscape of professional audio has seen a steady progression in technological advancements and innovations that have impacted mixing and recording styles significantly.

DM7 series mixing consoles represent a sizable step forward in this evolution of form, functionality, and flexibility with their intuitive UI, compact design, and comprehensive suite of powerful features that allow them to outperform other mixers in their class in an impressive range of audio environments. From broadcasting, streaming, and music production, to live hybrid events and concert performances, the advanced capabilities of the DM7 series set a new standard in operability and workflow while simultaneously staying true to Yamaha's sonic tradition of "natural sound". As the times continue to change, your DM7 will keep you ahead of the curve with a user experience that's a cut above anything in its class, and sonic performance well beyond the expectations of audiences and engineers alike.

The DM7 series is an innovative digital mixer lineup that not only guarantees unparalleled sound quality, ease of operation, and high reliability to connect engineers, artists, and audiences, but is also highly scalable and flexible enough to adapt according to application. A DM7 setup can take on a variety of configurations depending on the engineer's preferences and can support a wide range of sonic environments.

Due to their compact yet flexible design, DM7 series mixers can be used in a wide range of audio applications. With their comprehensive functionality, expansion options, and outstanding ease of use, DM7 consoles excel in a truly impressive array of use cases.

Applications

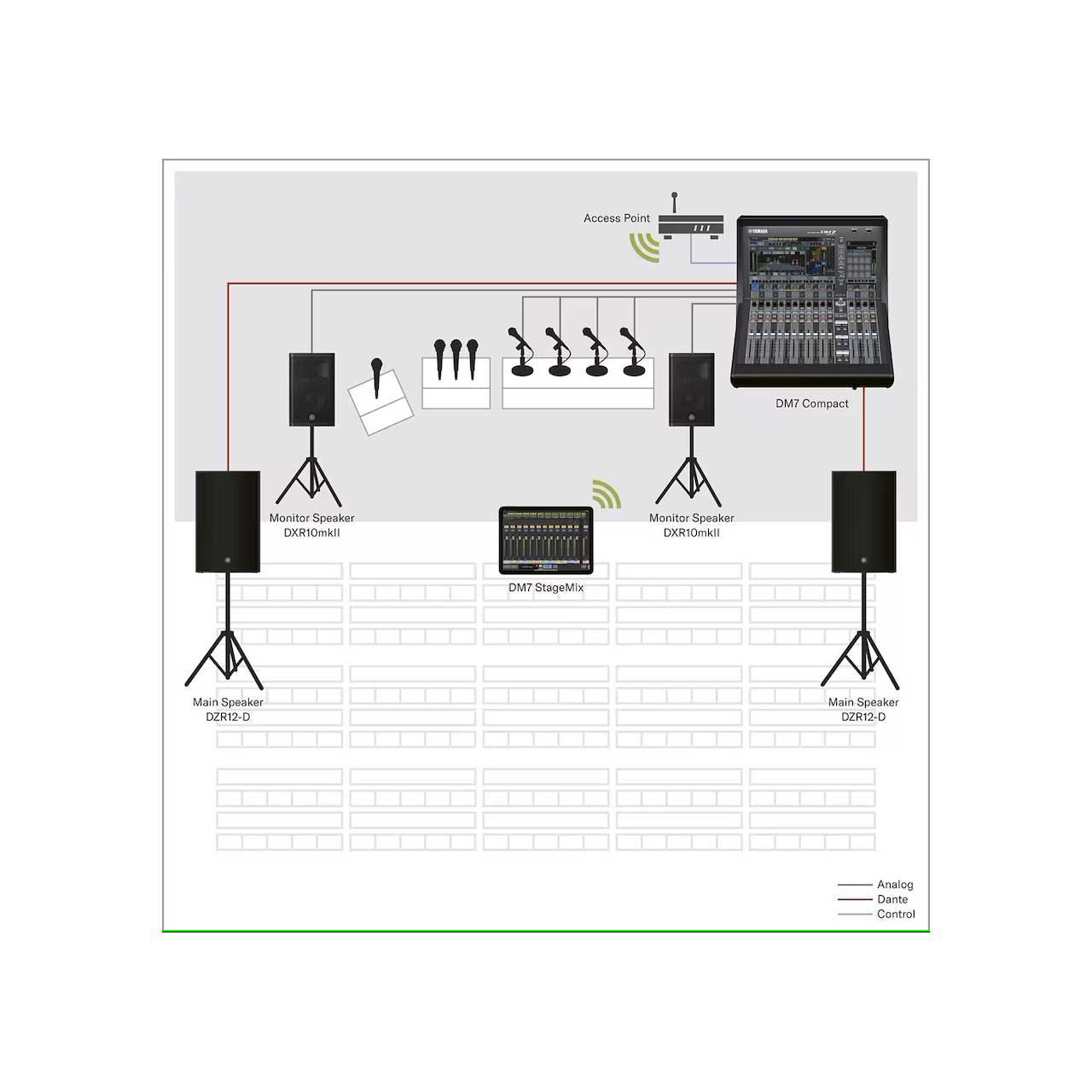

Live Sound
Performing Arts Center & Theater
House of Worship
Streaming

  • Specifications:

    • Mixing Capacity
    • Input Channels: 72 mono
    • Mix Buses: 48
    • Matrices: 12 (input to matrix supported)
    • Stereo Buses: 2
    • Mono Buses: 1 (stereo B can be changed)
    • Cue Buses: 2

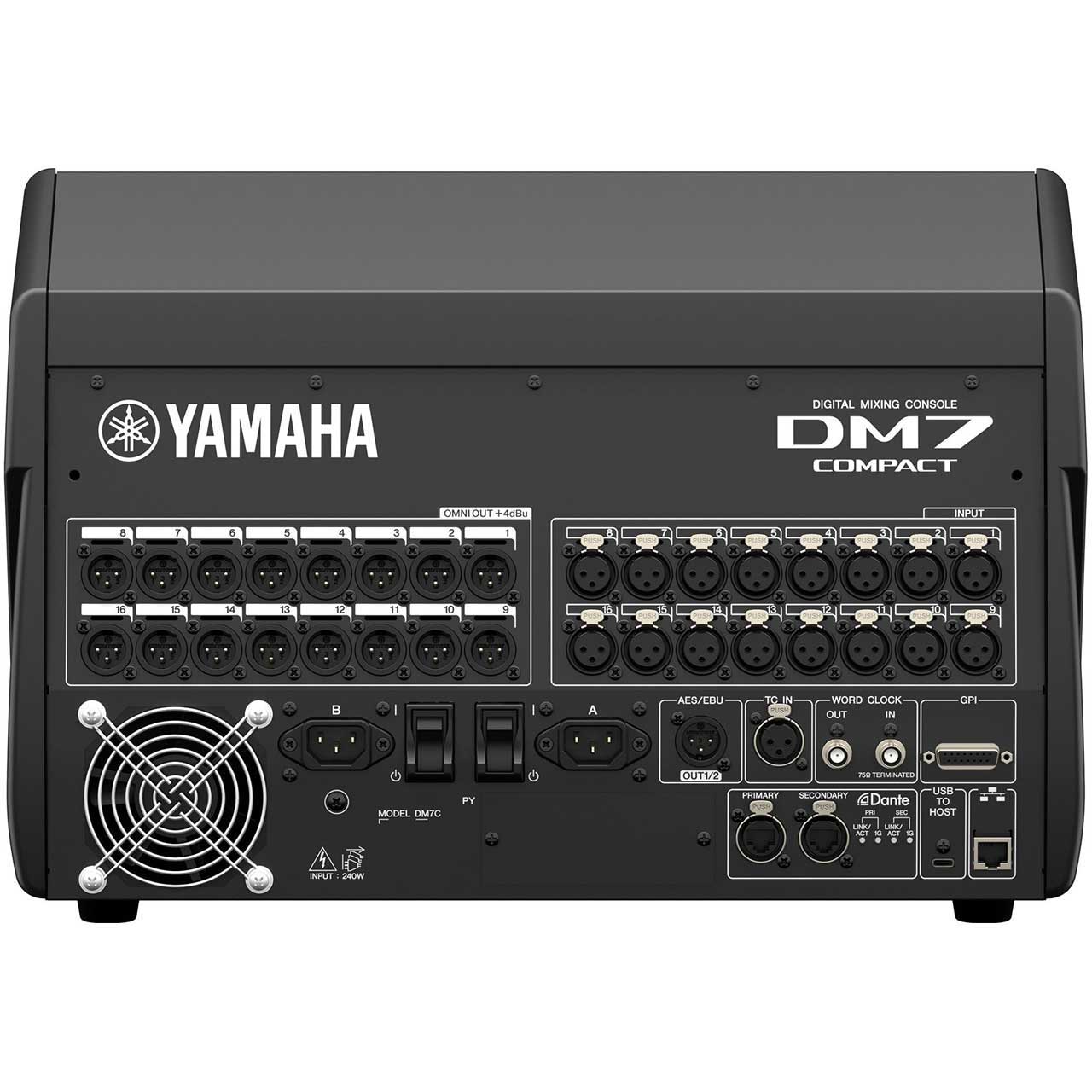

      I/O Connectors
    • Analog Input: 16
    • Analog Output: 16
    • Dante: Primary/secondary
    • AES/EBU Input: 0
    • AES/EBU Output: 1 (2ch)
    • Expansion Slot (PY Slot): 1
    • Word Clock I/O: In/Out
    • MIDI: No (protocol supported on USB to HOST)
    • GPI: 5 in / 5 out
    • USB TO DEVICE: 2 (file save / load, 2 track rec / play
    • USB TO HOST: 1 (USB type-C, USB2.0
    • Ethernet: Yes
    • Meter Bridge: On screen
    • Lamp: 0 (built-in LED strip light)
    • Video Out: No
    • TC In: Yes
    • Phones: 1
    • AC: 2 (V-lock type)
    • External Redundant Power Supply: Built-in dual power supply

      Input Channel Functions
    • Input A/B: Yes
    • Gain Compensation: Yes
    • Digital Gain: Yes (-96 dB to +24 dB)
    • Attenuator: Yes (-96 dB to +24 dB)
    • HPF: 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable
    • PEQ: 4 Band Full PEQ (4 algorithms, RTA overlay supported)
    • LPF: 20 Hz to 20 kHz, -6/-12 dB/oct
    • Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser
    • Dynamics 2: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
    • Input Delay: Yes (0 ms to 1,000 ms)
    • Pan: Center Nominal / LR Nominal
    • DCA Group: 24 (Output DCA supported)
    • DCA Rollout: Yes
    • MUTE Group: 12
    • Number of Inserts: 4 slots on 1 insert point
    • Dan Dugan Automixer: Yes (Up to 64ch)
    • Direct Out: Yes

      Output Channel Functions
    • PEQ: 8 Band Full PEQ
    • GEQ: Virtual Rack (EQ Rack)
    • Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
    • Output Channel Delay: Yes (0 ms to 1,000 ms)
    • MUTE Group: 12
    • Number of Inserts: 4 slots on 1 insert point

      Output Channel Functions
    • PEQ: 8 Band Full PEQ
    • GEQ: Virtual Rack (EQ Rack)
    • Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
    • Output Channel Delay: Yes (0 ms to 1,000 ms)
    • MUTE Group: 12
    • Number of Inserts: 4 slots on 1 insert point

      Output Channel Functions
    • PEQ: 8 Band Full PEQ
    • GEQ: Virtual Rack (EQ Rack)
    • Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
    • Output Channel Delay: Yes (0 ms to 1,000 ms)
    • MUTE Group: 12
    • Number of Inserts: 4 slots on 1 insert point

      Dante
    • Number of I/O Channels: 144 in / 144 out
    • Number of I/O devices that can be discovered from the console: 127 *1
    • Number of I/O devices that can be mounted: 24
    • Number of I/O devices with HA remote control: 24
    • Dante Patch from Console: Yes

      USB to Host
    • Number of Audio I/O Channels: 18 in / 18 out
    • USB MIDI: Yes

      Physical
    • Dimensions (WxHxD): 18.5" x 12.8" x 22.2"
    • Weight: 36.4 lb

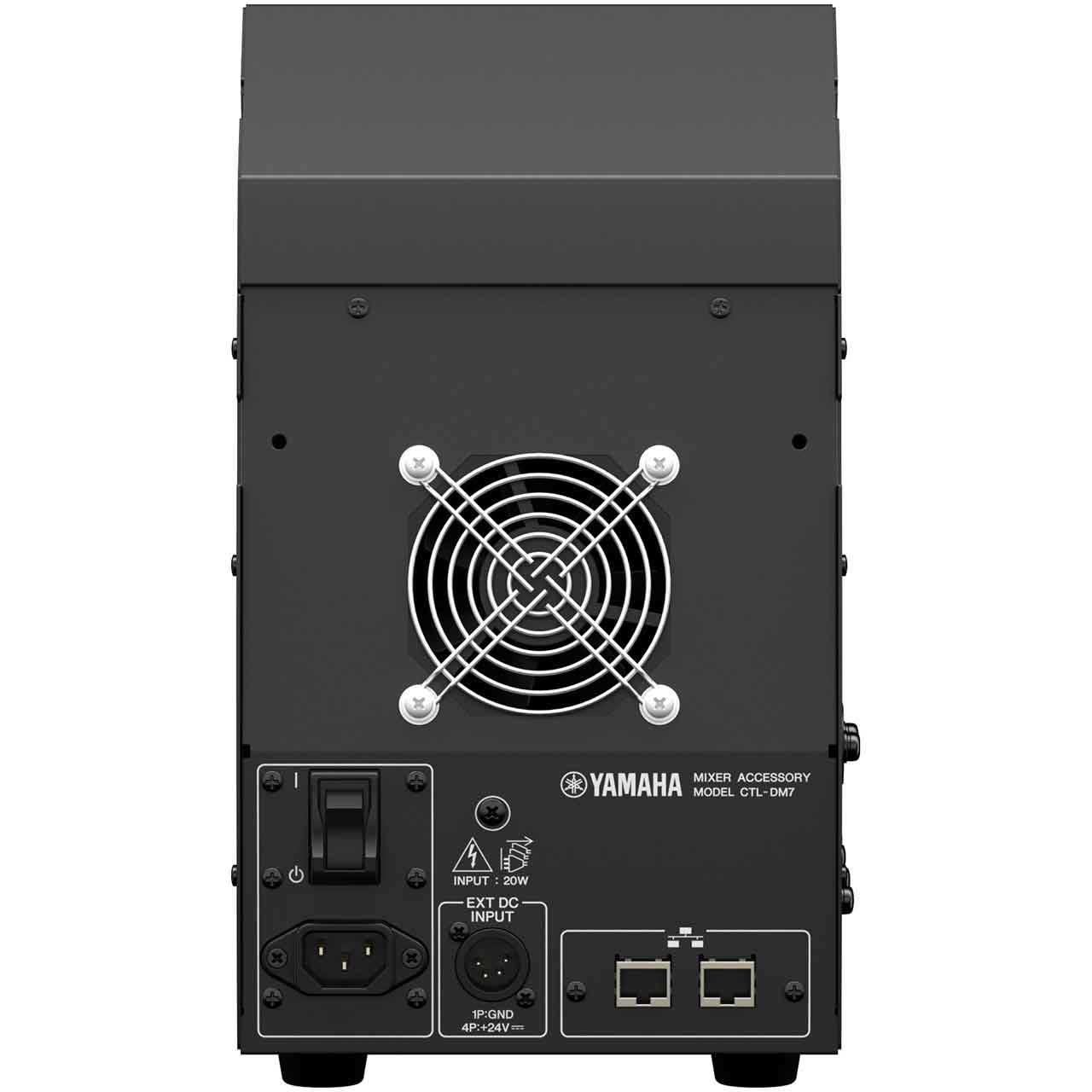

      DM7 Control Expansion
    • Faders: 2
    • User Defined Keys: 16
    • User Defined Knobs: 4
    • Scene Memory Keys: Update, Preview, Store, Recall, Inc, and Dec, Monitor Control for Monitor A/B
    • Panner: 1
    • Jog Wheel: 1
    • Power supply: AC INPUT and EXT DC INPUT for power supply redundancy
    • Power consumption: 20 W
    • Dimensions (W x H x D): 7.6" x 12.8" x 22.2"
    • Net Weight: 15.5 lb

  • Item Includes:

    • 1x CTL-DM7 Control Expansion Unit
    • 1x Owner's Manual
    • 1x AC power cords
    • 1x Dust cover
    • 1x Cable hook (for USB TO HOST)
    • 1x Nuendo Live
    • 1x VST Rack Elements
