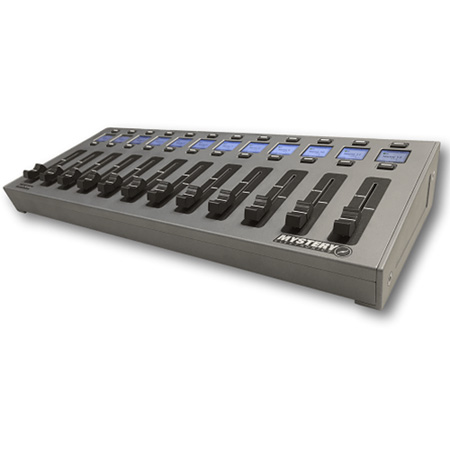

Mystery FC12X EasyMix Desktop DSP Motorized 12-Fader Control Surface with up to 24 Channels

ITEM #: MYS-FC12X MFG #: FC12X

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,168.00

Our Price:

$4,054.00

Availability: In Stock
iAvailability Description Popup


    FC12X - Overview

    The Mystery FC12X EasyMix (EM) is a tactical remote control surface for the following digital signal processor (DSP) architectures: Biamp Tesira®, Symetrix SymNet®, and QSC Q-Sys®. There are two models. The FC8X with (8) faders and the FC12X with (12) faders. All communication and controls are bidirectional with touch sensitive motorized faders and backlit buttons. A color HD display is located above each fader to display channel names, live meters, and other custom control functions.

    Applications:
    Board Rooms
    Court Rooms
    Meeting Rooms
    Legislative Chambers
    Training Rooms
    Auditoriums
    Stadiums
    Event Centers

    • Features:

      • Simplified control of Volume, EQ and DSP functions via Ethernet
      • Custom program Displays, Faders, and Buttons to your DSP functions
      • Compatible DSPs: Biamp Tesira, Symetrix SymNet®, QSC Q-SYS®
      • 12 Motorized Touch-Sensitive Faders
      • 12 Full-Color HD Displays
      • Controls up to 24 channels
      • Customizable fader scaling
      • Backlit button colors based on assigned function
      • Desktop version w/ optional rack mounting hardware available
      • Powered via Ethernet port (PoE+)
      • Controls up to 24 channels (2 banks)
      • Up to 12 soft keys to control 24 DSP presets or logic presets.
      • Customizable fader scaling (incl. lighting)
      • Faders programmable to function as EQ controls
      • Fader Channel buttons are programmable to controls in your DSP (e.g. auto mixer on/off, auto gain, control bypass, channel on/off control, etc).
      • Programmable to indicate status of auto mixer highest gain, signal presence, or other meter indicators.
      • Compact machined aluminum form factor
      • Rack mountable (w/ available hardware)
      • Compatible with VESA 100x200 moun

    • Specifications:

      • DSP Compatibility: Biamp Tesira®, Symetrix SymNet®, and QSC Q-SYS®
      • Software: Built-in web server accessible with web browser
      • Faders: 60 mm motorized touch sensitive
      • Connection: Ethernet RJ45
      • Power Source: IEEE 802.3at compliant powered device (PoE+ powered via Ethernet port)
      • Dimensions (nominal): 17.5W x 7H (4RU) x 2.75D in
      • Regulatory: CE Listed, FCC Part 15 compliant

    • Item Includes:

      • 1x Mystery FC12X EasyMix Desktop DSP Motorized 12-Fader Control Surface with up to 24 Channels
