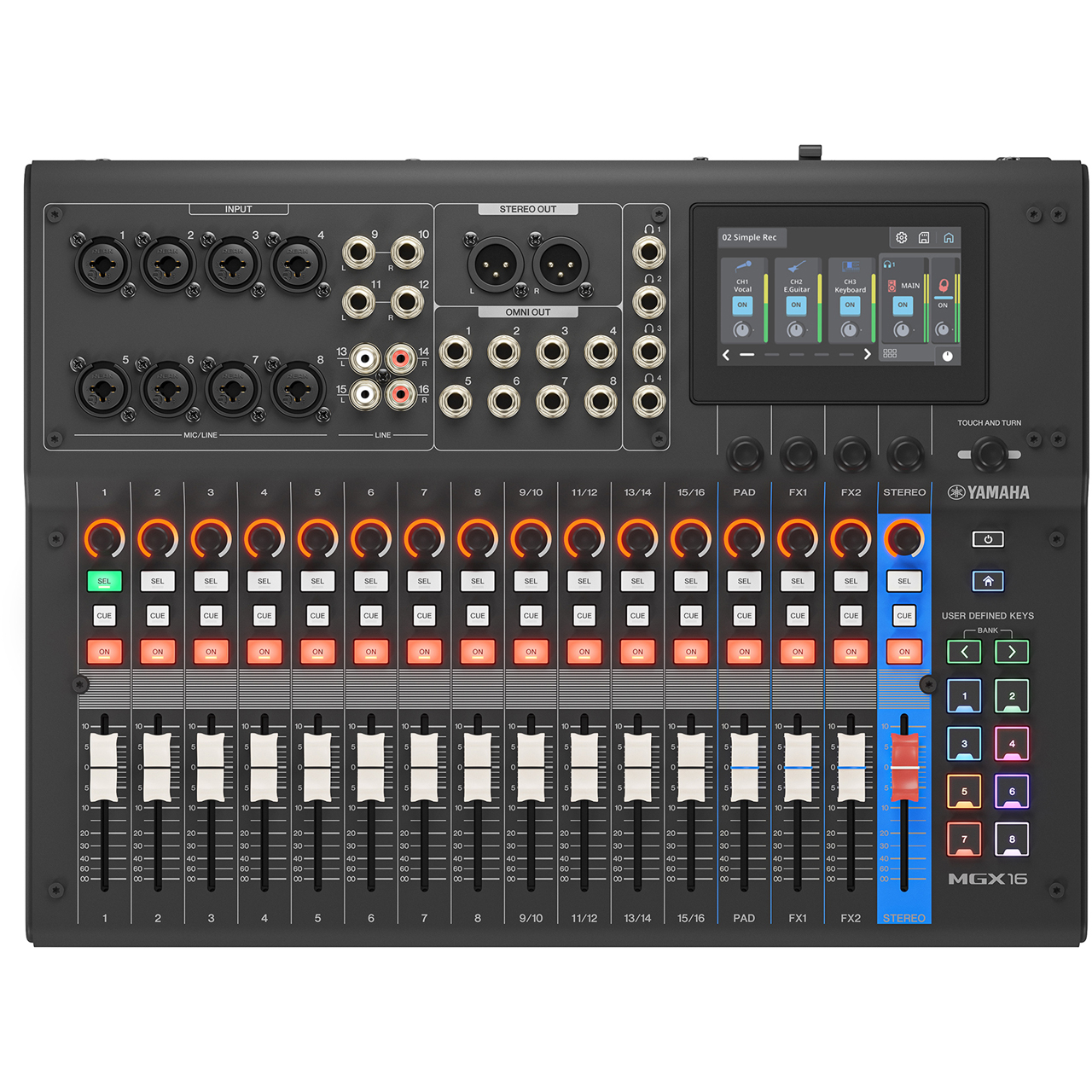

Yamaha MGX16 B 22-Channel Digital Mixing Console with Dual USB-C Audio Interface - Black Finish

ITEM #: YMH-MGX16-B MFG #: MGX16-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,330.00

Our Price:

$1,099.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MGX16-B - Overview

The Digital Evolution Of An Analog Classic

Building on the legacy of Yamaha's MG series - already established as a global standard in mixing consoles - MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, exceling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.

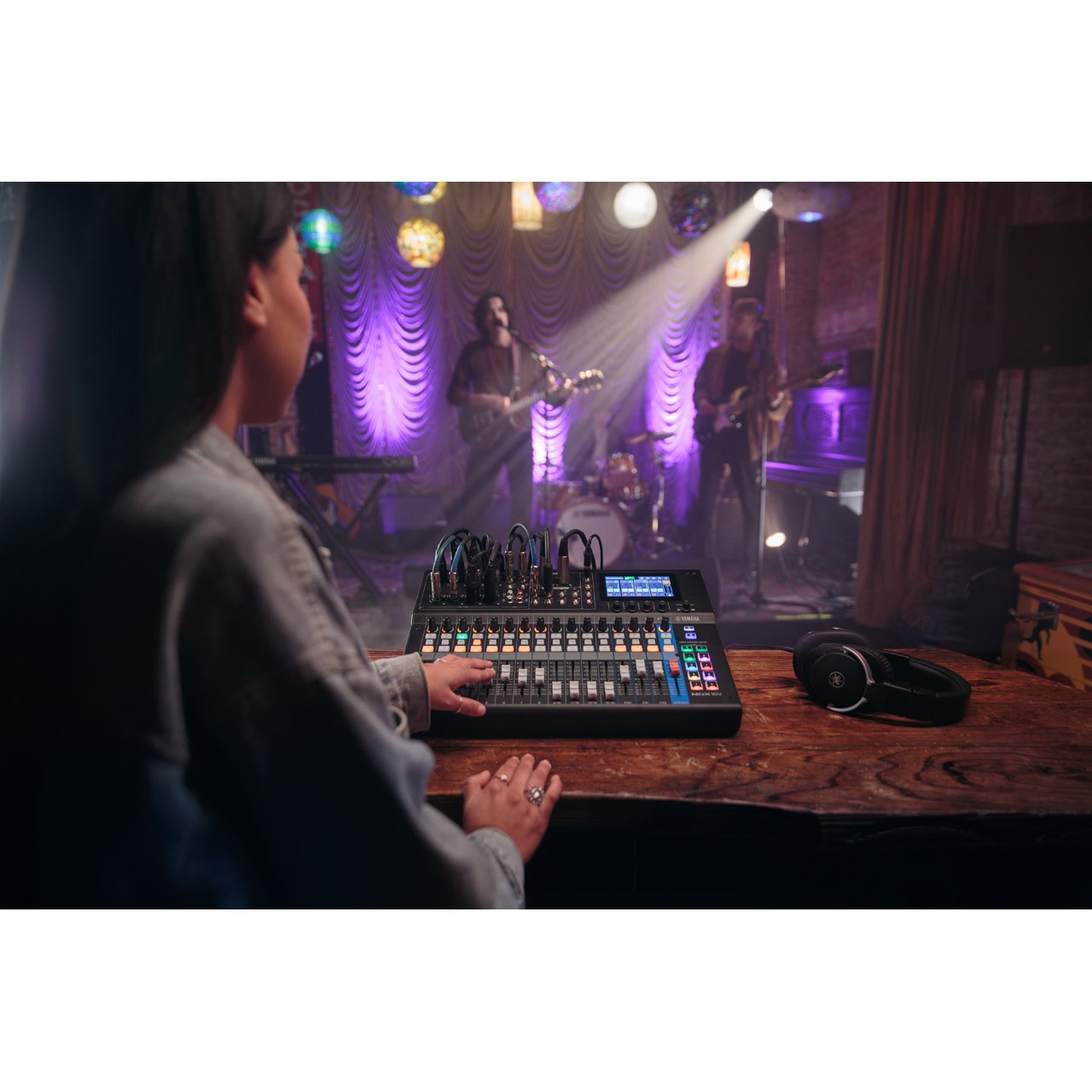

The MGX16 continues Yamaha's tradition of excellence in mixing, offering a digital console that balances power, flexibility, and intuitive operation. Featuring a touch-panel GUI, physical controllers, and extensive I/O, it adapts easily to diverse applications - from live sound in cafes, clubs, halls, and houses of worship to podcasting, streaming, music production, and professional recording. Its streamlined workflow ensures fast operation without compromising sound quality, while its versatility supports a wide range of configurations. Designed for engineers, creators, and performers, the MGX16 delivers professional-level audio performance that enhances every production and engages audiences in any environment.

The powerful and extremely versatile features of the MGX are designed to be operated quickly and intuitively through its touch-panel GUI and various physical controllers. In addition, a comprehensive selection of I/O options allows you to freely configure the system to suit any application. From live sound and installed sound systems - whether in halls, cafes, clubs, or houses of worship - to podcast streaming and professional recording, the MGX adapts seamlessly to a wide range of environments. And in every case, operators, artists, and audiences alike will be captivated by the quality of its sound and performance.

  • Features:

    • 15 + 1 fader configuration (non-motorized fader)

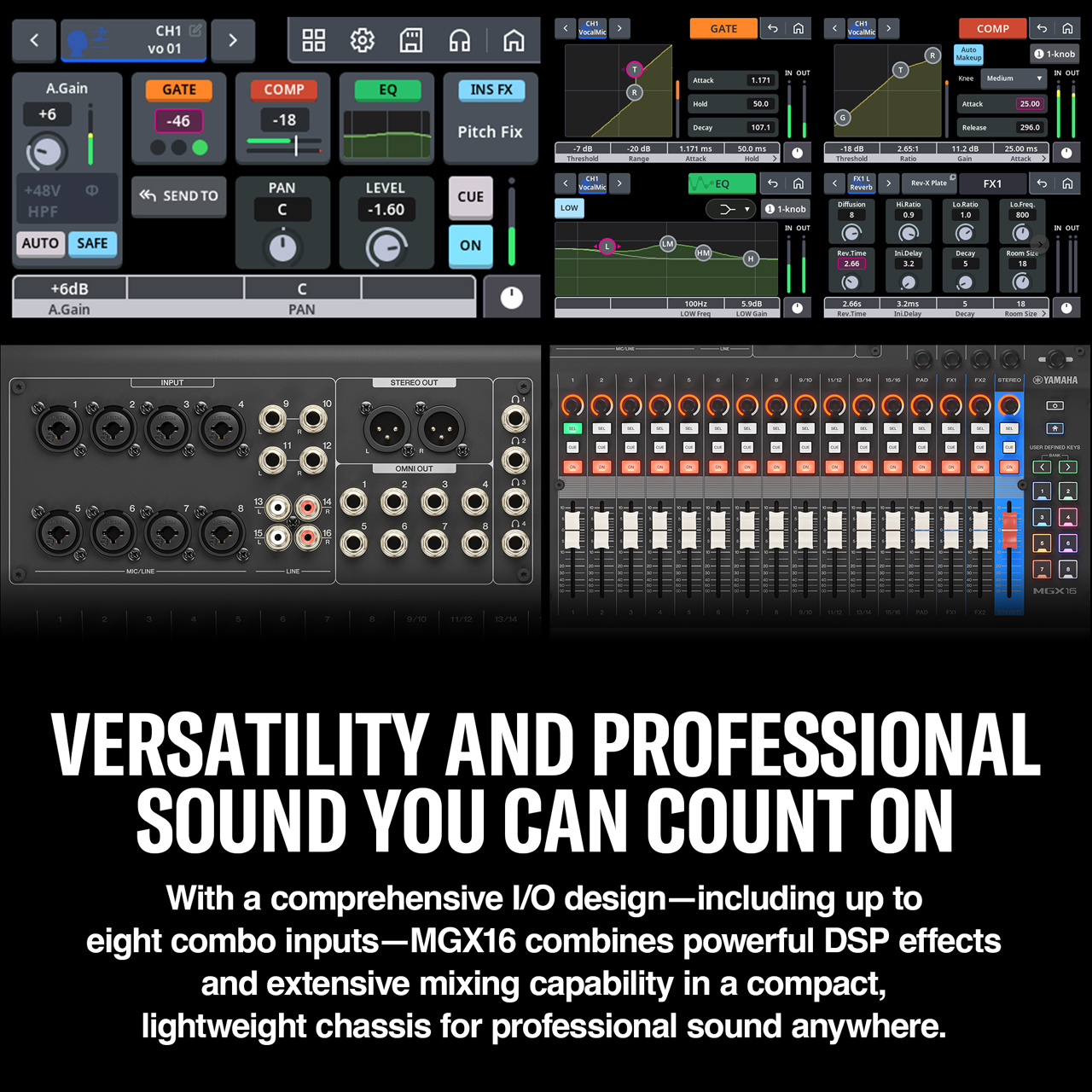

    • A 4.3" touchscreen with five control knobs
    • Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2FX return
    • Busses: 8 Mix + 2FX + 1 CUE + 1 STEREO
    • Local I/O: 8 Mic/Line (8 XLR/TRS Phone Combo), 8 Line (4 TRS Phone, 4 RCA) inputs, and 2 XLR, 8 TRS Phone, 4 Headphones
    • USB MAIN: 22 inputs/22 outputs (32-bit/96kHz)
    • USB SUB: 2 inputs/2 outputs (16-bit/48kHz)
    • Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
    • microSD Card: 16-track recording/2-track playback (24-bit/Up to 96kHz)
    • Built-in DSP processor for professional sound and latency-free monitoring
    • Assistive features: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall

  • Specifications:

      I/O Connectors
    • Analog Input:
      - 8x Combo (Mic/Line)
      - 4x TRS (Line)
      - 4x RCA (Line)
    • Analog Output:
      - 2x XLR
      - 8x TRS

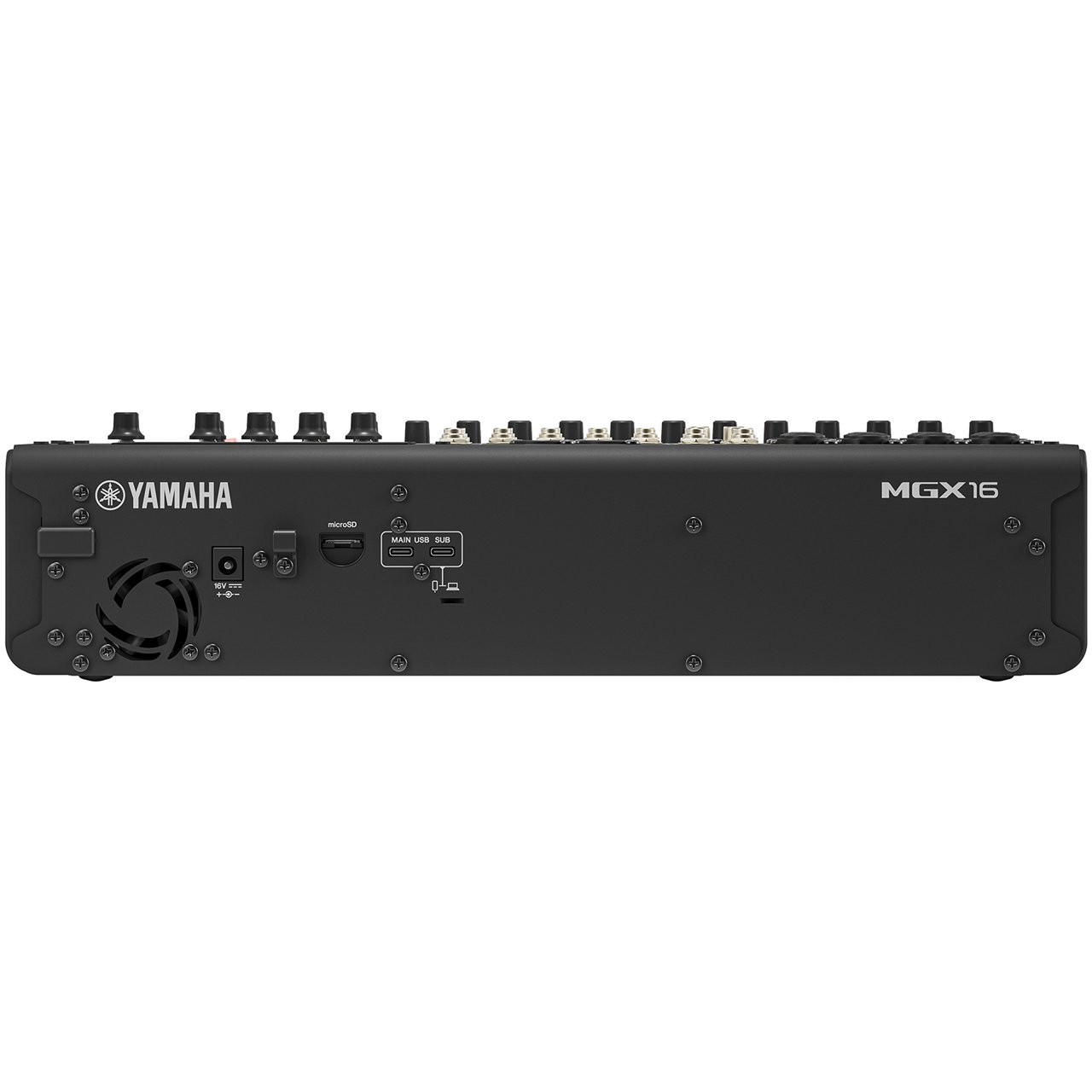

    • USB to Host: 2x (USB Type-C, MAIN: 32-bit/SUB: 16-bit)
    • Phones: 4x TRS (100mW+100mW @40Ω)
    • DC: 1x (Burrel type, DC power IN)
    • microSD Card Slot: 1x microSD Card Slot
    • Bluetooth: 1x Bluetooth audio input (Bluetooth 5.0, A2DP)

      User Interface
    • 4.3" touch screen
    • 16x60mm fader
    • 16x SEND knob
    • 5x rotary encoder (4x screen knob, 1x "Touch and Turn")

      Recording & Playback
    • USB: 22-track recording/18-track playback
    • USB (SUB): 2-track recording, 2-track
    • microSD Card: Up to 16-track recording/2-track playback
    • Sampling Frequency Rate: 96kHz - 44.1kHz

      Outline
    • Mixing Capacity:
      - Input Channels: 8x mono + 4x stereo + 1x Sound Pad + 2x FX
      - Mix Buses: 8x MIX + 2x FX + 1x CUE + 1x STEREO
      - Matrices: 1x
      - Stereo Buses: 2x
      - FX Buses: 1x
    • Cue Buses: Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), PitchFix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)
    • On-Board Processors: DSP 8x mono + 4x stereo + 1x Sound Pad + 2x

      Other
    • Signal Delay: Less than 2 ms (INPUT to STEREO OUT @ Fs=96kHz)
    • Frequency Response: +1.0/-2.0dB 20Hz - 20kHz, reference to the nominal output level @1kHz, Input Gain= Min.
    • Dynamic Range: 125dB typ., DAC to STEREO OUT, 115dB typ., INPUT to MAIN OUT, Input Gain=Min.
    • Total Harmonic Distortion: Less than 0.002% (20Hz - 20kHz)@+4dBu, MIC INPUT to STEREO OUT, Input Gain=Min.
    • Hum & Noise Level:
      - Equivalent Input Noise: -128dBu typ., Input Gain= Max.
      - Residual Output Noise: -108dBu, ST main off
    • Crosstalk: -120dB, adjacent INPUT/STEREO OUT channels, Input Gain= Min. @1kHz
    • Gain Range: 86dB

      Physical
    • Power Requirements: DC16V/2.4A, PA-300C AC power adapter (100V - 240V, 50Hz/60Hz)
    • Power Consumption: 38.4W
    • Dimensions: 16.5" x 3.8" x12.5"
    • Net Weight: 10.4lbs

  • Item Includes:

    • 1x MGX16 (black)
    • 1x Start Guide
    • 1x Safety Guide
    • 1x Steinberg Software License Card (Cubase AI, WaveLab Cast LE, Basic FX Suite, Steinberg Plus), AC Power Adapter (PA-300C)

  • GTIN:

    0889025170833
