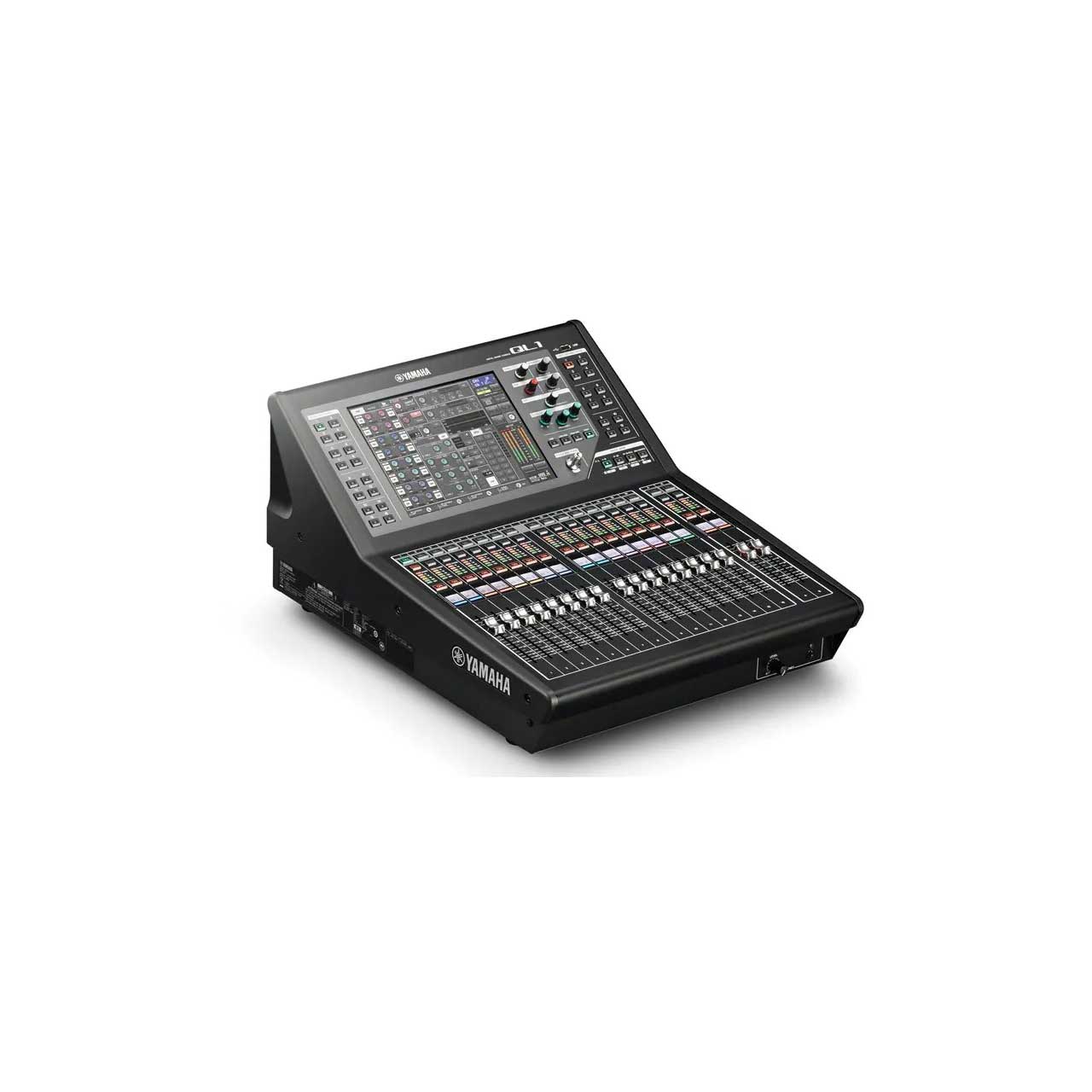

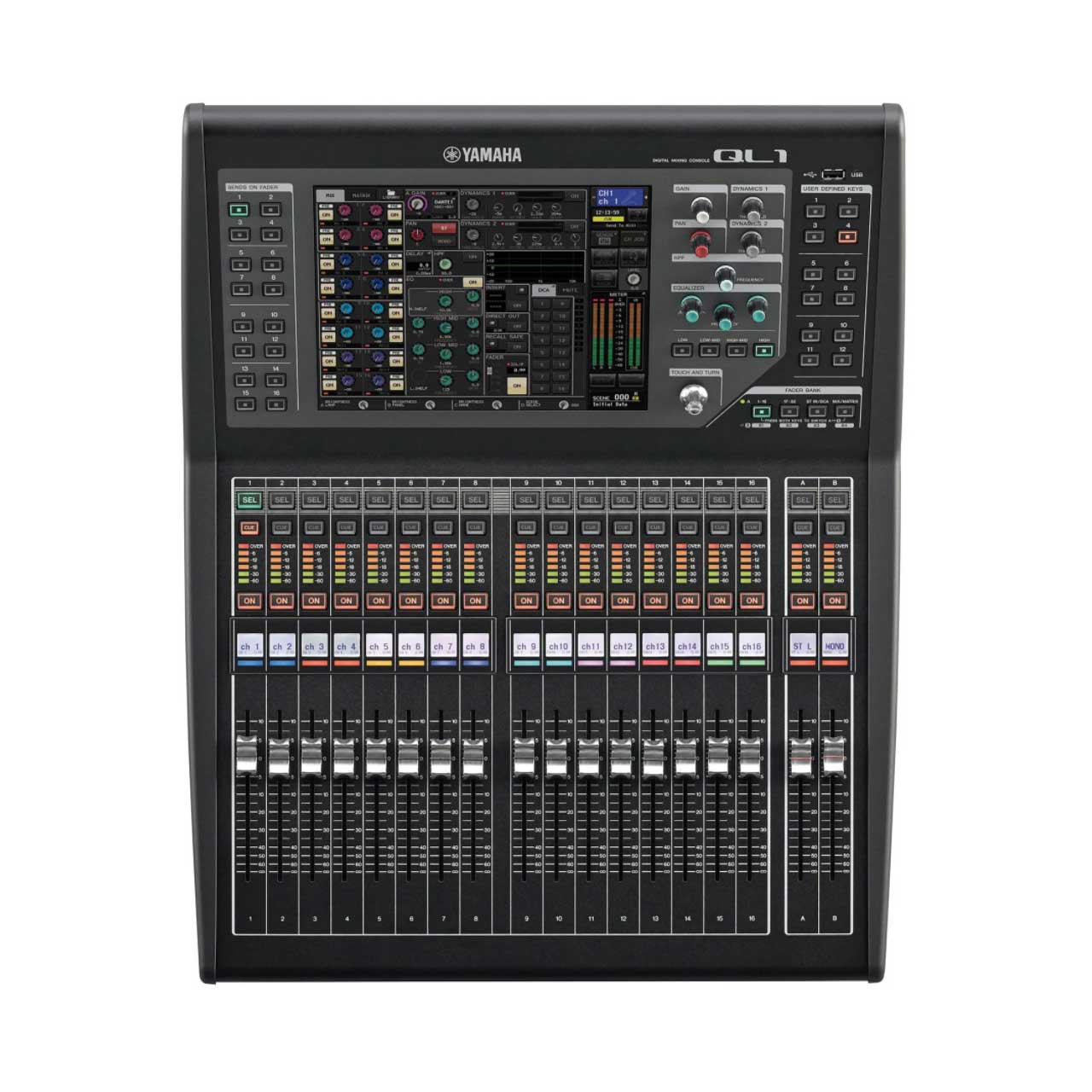

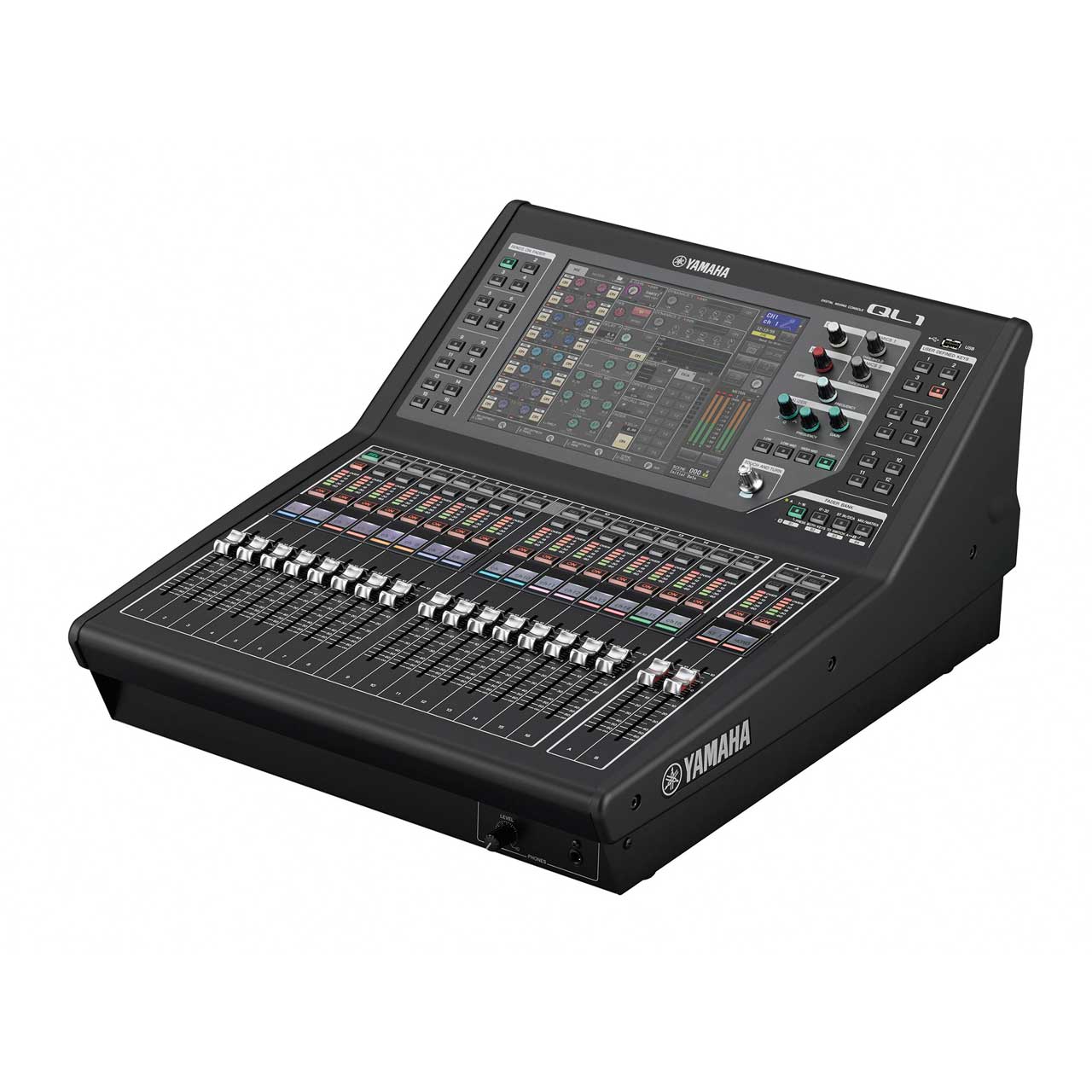

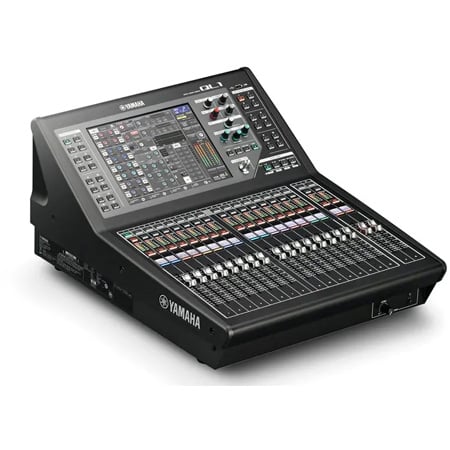

Yamaha QL1 32-Input Digital Audio Mixing Console with Dante Networking


  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    QL1 - Overview

    The Yamaha QL1 Digital Audio Mixing Console is configured as a 16 + 2 fader (master) unit with 32 mono / 8 stereo mix channels. The QL1 console offers all-in-one mixing, processing, and routing capability for small to medium scale live sound, corporate speech events, installations, and much more. Core features and performance of the Yamaha QL are inherited directly from the CL series, including sonically superb internal processing capabilities and built-in Dante networking that facilitates flexible system configuration.

    The Yamaha QL series consoles feature circuitry and components that have been designed and selected with the utmost care, achieving outstanding audio purity from input to output. With that solid sonic foundation it becomes possible to take full advantage of built-in premium internal processors such as the Portico 5033/5043 created in cooperation with Rupert Neve, to shape and create as required. For a wide range of speech applications built-in automatic mixing functionality from Dan Dugan Sound Design provides optimum channel balance while allowing the operator to concentrate fully on optimizing the overall sound.

    QL series consoles feature large touch-panel displays as well as "Touch and Turn" knobs that make up a remarkably smooth, efficient control interface. Attention has also been paid to details such as fader feel and channel name display visibility in order to deliver a sophisticated overall operating experience. Remote control and offline setup capability via an iPad or computer adds even more refinement to an already state-of-the-art operating environment.

    In addition to ample analog input and output capacity, QL series consoles feature the same Dante audio networking protocol that provides broad connectivity in the CL consoles. There's also an innovative "Port to Port" feature that can patch any input port to any output port so the QL console can function as a remote I/O device for any other QL or CL series console, for example. Other flexibility enhancing features such as 2-track and multitrack recording capability, and dual MY expansion slots that allow processing capability or I/O to be added as required, make the QL consoles suitable for use as central components in an extensive variety of sound applications.

    Supports SMPTE ST2210-30 with the latest firmware (v5.7) installed.

    • Features:

      • Supports SMPTE ST2210-30 with the latest firmware (v5.7) installed.
      • Mix channels: 32 mono
      • 8 stereo
      • Busses: 16 mix
      • 8 matrix (Input to Matrix supported)
      • Local I/O: 16 in
      • 8 out
      • Fader configuration: 16 + 2 (Master)
      • Rack mountable with optional YMH-RK1
      • Rack Mount Kit
    • Specifications:

      • Type: Digital
      • Channels: 32 mono, 8 stereo mixing channels
      • Inputs - Mic Preamps: 16 x XLR
      • Phantom Power: 16 x Channels
      • Outputs - Main: 8 x XLR (Omni)
      • Inputs - Digital: 2 x EtherCon Cat5 (Dante Primary, Secondary)
      • Outputs - Digital: 1 x XLR (AES/EBU), 2 x EtherCon Cat5 (Dante Primary, Secondary)
      • Busses/Groups: 16 mix, 8 matrix
      • Channel Inserts: Yes
      • Talkback: Yes
      • MIDI I/O: In, Out
      • Data I/O: Network RJ-45, GPI
      • USB: 1 x Type A
      • I/O Expansion Slots: 2 x Slots (mini-YGDAI)
      • Headphones: 1 x 1/4"
      • Word Clock: In, Out
      • Faders: 18 x 100mm Throw
      • EQ Bands: 4-band Parametric
      • Effects: Yes
      • Rackmountable: Yes (kit sold separately)
      • Height: 10.7"
      • Depth: 22.1"
      • Width: 18.4"
      • Weight: 32.4 lbs.
      • Manufacturer Part Number: QL1
