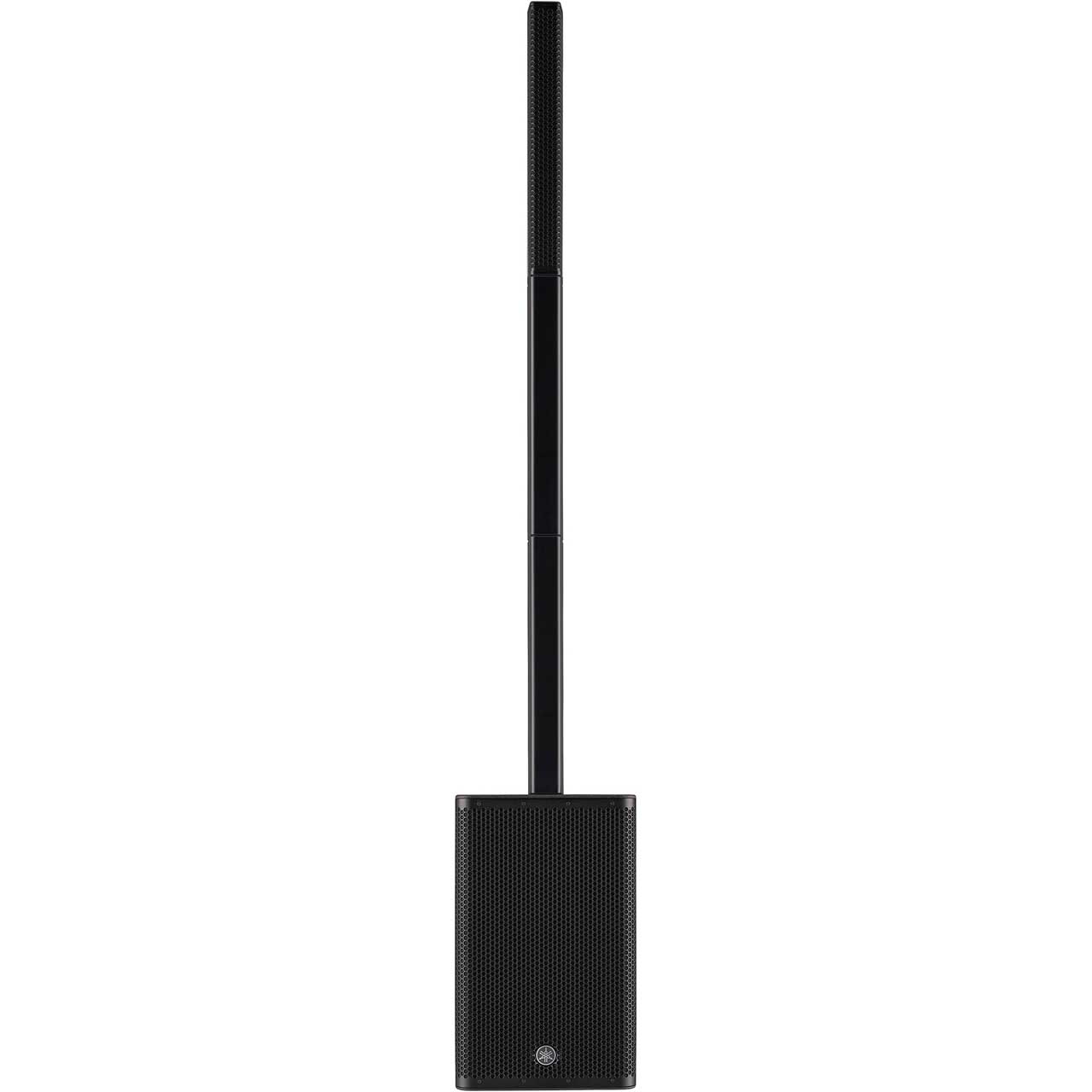

Yamaha STAGEPAS 1K MKII 1100 Watt High Frequency Portable Array Speaker PA System with Subwoofer & 125dB SPL

ITEM #: YMH-STAGEPAS1KM2 MFG #: STAGEPAS 1K MKII

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,029.00

Our Price:

$1,449.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    STAGEPAS 1K MKII - Overview

    More Practical. More Professional. More Powerful.
    The Yamaha STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing our unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

    Simple setup and control allow you to focus on your performance
    The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like "Speech" or "Music" to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow letting you focus on your performance.

    Best-in-Class Compact Power
    A 1100W amplifier drives the array speaker with 10 small-diameter 1.5-inch units, as well as a class-leading 12-inch subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.

    • Features:

      • 1100W power output
      • Biggest in the class 12-inch subwoofer for low frequency
      • 1.5-inch x10 slim line array speaker for high frequency

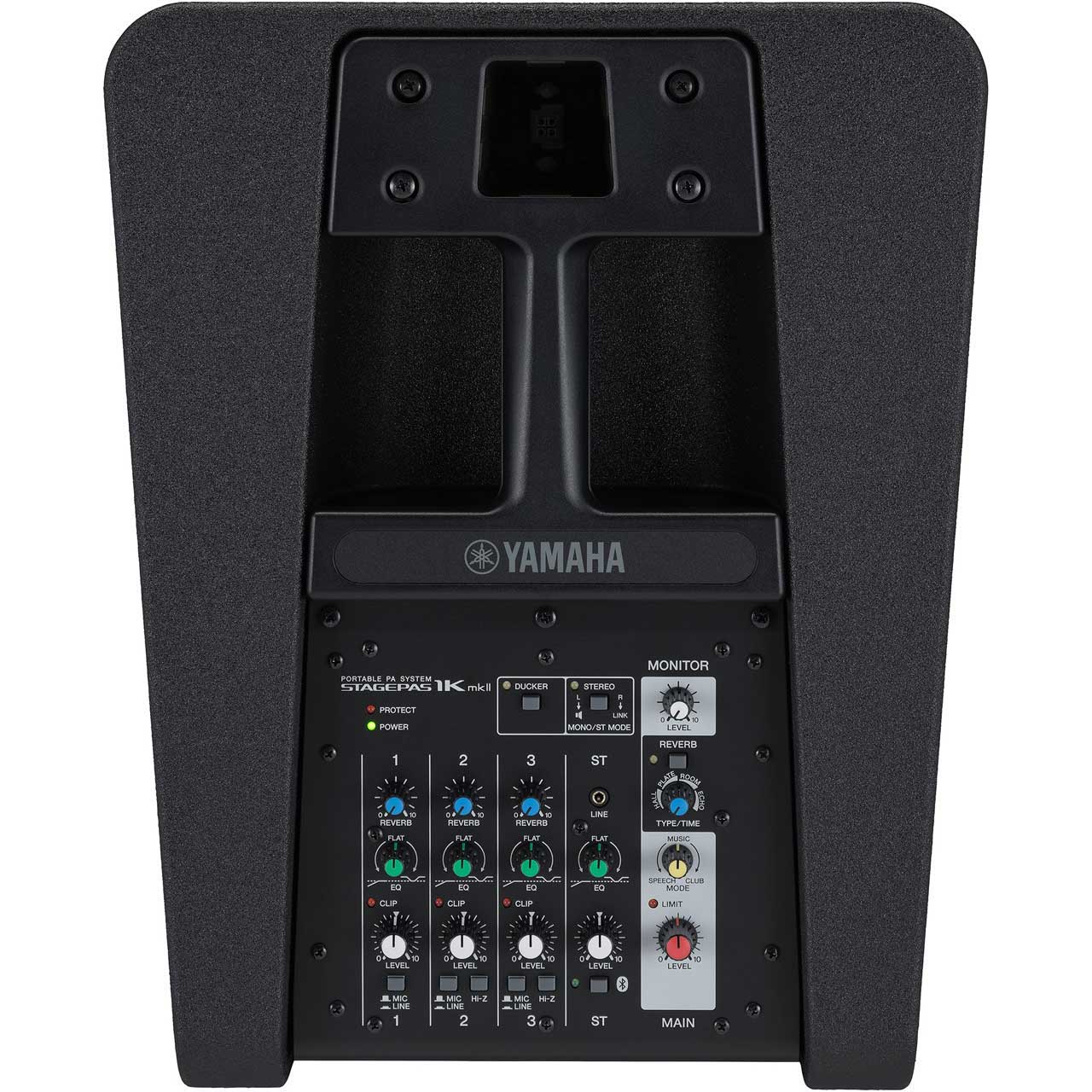

      • Digital mixer (3 mono mic/line + 1 stereo line)
      • Multi band comp "MODE" for master output
      • 1-knob EQ per channel
      • High resolution SPX digital reverb (4 types, parameter control)
      • Priority Ducker for stereo channel
      • 4 band PEQ per channel via remote control APP "STAGEPAS Controller"
      • 2x Hi-Z (high impedance) inputs
      • Link out and monitor out

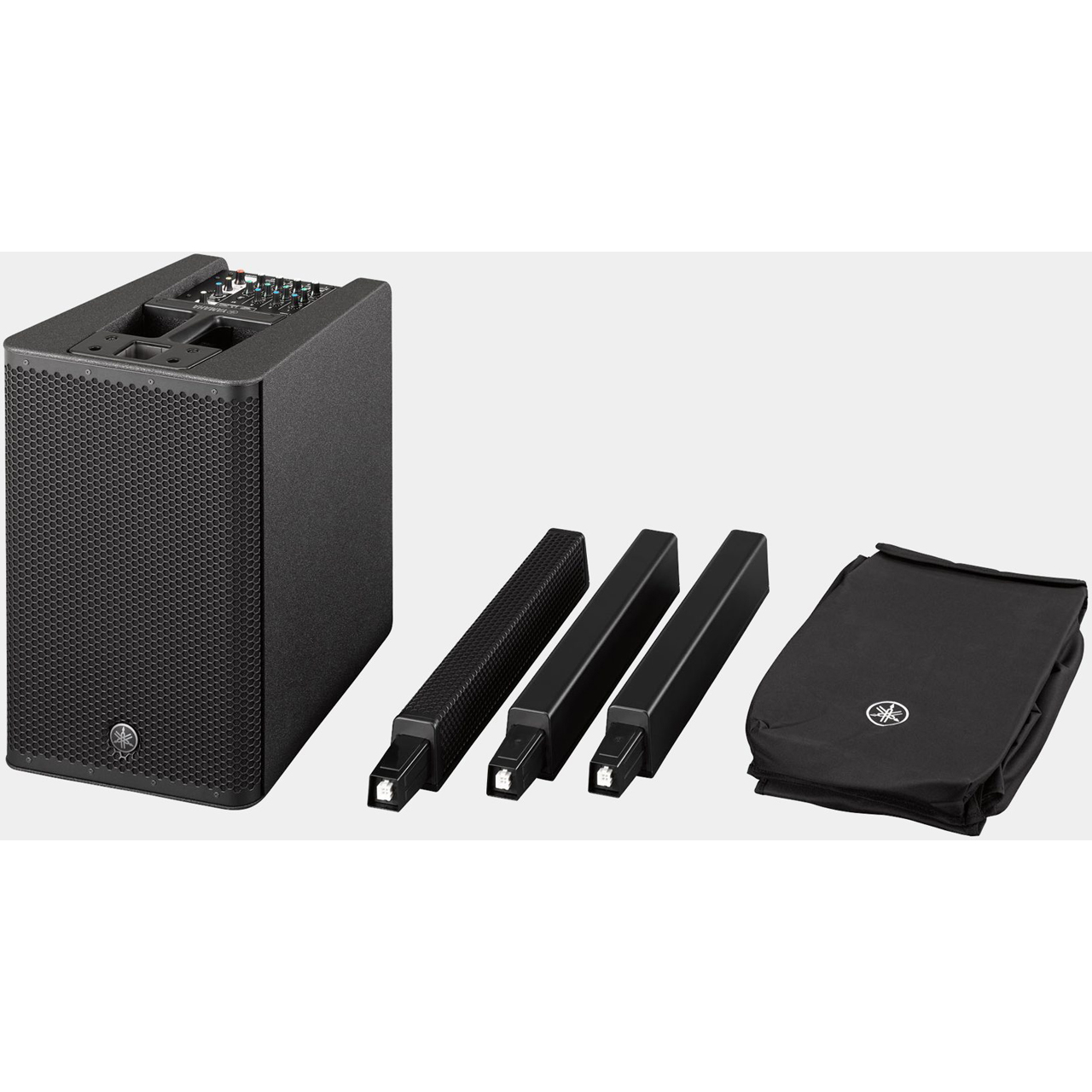

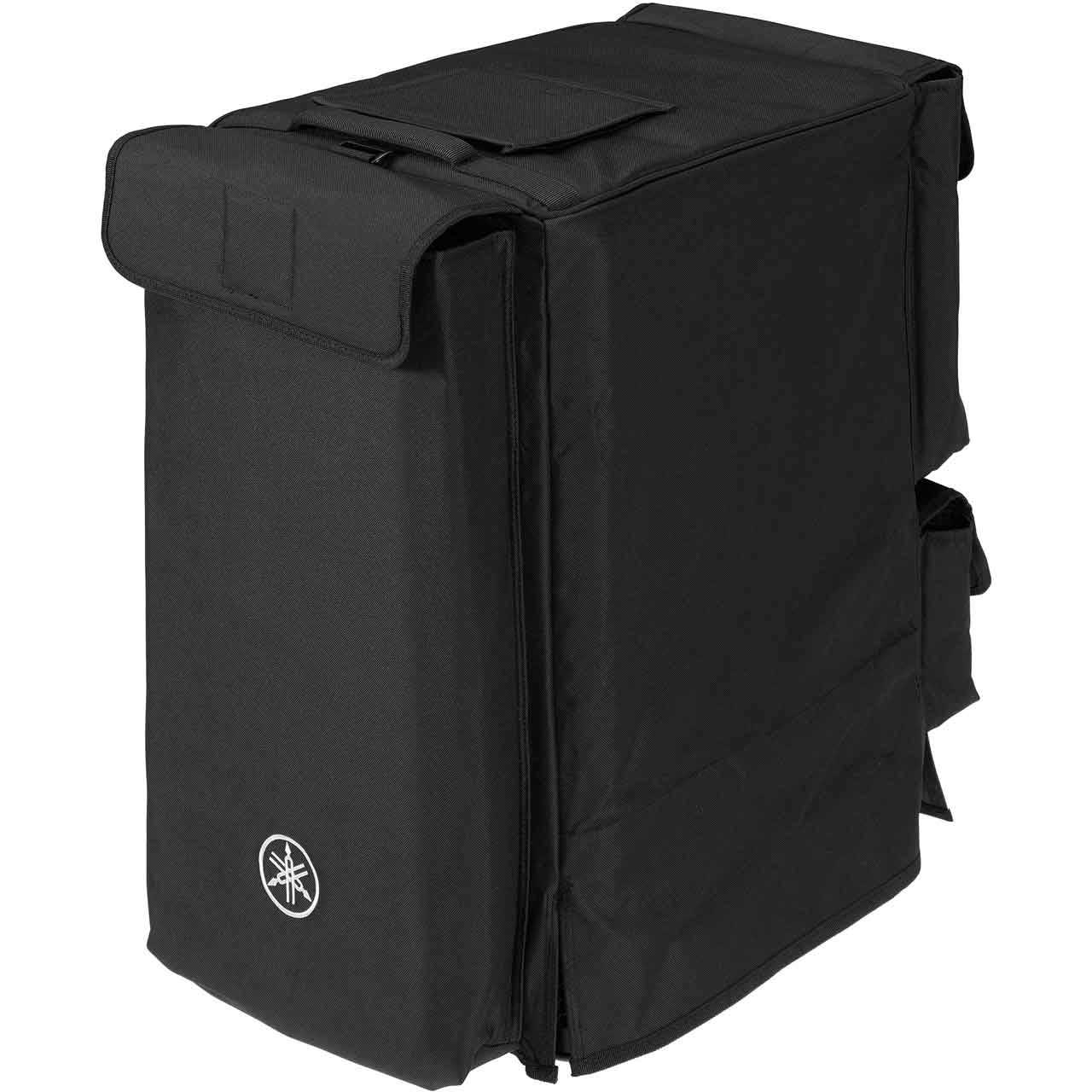

      • Dedicated cover included
      • Optional reverb foot switch (FC5)
      • Optional dolly (DL-SP1K) for more portability

    • Specifications:

      • Type: Powered subwoofer with a line array speaker
      • Mixing capability:
        Mixing channels: 5 (Mono x3 + Stereo x1)
        Input channel functions: Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
        Output channel functions: MODE (SPEECH/MUSIC/CLUB)
      • I/O:
        Inputs: Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
        Outputs: Link out x1, Monitior out x1
        Bluetooth: Bluetooth Ver.5.0, A2DP (SBC, AAC)
        Control and others: Reverb foot switch, STAGEPAS Controller (iOS/Android app)
      • DSP: SPX digital reverb (4 program, parameter control)
      • Speaker type: Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
      • Frequency range (-10dB): 37 Hz - 20 kHz
      • Coverage area: H170° x V30°
      • Crossover: 240 Hz
      • Maximum output level (1m; on axis): 125 dB SPL
      • Components: LF - Powered subwoofer: 12" (30 cm) Cone / HF - Line array speaker: 1.5" (3.8 cm) Cone x 10
      • Amplifier class: Class-D
      • Power rating - Dynamic: 1100 W
      • Power consumption: 25 W (Idle), 91 W (1/8 power)
      • Power requirements: Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz
      • Handle: Top of powered subwoofer x1
      • Dimensions (W x H x D): System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
      • Weight: System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)

    • Item Includes:

      • 1x Power cord
      • 1x Cover
