Yamaha URX44 B 6x4 Dual USB-C Audio Interface with 32-bit / 192kHz Support & Touchscreen - Black Finish

ITEM #: YMH-URX44-B MFG #: URX44-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$605.00

Our Price:

$499.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


URX44-B - Overview

More Connections For Unlimited Creativity

The Yamaha URX44 is a 6-in/4-out USB-C audio interface designed for multi-instrumental musicians, podcasters, and producers who need professional functionality in a compact format. Supporting 32-bit/192kHz audio, it integrates DSP-powered mixing and effects with a touch LCD and physical controller for intuitive operation. Expanded I/O and flexible routing handle multiple sources, while features like auto gain streamline setup. Delivering pristine sound and efficient workflows, the URX44 excels in recording, production, and streaming. With professional performance and creative flexibility, it provides a powerful solution that adapts to a wide range of scenarios.

URX is an ideal audio interface for creators upgrading from entry-level-high quality, versatile, and intuitive and fast (easy to use).

Level Up
You know the fundamentals, you've put in the hours, and your audio production game is getting to the level where you need that extra functionality, connectivity, and sound quality to make your recordings, streams, and productions truly match your creative vision?

The URX series digital interfaces mark a significant step up in quality and flexibility from entry level interfaces while retaining their greatest attributes; a compact, unobtrusive design, simple connectivity, and ease of operation. As all-in-one solutions, all three URX models come equipped with onboard DSP mixing tools and effects integrated into the LCD panel's GUI, as well as a touch panel interface, carefully selected physical knobs, and support for compatible controllers, enabling a highly intuitive and speedy workflow.

Each URX model comes bundled with a comprehensive suite of music production software to support every stage of your workflow - from creation and audio management to system expansion. Backed by the rock-solid stability and reliability trusted by audio professionals worldwide, Yamaha and Steinberg provide the confidence you need to take on your next creative challenge.

  • Features:

    • USB Type-C audio with 32-bit/192kHz support, Multi-Stream Audio Driver, dual MAIN/SUB USB
    • 125dB dynamic range (balanced output)
    • 4 microphone preamps with 78dB gain range and +48V phantom power
    • 4 Mic/Line (2 Combo/3.5mm headset mic, 2 Combo with Hi-Z), 1 AUX input (3.5mm Phone)
    • 4 TRS line outputs, 2 headphones (1 stereo phone/3.5mm headset, 1 stereo phone)
    • Input mixing channels: 4 mono + 4 stereo + 2 FX
    • Busses: 2 MIX (stereo) + 2 FX + 1 CUE + 1 STEREO

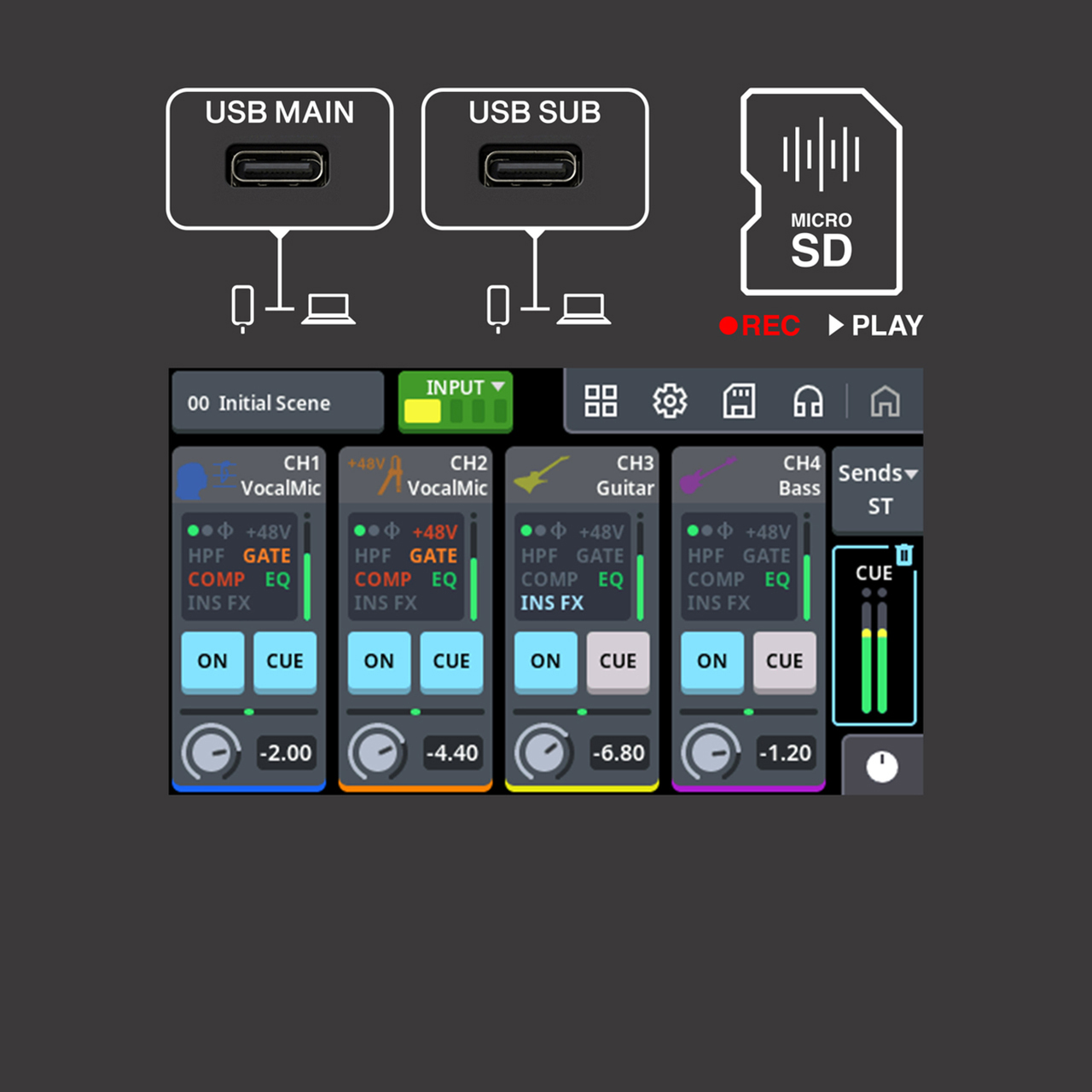

    • A 4.3" touchscreen with five control knobs
    • Assistive features: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall
    • Built-in DSP processor for professional sound and latency-free monitoring
    • microSD card recording up to 16 tracks and playback 2 tracks
    • Metal housing with multiple color options (Black/White)

  • Specifications:

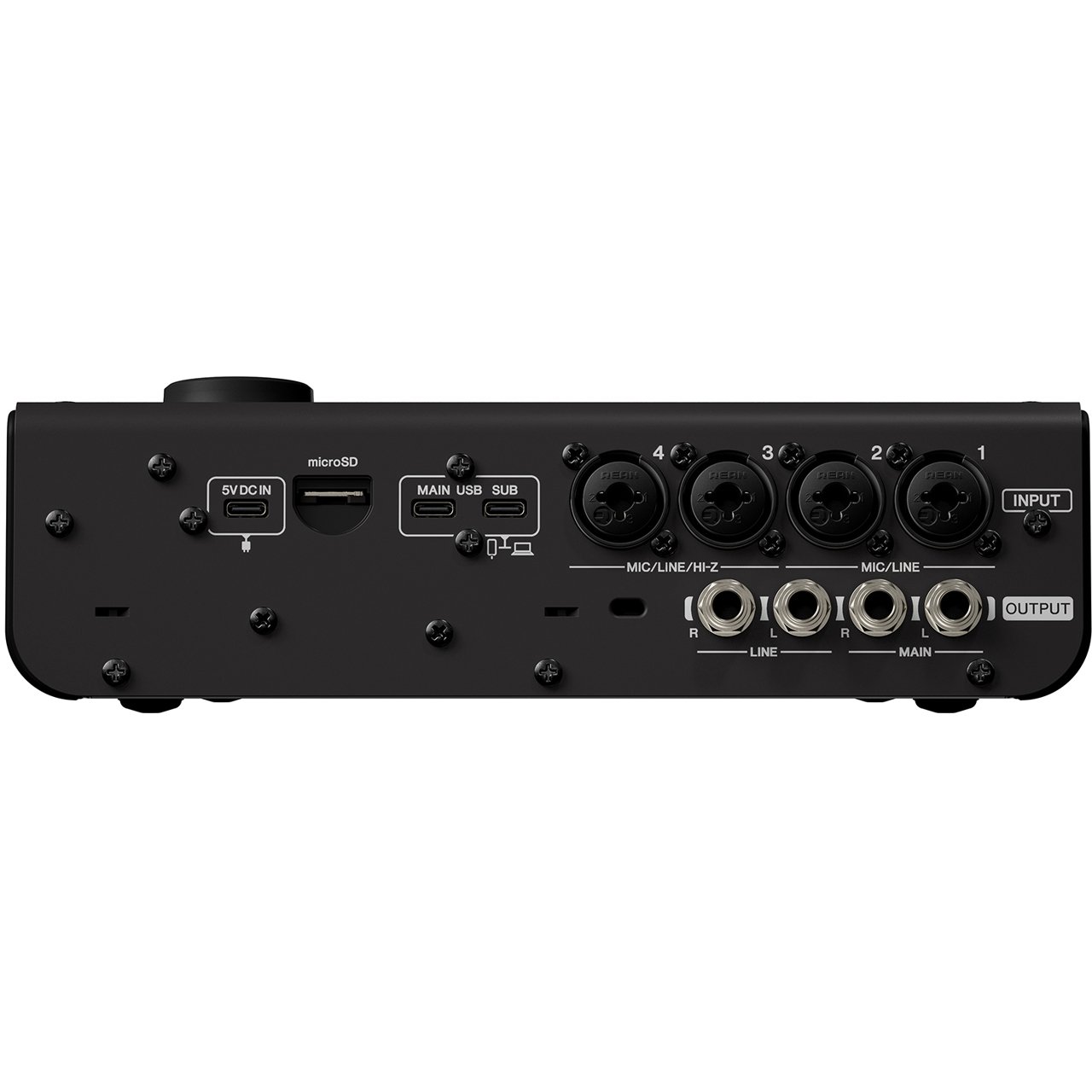

      I/O Connectors
    • Analog Input:
      - 4x Combo (1x Mic/Line/3.5mm headset mic, 1x Mic/Line, 2x Mic/Line/Hi-Z)
      - 1x AUX (3.5mm Phone)
    • Analog Output: 4x TRS
    • USB to Host: 2x (USB Type-C, MAIN: 32-bit/SUB: 16-bit)
    • Phones:
      - 2x TRS
      - 1x mini headset phones (100mW+100mW @40Ω)
      *The first TRS Phones port and the 3.5 mm mini port cannot be used simultaneously.
    • DC: 2x (Type-C USB MAIN bus power or Type-C USB DC IN)
    • microSD Card Slot: 1x

      User Interface

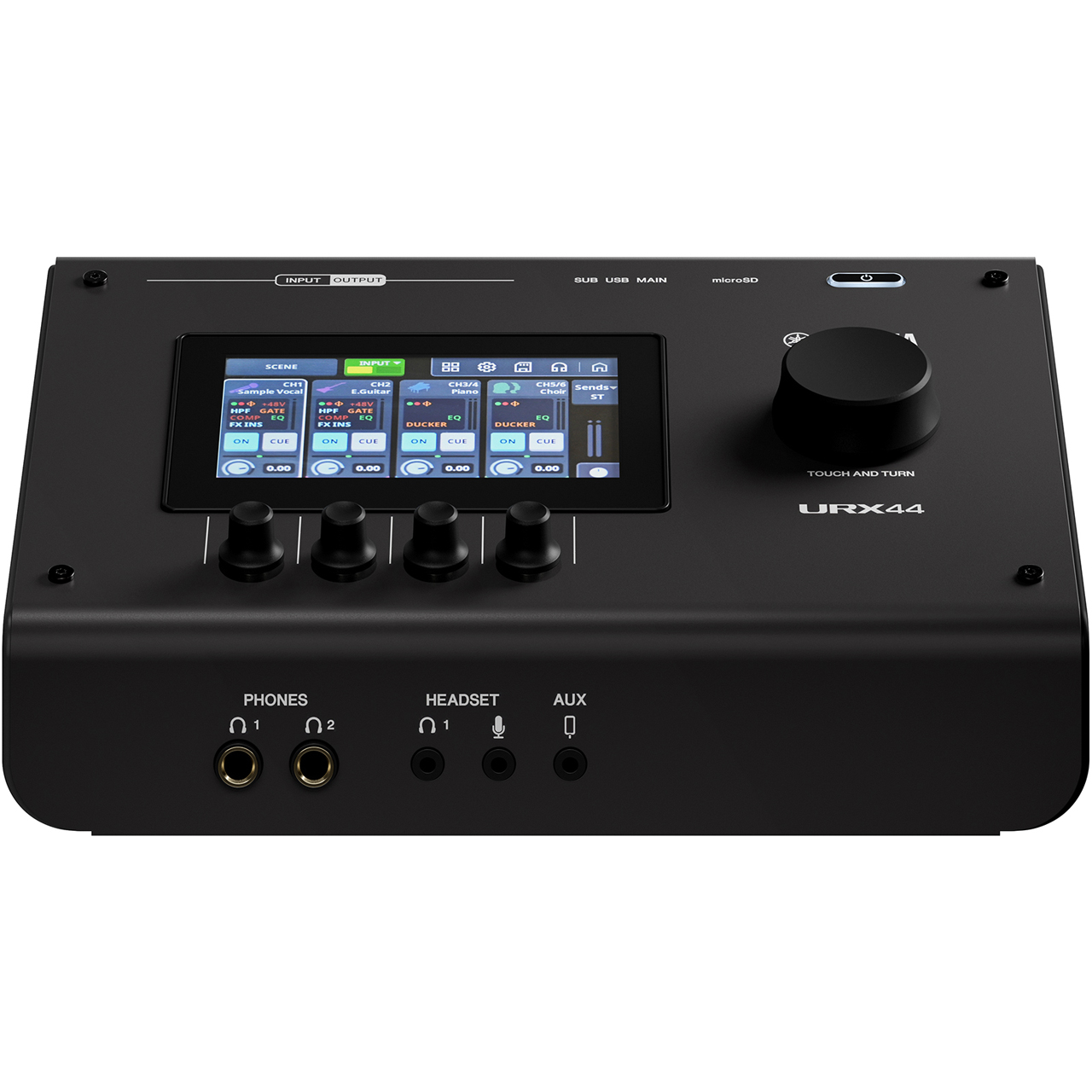

    • 4.3" touch screen
    • 5x rotary encoder (4x screen knob, 1x "Touch and Turn")

      Recording & Playback
    • USB: 18-track recording, 18-track playback
    • USB (SUB): 2-track recording, 2-track
    • microSD Card: Up to 16-track recording, 2-track playback

      Outline
    • Mixing Capacity:
      - Input Channels: 4x mono + 4x stereo + 2x FX
      - Mix Buses: 2x MIX (stereo) + 1x STEREO
      - Stereo Buses: 1x
      - FX Buses: 2x
      - Cue Buses: 1x
    • On-Board Processors: DSP Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), PitchFix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)

      Other
    • Sampling Frequency Rate: 192kHz - 44.1kHz
    • Frequency Response: +0.0/-0.2dB ( 20Hz - 20kHz)
    • Dynamic Range:
      - [MIC/LINE/Hi-Z] 115dB
      - [MAIN OUTPUT] 125dB
    • Total Harmonic Distortion:
      - [MIC/LINE/Hi-Z] 0.0008%, 1kHz, 20kHz
      - LPF; [MAIN OUTPUT] 0.00036%, 1kHz, 20kHz LPF
    • Hum & Noise Level: -128dBu, A-Weighted
    • Crosstalk: 100dB, adjacent INPUT/MAIN OUTPUT channels, Input Gain= Min.
    • Gain Range: 78dB
    • Power Requirements: DC5V/3.0A
    • Power Consumption: 15W (Off mode power: 0.1W)
    • Auto Power Off: 2 minutes, 5 minutes, 10 minutes, 15 minutes, 20 minutes or Never (factory default)
    • Dimensions: 9.6" x 3.1" x 7.2"
    • Net Weight: 4.2lbs

  • Item Includes:

    • 1x Start Guide
    • 1x Safety Guide
    • 1x Steinberg Software License Card (Cubase AI, WaveLab Cast, Basic Fx Suite, Steinberg Plus)
    • 1x USB-C to USB-C Cable (USB 2.0, 1.5m)

  • GTIN:

    0889025171281
