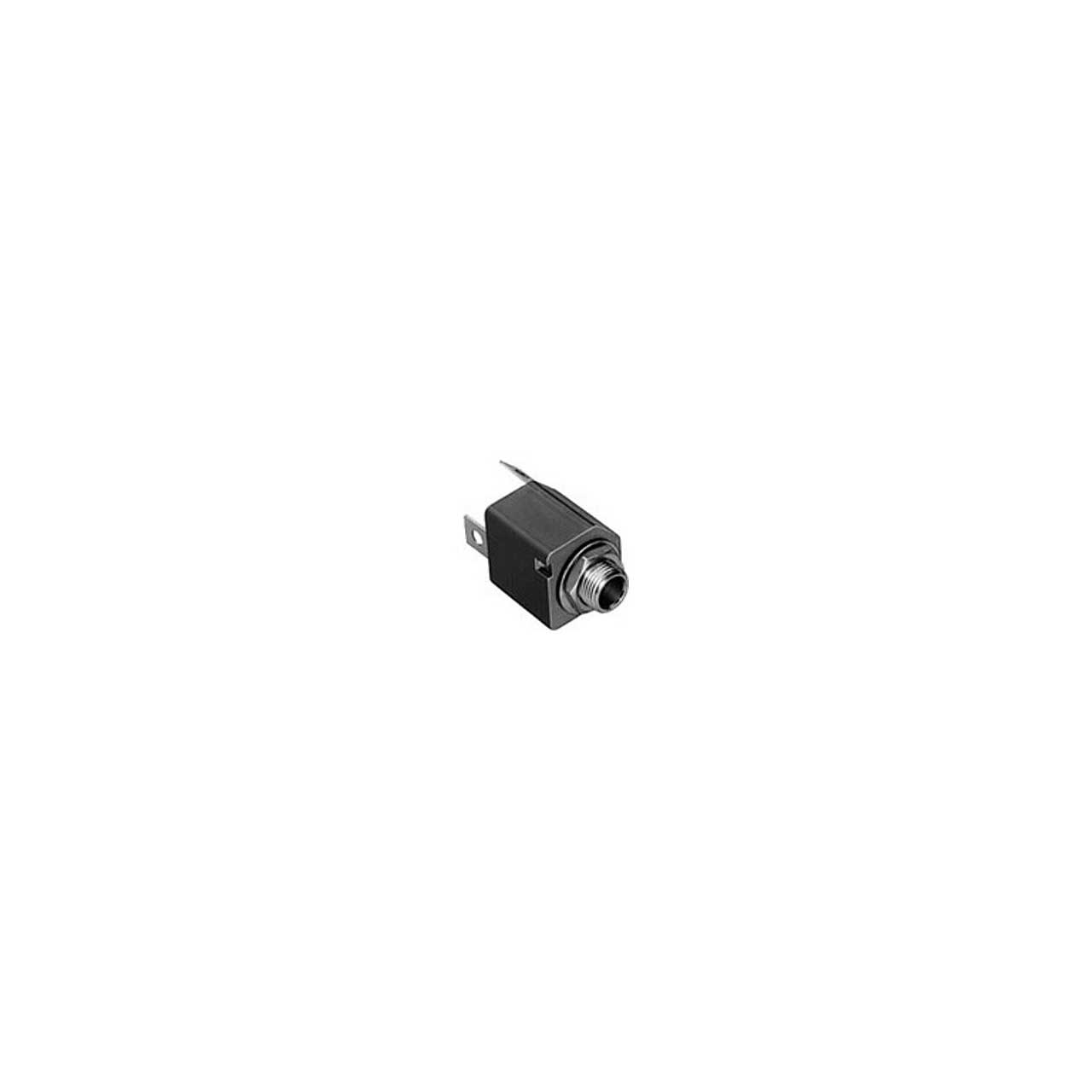

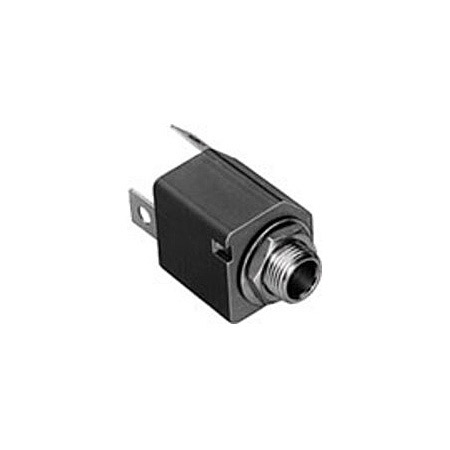

Switchcraft Z15J 1/4in High Power Speaker Jack

ITEM #: Z15J MFG #: Z15J

Primary Image
Switchcraft
Free Shipping with $49 Minimum Order

List Price:

$6.00

Our Price:

$5.45

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

Z15J - Overview

High power 2-conductor speaker jack carries 15A (continuous) audio speaker current levels. Jack Number Z15J has positive detent for plug retention. Terminations are solder lug; wires accepted are up to 10 AWG. Red housing indicates high current rating. Recommended mating plugs: 70, 184, 187 series.

  • Specifications:

    • Housing: Glass reinforced thermoplastic, UL 94V-O
    • Tip Spring and Ground Terminals: Copper alloy
    • Bushing and Hardware: Nickel-plated copper alloy (hardware supplied)
    • Heat Rise: 30°C with 15 A continuous carry
    • Life: 10,000 (minimum) with proper plug.
