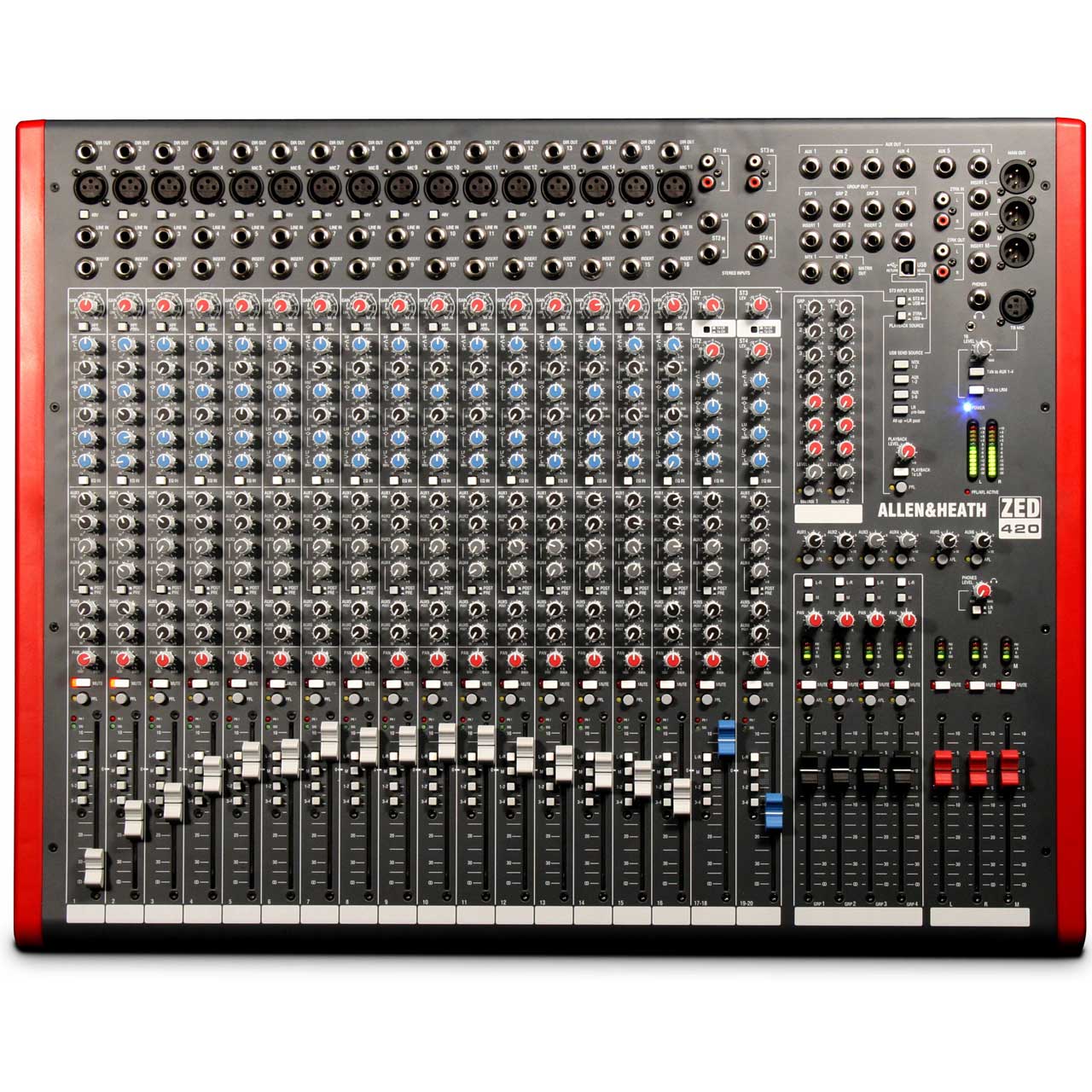

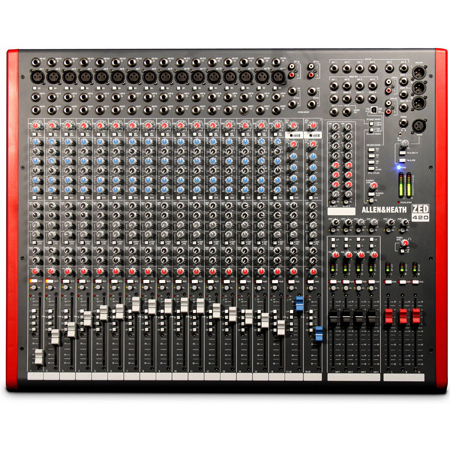

Allen & Heath ZED-420 16 Mic/Line Input 4 Buss Mixer With USB I/O

ITEM #: ZED-420 MFG #: ZED-420

free ship

List Price:

$2,999.99

Our Price:

$2,399.99

Availability: Direct Ship from manufacturer, contact us for availability
iAvailability Description Popup


    ZED-420 - Overview

    The Allen & Heath ZED-420 16 mic/line input 4 buss mixer is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock. ZED-420 has Configurable USB audio in/out makes it easy to capture stereo recordings, 16 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7x2 matrix.

    Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac.

    ZED-420 has a tuned 4-band EQ taken from the acclaimed GL2200 mixer, utilising MusiQ - with optimised slope (or Q factor) for equalising individual instruments.

    Based on the proven pre-amps from the hugely successful PA series, ZED-420 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

    ZED-420 - Required Accessories

      ZED-420 - Recommended Accessories
