ZOOM H5 4-Track Portable Digital Audio Recorder

ITEM #: ZOOM-H5 MFG #: H5

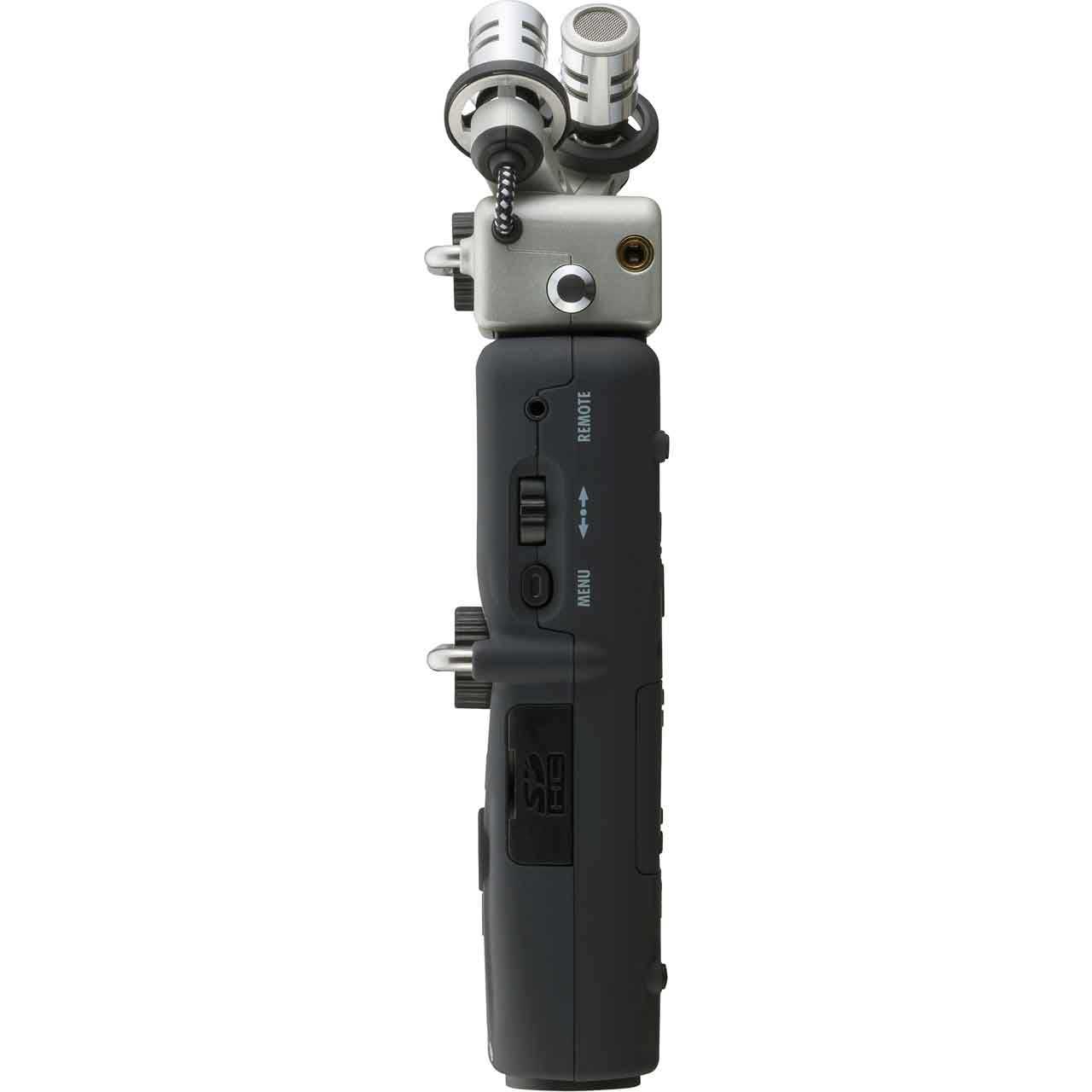

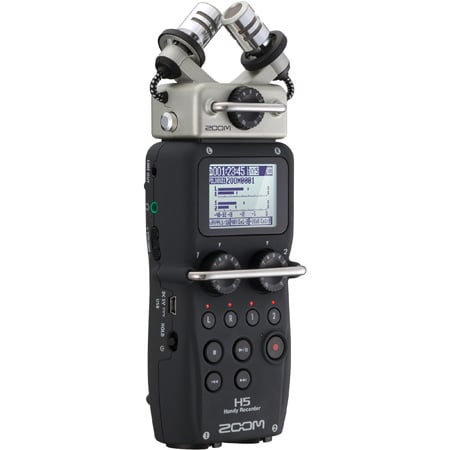

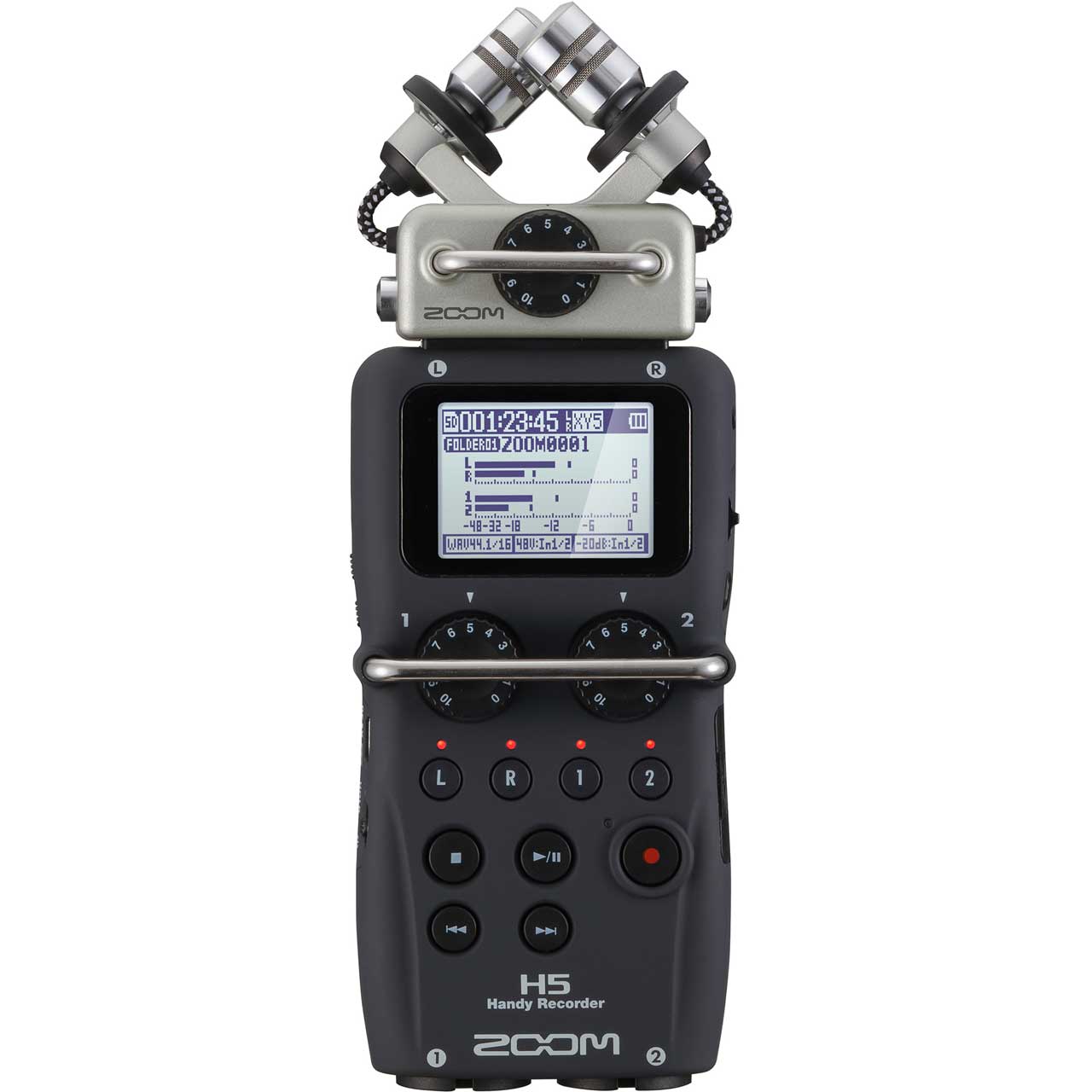

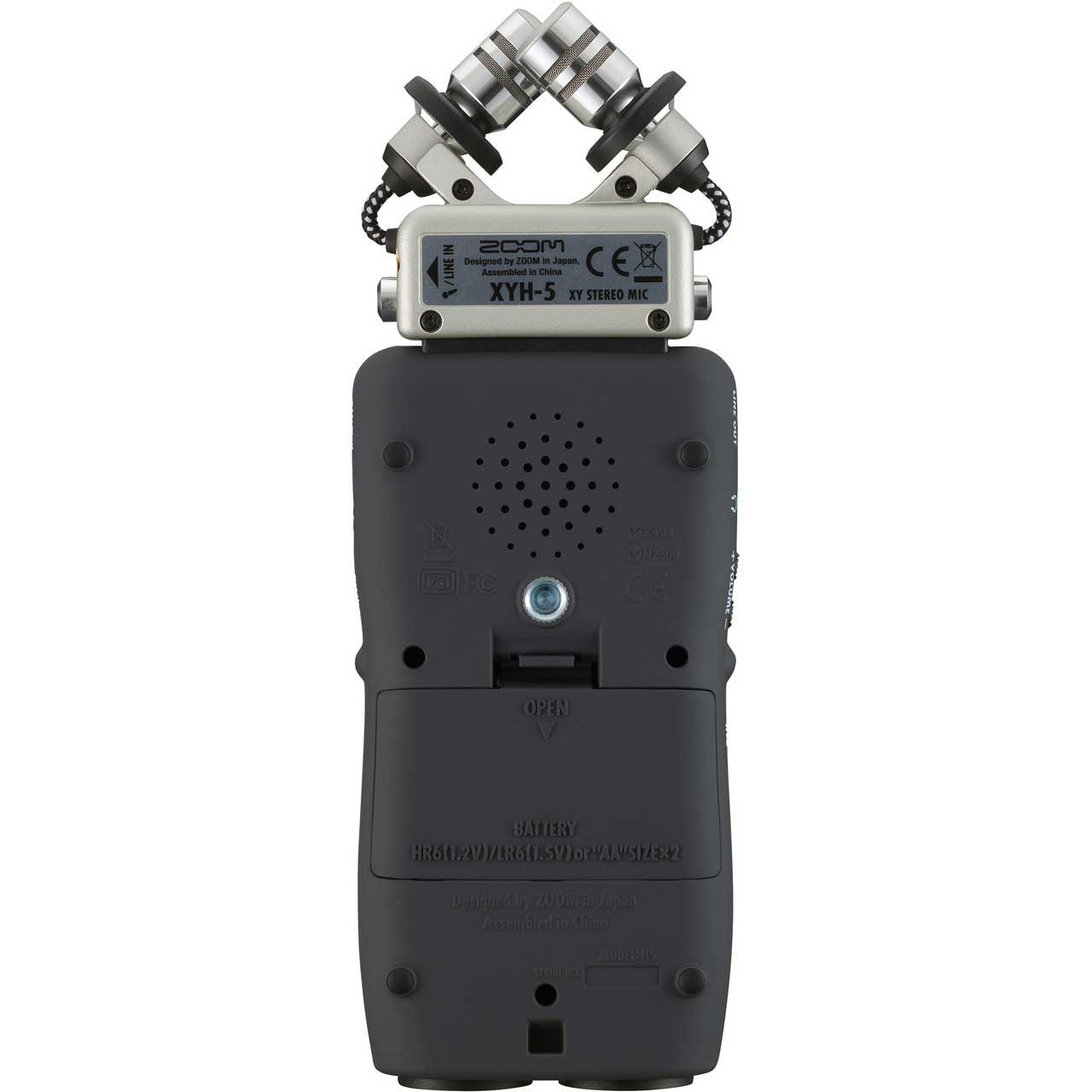

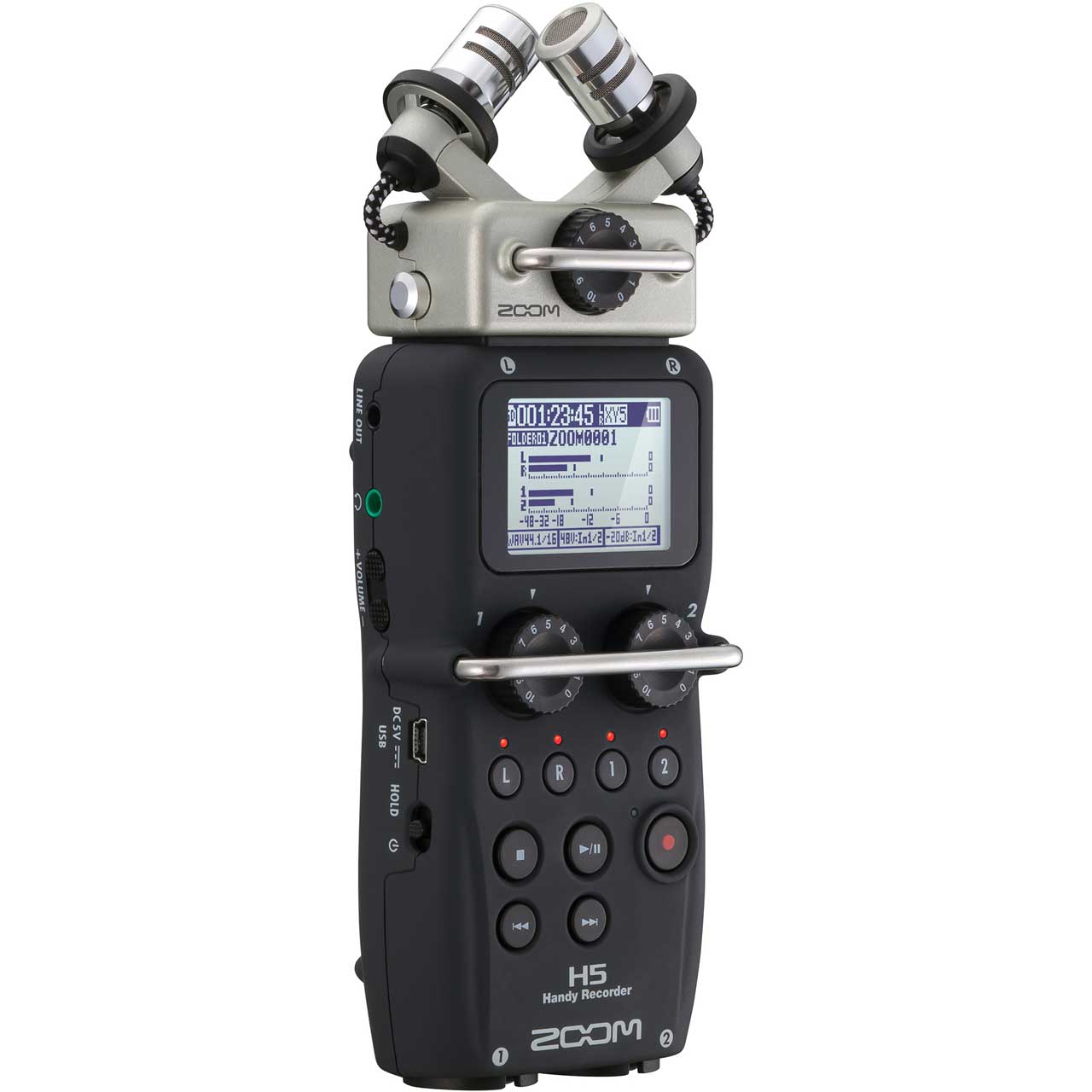

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$249.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    H5 - Overview

    The ZOOM H5 - Evolved Recording In More Ways Than One!

    ZOOM's products are constantly evolving to meet the needs of the creators who use them. With the H5 Handy Recorder, the tradition continues. The H5 provides four tracks of simultaneous recording and, like our flagship H6, it can use all ZOOM interchangeable input capsules, allowing you to choose the best microphone for every recording situation. The flexible and powerful H5 provides everything you need to create multitrack recordings, audio for video, and state-of-the-art podcasting, broadcasting and electronic newsgathering.

    Louder. Closer. Cleaner.
    X/Y recording allows you to cover a wide area yet still capture sound sources in the center with clarity and definition, making it ideal for all types of live stereo recording. The XYH-5 X/Y microphone capsule included with the H5 provides two matched unidirectional condenser microphones set at a 90° angle. These are housed within an advanced shockmount that employs rugged external mic wires and rubberized material to isolate the unit from the H5 body and thus minimize vibration and handling noise. The design of the XYH-5 also allows the H5 to handle louder sounds than any other Handy Recorder model: 140dB SPL, to be precise-equivalent to the sound of a jet aircraft from less than 200 feet away-enabling you to capture sounds louder, closer, and cleaner than you ever could before.

    • Features:

      • Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
      • Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted mics for reduced handling noise
      • Compatible with all Zoom input capsules
      • Four-track simultaneous recording
      • Large backlit LCD display
      • Records directly to SD and SDHC cards up to 32GB
      • Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
      • Two mic/line inputs with XLR/TRS combo connectors
      • Analog-style gain controls for each input
      • Protective "roll-bar" type covers prevent accidental movement of gain controls
      • Hold switch disables front panel buttons to prevent accidental operation during recording
      • Selectable phantom power for either or both main inputs: +12/+24/+48V
      • Plug-in power (2.5 volts)
      • Built-in effects, including low-cut filtering, compression and limiting
      • Chromatic tuner and metronome
      • Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
      • MS decoding
      • 20dB pads for either or both main inputs
      • Multitrack to stereo internal mixdown

        Optional Accessories
      • SGH-6 Shotgun Mic Capsule
      • EXH-6 Dual XLR/TRS Combo Capsule
      • XYH-6 X/Y Mic Capsule
      • MSH-6 Mid-Side Mic Capsule
      • HS-01 Hot Shoe Mount Adapter
      • WSU-1 Universal Windscreen
      • PCH-5 Protective Case
      • APH-5 Accessory Pack includes RCH-5 wired Remote Controller, AD-17 USB-type AC adapter, and Hairy Windscreen

    • Specifications:

      • General
      • Rec Media: 16MB - 2GB (SD), 4GB - 32GB (SDHC)
      • Display: 128 x 64 pixels backlit LCD

        Mic Input
      • Inputs L/R: Unidirectional XYH-5 X/Y mic
      • Sensitivity: -45 dB, 1kHz @ 1Pa
      • Input Gain: -∞ - 52dB
      • Max. Sound Pressure Input: 140dB SPL

        Mic/Line IN
      • Connector: 1/8" stereo mini jack
      • Input Gain: -∞ - 52dB
      • Input Impedance: 2kΩ or more
      • Plug-In Power: 2.5V supported
      • Backup Rec: -12dB lower than set L/R input gain

        Inputs 1/2
      • Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot/TRS: Tip hot)
      • Input Gain (PAD OFF): -∞ - 55.0dB
      • Input Gain (PAD ON): -∞ - 35.0dB
      • Input Impedance: 1.8kΩ or more
      • Max. Input Level: +22dBu (PAD ON)
      • Phantom Power: +12V/+24V/+48V
      • Equivalent Input Noise (EIN): -120dBu or less

        Line Out
      • Connector: 1/8" stereo mini jack
      • Rated Output Level: -10dBm
      • Output Load Impedance: 10kΩ or more

        Phone Out
      • Connector: 1/8" stereo mini jack
      • Output Level: 20W +20W into 32Ω load
      • Built-In Speaker 400mw 8Ω mono

        USB Audio Interface
      • Type: Mini-B 2.0, high speed
      • Sampling Frequency: 44.1/48kHz
      • Bit Rate: 16/24 (multitrack), 16 (stereo)
      • Inputs/Outputs: 4/2 (multitrack), 2/2 (stereo)

        Physical
      • Power: 2x AA batteries, AD-17 AC adapter, USB bus
      • Dimensions (HxWxD): 9.1" x 3.5" x 6.3"
      • Weight: 1.4lbs

    • Item Includes:

      • 1x Operation manual
      • 1x XYH-5 X/Y mic capsule
      • 1x USB cable
      • 1x Foam windscreen
      • 1x Case

    • GTIN:

      0884354013196
