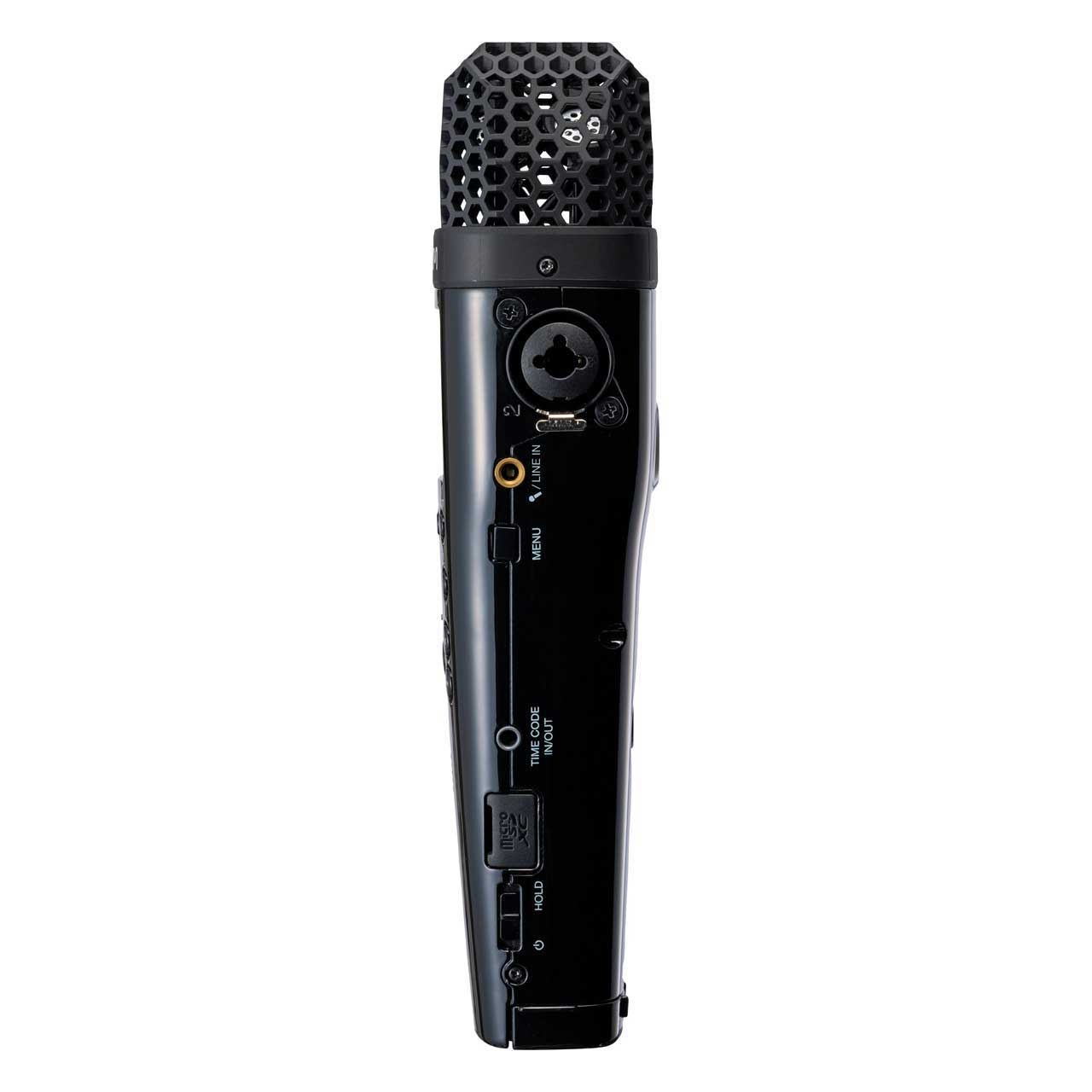

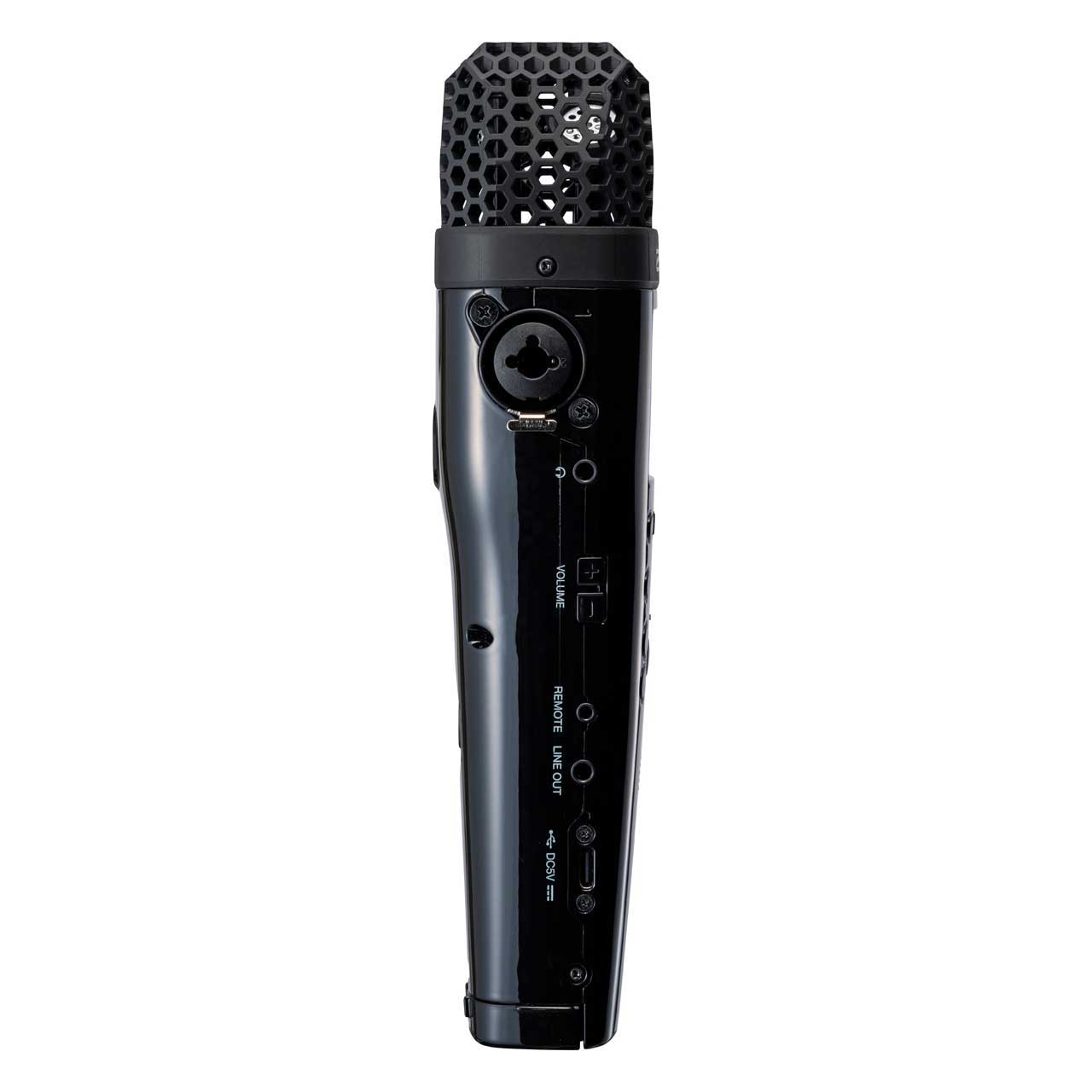

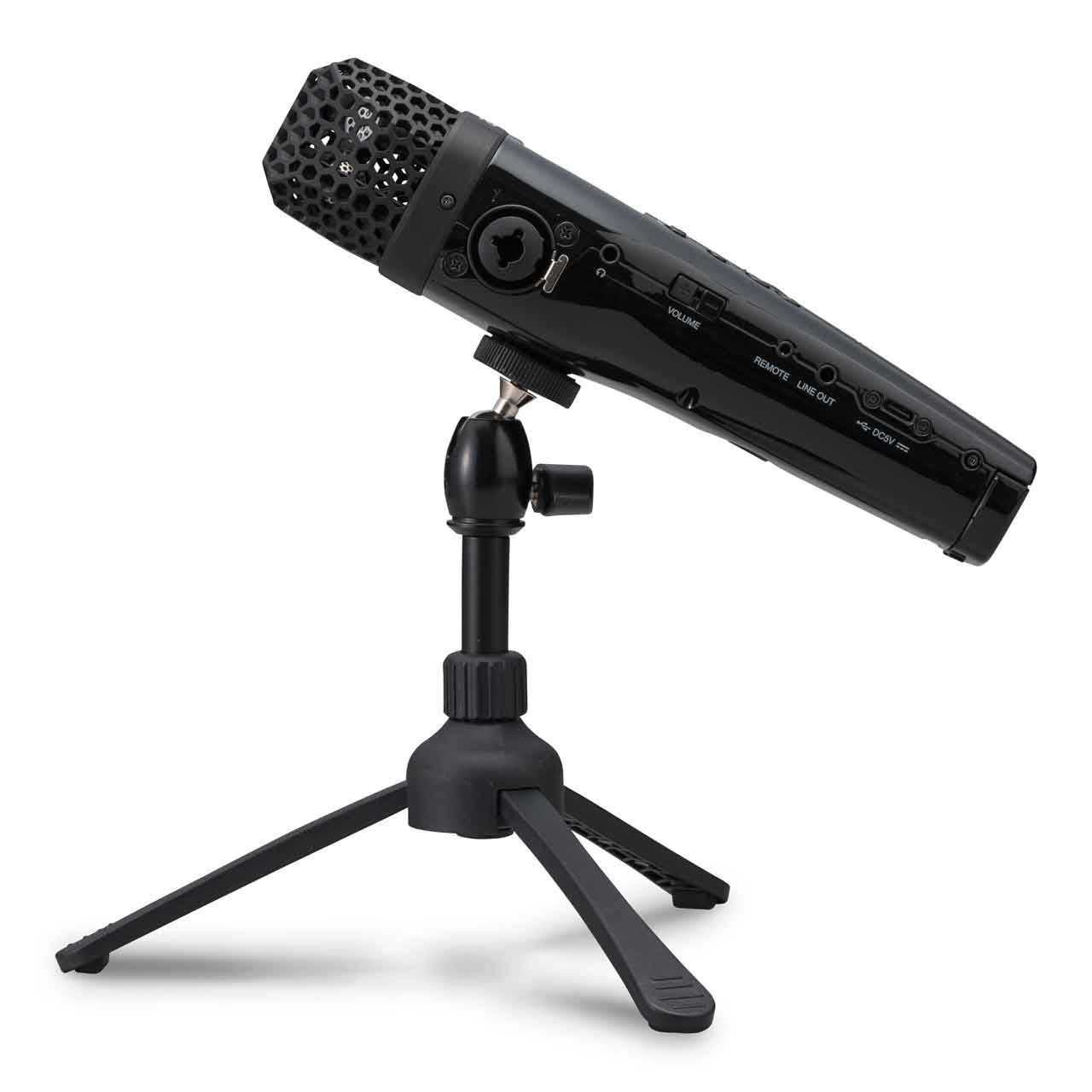

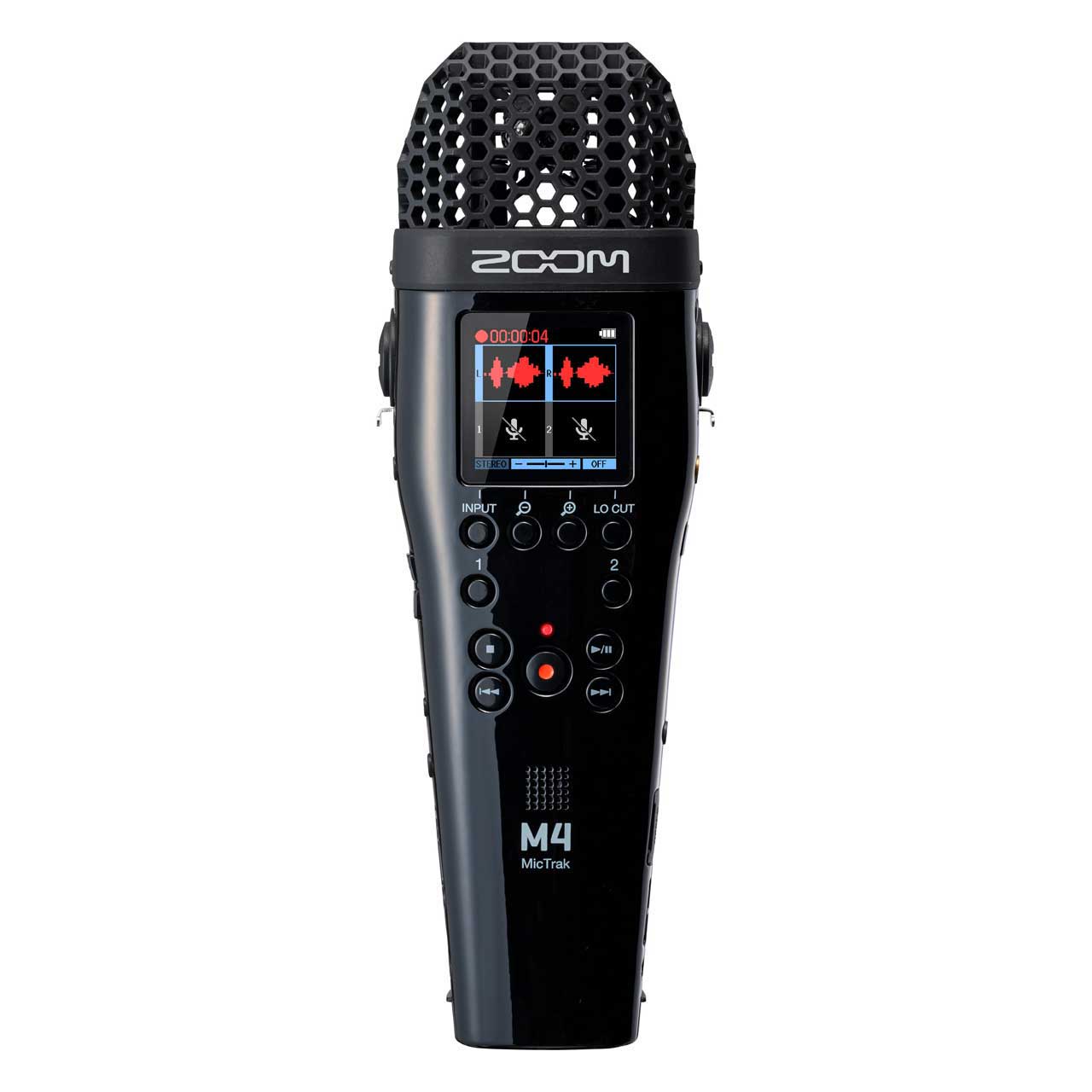

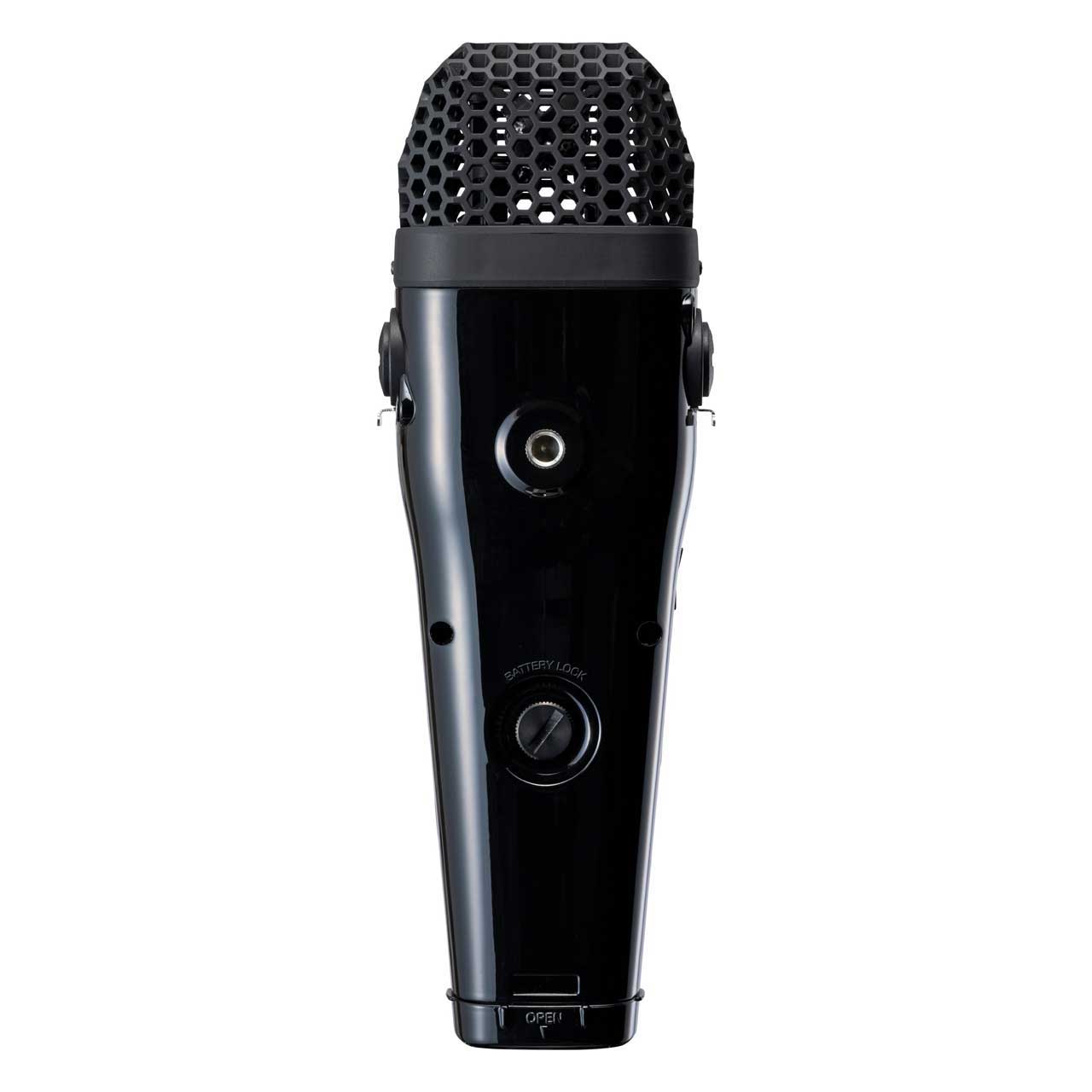

ZOOM M4 Mictrak 2-Channel 4-Track 32-bit Microphone and Recorder with Timecode Generator

M4 - Overview

• Features:

  • All-in-One X/Y Microphone and Recorder
  • 4-Channel Recording
  • 44.1 to 192 kHz / 32-Bit Floating Point
  • Time Code Input Support
  • Cardioid Pickup Pattern
  • Two Combo XLR-1/4" TRS Inputs
  • 3.5mm Headphone Output, Mono Speaker
  • Built-In Backlit Color LCD Display
  • AA Battery Power or USB-C Bus Power


• Specifications:

  • Input and Output Channels
  • Inputs: 1x Built-in mic (stereo), 2x MIC/LINE (mono), 1x Mic/LINE In
  • Outputs: 1x LINE OUT, 1x PHONE OUT, 1x Built-in speaker (mono)

    Inputs
  • Built-In Mic: 90° XY stereo format
  • Directionality: Unidirectional
  • Sensitivity: -42 dB/1 Pa at 1 kHz
  • Maximum sound pressure input: 135 dB SPL
    Mic/Line (mono)
  • Connector: XLR/TRS combo jack x 2 (XLR: 2 HOT, TRS: TIP HOT)
  • Input gain: Adjustment unnecessary (dual A/D converter circuit used)
  • Input Impedance: MIC: 3kOhm or more, LINE: 3kOhm or more
  • Maximum Input Level: MIC: ±4 dBu, LINE: ±24 dBu
  • Phantom power: 24/48V, Channel total 10mA or less
  • Equivalent input noise: -127 dBu or less (IHF-A) with volume display amplification at maximum and 150Ohm input
    Mic/Line In (Supports plug-in power)
  • Connector: 1x Stereo mini jack
  • Input gain: Adjustment unnecessary (dual A/D converter ciruit used)
  • Input Impedance: 2 kOhm or more

    Outputs
    Line Out
  • Connector: 1x Stereo mini jack
  • Maximum output level: 1 dBu
  • Output impedance: 110 Ohm or less
    Phone Out
  • Connector: 1x Stereo mini jack
  • Maximum Output Level: 20 mW + 20 mW (into 32 Ohm load)
  • Output Impedance: 15 Ohm or less
  • Built-in Speaker: 500 mW 8 Ohm mono speaker

    Recorder
  • Maximum Simultaneous Recording Tracks: 4
  • Maximum Simultaneous Playback Tracks: 4
  • Recording Formats: WAV 44.1/47.952/48/48.048/96/192 kHz, 32-bit float mono/stereo
  • BWF and iXML formats supported
  • Recording Media: 4-32GB cards compatible with the microSDHC specification 64GB-1TB cards compatible with the microSDXC specification

    Display
  • 1.54-inch full-color LCD (240 x 240)

    USB
  • Connector: USB Type-C (Use a USB cable that supports data transfer. USB bus power is supported)
  • USB Mic: USB 2.0 High Speed - 48 kHz - 24-bit/32-bit float - 4-in/2-out
  • File Transfer: USB 2.0 High Speed

    Timecode
  • Connector: 3.5mm stereo mini (TIP: input, RING: output)
  • Modes: Off, Internal, External
  • Frame rate: 23.976 ND, 24 ND, 25 ND, 29.97 ND, 29.97 D, 30 ND, 30 D
  • Precision: ±0.2 ppm
  • Allowed input level: 0.2 - 5.0 Vpp
  • Input impedance: 4.6 kOhm
  • Output level: 3.3 Vpp
  • Output impedance: 50 Ohm or less

    Remote
  • Dedicated remote control (ZOOM RC2, RC4, RCH-5, or RCH-6)

    Power Supplies
  • Batteries: 4 AA
  • AC Adapter: ZOOM AD-17 (DC 5 V/1 A) USB bus power is supported.

    Physical
  • Dimensions (W x D x H): 2.76 x 8.11 x 1.85" (70.2 x 206.22 x 47.0mm)
  • Weight (including batteries): 0.71lbs (325g)


• Item Includes:

  • 1x Zoom M4 MicTrak Stereo Microphone and Recorder
  • 1x Windscreen


• Warranty:

  • Limited 1-Year Warranty
