The Subscription Channel (SC) Connector is known for its locking mechanism which gives an audible click when pushed in or pulled out. This push-pull design prevents rotational misalignment. The SC Angled Physical Contact (APC) connector combines a curved ferrule end face with an 8§ angle which virtually eliminates all back reflection even from an unterminated connector.

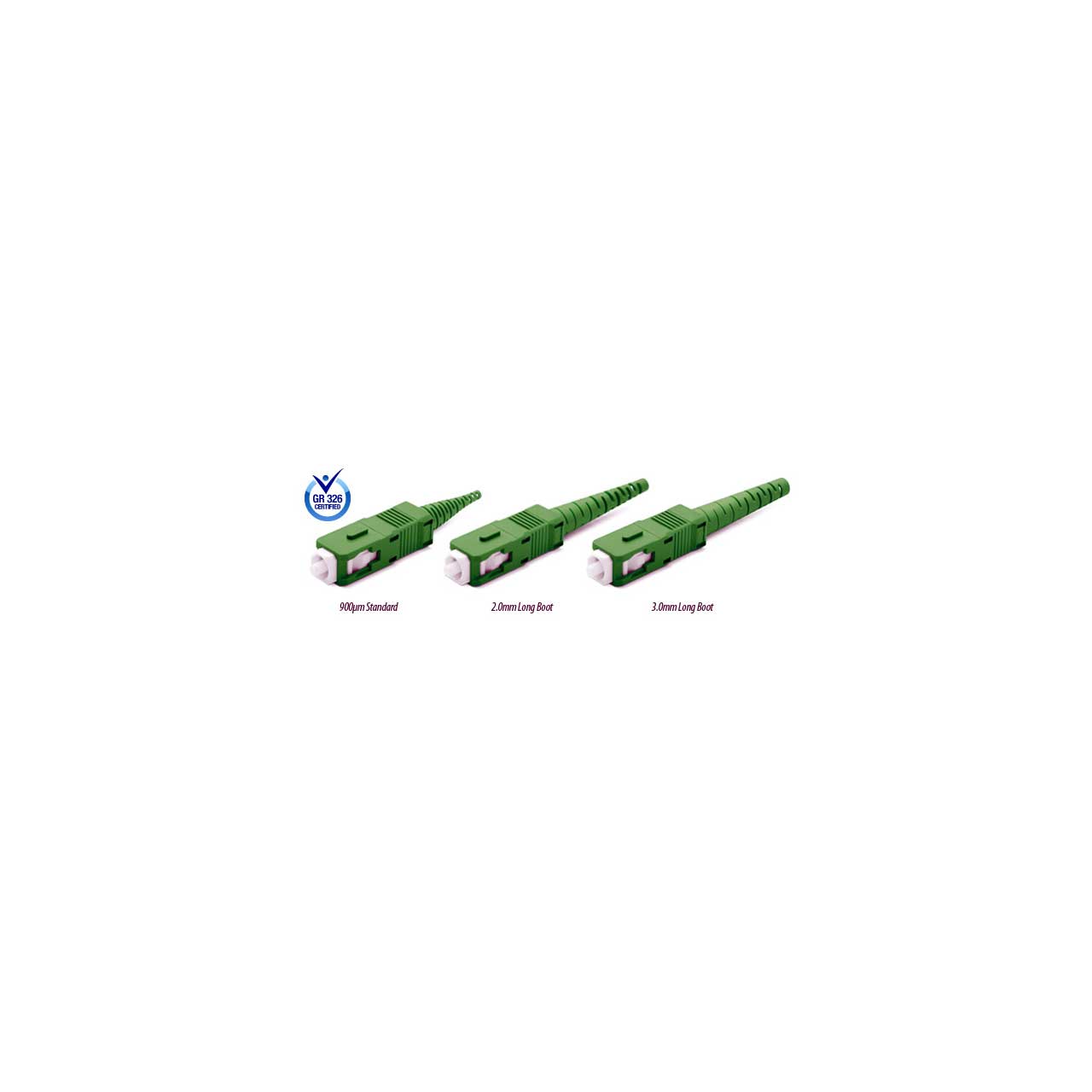

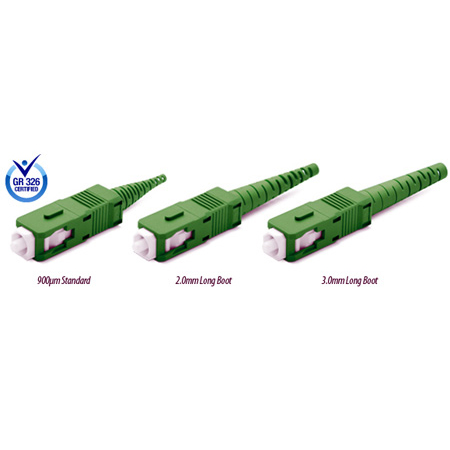

The SENKO SC/PC connector is available in both singlemode and multimode versions, and is fully compatible with NTT-SC/APC hardware. All SENKO SC/APC connectors come with a zirconia ceramic ferrule with choice of endface types including standard, step, and cone. These endface types allow for faster polishing, and lower insertion loss and back reflection*, while ensuring maximum repeatability.
The body is precision molded. Housing and boot are made from UL-rated material. SENKO offers an SC APC Tunable Connector which allows four-position tuning for applications requiring precise fiber alignment. Physical Contact (PC) version is also available.
