ATEN VE602 DVI Dual Link Extender with Audio
  • ATEN VE602 DVI Dual Link Extender with Audio
  • ATEN VE602 DVI Dual Link Extender with Audio
  • ATEN VE602 DVI Dual Link Extender with Audio
  • ATEN VE602 DVI Dual Link Extender with Audio

Questions? Ask a Markertek Expert:
800-522-2025 Email

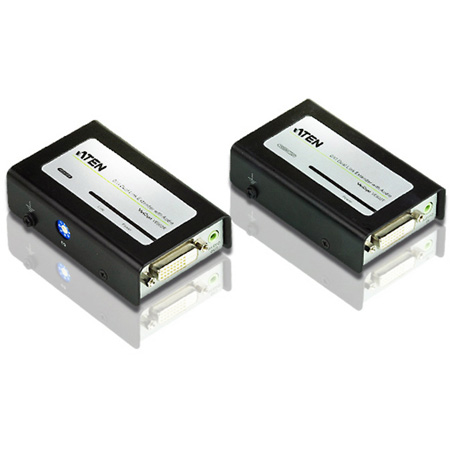

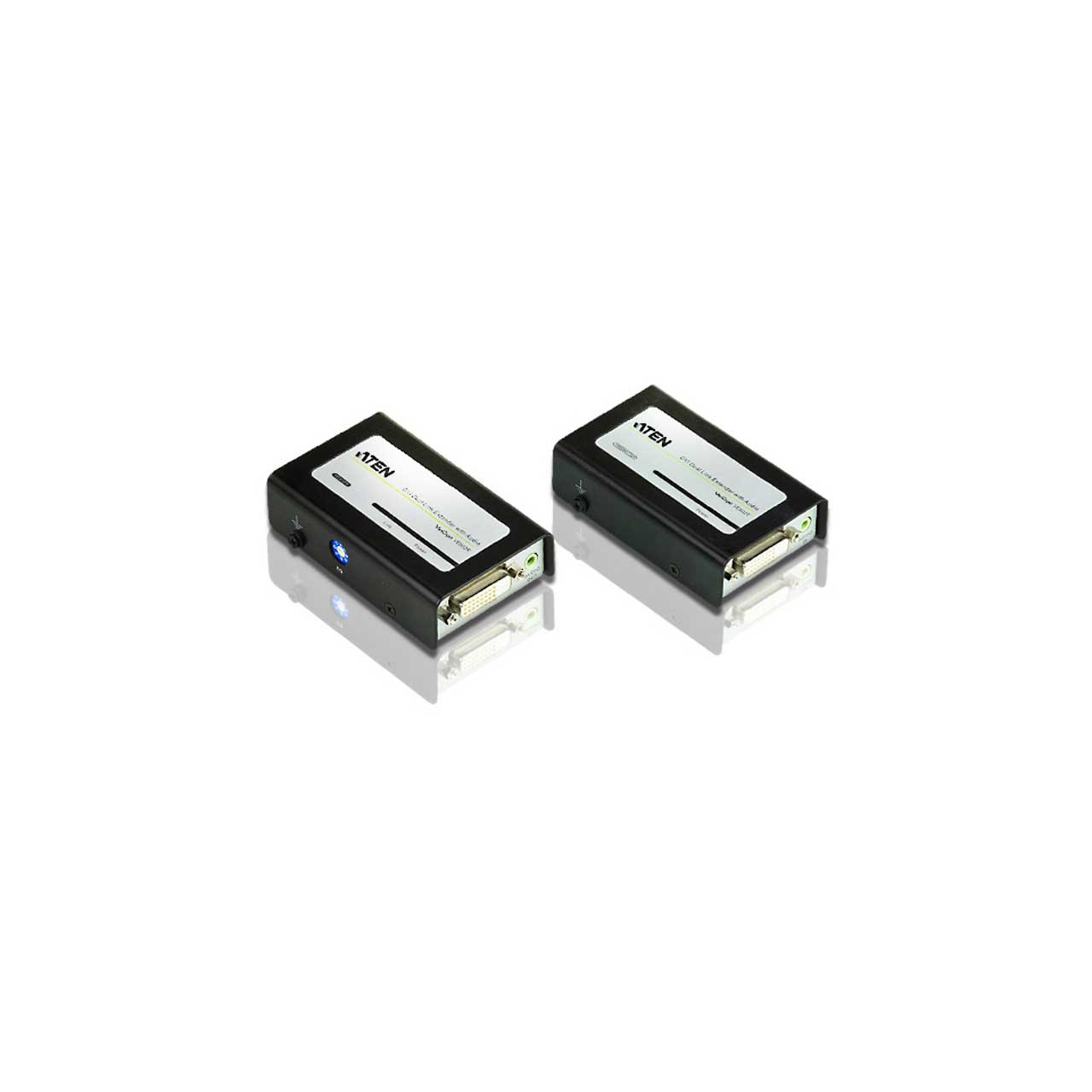

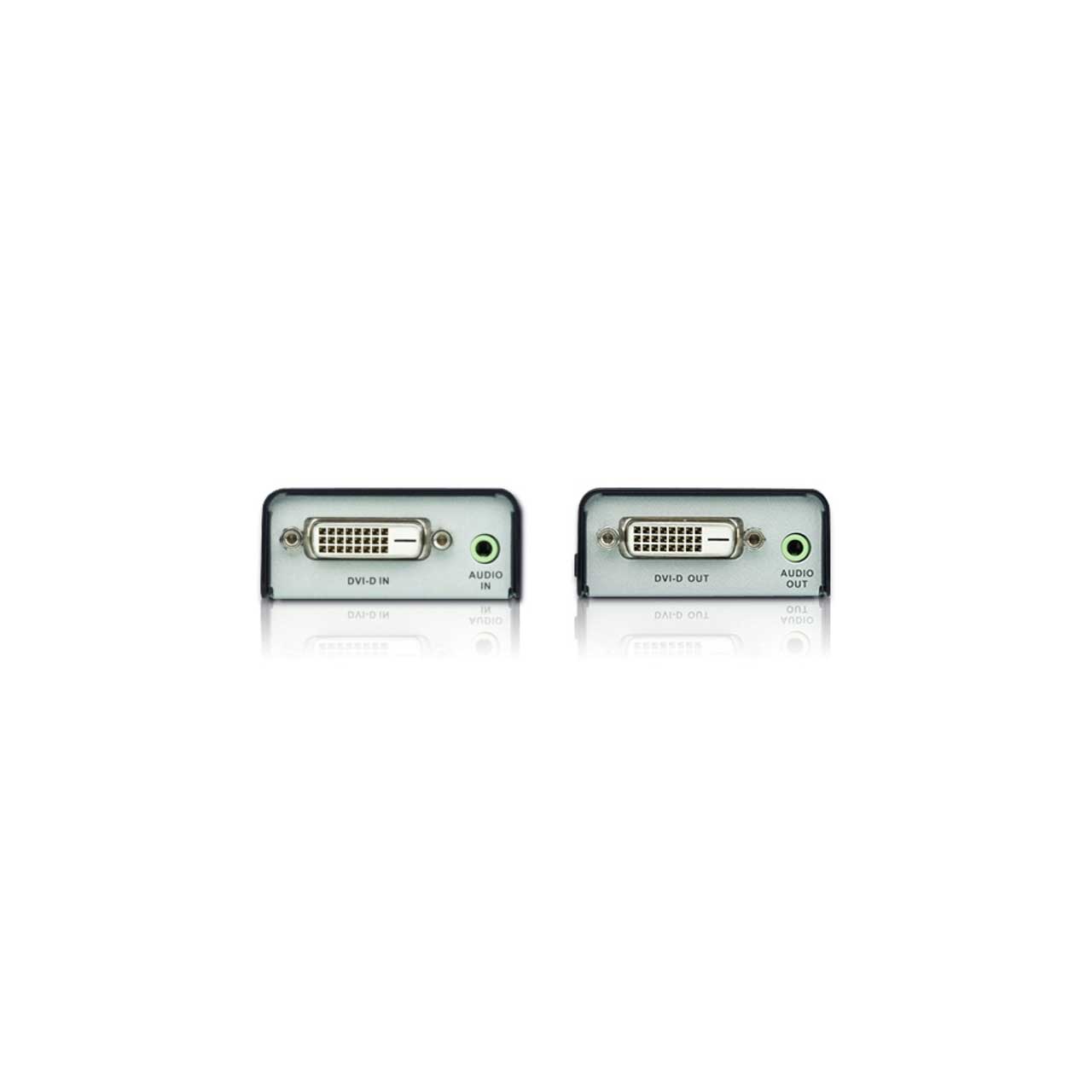

ATEN VE602 DVI Dual Link Extender with Audio

Manufacturer: ATEN

Item #: ATEN-VE602   •   MFG #: VE602



List Price:$330.00
Our Price:$290.95

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The VE602 DVI Dual Link Extender with Audio extends your DVI display up to 210 feet (60 m) away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings.

The VE602 incorporates ATEN's technology that allows A/V signals to be transmitted over one Cat 5e cable. It uses ATEN default EDID, but is able to learn and save the EDID configuration of the remote display. For dual link video signals, simply use a second Cat 5e cable. With support for stereo audio and popular widescreen video formats, the VE602 provides crystal-clear image and sound quality for installations where remote DVI video displays are required.


  • Features

    • Extends the distance between the DVI source and DVI display device
    • Long distance transmission - up to 210 feet (60 m)
    • Uses Cat 5e cable to connect the local and remote units
    • Employs ATEN EDID technology that allows signal transmission over one Cat 5e cable

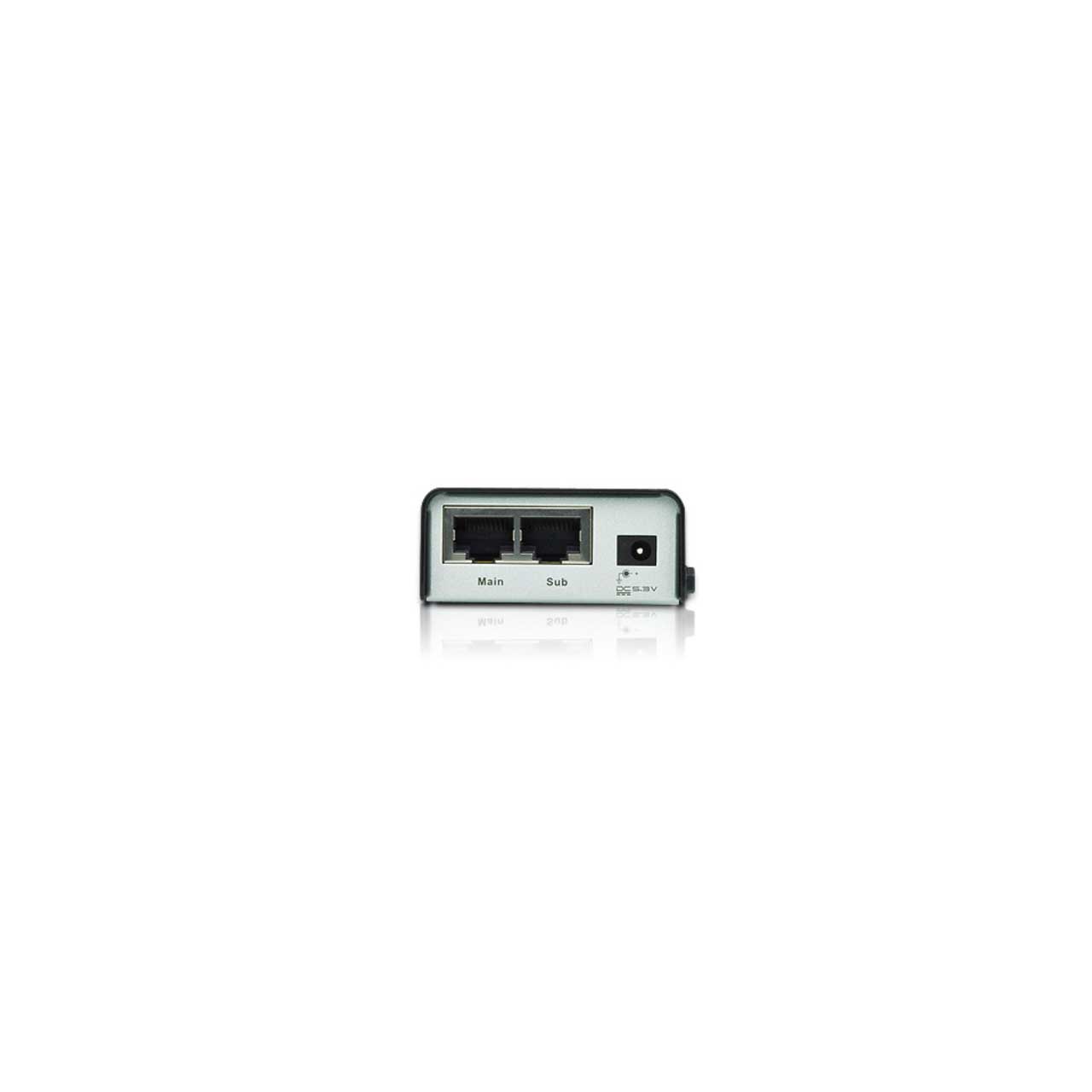

    • Uses a second (Sub) Cat 5e cable for dual link signals*
    • Supports EDID Learning - Automatically learns and saves the EDID data of the display to which the Transmitter (VE602T) is connected
    • Superior video quality - DVI Dual Link up to 2560 x 1600 @ 60 Hz (130 ft., 40 m); DVI Single Link up to 1920x1200 @ 60 Hz (130 ft., 40 m), 1024 x 768 @ 60 Hz (200ft., 60 m)
    • Audio enabled
    • 8 segment equalization adjustment switch optimizes display quality
    • Built-in 8KV/15KV ESD protection
    • Supports widescreen formats
    • Rack mountable
    • Note: The length of the two Cat 5e cables must be the same.

  • Item Includes

    • 1x VE602T DVI Dual Link Extender with Audio
    • 1x VE602R DVI Dual Link Extender with Audio
    • 2x Power Adapters
    • 1x Mounting Kit
    • 1x User Instructions
