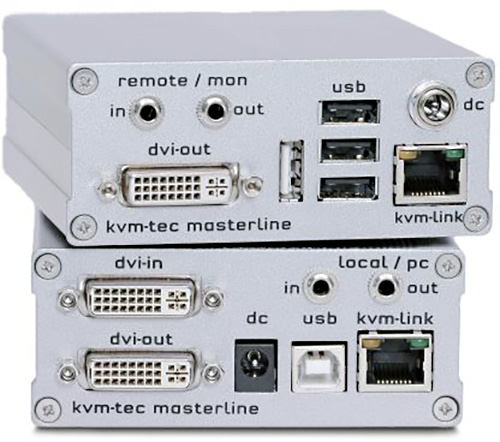

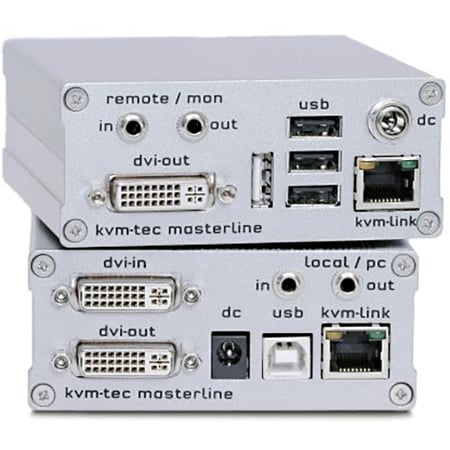

kvm-tec MVX1 Masterline Extender Single - Local/Remote Kit Copper

ITEM #: KVM-6701 MFG #: 6701

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KVM-6701

6701 - Overview

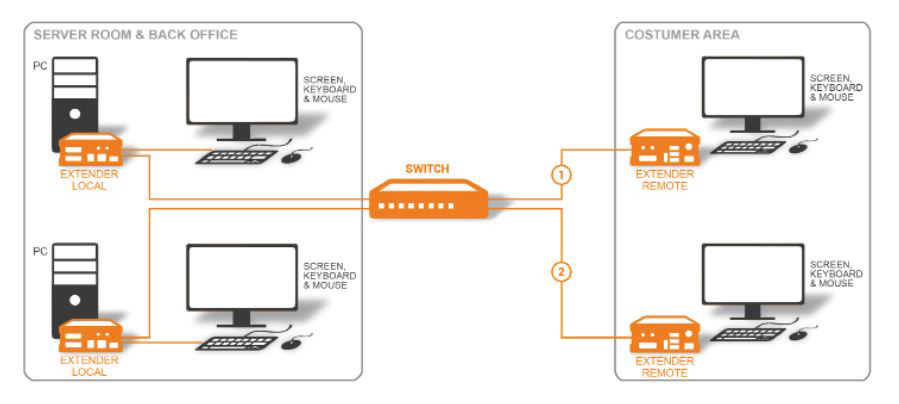

The KVM-Tec highly optimized MVX1 KVM Extender has a resolution of 1920 x 1200 and is available in copper and fi ber in a single and dual version. The copper version allows loss-free signal trans-mission up to 492 ft range. The fiber version has a loss-free transmission up to 99 miles. A perfect tuning of the kvm-tec video compression with a low latency time enables the signals o be transmitted without delay. USB and video is transmitted via the same cable. The DVI extension without loss of quality allows Full HD video to be transmitted in real time. The transparent USB 2.0 interface supports tablets and touchscreens, sound modules, printers and much more even in the standard version. An USB option is available for me-mory sticks and USB hard drives. High reliability nd robust design makes the kvm-tec Extender ideal for many applications. Additionally, the kvm-tec security feature USB save prevents the intrusion of computer viruses via the interface by disabling mass storage devices support such as USB sticks and external hard disk drives. With the Matrix Switching System upgrade code enabled, the MVX Extender can be used with a standard network Switch to create a full KVM Matrix Switching System without any additional hardware.

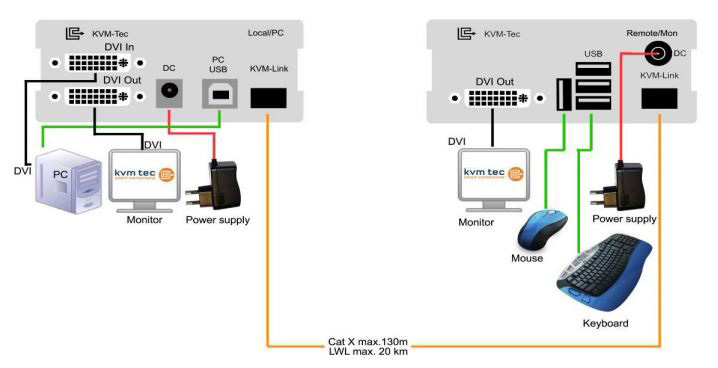

Please Note: This Extender System REQUIRES both a SEND and RECEIVE unit in order to function. This is a kit containg both required units.

  • Features:

    • Max resolution 1920x1200 @ 60 Hz
    • Max distance 150 m (492ft) in copper
    • Transparent USB 2.0 extension
    • Full HD video in real time
    • DVI extension without loss of quality
    • Ultra compact up to 4 channels in a 19" 1RU
    • Automatic Plug & Play installation
    • One CAT 5/6/7 cable for USB and video
    • Local (CPU) - remote (CON) monitor output
    • Firmware Flash upgradeable without cable
    • High reliability and rugged design
    • 19" rack mountable
    • Screw-locked DVI jack

  • Specifications:

    • Interfaces
    • Video: DVI-I In/Out (no HCDP)
    • USB 2.0: USB-B - PC, USB-A (devices)
    • Audio: 3.5mm jack plug (Line IN/OUT, Speaker)

      Video
    • Signal Type: DVI-I, DVI-D
    • Resolution (Digital): Max. 1920 x 1200 @ 60Hz
    • Color Mode: 24 bit

      Audio (optional)
    • Type: Analog
    • Bandwith: 16 bit, 44kHz, 2ch

      USB
    • Specification: USB 2.0
    • Type: Transparent
    • Rate: Max. 480Mbit/s, mass storage and camera optional

      Environment
    • Operating Temperature: 32°F - 133°F
    • Storage Temperature: -13°F - 176°F
    • Operating/Storage Humidity: <90%, non-condensing
    • Cooling: Free air convection

      Power & Physical
    • Power Supply: External 12V DC 1A, 6W
    • Casing Material: Anodized Aluminum
    • Dimensions (HxWxD): 1.57" x 3.83" x 4.07"
    • Weight: 10.1oz (Local), 10.3oz (Remote)

  • Item Includes:

    • 1x MVX1 Local (CPU)
    • 1x MVX1 Remote (CON)
    • 2x PowerSupply 12V 1A
    • 1x DVI - DVI Cable
    • 1x USB A - B Cable
    • 1x VGA - DVI Cable
    • 2x Audio Cable
    • 1x Quick Start Guide
    • 4x Mounting Pads
    • 4x Rubber Feet

  • Warranty:

    • 2 years

  • GTIN:

    0051497031855
