Azden SMX-5 Compact Stereo Camera Microphone - 3.5mm Out

ITEM #: AZ-SMX-5 MFG #: SMX-5

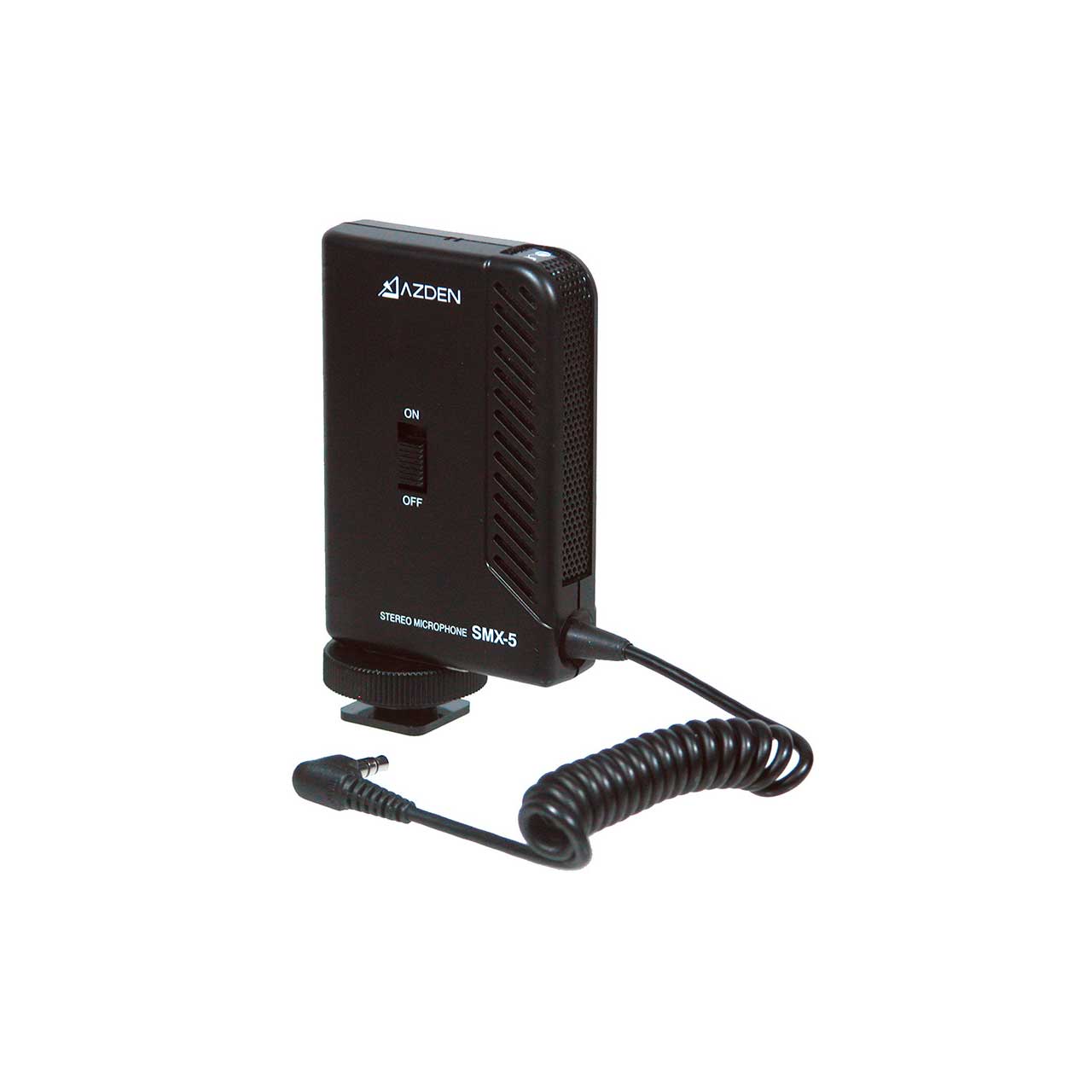

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AZ-SMX-5

SMX-5 - Overview

Designed to work with today’s high performance DSLR cameras, the SMX-5 offers high quality stereo sound in a super compact, lightweight design. The unique, unobtrusive vertical case places the microphone elements away from the camera body for smooth response. A single “AAA” battery with a run-time of 1000 hours supplies power. The SMX-5 is fitted with a stereo mini plug DSLR output cable, On/Off switch and integrated shoe-mount holder. A removable windscreen is included.

  • Features:

    • Designed for DSLR cameras
    • Directional stereo microphone
    • Unobtrusive vertical design
    • Very lightweight
    • Up to 1000 hours of battery life on AAA size
    • 3.5mm mini-plug stereo output
    • Comes with integrated shoe-mount and windscreen

  • Specifications:

    • Mic Element: Stereo Electret Condenser
    • Frequency Response: 100-20,000Hz
    • Sensitivity: -40dB @1kHz (1V/Pa)
    • Directional Pattern: Stereo Cardioid
    • Output Impedance: 1.5k ohm @ 1kHz
    • Signal to Noise Ratio: 60dB (1kHz @ 1Pa)
    • Power: “AAA” battery – not included
    • Max. SPL: 100dB
    • Battery Life: 1000 hours with alkaline battery
    • Weight: 58g with battery
    • Dimensions: 76mm X 16.5mm X 56mm (3.00” X 0.65” X 2.20”)
    • Output: attached cable with 3.5mm stereo mini-plug;

  • Item Includes:

    • SMX-5 Microphone
    • Integrated shoe-mount mic holder
    • Foam windscreen
    • Manual

  • GTIN:

    0095528060155
