Shure R189B Black Mini Shotgun Cartridge for MX Family Goosenecks

ITEM #: SH-R189B MFG #: R189B

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$150.00

Our Price:

$107.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    R189B - Overview

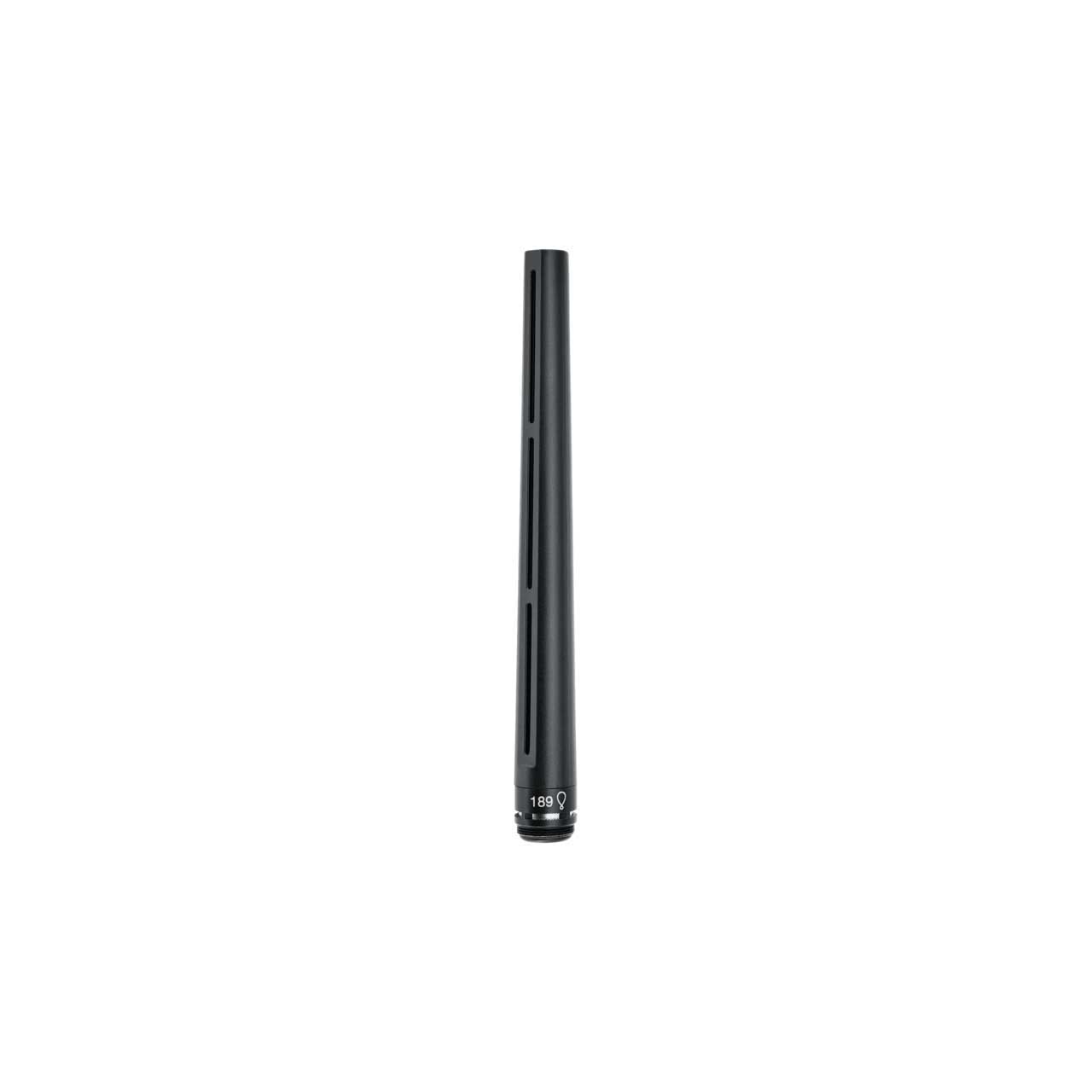

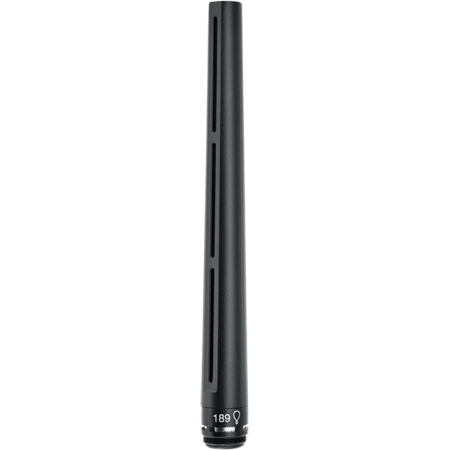

    The Shure R189 mini-shotgun microphone cartridge is a highly directional microphone that threads onto all Microflex (MX) gooseneck and overhead microphones, including those used with Microflex Wireless and Microflex Complete. The narrow pickup pattern rejects ambient noise and prevents feedback in rooms with sound reinforcement, making it an ideal choice for noisy conference rooms and live presentations.

    • Features:

      • Highly directional lobar polar pattern
      • CommShield Technology guards against interference from Cellular RF devices and digital bodypack transmitters
      • Threaded 1 centimeter cartridge compatible with all Microflex gooseneck and overhead models, including Microflex
      • Wireless and Microflex Complete
      • Features a 100-degree pickup area, narrower than a supercardioid or cardioid

    • Specifications:

      • Transducer Type: Electret Condenser
      • Polar Pattern: Lobar
      • Frequency Response: 50 to 17,000 Hz
      • Output Impedance: 170 0
      • Sensitivity (open circuit voltage, @ 1 kHz, typical): -33 dBV/Pa (22 mV)a
      • Maximum SPL (1 kHz at 1% THD): 121 dB SPL
      • Signal-to-Noise Ratio: 68 dB
      • Dynamic Range: 95 dB SPL
      • Common Mode Rejection: 45 dB, minimum
      • Preamplifier Output Clipping Level: -8 dBV (0.4V)
      • Self Noise (equivalent SPL, A-weighted, typical): 36 dB
      • Polarity: 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
      • Power Requirements: Phantom Power, 48-52V DC, 8.0mA

    • GTIN:

      0042406532679
