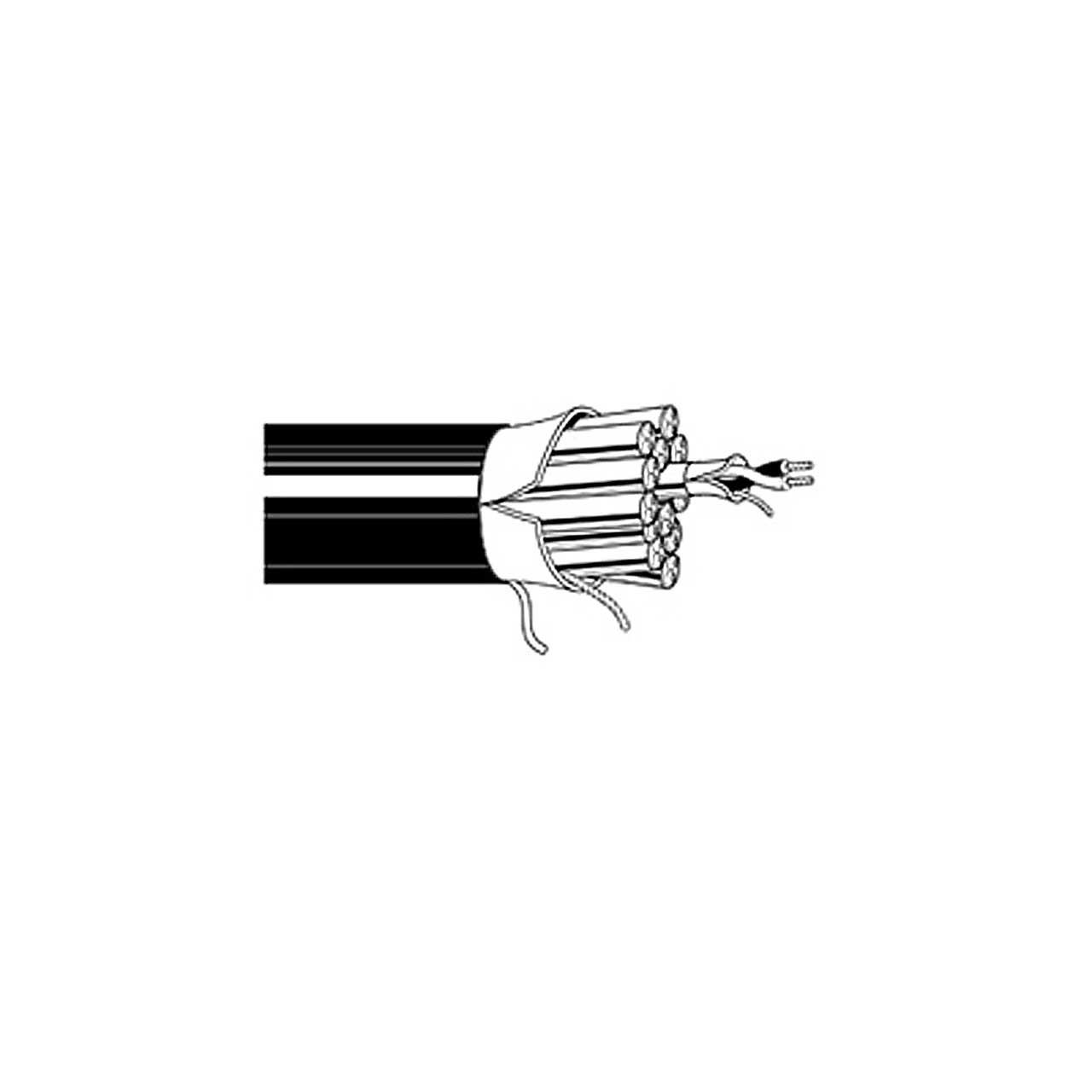

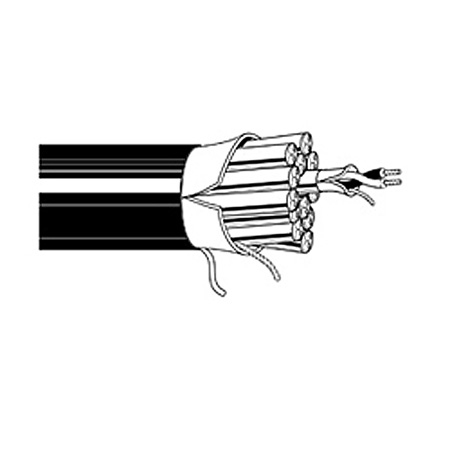

Belden 1515C 20 Pair / 24 AWG Audio Snake Cable - 1000 Foot

1515C B591000 - Overview

• Features:

  • CM-Rated, 20-24 AWG tinned copper pairs, polyolefin insulation
  • Individually shielded with Beldfoil bonded to numbered/color-coded PVC jackets so both strip simultaneously
  • Overall Beldfoil shield, drain, flexible PVC jacket


• Specifications:

  • AWG Size 24
  • No. of Pairs 20
  • No. of Strands 7
  • Strand Size 32
  • Conductor Stranding 7/32
  • Nom. Dia. of Cond. 0.024
  • Nom. Insul. Thick. (in) 0.04
  • Jacket Thick 0.111
  • Nom. O.D. of Cable (in) 0.71
  • Approx LBS/MFT 288
  • NEC Type CM
  • Cond. Material Tinned Copper
  • Insul. Material Polyolefin (PO)
  • Jacket Material Polyvinylchloride (PVC)
  • Jacket Color Matte Black
  • Max. Temp 75°C
  • Voltage 300
  • Shield Individually Foil Shielded Pairs/Overall Foil Shield
  • Shield Material Beldfoil
  • Shield Coverage 100%
  • Drain Wire 24 AWG Tinned Copper
  • Color Code Chart Red, Black
  • Nom. Cap. (C-C) 31
  • Nom. Cap. (C-SC) 58
  • Nom. DCR of Cond. 23.3O/M
  • Nom. DCR of Shld. 15.9O/M'
  • Nom. Imp. 50
  • Vel. of Prop. 66%


• GTIN:

  0612825116882
