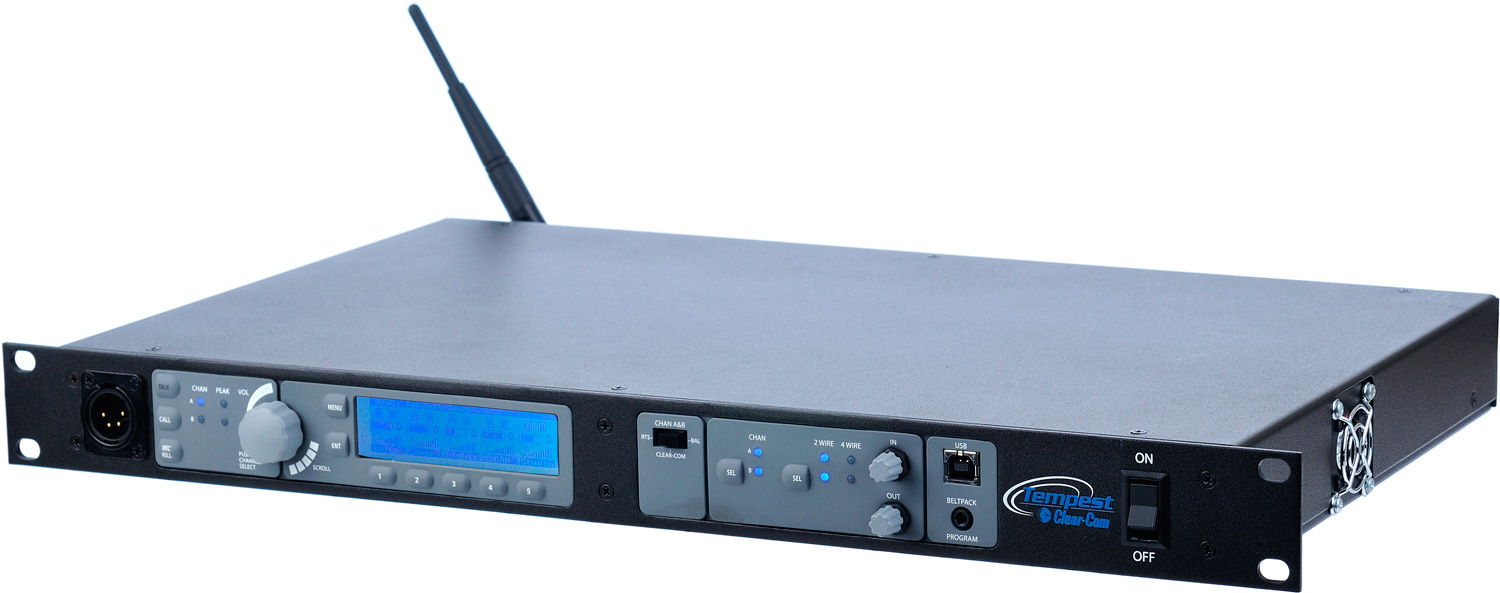

The Tempest CM-222 is a 2-channel 2.4GHz Frequency Hopping Spread Spectrum (FHSS) digital wireless intercom BaseStation. The front panel LCD display provides real time status including attery monitoring of active beltbacks and easy access to the hardwire intercom settings and levels. Each BaseStation is capable of Call and Remote Mic Kill.

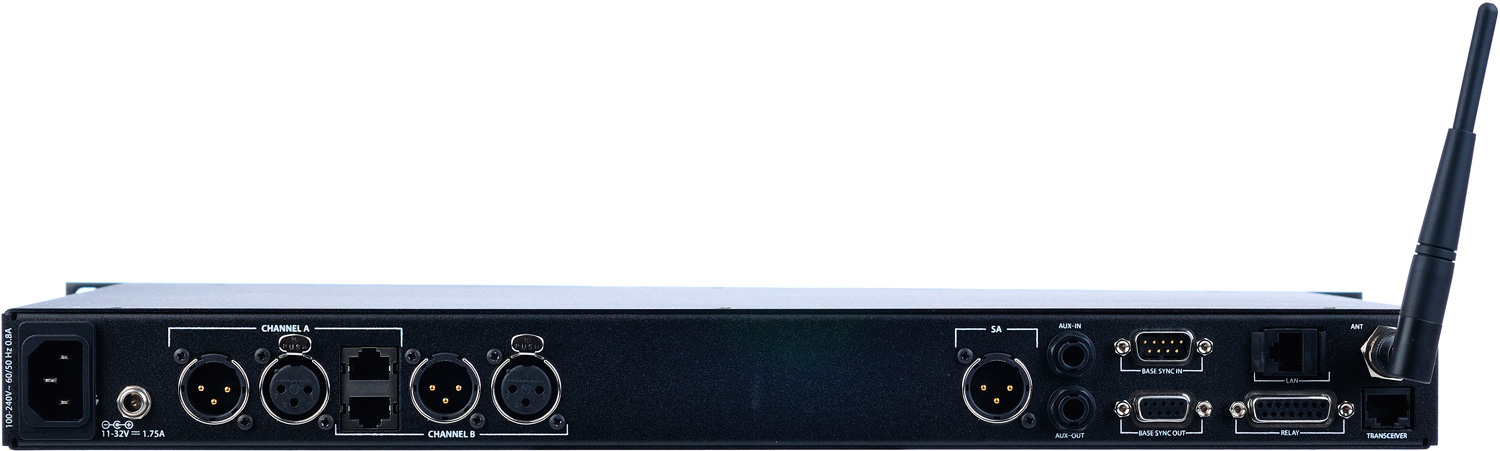

The CM-222 BaseStation connections include a 2-wire interface with M/F 3-pin XLR loop thru and one 4-wire RJ45 port per channel. The 2-wire interface is compatible with Clear-Com,r RTS,r and Telexr intercom systems, and includes n auto-null circuit.
Utilizing the Tempest system's TDMA technology and proprietary ZSync synchronization, up to 11 CM-222 BaseStations and 55 full-duplex wireless BeltStations (in Normal Mode) can be used simultaneously. By switching to Shared or Split Mode, an unlimited number of BeltStations can be registered to each BaseStation using shared resources.
The CM-222 BaseStation is supplied with a single whip antenna (RP-TNC RF connector). On the rear is a RJ45 connector for a (optional) remote transceiver. The remote transceiver can be located up to 1500ft (450m) away from the BaseStation over CAT-5/6 cable with no loss of RF signal.
Tempest2400 Seamless Roaming
The CM-222 BaseStations cover large areas with multiple zones by using Seamless Roaming. Seamless Roaming allows one or more Tempest2400 BeltStations to roam between as many as 16 different BaseStations (coverage areas or zones) without any intervention from the end user. BeltStations act as they normally do while roaming and there is no interruption of audio or control when a BaseStation switches from one BaseStation to another.
ZSync technology provides a zero sync reference that coordinates the hopping patterns of all connected BaseStations.ZSync ensures that there is a fixed relationship between all of the BaseStation radios, irrespective of random time variation in power up sequences.
THE CLEAR-COM CONCEPT
Clear-Com is a closed-circuit intercom system that consistently provides high-clarity communication in high-noise and low-noise environments. A basic system consists of a single- or multi-channel power supply or main station connected to various single- or multi-channel remote stations, such as beltpacks and loudspeaker stations. Clear-Com manufactures a wide variety of both portable and fixed-installation units. All are compatible with each other. Clear-Com intercom systems can also interface with other communication systems and devices.

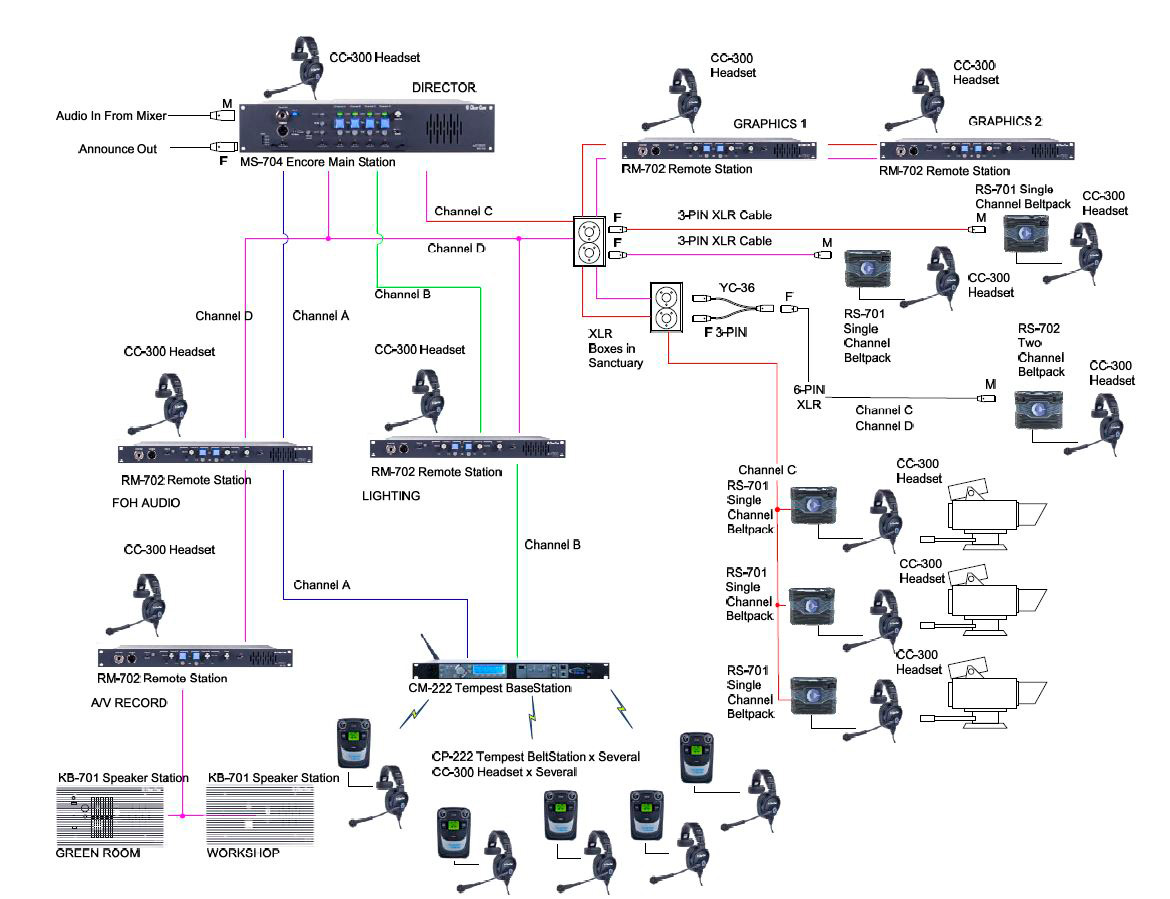

Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system. Diagram shown is a recommendation for a small broadcast station with partyline and wireless.
