Clear-Com RS-701 Single-Channel Encore Analog Partyline Intercom Beltpack with 4 Pin XLR Male Connector

ITEM #: CLCM-RS-701 MFG #: RS-701

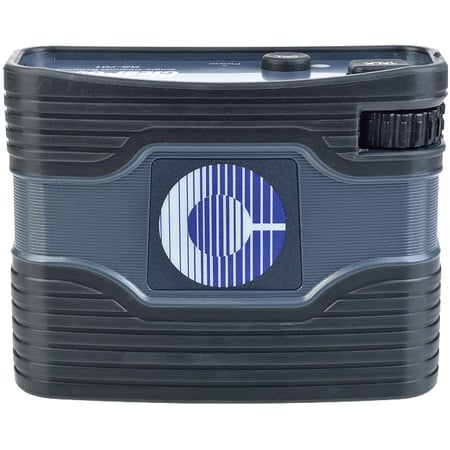

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    RS-701 - Overview

    The Clear-Com Encore ™ RS-701 is a single-channel analog beltpack that can carry power and audio through its 3 pin XLR connectors. Encore is a is a 2-wire analog partyline system with intuitive plug-and-play design. The RS-701 is compatible with all Encore partyline products, as well as the PL-Pro line and other partyline systems via Encore interfaces.

    Each beltpack combines high headroom, low-noise audio, and shaped frequency contour known as the "Clear-Com Sound" to deliver crystal clear audio. The RS-701 features LEDs on the top of the beltpack for visual indication of incoming and outgoing call signaling. A mic preamp enables intelligible voice communication for every volume level. Recessed rotary volume control, Talk and Call keys guard against accidental activation. The RS-701 has a low operating current to allow for more beltpacks in a daisy-chain.

    A concealed DIP switch panel on the back of the beltpack allows the capability to select audio and key options quickly and easily. DIP switches can control features such as switching between electret or dynamic headsets, setting a minimum or off level for headphone output, adjusting volume settings, enabling, or disabling LED signals, having Call on Talk or latching the Talk key. A green LED indicates that the beltpack is powered and a green LED on the Talk key indicates that the microphone is active (Talk is latched). An amber LED indicates a Call signal on the channel.

    The RS-701 is designed in a rugged and reliable casing. A belt clip allows a variety of ways to use the beltpack; users can clip it to a belt or lanyard, or users can mount the belt clip to a wall, pole or desk for fixed installations.

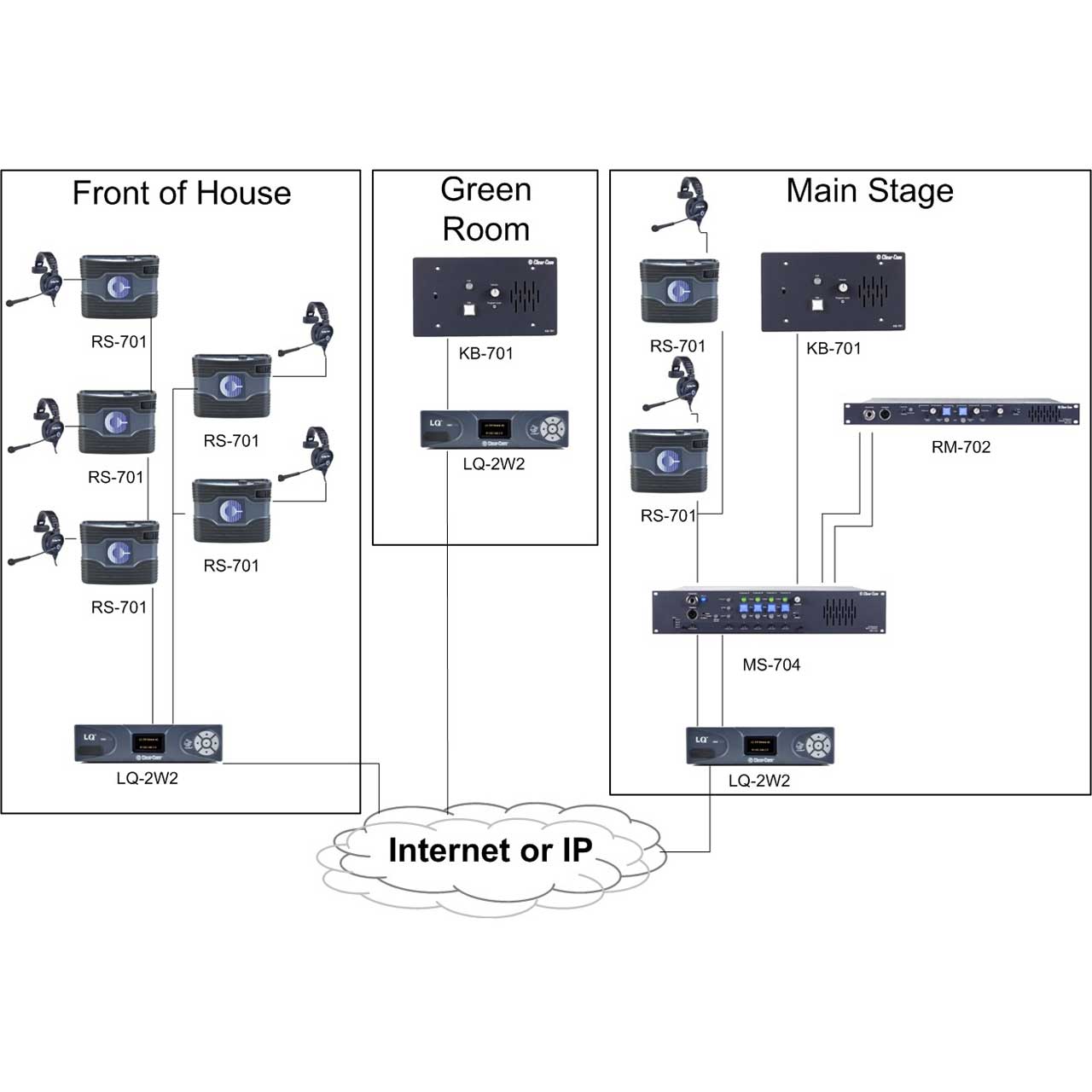

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system. Diagram shown is a recommendation for a small broadcast station with simple partyline.

    • Features:

      • Single-Channel Beltpack with XLR-3 Connector
      • Visual LED indicators on top of keypad
      • Tactile buttons for Call and Talk
      • Recessed rotary controls for Volume with end stops
      • Concealed, programmable DIP switches
      • Fully compatible with current and previous Clear-Com analog partyline systems
      • Low operating current for more beltpack daisy-chaining
      • Rugged and strong construction
      • "Clear-Com Sound" for intelligible audio
    • Specifications:

      • Microphone Pre-Amplifier
      • Mic to Line (without limiter acting) Frequency Response: 280 - 15k Hz ± 3dB
      • Microphone output to line - Audio Level (-50dBm Electret input): -9dBm
      • Microphone output to line - Distortion: <0.1%
      • Microphone output to line - Signal to Noise: >65dB
      • Clear-Com Sound: Yes

        Headphone Amplifier
      • Frequency Response - Line to Headphone: 150 - 20k Hz ± 3dB
      • Headphone input from line - Audio Level (-9dBm Electret input): 3.5dBm
      • Headphone input from line - Distortion: <0.5%
      • Headphone input from line - Signal to Noise: >50dB
      • Earphone to Mic - Crosstalk: >80dB
      • Sidetone - Adjustment Range (-80db mic input): >45dB

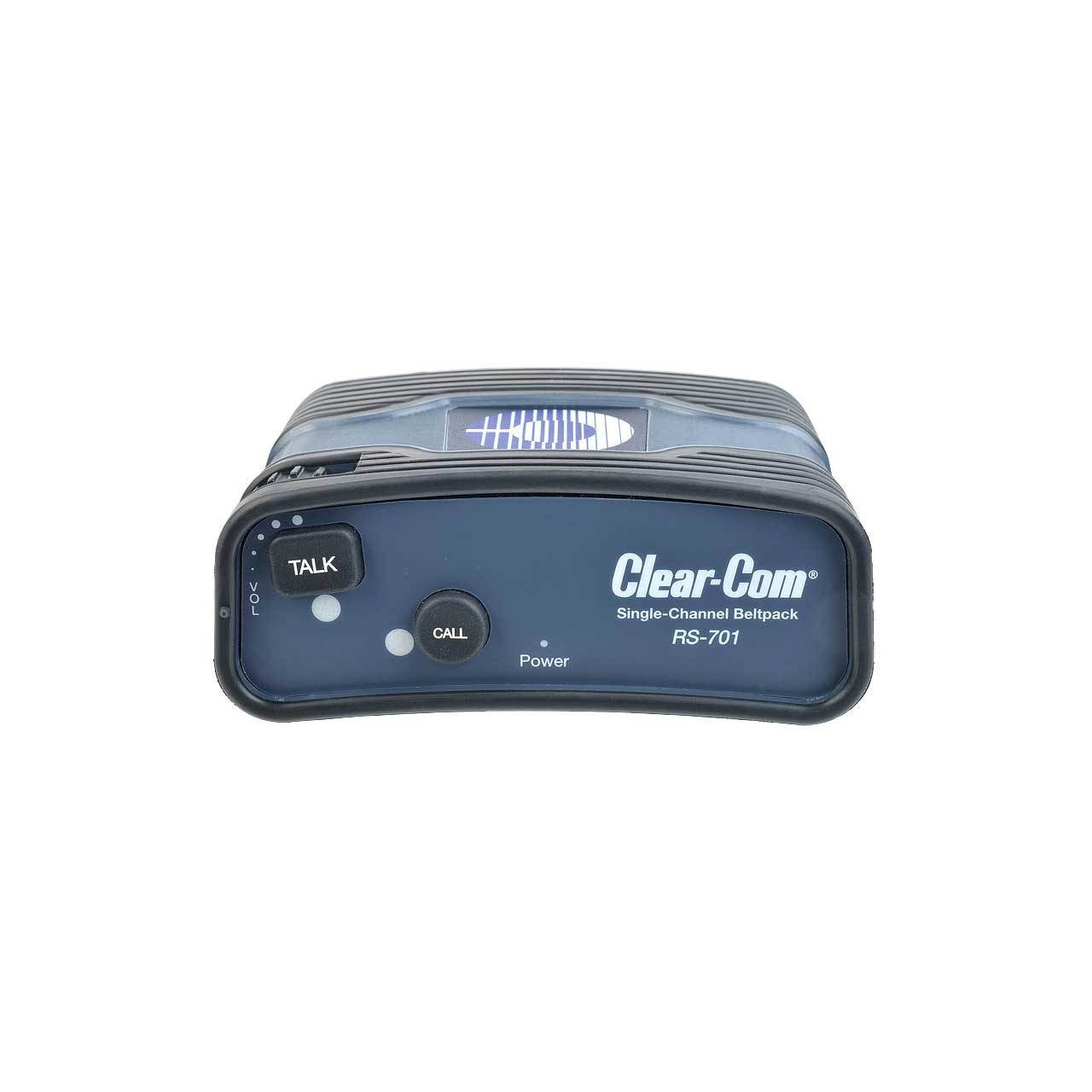

        Keypad Indicators
      • Power: Green LED
      • Talk: Green LED
      • Call: Orange LED

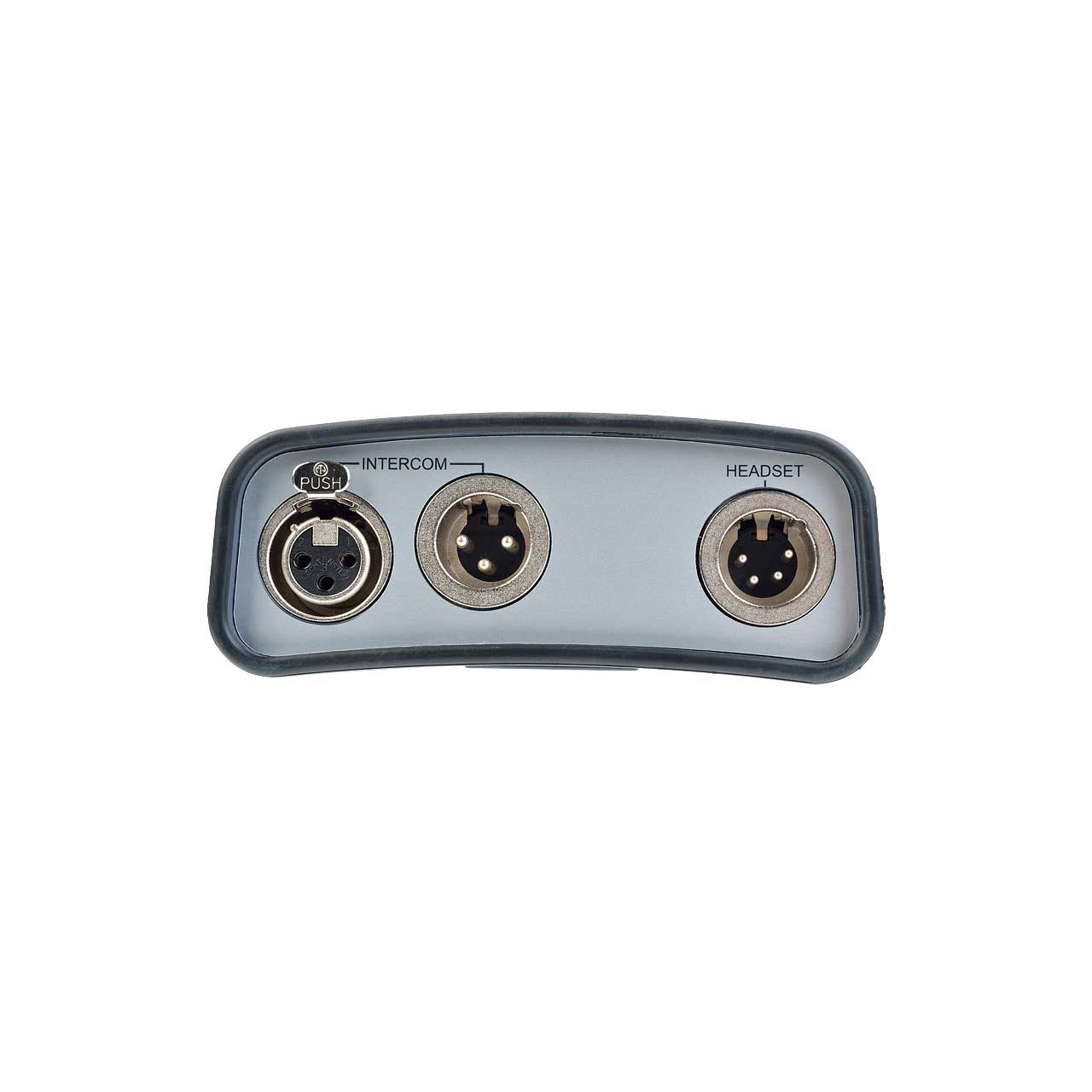

      • Intercom Line: (2) 3-pin XLR-M-F Ch. 1 2-Wire Intercom Channel Pin 1: Common; Pin 2: PL Power (+28VDC); Pin 3: Line (Audio)
      • Headset: 4-pin XLR-M Headset Connector Pin 1: Mic - (Mic Common); Pin 2: Mic +; Pin 3: Spkr-; Pin 4: Spkr+ (&0.5*VCCDC Supply between Pin 4 & Pin 1)

        Power Requirements
      • 13mA Quiescent
      • 24mA Average talk
      • 28mA Talk with signaling
      • DC Voltage Range: 12-30 VDC

      • Operating Temp Range: 0°C - 70°C (32°F - 158°F)
      • Storage Temp Range: 0°C - 70°C (32°F - 158°F)
      • Relative Humidity: 0 - 90% non condensing

        RS-701 Dip Switches:
      • 1. Mic Type
      • ON = Dynamic (default)
      • OFF = Electret
      • 2. Headset Output Level
      • ON = High
      • OFF = Low (default)
      • 3. Min Volume - Channel A
      • ON = Mute at min level (default)
      • OFF = Not silent at min level
      • 4. LEDs On/Off
      • ON = LEDs normal operation (default)
      • OFF = All LEDs dark
      • 5. Call-on Talk Enable - Channel A
      • ON = Call occurs when talk on
      • OFF = No call when talk on (default)
      • 6. Talk Latch Enable - Channel A
      • ON = Latch enabled (default)
      • OFF = Latch disabled
    • Item Includes:

      • 1x ClearCom RS-701 Single-Channel Standard Beltpack
    • GTIN:
