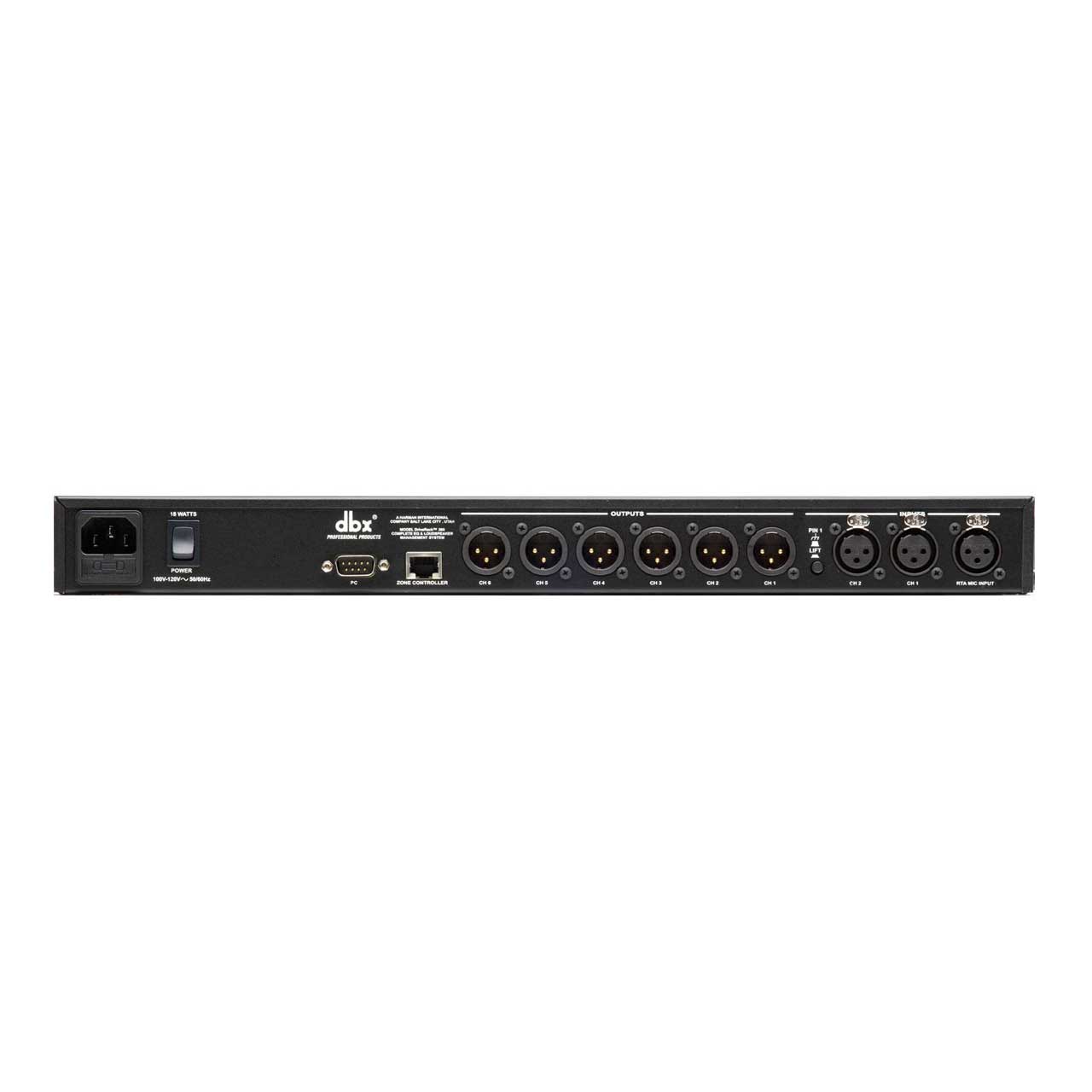

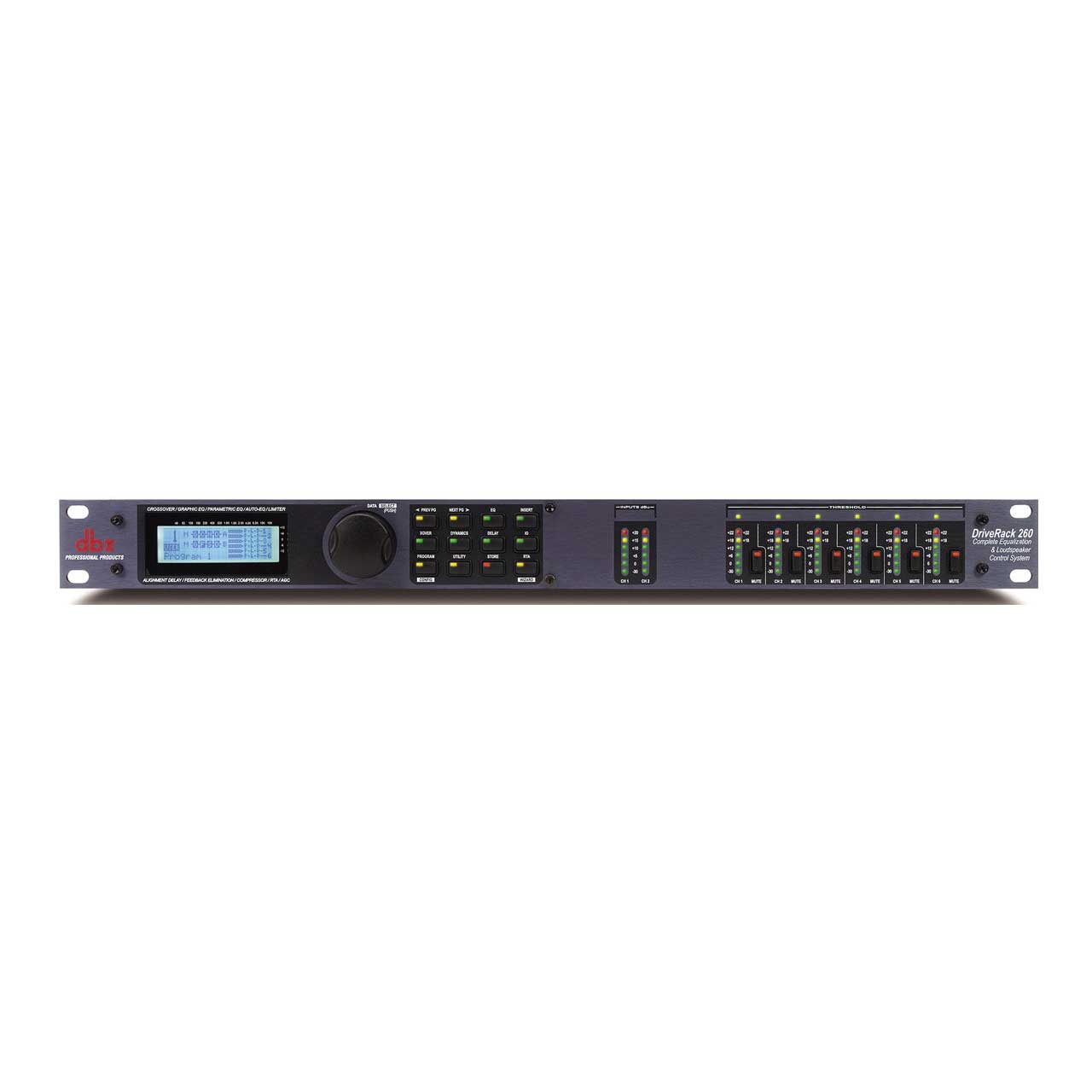

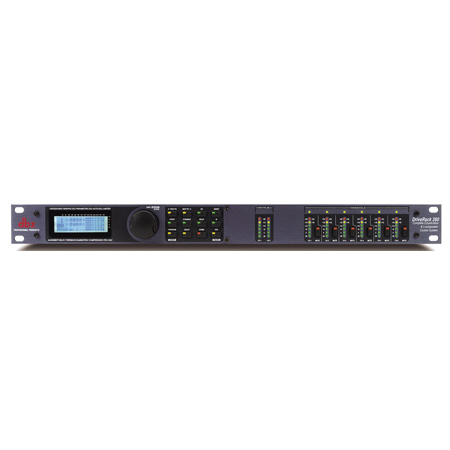

DBX 260 DriveRack Complete EQ & Loudspeaker Management System
  • DBX 260 DriveRack Complete EQ & Loudspeaker Management System
  • DBX 260 DriveRack Complete EQ & Loudspeaker Management System

Questions? Ask a Markertek Expert:
800-522-2025 Email

DBX 260 DriveRack Complete EQ & Loudspeaker Management System

Item #: DBX-260   •   MFG #: 260 DRIVERACK



List Price:$749.00
Our Price:$600.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    There is a reason that Tour Sound Professionals and discriminating Audio Contractors choose dbx DriveRack products for their high-end tours and installs. The DriveRack products provide the tools that ensure that the system sounds its very best. With the introduction of the new 260, the heritage of unrivaled system/loudspeaker control continues.

    The 260 capitalizes on the road tested and contractor approved nature of the other products in the DriveRack line. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel logic control and the patent-pending Advanced Feedback Suppression (AFS).

    The DriveRack 260 continues the legacy of DriveRack series, which has been created by the company that has been redefining the standard of signal processing for more than 30 years. The DriveRack 260 was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. This goal has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic Equalizer, industry-standard dbx stereo compressor module, feedback eliminator and the 120A Subharmonic Synthesizer on the input, with a six channel output system that includes parametric EQs, PeakStopPlus limiters (to provide protection against speaker blowouts) and alignment delay. These features combined with the Wizard setup system and complete DriveWare GUI control represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.


    • Features

      • Feedback Elimination
      • 2.7 Seconds of Alignment and Zone Delay
      • RS-232 PC GUI control
      • Classic dbx Compression and Limiting
      • Graphic and Parametric EQ
      • Auto-EQ Function
      • Full Bandpass, Crossover, and Routing Configurations
      • Auto Gain Control
      • Pink Noise Generator and full time RTA
      • Setup Wizard with JBL speaker and Crown Power Amplifier Tunings
      • Security Lockout
      • Wall Panel Control Inputs

    • Specifications

      • Input: (2) line inputs. (1) RTA Mic input
      • Input Connectors: (2) Female XLR line inputs. XLR RTA Mic input
      • Input Type: Electronically balanced/RF filtered
      • Input Impedance: >40k ohm
      • Max Input : +30dBu with input jumpers in +30 position
      • CMRR: >45dB
      • Mic Preamp Phantom Power: +15VDC (RTA)
      • Mic Preamp Equivalent Input Noise (EIN): < -110dB, 22Hz-22kHz, 150 ohm (RTA)
      • Output: 6 total
      • Output Connectors: Male XLR
      • Output Type: Electronically balanced, RF filtered
      • Output Impedance: 120ohm
      • Max Output: +22dBu
      • A/D Converter: dbx Type IV Conversion System
      • A/D Dynamic Range: (line) >113 dB, A-weighted, >110 dB unweighted
      • Type IV Dynamic Range: >119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW
      • Sample Rate: 48kHz
      • D/A Dynamic Range: 112 dB A-weighted, 109dB unweighted
      • Dynamic Range: >110 dB A-weighted, >107dB unweighted
      • THD+Noise: 0.003% typical at +4dBu, 1kHz, 0dB gain
      • Frequency Response: 20Hz - 20kHz, +/- 0.5dB
      • Interchannel Crosstalk: >110dB, 120dB typical, (input-to-output: >100dB)
      • Weight: 5.5 lbs.(2.5 kg)
      • Dimensions: 1.75" H x 7.875" D x 19" W
