Yamaha RIO3224-D2 High-Performance I/O Rack with 32 Analog Inputs 16 Outputs and 8 Digital Outputs

ITEM #: YMH-RIO3224-D2 MFG #: RIO3224-D2

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: In Stock
iAvailability Description Popup

    RIO3224-D2 - Overview

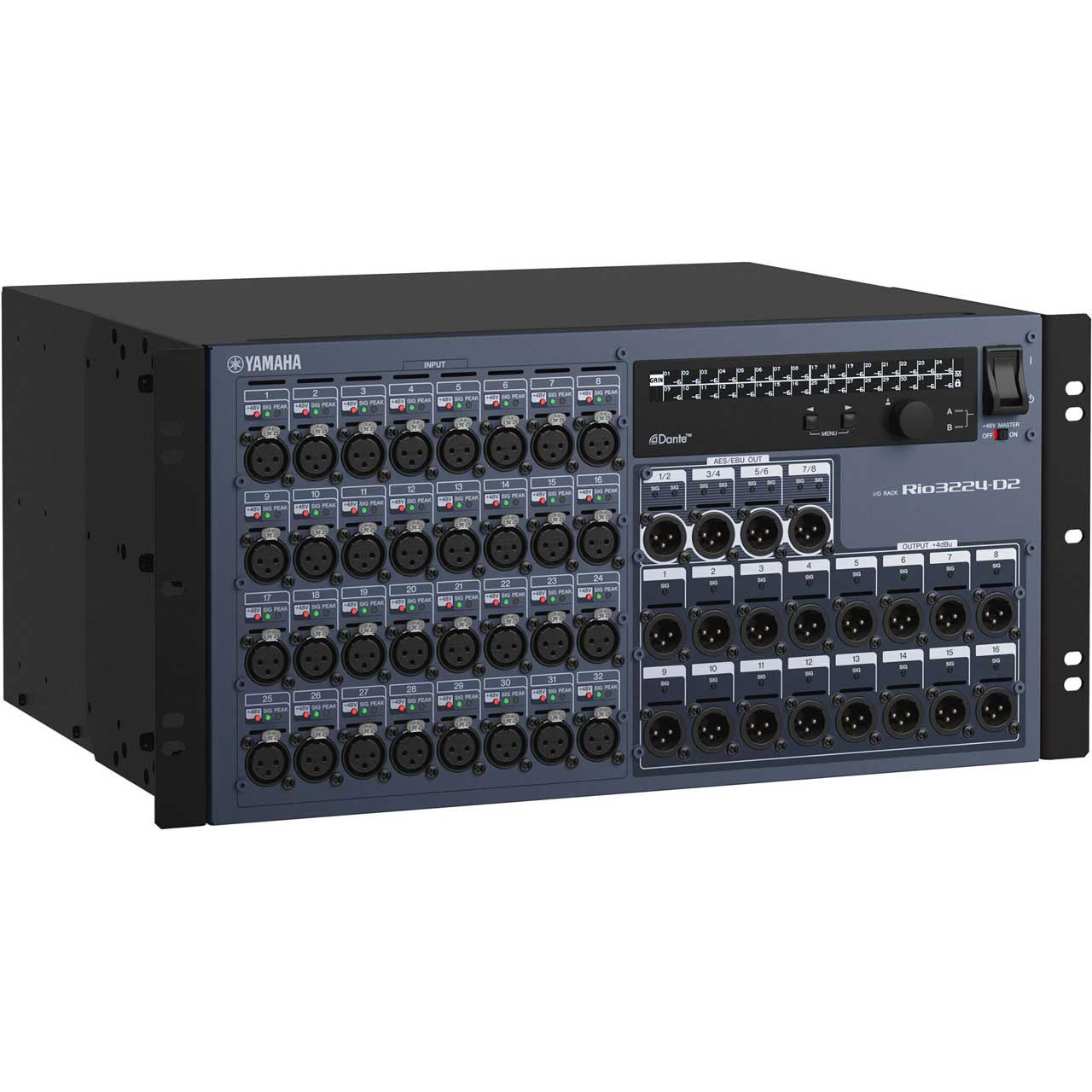

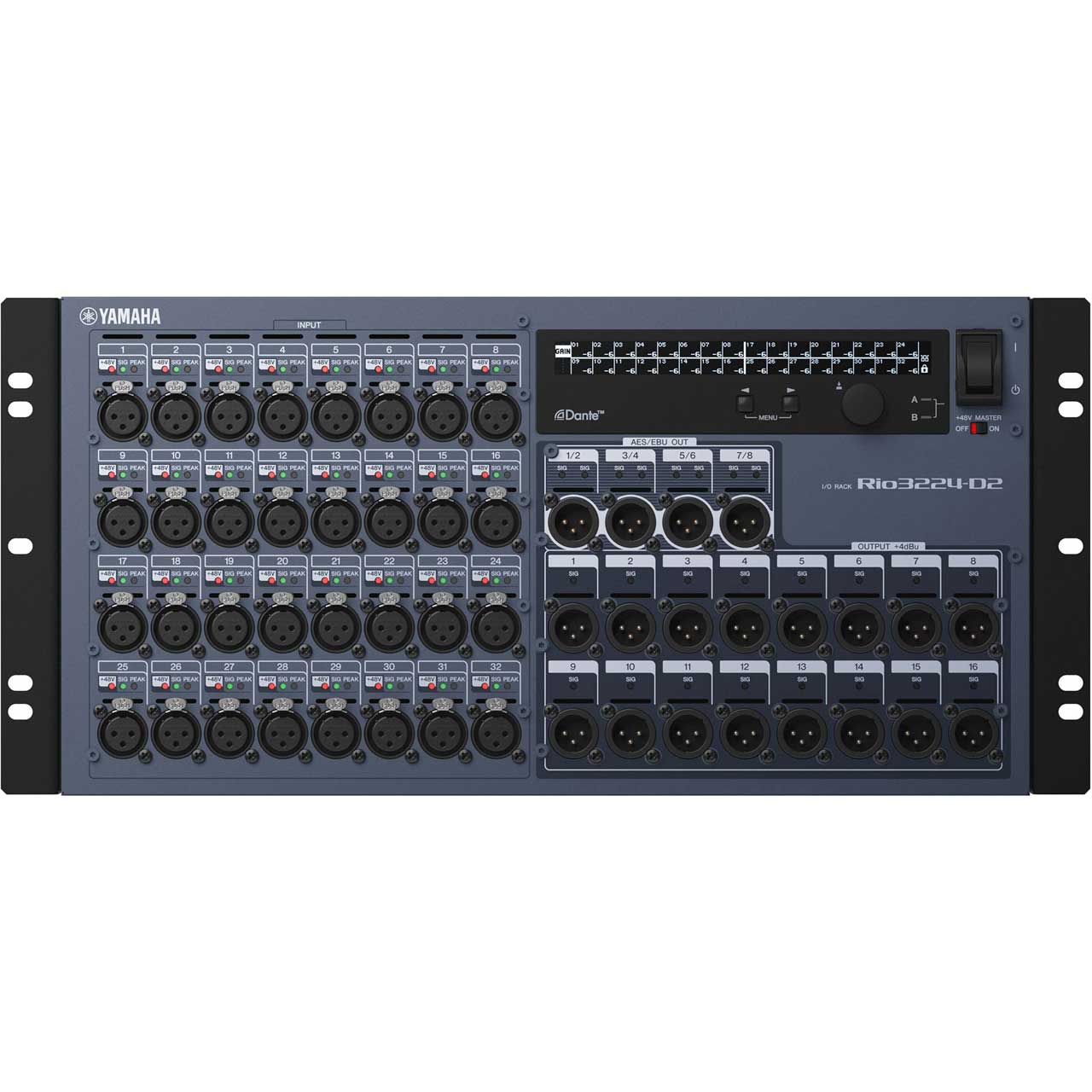

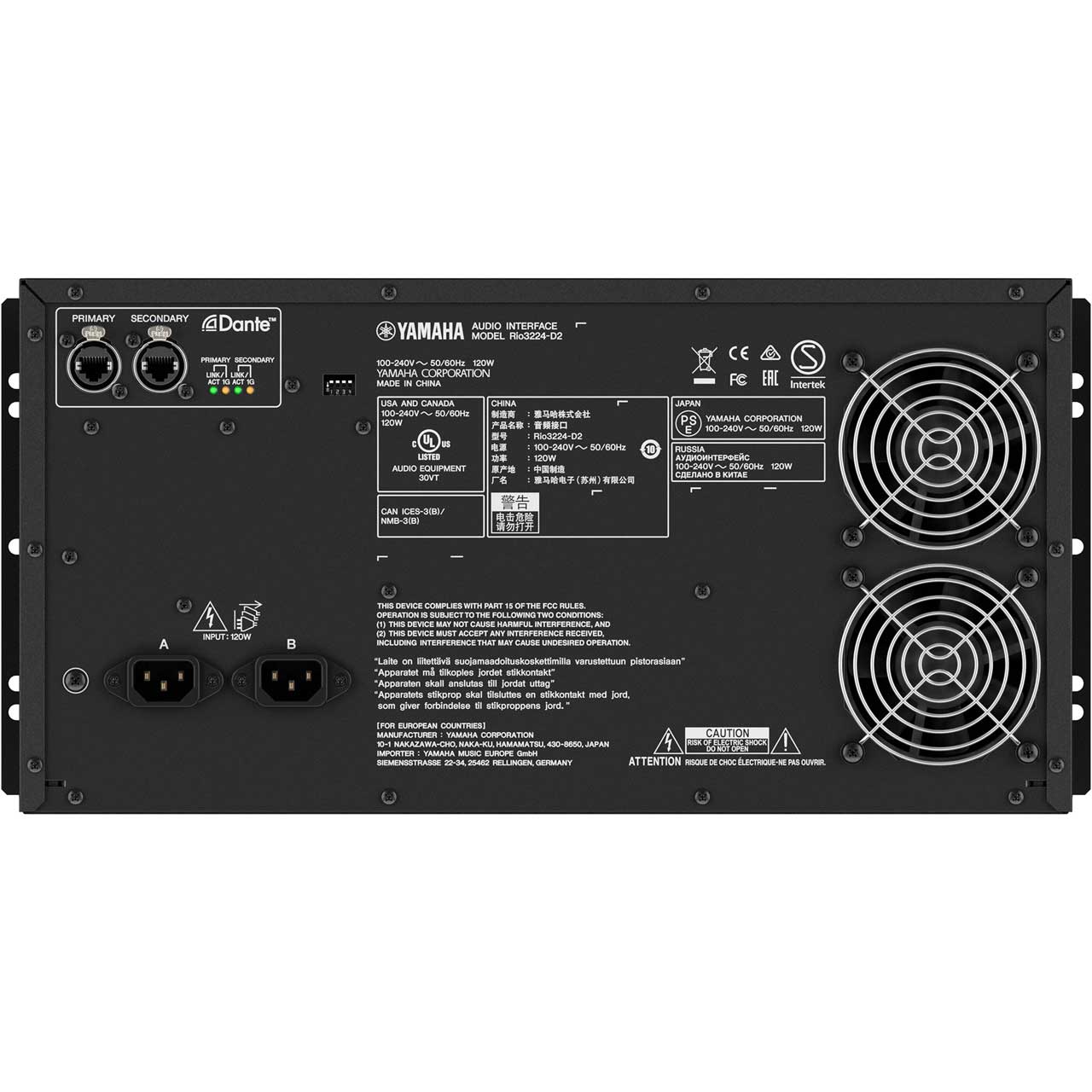

    This Yamaha Rio3224-D2 is a high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

    Supports SMPTE ST2210-30 with the latest firmware (v5.7) installed.

    • Features:

      • Supports SMPTE ST2210-30 with the latest firmware (v5.7) installed.
      • Long-distance Dante Network Capability
      • Display and Encoder for Improved Visibility and Operability
      • Remotely Controllable Internal Head Amplifiers
      • Digital Outputs (Rio3224-D2 only)
    • Specifications:

      • External Sampling Frequency: 44.1kHz +4.1667%, +0.1%, -0.1%, -4.0% ±200ppm, 48kHz +4.1667%, +0.1%, -0.1%, -4.0% ±200ppm, 88.2kHz +4.1667%, +0.1%, -0.1%, -4.0% ±200ppm, 96kHz +4.1667%, +0.1%, -0.1%, -4.0% ±200ppm,
      • Signal Delay: Less than 1.7 ms Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz. Dante Receive Latency set to 0.25 msec
      • Frequency Response: +0.5, -1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 48 kHz +0.5, -1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 96 kHz
      • Total Harmonic Distortion (measured w/ 18dB/octave filter @80kHz): Less than 0.05% 20 Hz-20 [email protected]+4 dBu into 600Ω, Fs= 48 kHz Less than 0.05% 20 Hz-40 [email protected]+4 dBu into 600Ω, Fs= 96 kHz INPUT to OUTPUT, Input Gain= Min.
      • Hum & Noise (measured w/ A-Weight filter): -128 dBu typ., Equivalent Input Noise, Input Gain= Max. -88 dBu Residual output noise, ST master off.
      • Dynamic Range: 112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min.
      • Crosstalk @ 1kHz (measured w/ a 30dB/octave filter @22kHz): -100dB, adjacent INPUT/OUTPUT channels, Input Gain= Min.
      • Dimensions (WxHxD): 18.90 x 8.66 x 14.47"
      • Net Weight: 29.76 lbs
      • Power Requirements (wattage): 120W
      • Power Requirements (voltage and hertz): 100-240V 50/60 Hz
      • Temperature Range: Operating: 32 to 104°F Storage: -4 to 140°F
      • NC Value: FAN MODE LOW: NC=20 / HIGH: NC=30; Measurement position: 1m from the front of the unit
    • Item Includes:

      • Owner's Manual
      • AC power cord
      • Dante Virtual Soundcard Token leaflet
