NTI TalkBox Calibrated digital acoustical source
  • NTI TalkBox Calibrated digital acoustical source
  • NTI TalkBox Calibrated digital acoustical source

Questions? Ask a Markertek Expert:
800-522-2025 Email

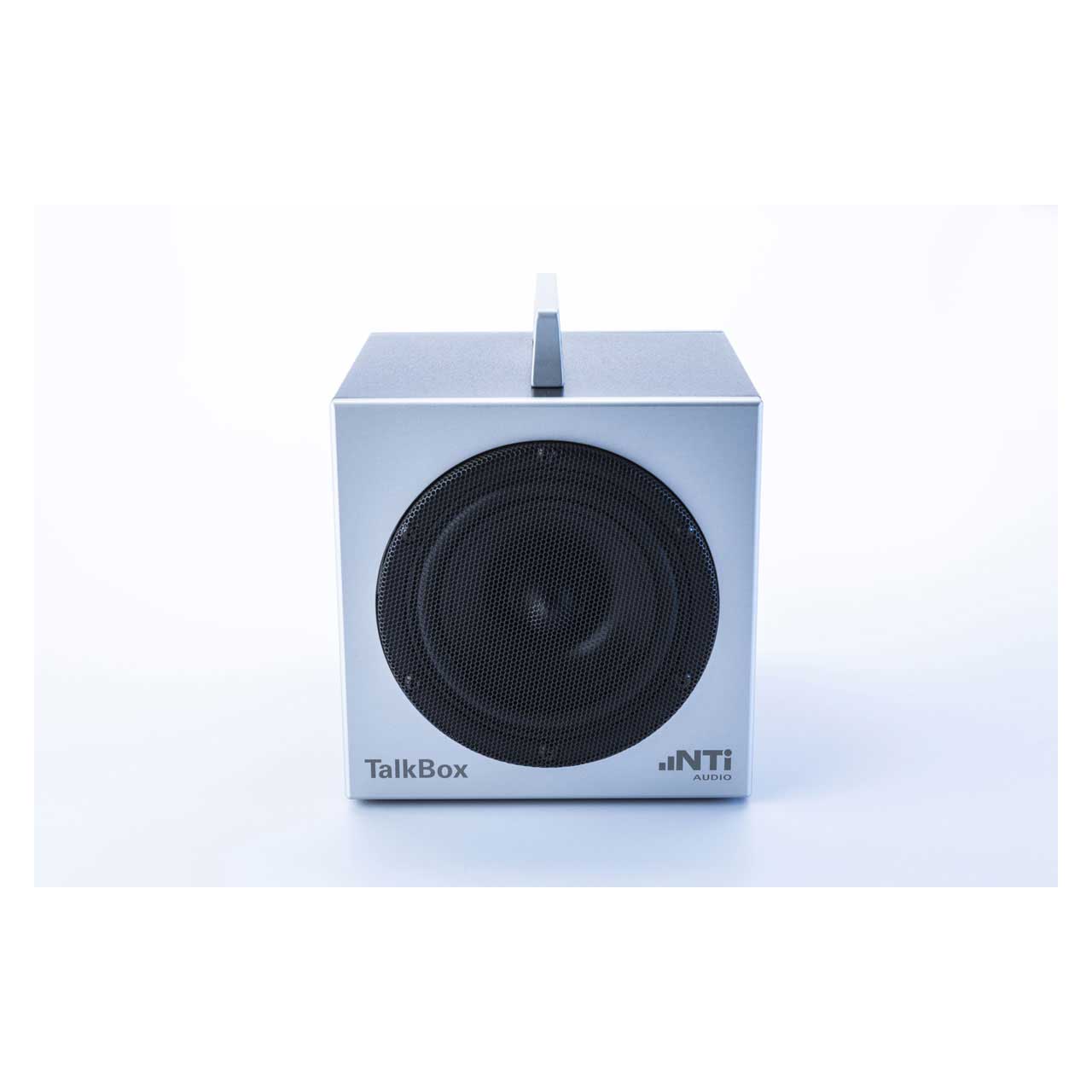

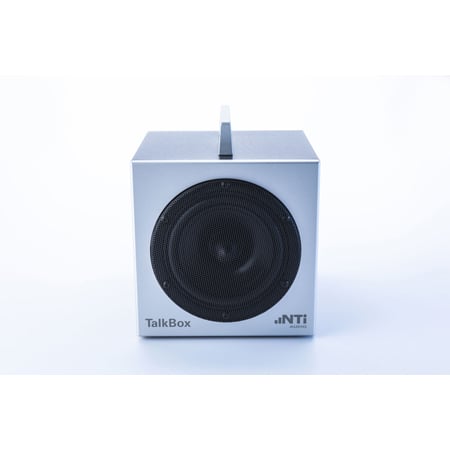

NTI TalkBox Calibrated digital acoustical source

Manufacturer: NTi Audio

Item #: NTI-TALKBOX   •   MFG #: 600 000 085



List Price:$2,085.00
Our Price:$1,980.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The TalkBox is an active acoustic signal generator for speech intelligibility measurements in evacuation and announcement systems, as well as for level alignment of teleconference or any audio system incorporating a microphone input. It allows performing complete end-to-end evaluation of the speech intelligibility STIPA from the talker's microphone to the listener's ears.

    It Simulates a human talker (60 dBA @ 1 meter according to IEC 60268-16) with the STIPA test signal and spoken messages. Further it provides a wide range of test signals like sine, pink noise, white noise and delay.

    The TalkBox features human head-like dimensions and is based on a solid-state-generator. It replays the STIPA test signal with a precise frequency response, individually equalized for each TalkBox, also ensuring best performance through the internal amplifier and the precision loudspeaker. A variety of supplied or user-defined test signals may be precisely output for different alignment applications.

    Designed to the latest quality standards for reliable measurements results. It offers unmatched signal purity with a distortion lower than 1% over the complete frequency range from 100 Hz to 10 kHz. This ensures the repeatable and precise verification of the speech intelligibility STI.


    • Features

      • Individually Equalized
      • Adjusted Output Level
      • Lombard Effect
      • Balanced Line In / Out
      • Different Test Signals
      • Mic Stand Mountable
      • Remote Mute
      • Universal Power Supply

    • Specifications

      • Waveforms
      • Up to 15 different signals
      • Waveforms can be added / changed by the user
      • Factory signal set: NTi Audio STIPA Test Signal (TNO verified), Reference Speech Signal, White Noise, Pink Noise, Delay Test Signal, Sine 1 kHz

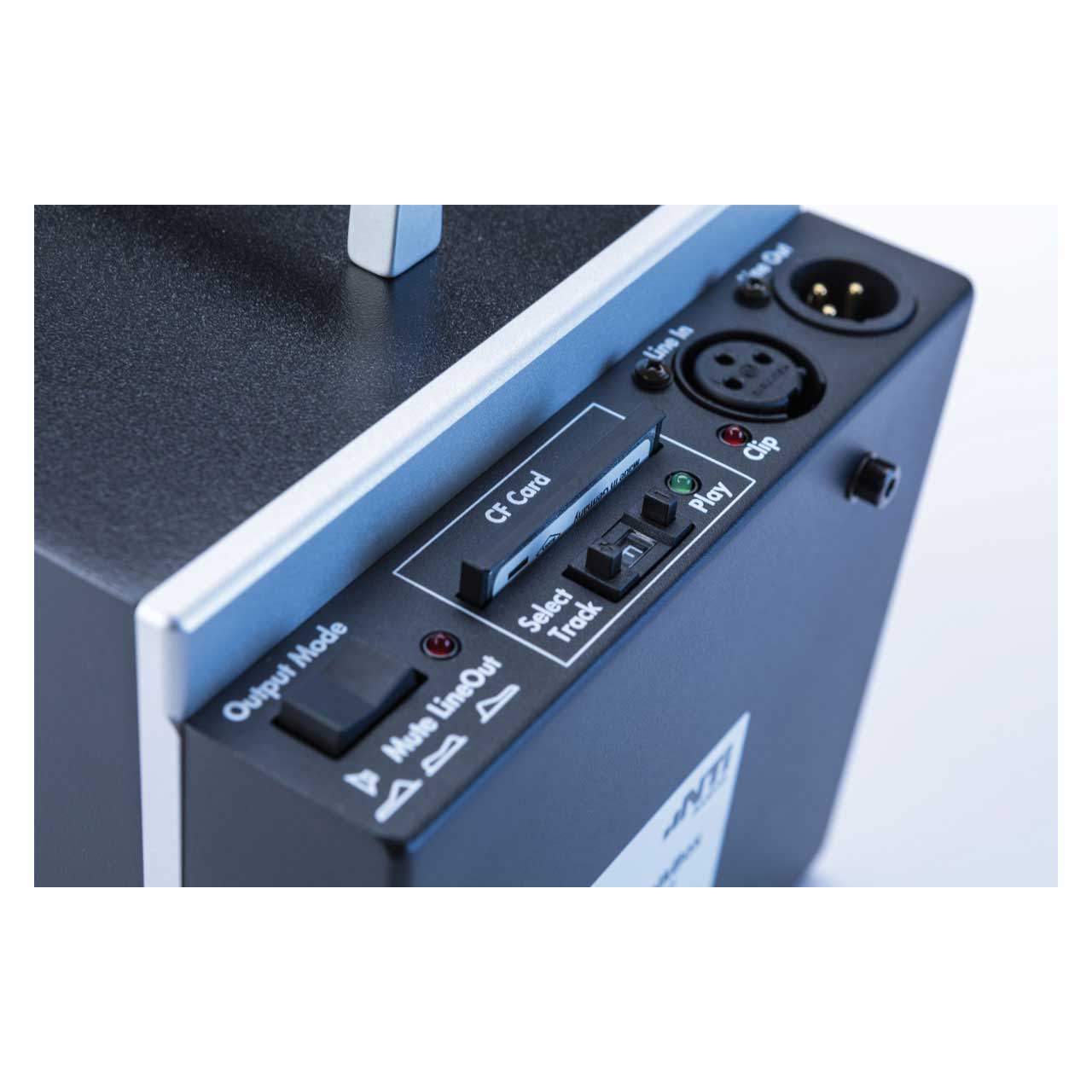

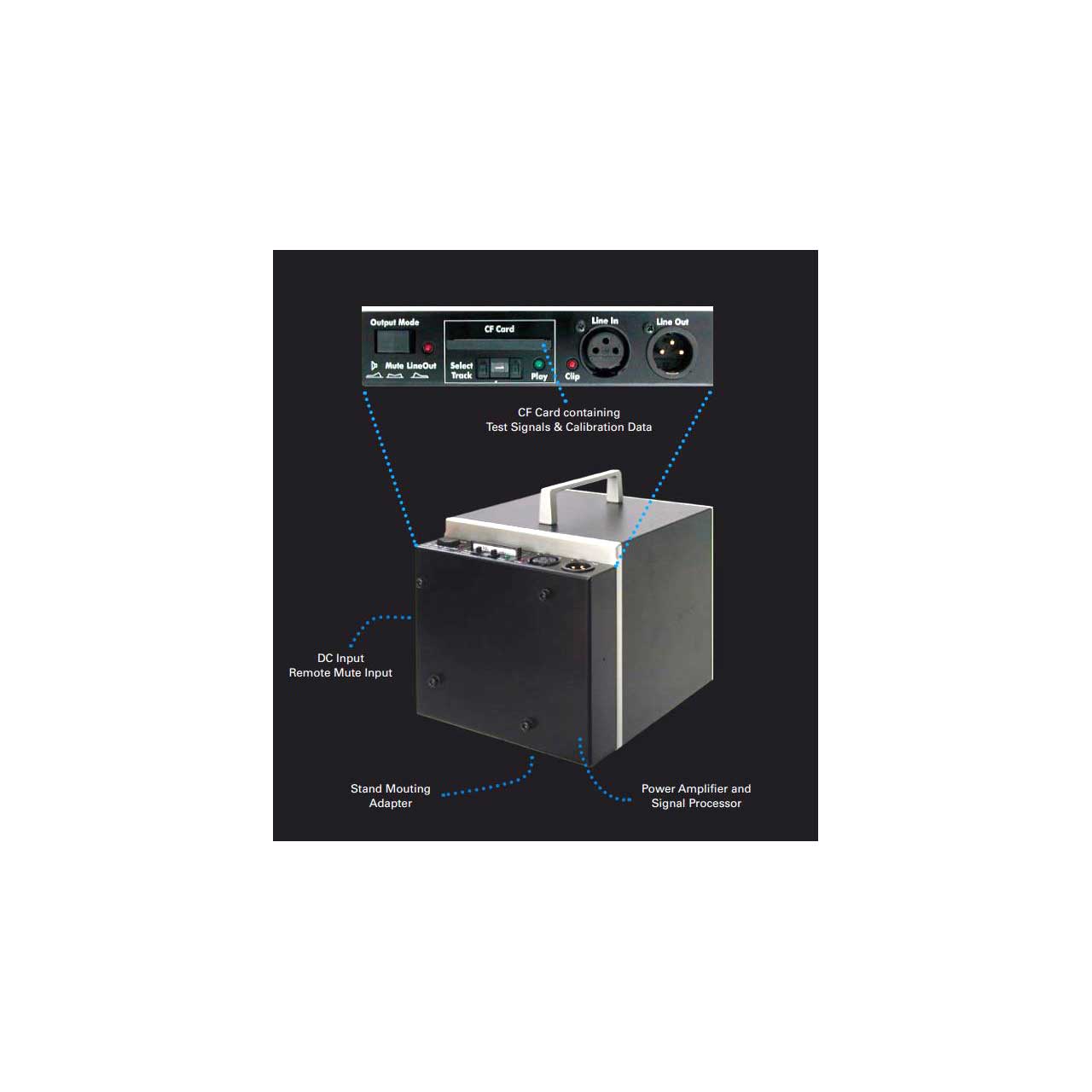

        Line Out
      • XLR, balanced 100 Ohm, unbalanced 50 Ohm
      • Maximum output level: +18 dBu,
      • 1 kHz file with 60 dB @ 1 meter: typically -11 dBu

        Line Input
      • XLR, balanced 38 kOhm
      • Max. input level: +18 dBu (acc. to EBU R68, ITU-R rec. 645)
      • Internal delay from XLR input to speaker: 59 ms

        CF-Card
      • 256 MB included, FAT32 formatted, NTi Audio # 600 000 087
      • Wav-file format: 16 Bit, 44.1 kHz mono

        Acoustical Flatness
      • STIPA band levels (in axis)-
      • typ < +/- 0.5 dB @ 24°C
      • typ < +/- 1.0 dB @ 10°C - 30°C

        Acoustical Output Level
      • STIPA: 60 dBASPL @ 1 m +/- 0.5 dB, acc. to IEC60268-16
      • STIPA band sensitivity gradient: - 0.07dB / °C (average)
      • Others see track list in user manual

        General
      • Power Supply: 10 - 18 VDC, 10 Watt
      • External switching power supply included (110 V .. 240 V)
      • External Mute: Jack 3.5 mm (1/8"), floating switch required
      • Mounting: Mic Stand 5/8" with Adapter to 3/8"
      • Dimensions (LxWxH):5.9" x 5.9" x 6.9"
      • Weight:3.5 kg
      • Operating Temperature:32° to 113°F

    • Item Includes

      • NTi Audio TalkBox
      • Protection Cover mounted with NTi Audio lanyard
      • CF-Card with test signals & individual calibration data
      • Mains Power Supply & Power Cord
      • CD "NTi Audio TalkBox", backup copy of Memory Card
      • Carrying Pouch
      • User Manual
