DBX DB10 Passive Direct Box

ITEM #: DBX-DB10 MFG #: DB10

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$136.78

Our Price:

$115.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DB10 - Overview

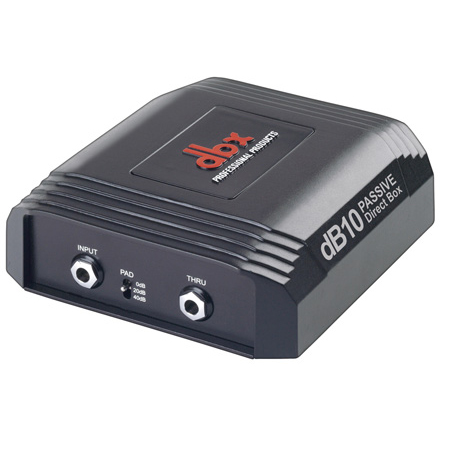

    The dbx db10 Passive Direct Box utilizes custom dbx mu-metal-shielded audio transformers, high-quality Neutrik connectors, and low-noise circuitry to preserve the sonic integrity and true characteristics of the signal source. It includes a pad switch that accomodates instrument, line and even speaker level signals. Take even more control of your sound by utilizing the polarity invert switch to set the phase relationship between the direct and mic'd sound.

    As a professional, you don't have time for interference, so we've included a ground lift switch to solve potential hum and buzz problems due to ground loops. And between the combined shielding of the cast metal chassis and the custom-wound transformer, you can be doubly assured of a clean signal free from interference. All of this sits atop a solid, stable footprint, that will keep the box from being dragged around the stage, and the unique contoured underside allows secure stacking of multiple units.

    • Features:

      • Premium performance
      • Rugged design
      • Stackable chassis with durable rubber foot
      • Gold-plated Neutrik XLR connector
      • Premium chrome toggle switches
      • Hi-Z 1/4" input jack
      • Parallel 1/4" thru jack
      • Transformer isolated
      • Premium shielded custom dbx transformer
      • Balanced XLR Lo-Z output
      • 3-Way 0/20/40dB pad switch
      • Flat/High-Cut filter switch
      • Output polarity invert switch
      • Ground lift switch

    • Specifications:

      • Input
      • Number of Connectors: 1 Instrument/Line/Speaker level
      • Connection: 1/4" TS
      • Type: Unbalanced, RF Filtered
      • Attenuation Pad: Switchable: 0dB, 20dB, 40dB
      • Filter: Switchable: Low Pass @ 6kHz (40dB pad position only)
      • Max Input Level:
        0dB Pad: 33dBu
        20dB Pad: 33dBu
        40dB Pad: 33dBu
      • Input Impedance:
        0dB: 80kΩ w/ 600Ω load, 270kΩ w/ 2kΩ load, 13MΩ w/ 100kΩ load
        -20dB: 65kΩ Typical
        -40dB: 70kΩ Typical

        Output
      • Number of Connectors: 2
      • Main Output: Male XLR, Balanced, Pin 2 Hot
      • THRU Output: 1/4" Unbalanced TS
      • Main Output Impedance: 600Ω typical, balanced
      • Main Output CMRR:
        60Hz: 128dB typical @ 60Hz
        1kHz: 104dB typical @ 1kHz
        10kHz: 98dB typical @ 10kHz
      • Output Polarity: Switchable: Normal/Invert

        Performance
      • Bandwidth: 20Hz - 20kHz +/-0.1dB typical
      • Frequency Response: <10Hz - 80kHz, -3dB
      • Phase Deviation (Input to Output): 1 deg @ 20Hz, -5 deg @ 20kHz into 2kΩ load
      • Insertion Loss: 21dB typical
      • Harmonic Distortion (THD+N):
        0.003% typical @ 50Hz, 0dBu
        0.002% typical @ 1kHz, 0dBu
        0.002%typical @ 10kHz, 0dBu
      • Noise Floor: -120dBu, 22Hz - 22kHz, unweighted
      • Dynamic Range: 153dB, 22Hz - 22kHz, unweighted

        Power Supply
      • Voltage: N/A
      • Current: N/A
      • Ground: Switchable: Ground/Lift

        Physical
      • Dimensions (LxWxH): 5.82" x 5.44" x 2.20"
      • Weight: 1.5lbs (0.68kg)
      • Construction: Metal Casting
      • Finish: Powder Coat

    • Warranty:

      • 4 Year Warranty

    • GTIN:

      0691991401015
