Radial - ProRMP Re-Amping Box

ITEM #: RAD-PRORMP MFG #: R800 1125

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$156.00

Our Price:

$129.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    R800 1125 - Overview

    For years, Reamping has been the 'secret weapon' for countless recordings by the biggest names in the business! Few realize that recording engineers not only Reamp guitars, but often Reamp bass, keyboards, drums and even voice as a means to bring creative new tones and sonic signatures to their music.

    Reamping has many benefits. You start by recording a clean track and concentrate on capturing the best musical performance. Once the magic has been captured, send the clean track back to the amps and effects and adjust the sound to suit. No more hours of repetition for the guitarist, no more rushed jobs due to scheduling, and best of all, you do not have to commit to the sound of the track. You can modify the tone as the recording progresses while using real amps, effects and natural ambiance for the most organic tone.

    The Radial ProRMP is a 100% passive Reamper. This means it does not require any external powering. The magic behind the ProRMP's great tone is a custom wound transformer that at once converts the balanced line level source to a hi-z output for your amp while also acting as an electrical isolator to eliminate troublesome ground loops that can often cause buzz and hum in the sound. Plug and play easy to use, the ProRMP connects from the recorder to your amp and effects units and does all the impedance matching for you. Just adjust the level to suit!

    Like all Radial products, the ProRMP is built tough! Encased in 14 gauge steel, the ProRMP employs a unique book-endT design with a tough I-beam frame that protects it from damage and assures the PC board and solder points will not be stressed. A full-bottom no-slip pad works double duty by providing plenty of stay put while also eliminating electrical contact points from guitar amp chassis bolts that could cause ground loops.

    The Radial ProRMP - affordable Reamping for every studio!

    ProRMP Applications

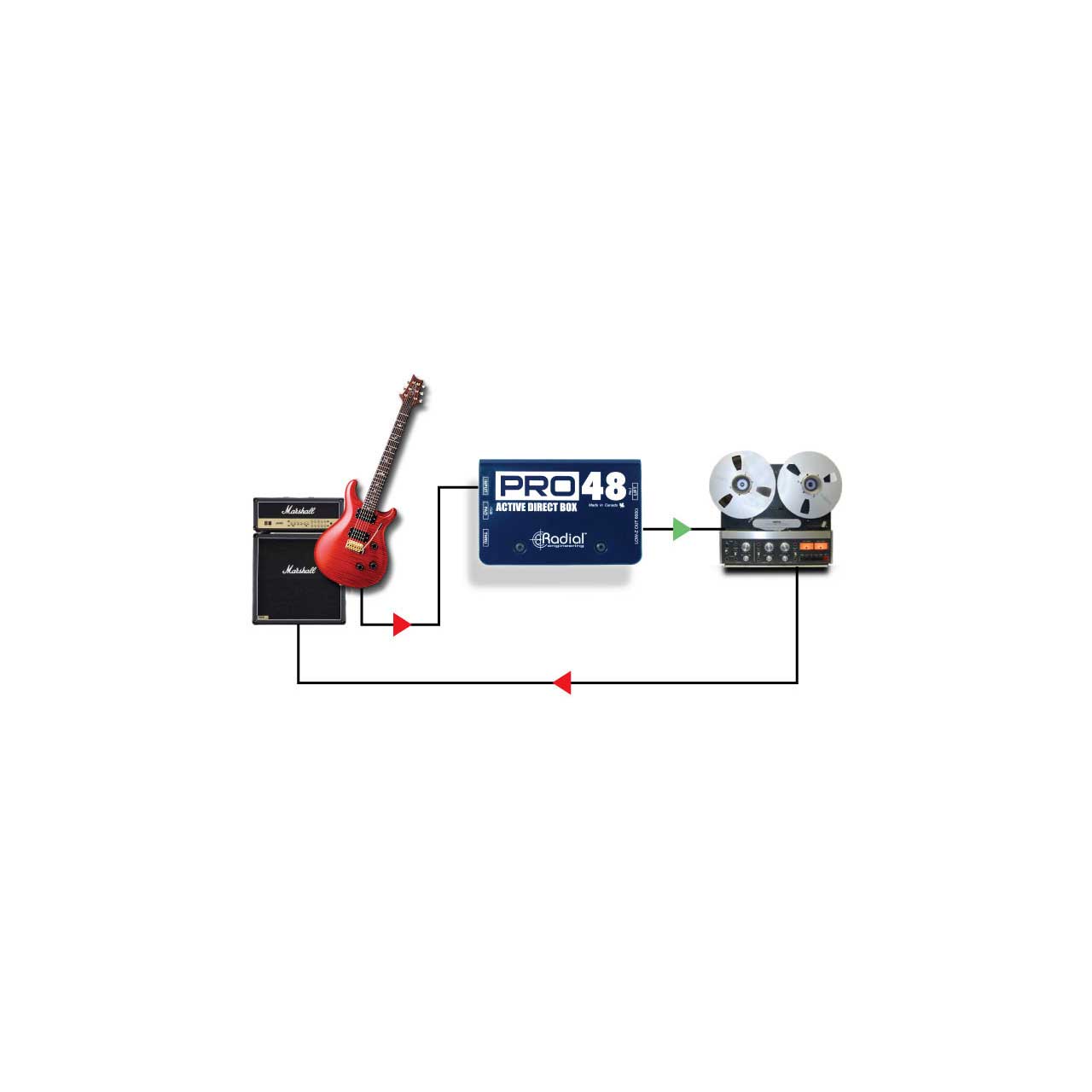

    Reamping Step-1 (see fig 3 above)
    Record the guitar track using a Radial direct box like the Pro48. This splits the signal so that the guitar player can hear his amp while you capture the clean (dry) performance.

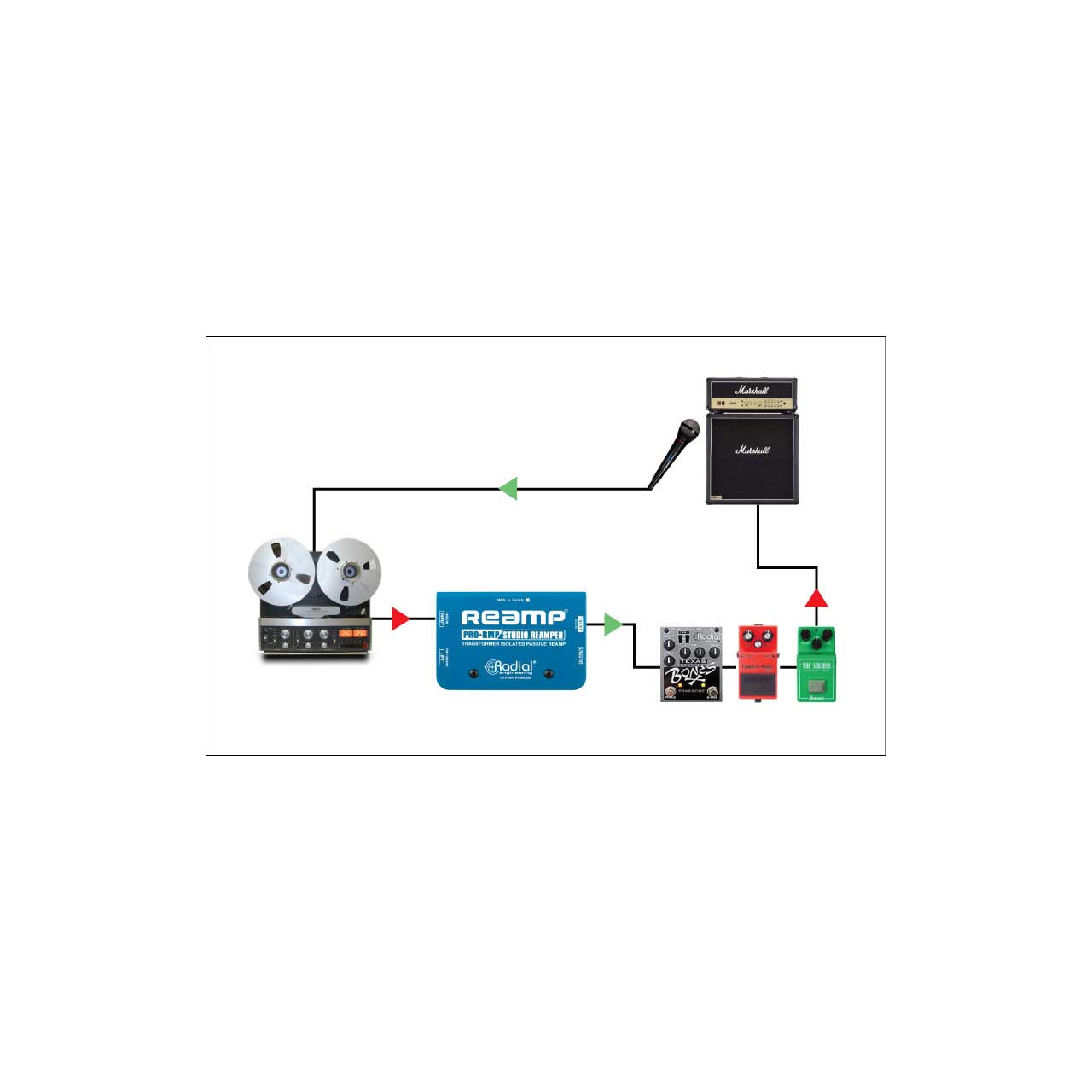

    Reamping Step-2 (see fig 4 above)
    Send the dry track from your recording system to the ProRMP. This then feeds your guitar amp and pedals. Adjust the tone and move the mics until you get the sound you want.


    Using the ProRMP with a wireless system
    Most wireless systems simply do not sound all that good. Take the balanced output from the wireless and send it through the ProRMP. You will be amazed at the warmth

    • Specifications:

      • Audio circuit type: Passive, transformer isolated
      • Frequency response: 20Hz ~ 20KHz (+0/-1dB)
      • Dynamic range: >137dB
      • Equilavent input noise: >-98dBu Noise plus gain
      • Phase deviation: 0.3° @ 100Hz; 5° @ 20Hz
      • Gain: >-10dB
      • Maximum input: >+26dBu
      • Total harmonic distortion: 0.003%
      • Common mode rejection ratio: 100dB @ 60Hz (unbalanced source)
      • Input impedance: 600 Ohms
      • Output impedance: 600 Ohms, balanced
      • Noise: -111dBu
      • Signal to noise ratio: 81dB
      • Input pad: -15dB
      • 180° polarity reverse: Inverts signal polarity
      • Ground lift: Disconnects pin-1 at XLR output
      • Merge: Input summing mixer
      • Speaker filter: -30dB pad and band-pass filter
      • XLR configuration: AES standard (pin-2 hot)
      • Power: Passive, no power required
      • Construction: 14 gauge steel chassis and outer shell
      • Finish: Durable powder coat
      • Size: Size: 3.3" x 5.0" x 2" (84 x 127 x 48mm)
      • Weight: 1.55 lbs (720 g)
      • Conditions: For use in dry locations only between 5°C and 40°C
      • Warranty: Radial 3-year, transferable

    • GTIN:

      0676101036783
