ESE ES-274U IRIG-B to SMPTE Converter (220V/50Hz)

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

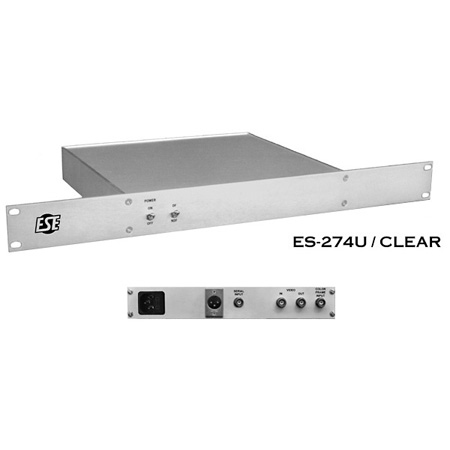

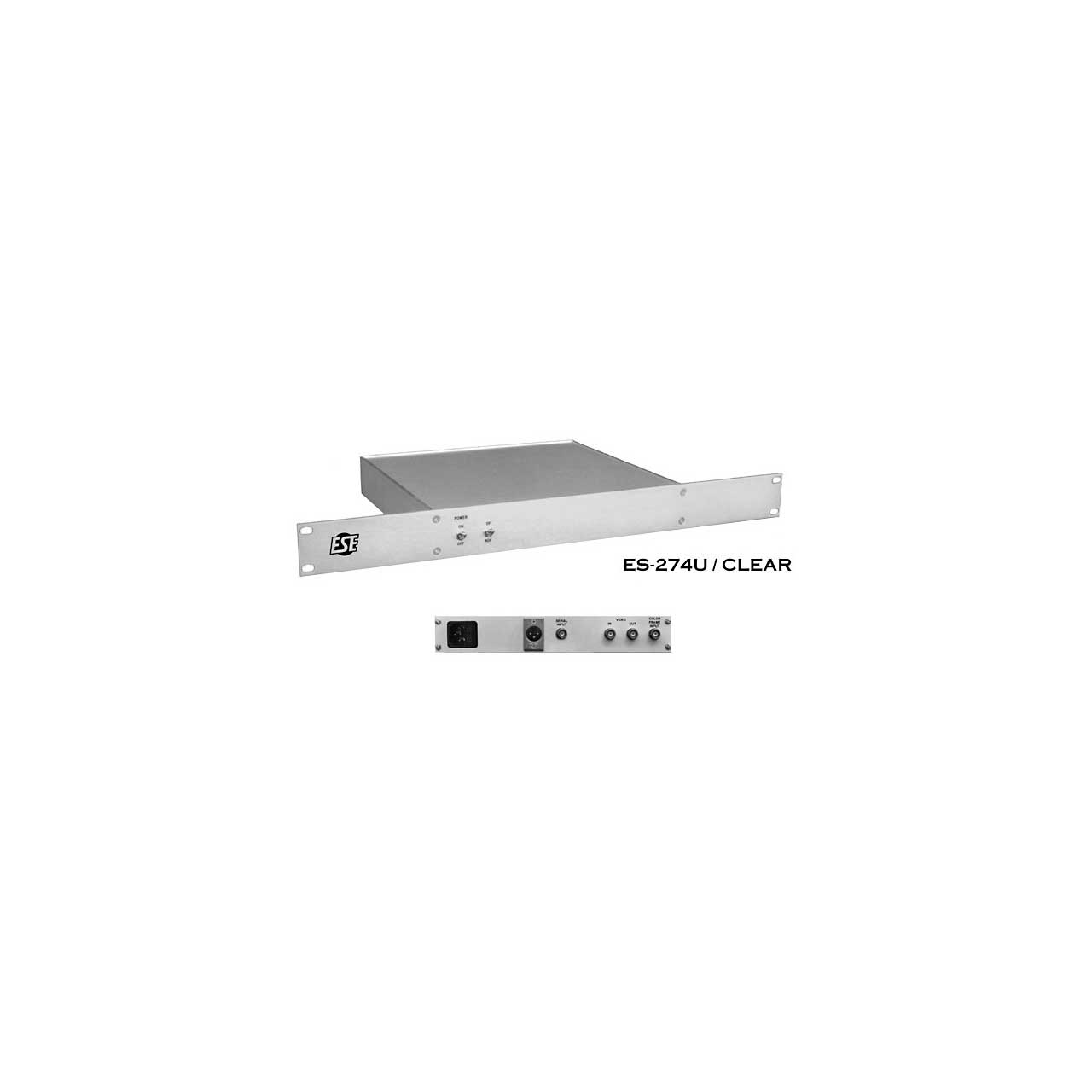

    ESE ES-274U IRIG-B to SMPTE Converter (220V/50Hz)

    Manufacturer: ESE

    Item #: ES-274UJ   •   MFG #: ES-274UJ








    Versions:





    Share!





    The ES-274U generates SMPTE timecode synchronized from an external source of IRIG-B timecode.


    • Features

      • Video loop-thru and Color Frame inputs for SMPTE video sync
      • Balanced or unbalanced SMPTE output (XLR)
      • Drop-Frame or Non Drop-Frame modes
      • Wide range (100 mVPP - 10 VPP) AGC input for IRIG-B (BNC)
      • 19" single-rack height enclosure
      • Various Options available: Black(1), DC, J, P(1), UL W(1), 1PPS
        OptionsES-274U Options
      • 1PPS 1 PPS Output: Provides a one pulse per second TTL output synchronized to the time code output. Clear Clear Anodized Front Panel
      • DC DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
      • EBU EBU Time Code: The unit is configured to output EBU Time Code instead of SMPTE (standard, or at no charge on many units). J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
      • UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
