Azden EX-503H Omni-Directional Lav Mic w/ Hirose Connector

ITEM #: EX-503H MFG #: EX-503H

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EX-503H

EX-503H - Overview

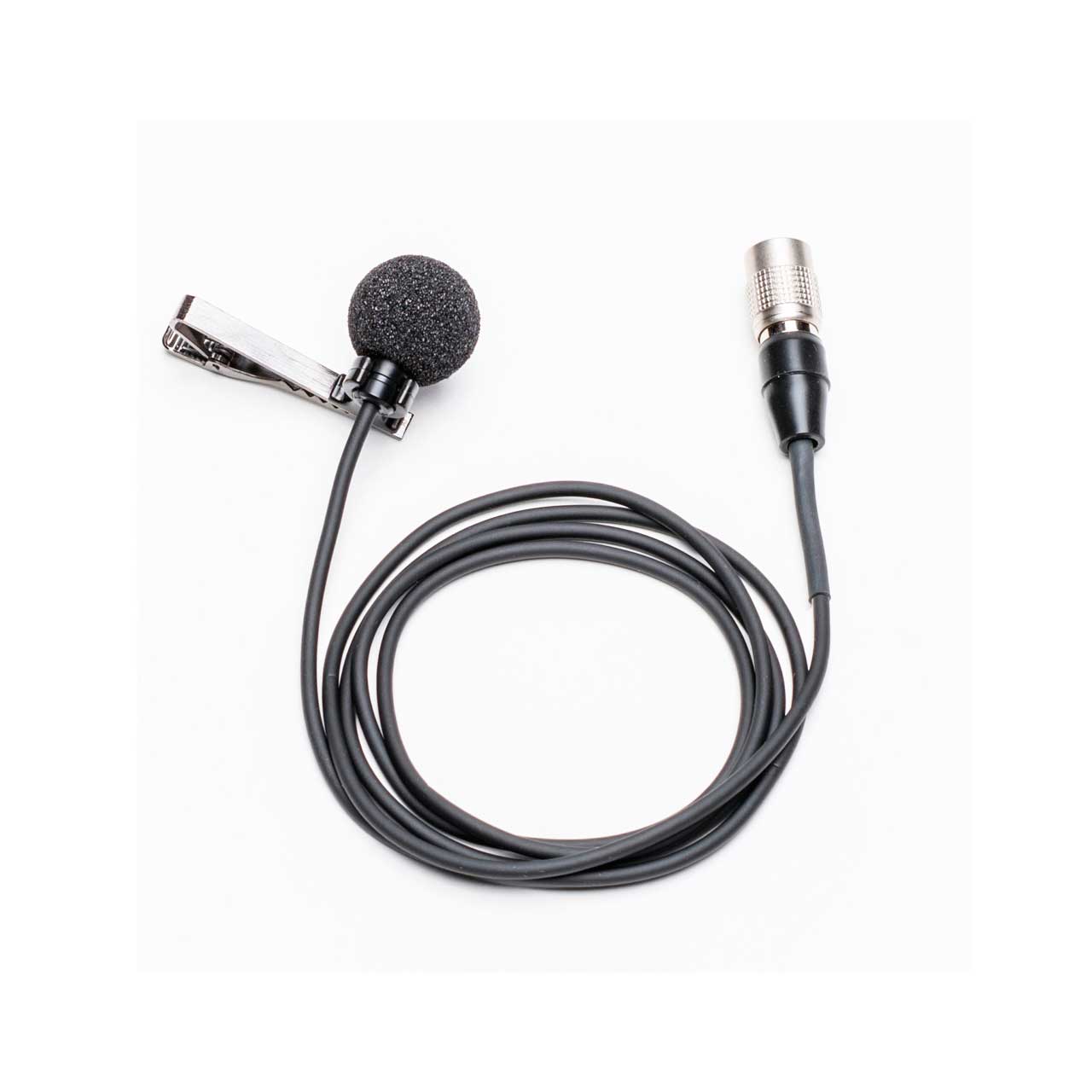

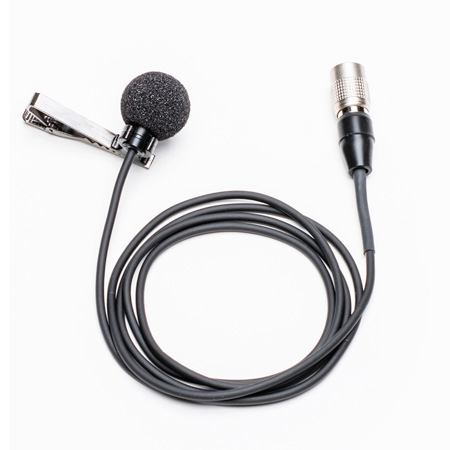

Omni-directional lavalier microphone with 4-pin Hirose connector. This electret condenser microphone requires a bias voltage of 2-10VDC which all Azden body-pack transmitters provide. Microphone comes with LC-1 lapel clip. Designed to be used with the Azden's 1201BT & 2000BT body-pack transmitters.

  • Features:

    • Omni-directional lavalier
    • Powered by 2-10V DC
    • Power provided by Azden body-pack transmitters
    • For use with 1201BT & 2000BT transmitters.
    • 4-pin Hirose connector


  • Specifications:

    • Mic Type: Electret Condenser
    • Frequency Response: 30-18,000 Hz
    • Directionality: Omni-Directional
    • Sensitivity: 64dB +/1 4dB (0dB=1V/0.1 Pa) @1KHz/2.2K ohms/3V bias
    • Impedance: 2kΩ (at 1kHz)
    • Power Requirement: Plug-in power DC 2-10V
    • Connector: 4 pin Hirose
    • Detachable windscreen


  • Item Includes:

    • Lapel Clip
    • Windscreen


  • GTIN:

    0095528030011
