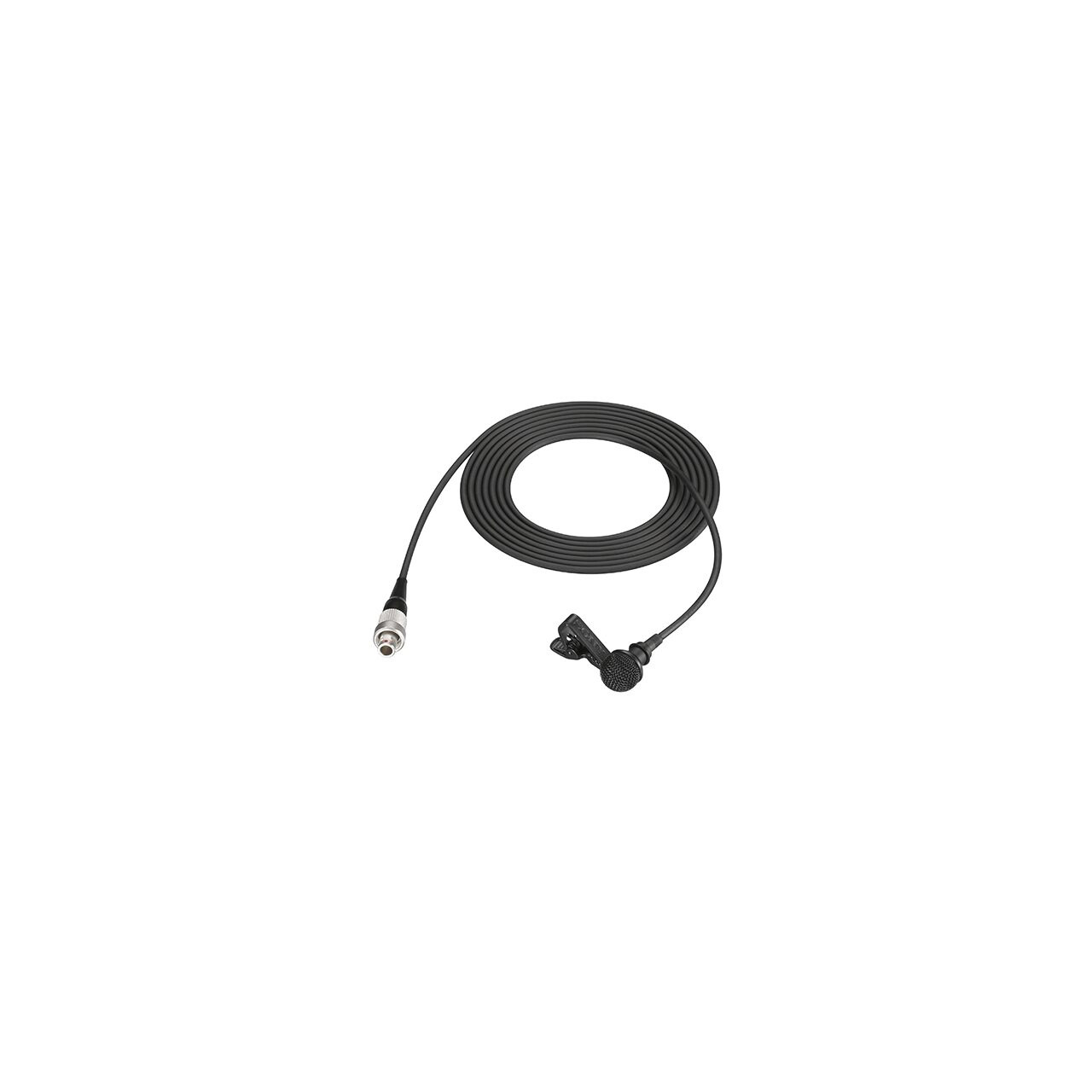

Sony ECM-77LM Miniature Omni-Directional Electret Condenser Lavalier Microphone for Sony DWT-B03R - Black

ITEM #: SNY-ECM-77LM MFG #: ECM-77LM

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$337.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    ECM-77LM - Overview

    Lavalier Mic with Excellent Sound Quality, Ideal for use with DWT-B03R Wireless Transmitter
    The Sony ECM-77 miniature lavalier microphone is seen in daily use on TV shows around the world, and is an equally familiar sight in both studio-based productions and on location.

    A discreet 'hands-free' alternative to handheld microphones, its popularity is due to a combination of excellent sound quality, robust construction and an attractive cosmetic design. The miniature design of the ECM-77 makes it easy to conceal in a stage performer's costume.

    The electret condenser microphone's omni-directional capsule is optimised for clear speech pick-up, with an extended frequency response, impressive sensitivity and low handling noise.

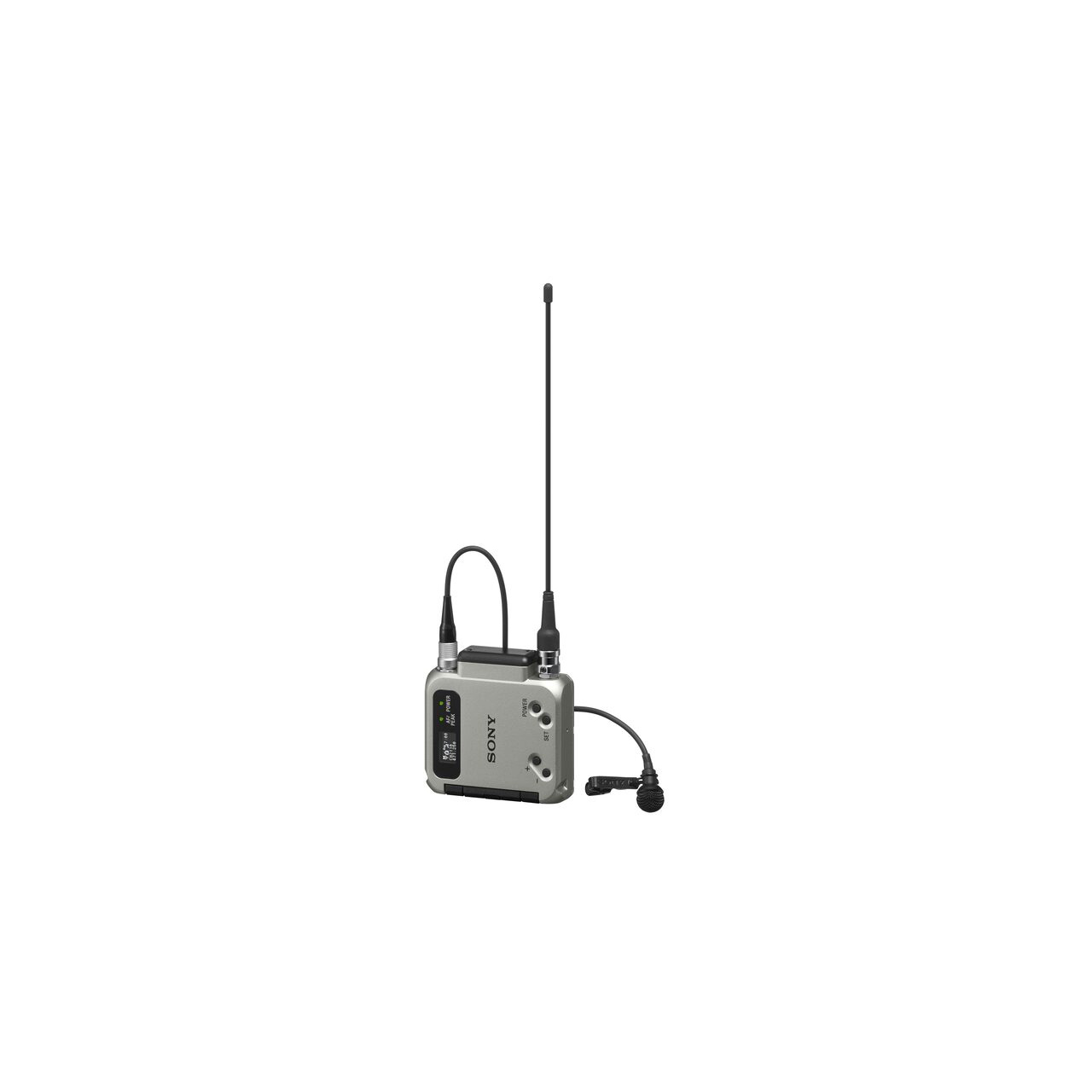

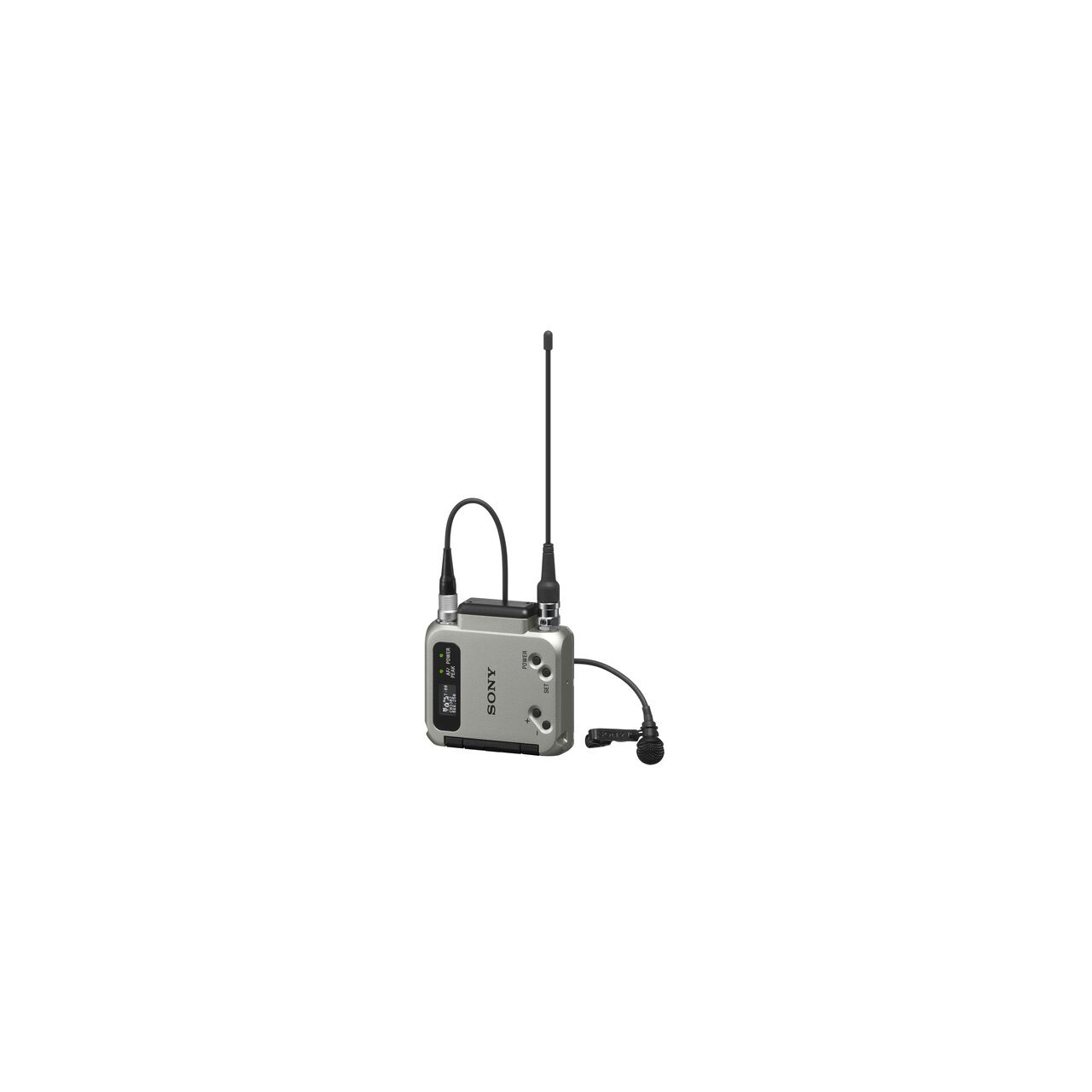

    Featuring a 3-pin Lemo connector, this ECM-77LM version is an ideal partner for use with the DWT-B03R DWX Series digital wireless microphone bodypack transmitter.

    • Specifications:

      • Audio
      • Capsule Type: Electret Condenser
      • Frequency Response: 40 Hz - 20 kHz
      • Directivity: Omni-directional
      • Sensitivity: -39.0 dB
      • Output Impedance: 6.3kΩ ±30%, Unbalanced
      • Dynamic Range: 95dB or more
      • Signal-to-Noise Ratio: 64dB (typ.)
      • Inherent Noise: 32dB SPL or less
      • Induction Noise From External Magnetic Field: 5dB SPL or less
      • Wind Noise: 40dB SPL or less (with windscreen)
      • Maximum Input Sound Pressure Level: 127dB SPL

        General
      • Connector: Small 3-pin connector
      • Mic Cable: 5.25ft (1.6m)
      • Power Requirements: DC 3.0 V - 10.0V
      • Power Consumption: 0.4mA or less
      • Dimensions: Φ1/4" x 1/2" (Φ5.6mm x 12.5mm)(Mic head)
      • Mass: Approx. 0.053oz (1.5g)(without cable)

    • Item Includes:

      • 1x Single/horizontal type tie clip
      • 1x Metal-mesh type windscreen
