Azden EX-505UH Uni-Directional Lav Mic w/ Hirose Connector

ITEM #: EX-505UH MFG #: EX-505UH

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EX-505UH

EX-505UH - Overview

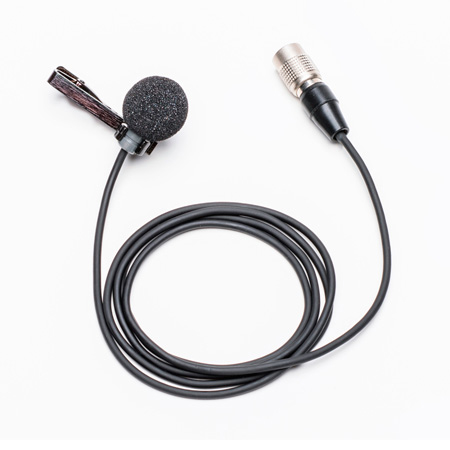

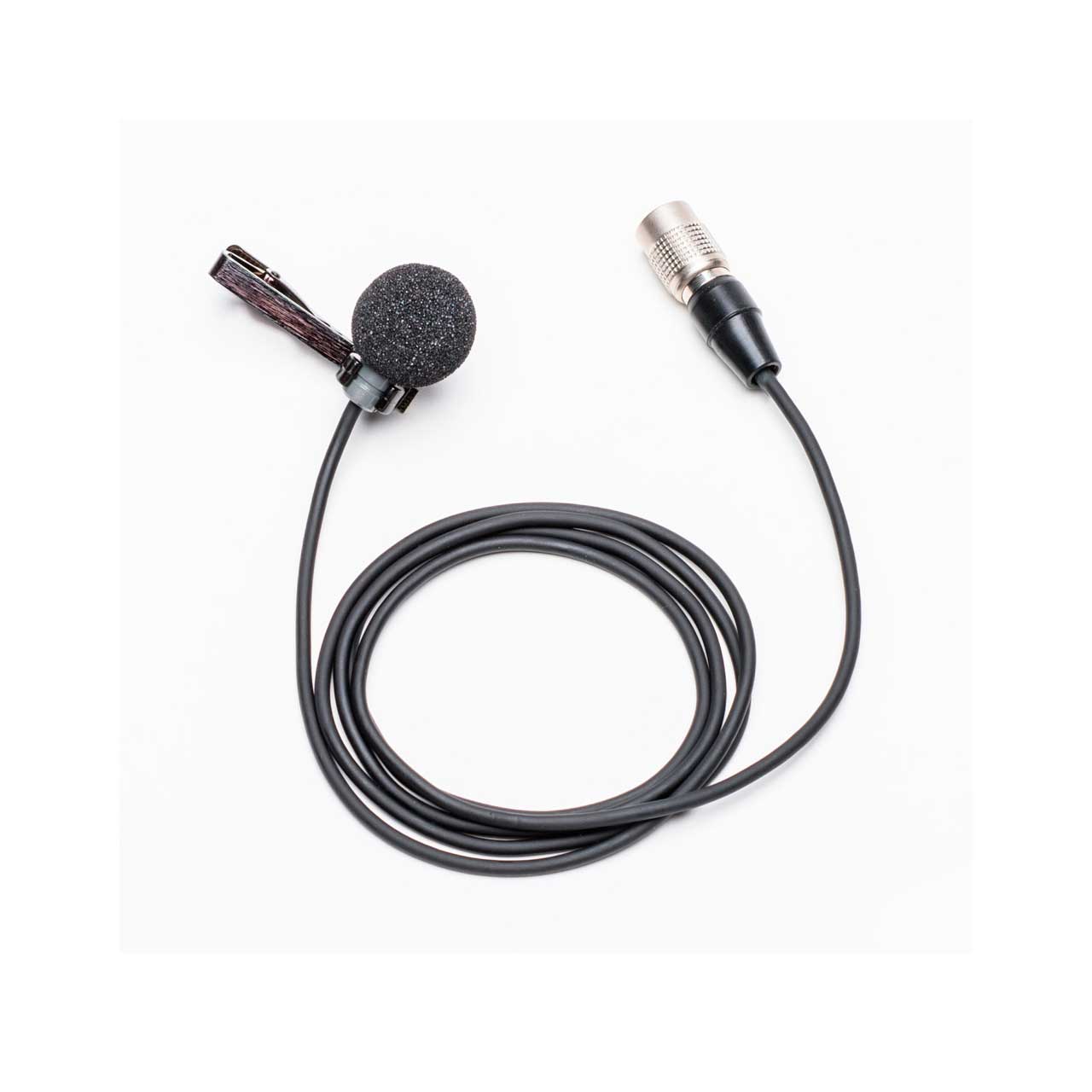

Uni-directional lavalier microphone with 4-pin Hirose connector. This electret condenser microphone requires a bias voltage of 5-9VDC which all Azden bodypack transmitters provide. Microphone comes with LC-1 lapel clip. Designed to be used with Azden's 1201BT & 2000BT body-pack transmitters.

  • Features:

    • Uni-directional lavalier
    • Powered by 5-9V DC
    • Power provided by Azden body-pack transmitters
    • For use with 1201BT & 2000BT body-packs
    • 4-pin Hirose connector


  • Specifications:

    • Uni-directional electret condensor
    • Impedance: 2 K ohms @ 1KHz
    • Sensitivity: -64dB +/1 4dB (0dB=1V/0.1 Pa) @1KHz/2.2K ohms/3V bias
    • Operating Voltage Required: 5-9VDC
    • Current Draw: 0.5mA


  • Item Includes:

    • Lapel Clip
    • Windscreen


  • GTIN:

    0095528030028
