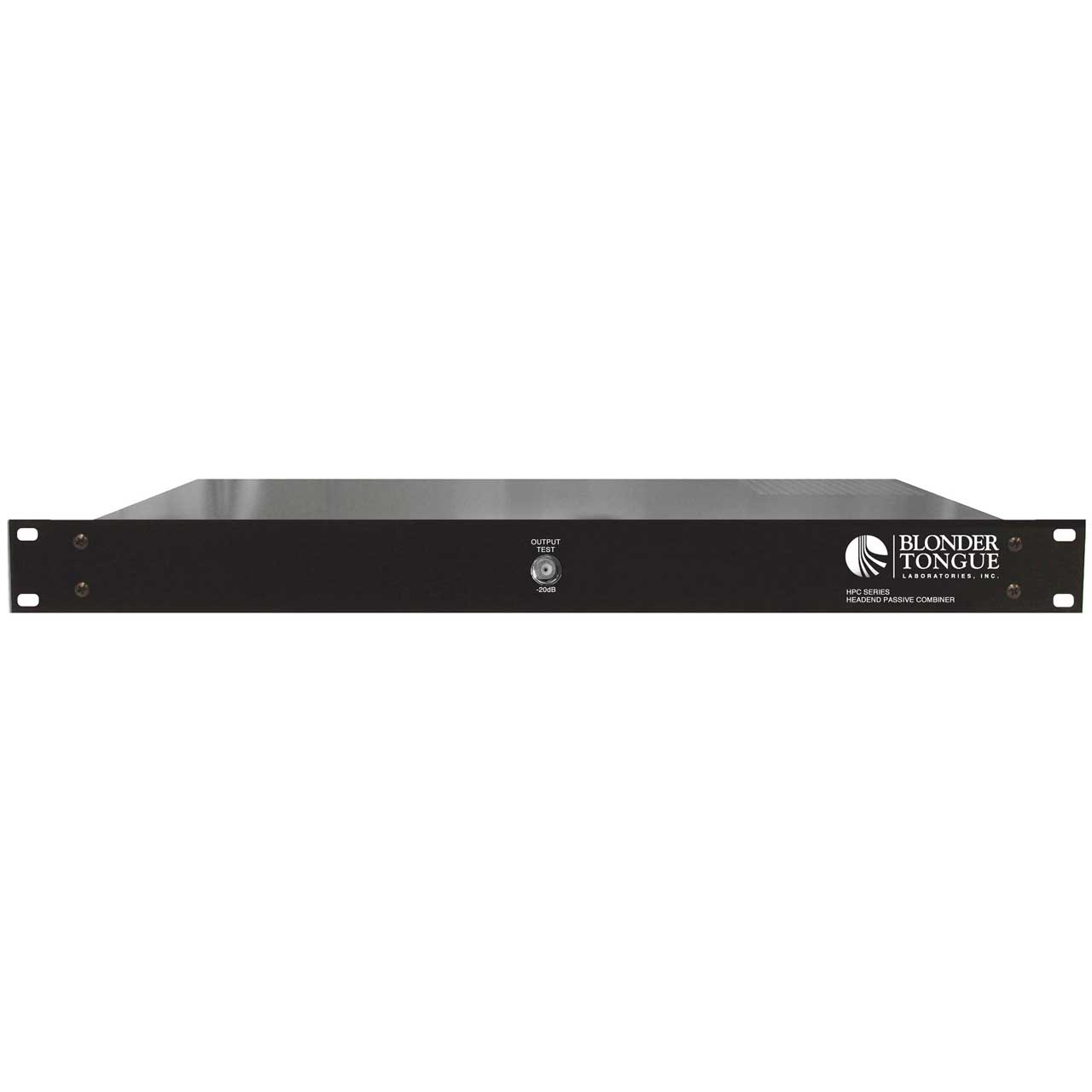

Headend Passive Combiner, 8 Port, 5-1000 MHz, Low Loss, RFI Shielded
HPC series consists of 5-1000 MHz passive RF combiners designed for use in a headend to combine the output of up to 32 single-channel devices such as modulators and processors. HPC is available in 8-, 12-, 24-, or 32-port models. All HPC models feature a compact design, high isolation between ports, low net combining loss, and RFI shielding for minimized egress/ingress interference. A front-panel -20 dB test port (75-ohm "F" type connector) allows testing of the unit's output without interrupting the service.
