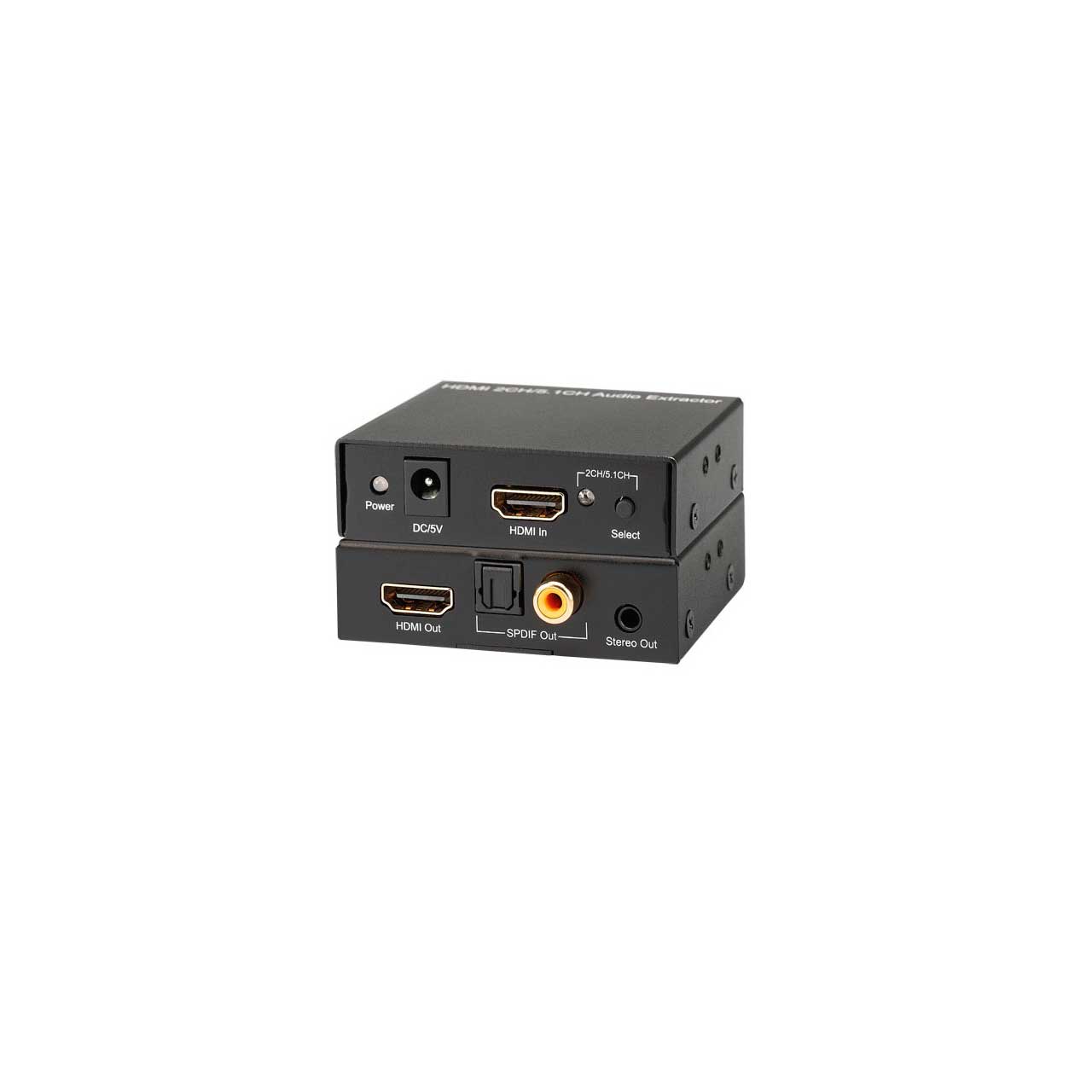

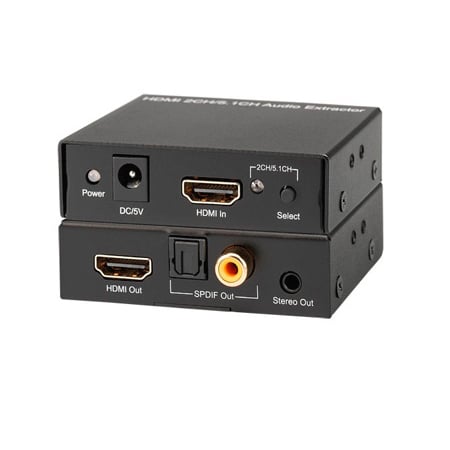

Kanex Pro HAECOAX Audio De-embedder with 3D Support

Manufacturer: KanexPro

Item #: KAN-HAECOAX   •   MFG #: HAECOAX



Our Price:$89.95

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    The KanexPro Audio De-Embedder is a simple device, designed to extract HDMI audio from HDMI signals. It outputs to analog 2-channel stereo and digital S/PDIF simultaneously providing multichannel audio up to 5.1 surround sound. Supports data rates up to 6.75 Gbps to all channels with HDMI 1.3 Deep Color. The audio de-embedder is HDCP compliant, displaying resolutions to 1080p/60 and PC resolutions up to 1920x1200.

    Input cable equalization on the audio de-embedder compensates for weak source signals or signal loss when using long input cable runs. Supports wide variety of audio formats from two-channel PCM or encoded bit stream audio for Dolby Digital to 5.1 DTS Digital Surround.

    The Kanex Audio De-embedder is a perfect problem solver for many applications that require audio extraction from HDMI signals.


    • Features

      • Extracts HDMI digital audio output simultaneously to Stereo and S/PDIF
      • HDCP compliant
      • Supports 3D & CEC pass-through
      • Supports selectable audio through switching
      • Audio: 2.0CH/5.1CH selection through
      • HD resolution to full 1080p/60
      • Supports data rates up to 6.75Gbps
      • Automatic cable input equalization
      • Supports Color Depth up to 12-bit per channel (36-bit all channels)
      • Supports uncompressed audio such as LPCM
      • Supports compressed audio such as DTS Digital, Dolby Digital

    • Specifications

      • Input/Output Connectors
      • Input Connector: HDMI with pigtail (Male)
      • Output Connector: HDMI (Female), Coaxial (S/PDIF), Stereo

      • Operating Frequency
      • Vertical Frequency Range: 50/60Hz
      • Video Amplifier Bandwidth: 6.75 Gbps total bandwidth

      • Resolutions (HDTV)
      • Interlaced (50&60Hz):
      • 480i
      • 576i
      • 1080i
      • Progressive (50&60Hz):
      • 480
      • 576p
      • 720p
      • 1080p

      • Power Requirements
      • External Power Supply: 5V DC @2A - included
      • Power Consumption (Max): 2W

      • Environmental
      • Operating Temperature: 0°C to +70°C
      • Operating Humidity: -10% to 80% RH (No Condensation)
      • Storage Temperature: -10°C to +80°C
      • Storage Humidity: 5% to 90% RH (No Condensation)

      • Regulatory Approvals
      • Converter Unit: FCC,CE, UL
      • Power Supply: FCC,CE, UL
      • Limited Warranty: 1-Year Parts & Labor
