Lightronics AR602 Unity Architectural Dimmer
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

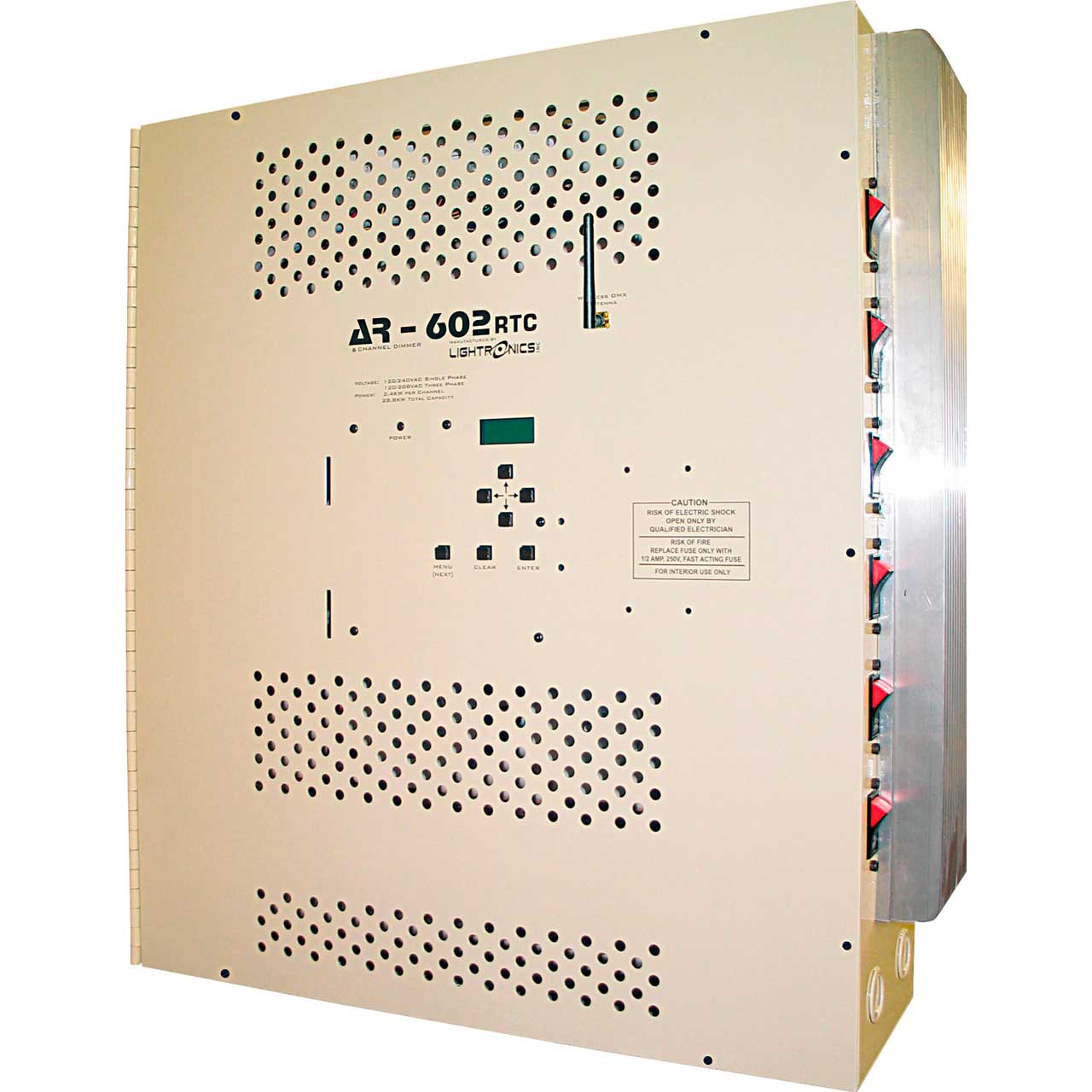

    Lightronics AR602 Unity Architectural Dimmer

    Manufacturer: Lightronics

    Item #: LGT-AR602   •   MFG #: AR602


    List Price:$2,599.00
    Our Price:$1,949.25

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    Flexible, powerful, and affordable, this easy to install and use architectural system is equally at home in churches, schools, theaters, hotels, etc.

    The AR602 is a 6 channel x 2400 Watts per channel dimmer. It accepts DMX-512 signals and allows remote station control of preset scenes. The unit operates from either single or three phase power. The highly versatile AR602 may utilize remote stations to activate specific user programmed scenes pre-stored in the unit. Several various remote types may be used.

    • Features

      • 6 Channels
      • 2400W per Channel
      • Single or Three Phase
      • DMX Input with Softpatch
      • 100 Scene Memory
      • Calendar Clock / Event Scheduler
      • "Snapshot" Recording of Scenes
      • 2600W Available
      • Optional Built In Wireless DMX
    • Specifications

      • Channels / Capacity: 6 @ 2400 Watts each
      • Power Requirements: 120/208VAC Three Phase, 80 Amps each Leg OR 120/240VAC Single Phase, 120 Amps each Leg
      • Power Devices: Dual 65 Amp SCRs
      • Power Connector: Terminal Strip
      • Channel Output: Terminal Strip
      • Circuit Breakers: 20 Amp Fast Acting
      • Minimum Load: 15 Watts
      • Curve: Modified Square Law
      • Filter Rise Time: 600 Usec. Minimum
      • Output Function: Dimmer or Relay Circuit Selectable
      • Remote Network: RS-485, 62.5 Kbaud, Bidirectional 9 Bit Network
      • Control Input: DMX-512 USITT Standard with Softpatch
      • Front Panel Controls: 8 Char. x 2 Line LCD Display and Keypad
      • Local Presets: 100 Scenes Standard, Expandable to 255 Scenes
      • Remote Stations: Total of 32 Remote Stations with Unique System Addresses
      • Slave AR1202 Units: Up to 31 Additional AR1202 Units may be Added (384 Channels)
      • Size: 20.5”W x 21”H x 6.25”D
      • Weight: 70 Pounds
