    PWREP DIN P4 NONRDM - Overview

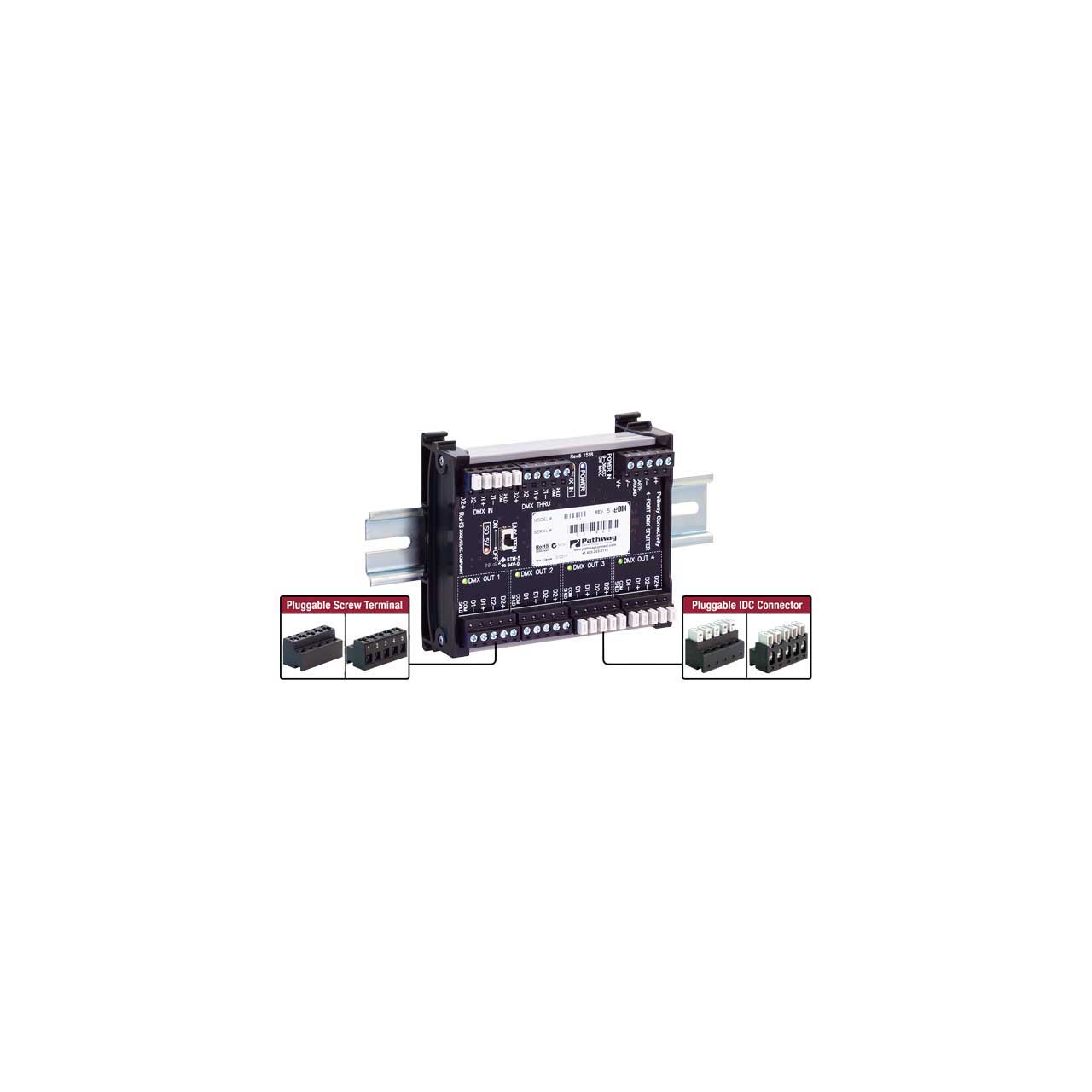

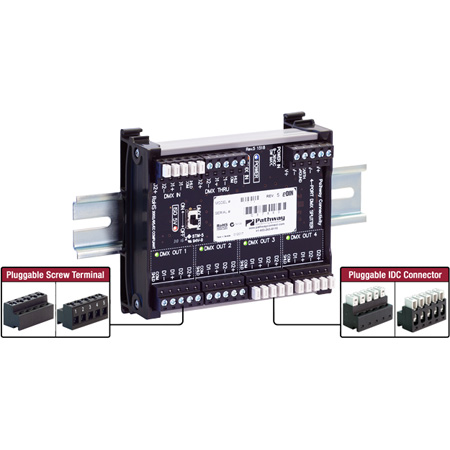

    The Pathway Connectivity P1002 An essential part of any permanent DMX512 distribution system, the DIN-rail mountable eDIN #1002 enables 'star' wiring configurations of DMX512 data lines. Each buffered output is isolated from the DMX input and protects all connected end-devices from harmful electrical faults and ground loops.

    • Features:

      • One DMX512 input
      • Four buffered DMX512 outputs
      • One passive DMX512 thru connector
      • Pluggable terminal blocks for all connectors
      • Power and data easily daisy-chained between modules
      • DMX IN indicator
      • DC Power input indicator
      • ISO 5V indicator
      • Termination switch
      • No fuses - self-resetting port protection recovers from voltage faults
      • DIN rail mounting section included


    • Specifications:

      • General
      • 1500V opto-isolation between input and output ports
      • 250V fault protection on input and output ports
      • Input operating voltage: 9-30 VDC
      • 5W power consumption
      • Operating conditions: -10 to +50°C; 10-90% relative humidity, non-condensing


    • Item Includes:

      • 1x Pathway P1002 DMX Repeater with 4-way / eDIN and Isolated Inputs - 4.5 Inch
