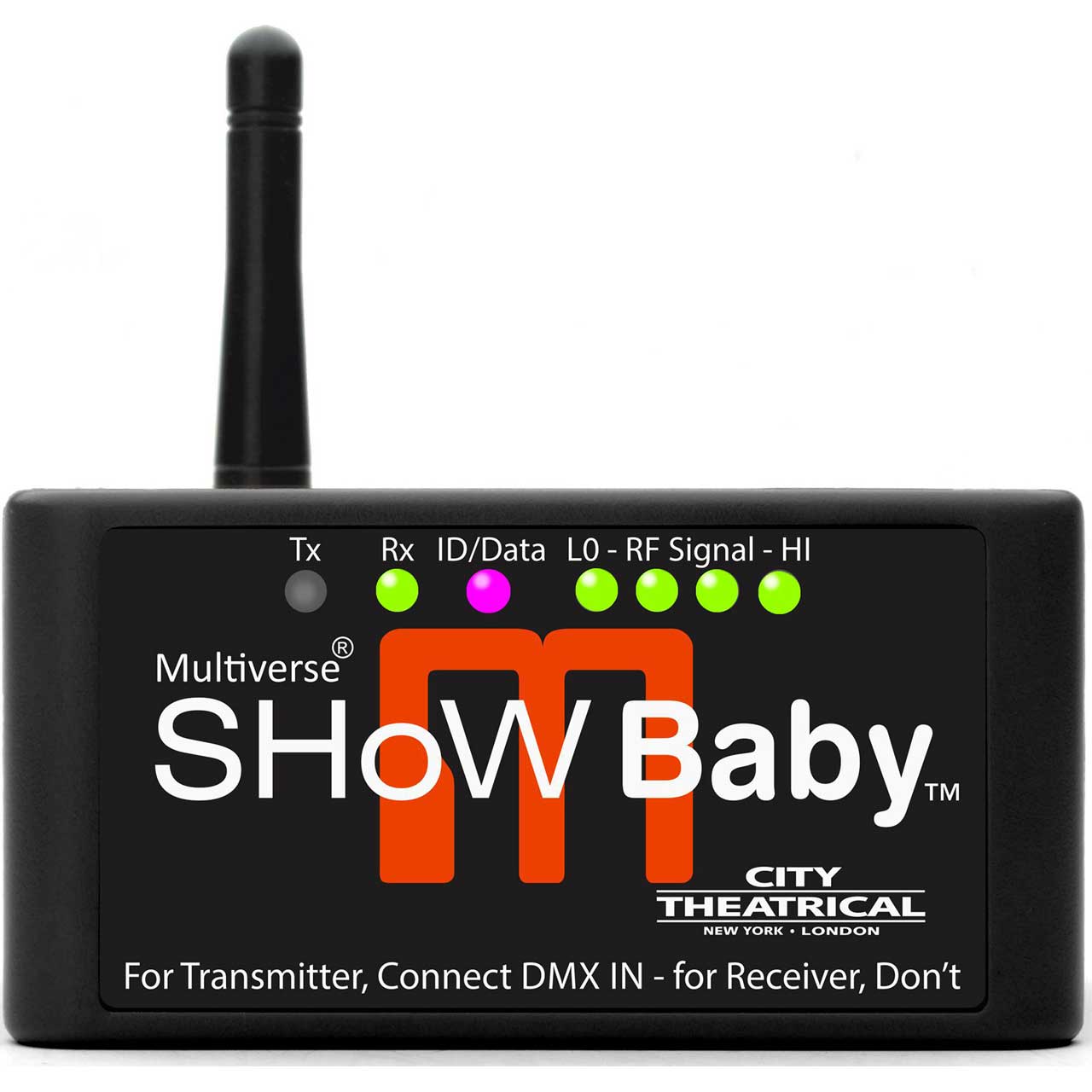

City Theatrical 5900 Multiverse SHoW Baby Wireless DMX Transceiver

ITEM #: CTYTH-5900 MFG #: 5900

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$487.41

Our Price:

$414.30

Availability: In Stock
iAvailability Description Popup


    5900 - Overview

    With tens of thousands of units sold since their introduction in 2011, ShoW Baby plug and play transceivers set the standard for ease of use and reliability at an affordable price point. The addition of Multiverse radio technology enhances the performance even more.

    City Theatrical's new Multiverse® SHoW Baby® (5900) is a wireless DMX transceiver that delivers breakthrough plug and play wireless DMX and RDM transmission. In its default mode, it works like any other SHoW Baby 6 Transceiver, with six user selectable SHoW IDs. By connecting an RDM controller, like DMXcat® Multi Function Test Tool, all of the revolutionary new 2.4GHz Multiverse SHoW IDs are accessible.

    Right out of the box, Multiverse SHoW Baby is fully compatible with all legacy SHoW DMX SHoW Baby® systems. Use it to build new single universe Multiverse systems, or use Multiverse SHoW Baby as a receiver on multiple universe systems with a Multiverse Transmitter.

    • Features:

      • Full compatibility with all previous SHoW Babys right out of the box
      • Instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don't!
      • Multiverse 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio
      • Wirelessly broadcast and receive a full Universe (512 slots) of DMX
      • Robust wireless DMX512 and RDM data transmission

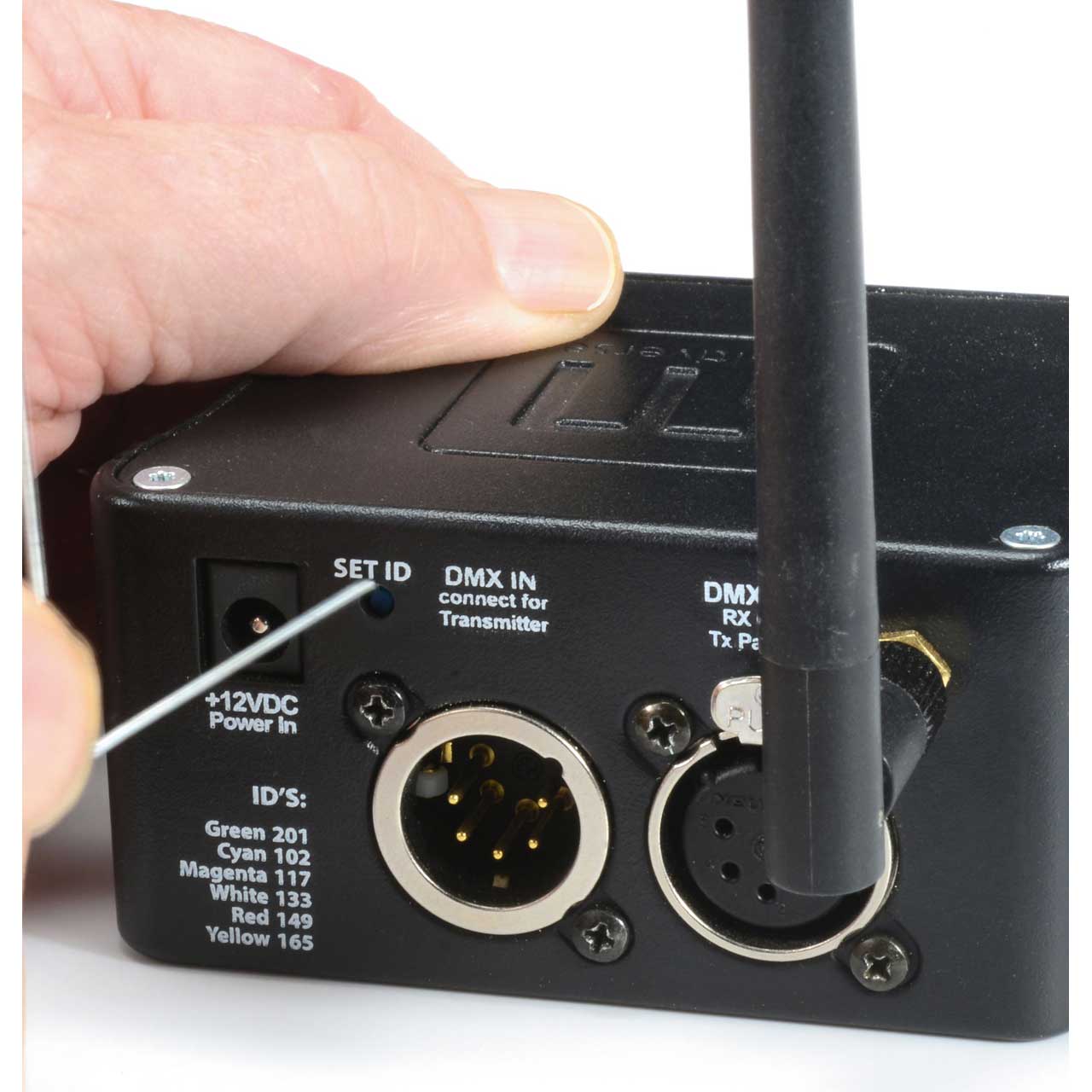

      • Six user selectable SHoW IDs accessible on the "SET ID" button, plus 147 Multiverse and 70 SHoW DMX Neo SHoW IDs accessible via RDM.
      • Extremely low 4mS latency
      • RDM proxy and responder functions

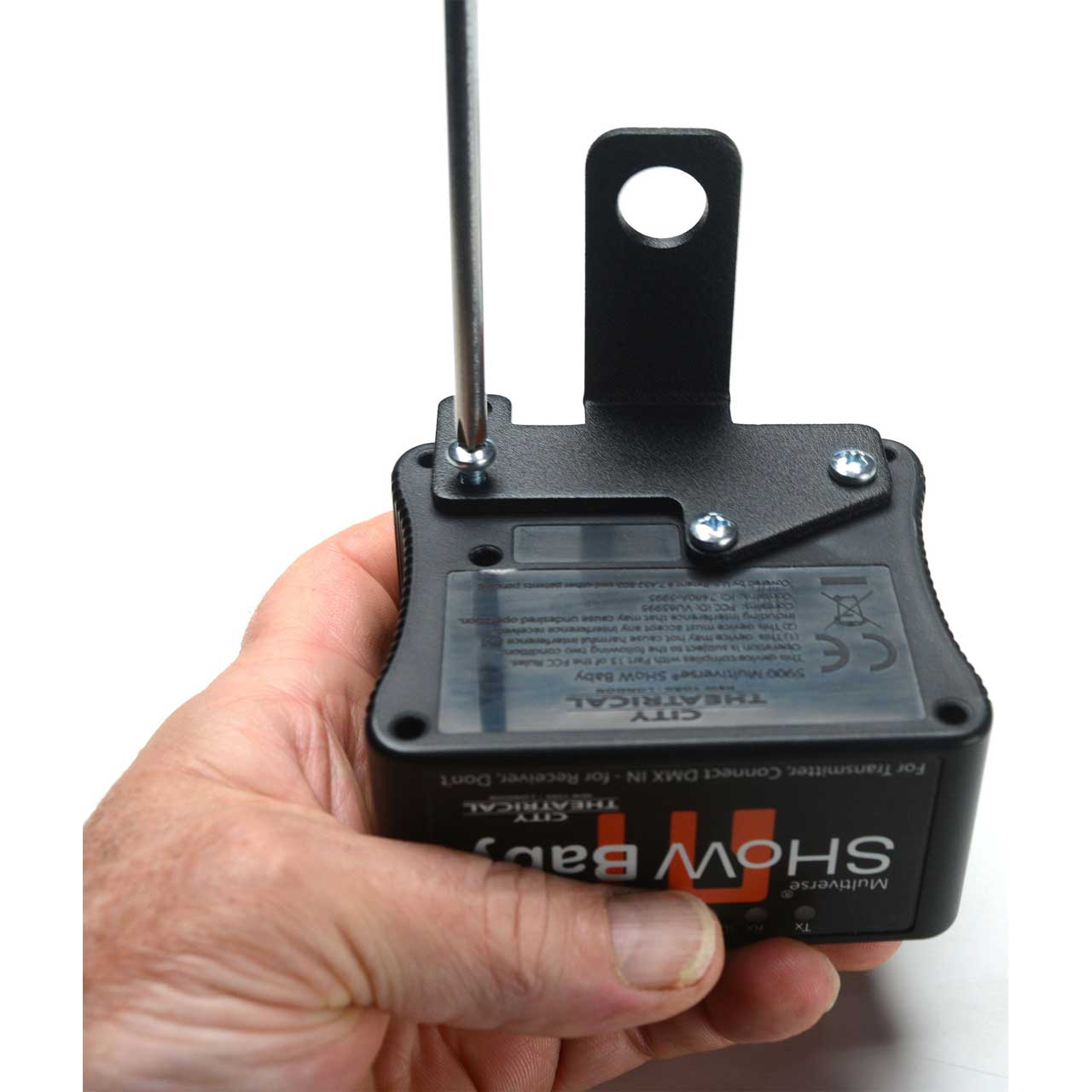

      • Mounting bracket for installation with C-Clamp or similar hanging hardware

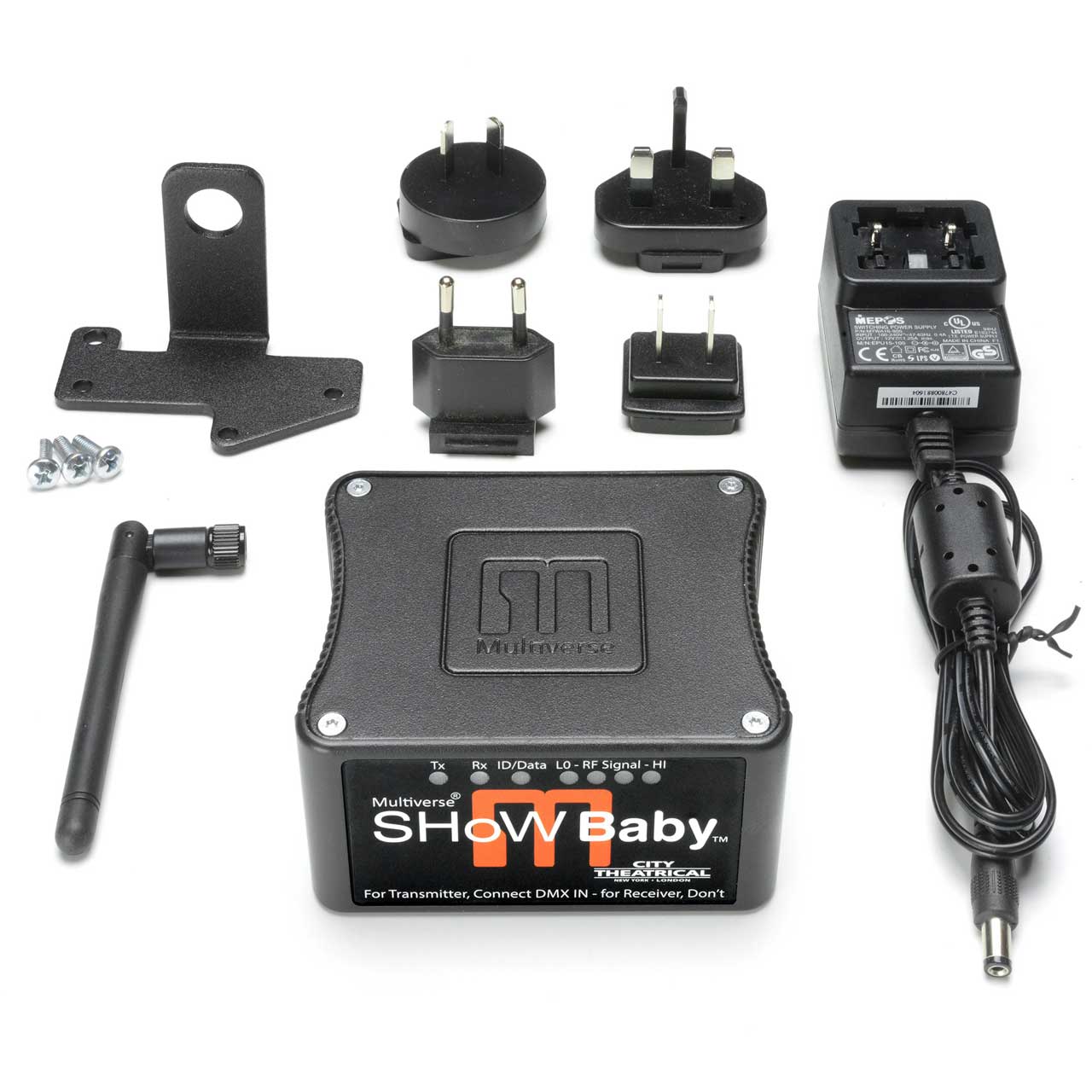

      • Included CL2 Power Supply
      • Included 2dBi omni-directional antenna
      • Neutrik® 5P XLR Connectors for DMX IN and DMX OUT

    • Specifications:

      • Physical Specifications
      • Length: 3.625" (92mm)
      • Width: 3" (76mm)
      • Height: 1.80" (46mm)
      • Weight: 0.35Lbs (0.16kg)
      • Construction: Steel, ABS plastic, Black

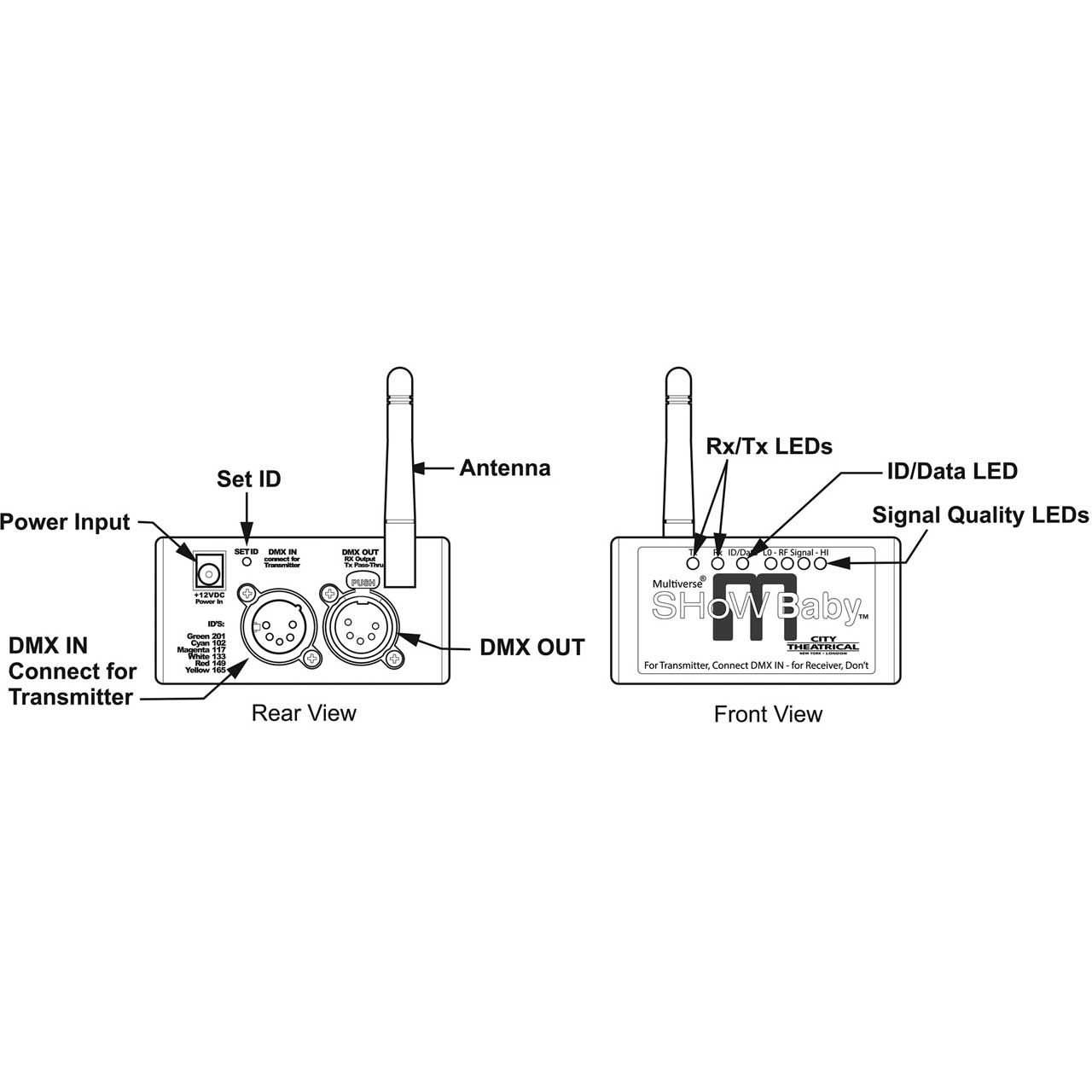

        Connection Specifications
      • DC Jack, 5.5mm x 2.1mm barrel, center positive, 9mm mating depth (this power supply connector is not compatible with Multiverse Node)
      • Neutrik® 5-Pin XLR connectors for DMX512 IN and OUT/thru ports
      • RP-SMA female antenna connector
      • USB Type-A port, internal (requires removing cover and circuit board)

        Functionality
      • User Interface: 1 Button/LEDs
      • RDM Features: RDM Proxy, RDM Responder

        Power
      • Input Power
      • 5-30VDC, 0.8W
      • Max Draw
      • 66mA max draw at 12V
      • AC Adapter Voltage
      • 100VAC to 240VAC 50/60Hz

        Radio Technology
      • Latency: 4 ms average
      • RF Sensitivity: -95dBm
      • Loss of Data Behavior: Output stops
      • Broadcast Power: 2.5mW, 8mW, 25mW, 80mW EIRP
      • Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
      • DMX Burst Modes: Auto Dynamic
      • Show IDs: 217 (Americas and Worldwide)

        Additional Product Information
      • Use Environment: Indoor
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -40° to 185°F (-40° to 85°C)
      • IP Rating: IP50
      • Compliance: FCC, IC, CE

    • Warranty:

      • One year

    • GTIN:

      0856652003254
