Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These new rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

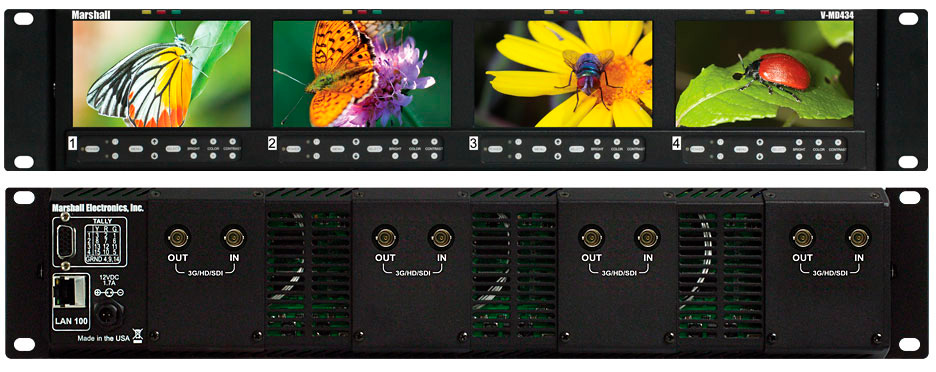

The V-MD434-3GSDI offers four 800 x 480 LCDs in one single configuration, along with excellent viewing angles.
Marshall's MD monitors can integrate Telecast Fiber System's TeleCube Fiber-Optic HD/SDI transmission input/output modules. These new fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.
Each V-MD series rack includes a LAN port with a built-in web server. This allows the operator to visually monitor and control any or all V-MD series units that are connected to the LAN. Any function that is addressable from the front panel of a V-MD series monitor can be accessed via any Firefox web browser -- even on a wireless device.** The rear panel LAN 100 port connects the unit to the LAN.
Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This will then display the IP address of that unit. V-MD units are shipped with the DHCP mode enabled
Simply type this IP address into the address bar of your browser and the home page for that unit will appear. It is possible to poll your LAN for all other MD units connected by accessing the NETWORK tab from the Top Menu.
The user can then control multiple networked MD monitors at once using a single browser page. The user may select which monitor(s) they wish to control and send commands to those particular monitors. The browser provides real-time status of any connected monitor, ensuring consistent signals / feeds and so forth.
** A wireless hub must be part of the LAN to have this function.
