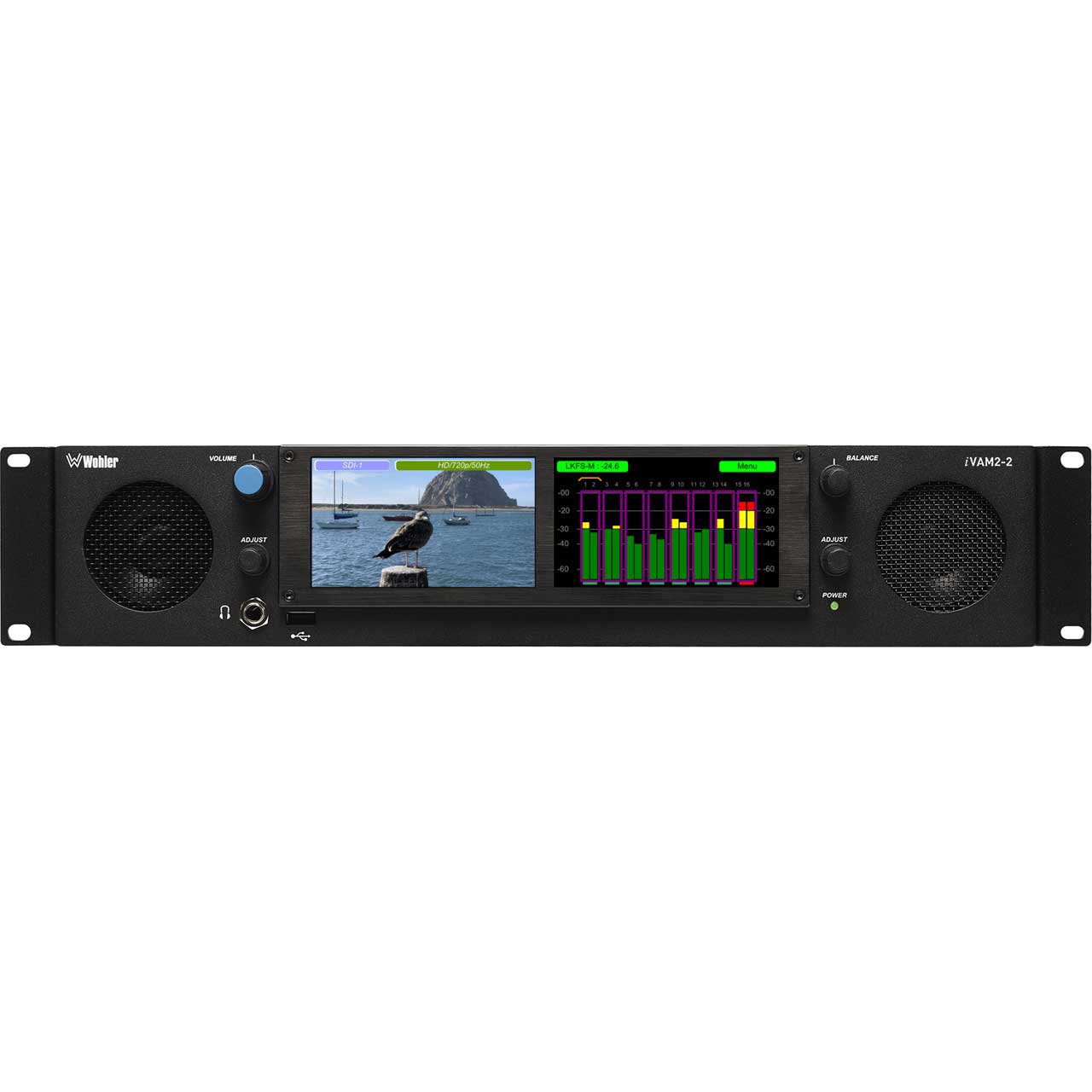

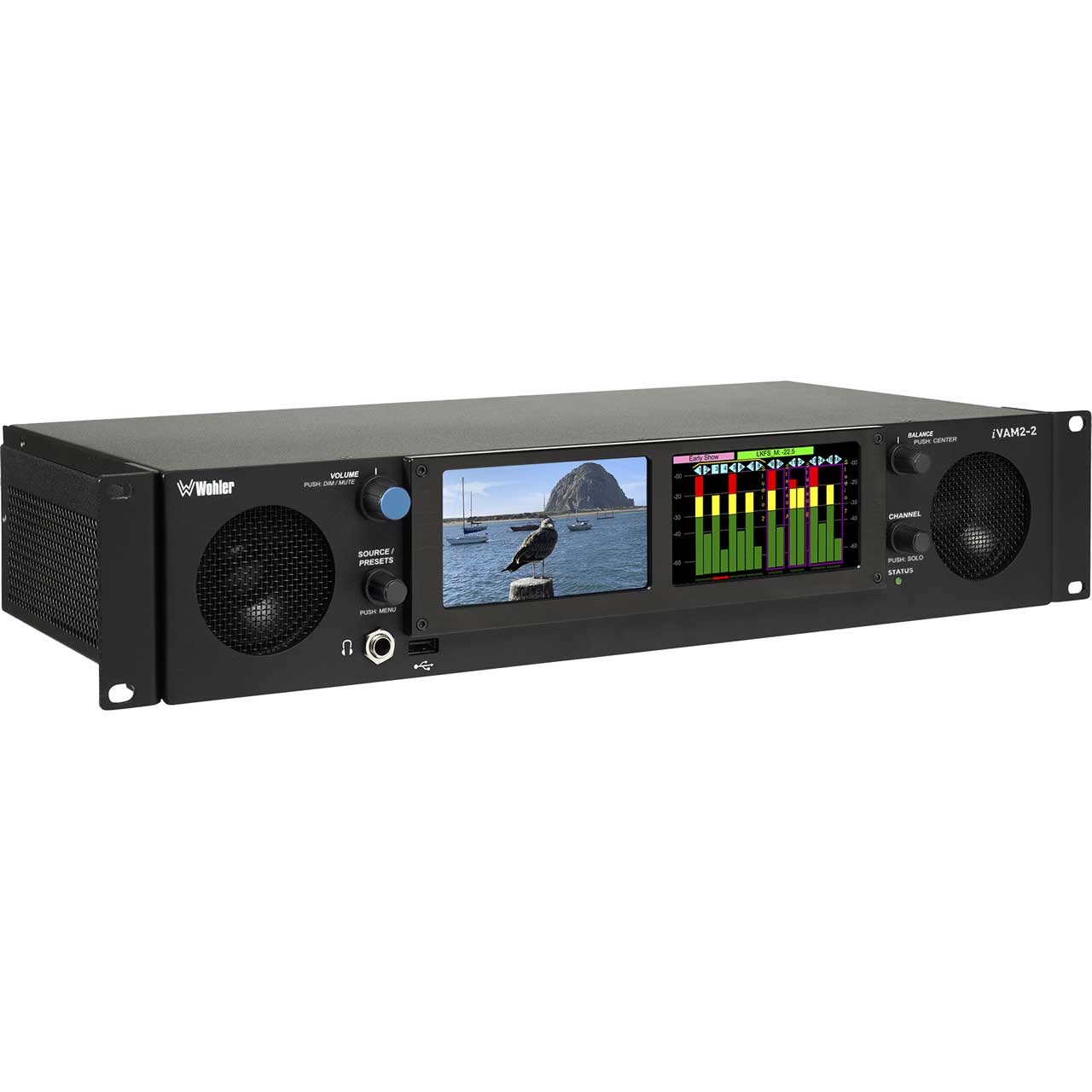

Wohler IVAM2-2 2RU Dual Screen 16 Channel Dual Input 3G/HD/SD-SDI Audio and Video Monitor with Touch Screen Control

ITEM #: WOH-IVAM2-2 MFG #: IVAM2-2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Wohler Technologies
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$6,595.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    IVAM2-2 - Overview

    16 channel, single screen, 3G-SDI & Analog Audio & Video Monitor with options to license additional input signals.

    The Wohler iVAM2-2 is a well featured, easy to use, competitively priced 16 channel video and audio monitor which comes standard with 3G-SDI and Analog inputs and includes Loudness measurement and phase status. License other signal formats and processing options, including AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase. With touch screen operation and two 4.3" screens, the iVAM2-2 is the perfect solution for any application that requires a compact product for simple-to-complex monitoring of an evolving range of professional signals.

    Flexible. Adaptable. Future Proof.
    iVAM2-2 is designed to be easy to operate, providing fast access to video, meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

    • Features:

      • Video and audio monitoring (up to 16 channels) from multiple sources
      • Up to 64 presets

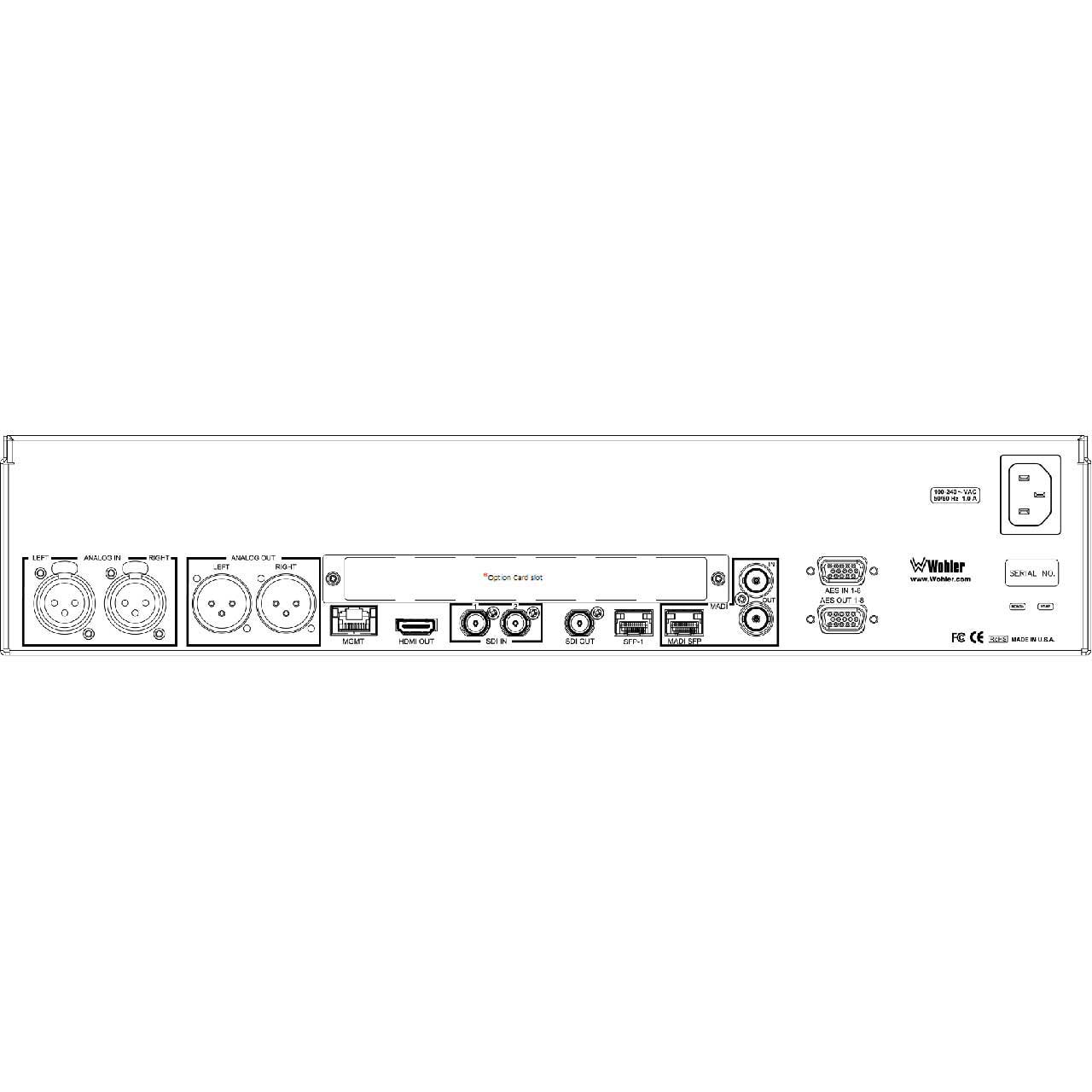

      • 2x 3G-SDI Inputs on BNC; 1x 3G-SDI Output of selected video source on BNC + 1 pair Analog in/out on XLR
      • Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP.
      • HDMI Output of the monitored video source included
      • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
      • Option cards for AoIP or an additional 8 channels of analog inputs and outputs
      • Software upgradeable via USB or network
      • APIs for remote management


    • Specifications:

      • Dimensions (WxHxD): 2RU in standard 19" rack: 19 x 3.5 x 5.5" (483 x 89 x 140mm)
      • Shipping Weight: 10Lbs (4.5kg)
      • Net Weight: 8Lbs (3.6kg)
      • Power Consumption/Supply: 60W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
      • Display Type/Resolution: 4.3" (109 mm) LCD Capacitive Touchscreen x 2; 480H x 272V
      • Viewing Angle: 160 (H) x 160 (V)
      • Audio Channels: 16 Max
      • Hum and Noise: Better than -75 dB below full output
      • Peak Acoustic Output: 104 dB SPL @ 2 ft
      • Speaker Power Output: RMS Each Side: 15W Continuous / 30W Peak
      • Upgrades: Via USB or GUI web interface
      • APIs: Provide easy integration with 3rd party control systems


    • Item Includes:

      • 1x Wohler iVAM2-2 2RU Dual Screen 16 Channel Dual Input 3G/HD/SD-SDI Audio and Video Monitor with Touch Screen Control
