    HDL-SMTV4K12G2 - Overview

    The world's first full resolution Ultra HD broadcast monitor with 12G-SDI!

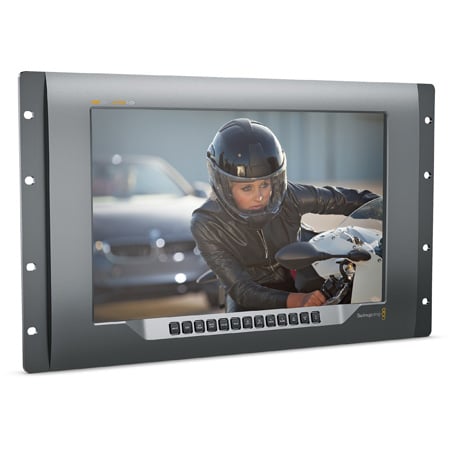

    The BlackMagic Design SmartView 4K is the world's first full resolution rack mount Ultra HD broadcast monitor with 12G-SDI for native display of up to 2160p60. You get a professional broadcast monitor that supports the latest Ultra HD resolutions, plus automatically switches to SD and HD-SDI formats using high quality Teranex processing for a clean and professional display. The machined metal design includes a built in control panel for using features such as the built in 3D LUTs, H/V delay, blue only, zoom, focus peaking, customizable frame markers and more, either from the front panel or via external Ethernet! SmartView 4K supports VESA mounting so you can install on articulated monitor arms or rack mounting.

    Professional Monitoring
    SmartView 4K is an incredibly high quality monitor that's versatile enough to be used from the largest broadcast facility, mobile live production or on set for feature film production! SmartView 4K works with all SD, HD and Ultra HD video formats and includes both universal AC power as well as 12V DC power inputs so you can use it with a battery or plug it into standard AC mains power. The 6 rack unit sized design and VESA compatibility means it can be installed in racks, outside broadcast vehicles or even mounted on walls and on articulated arms! SmartView 4K is the perfect professional monitor for any broadcast facility, mobile broadcast truck, or even on location fly away kits!

    Elegant Design

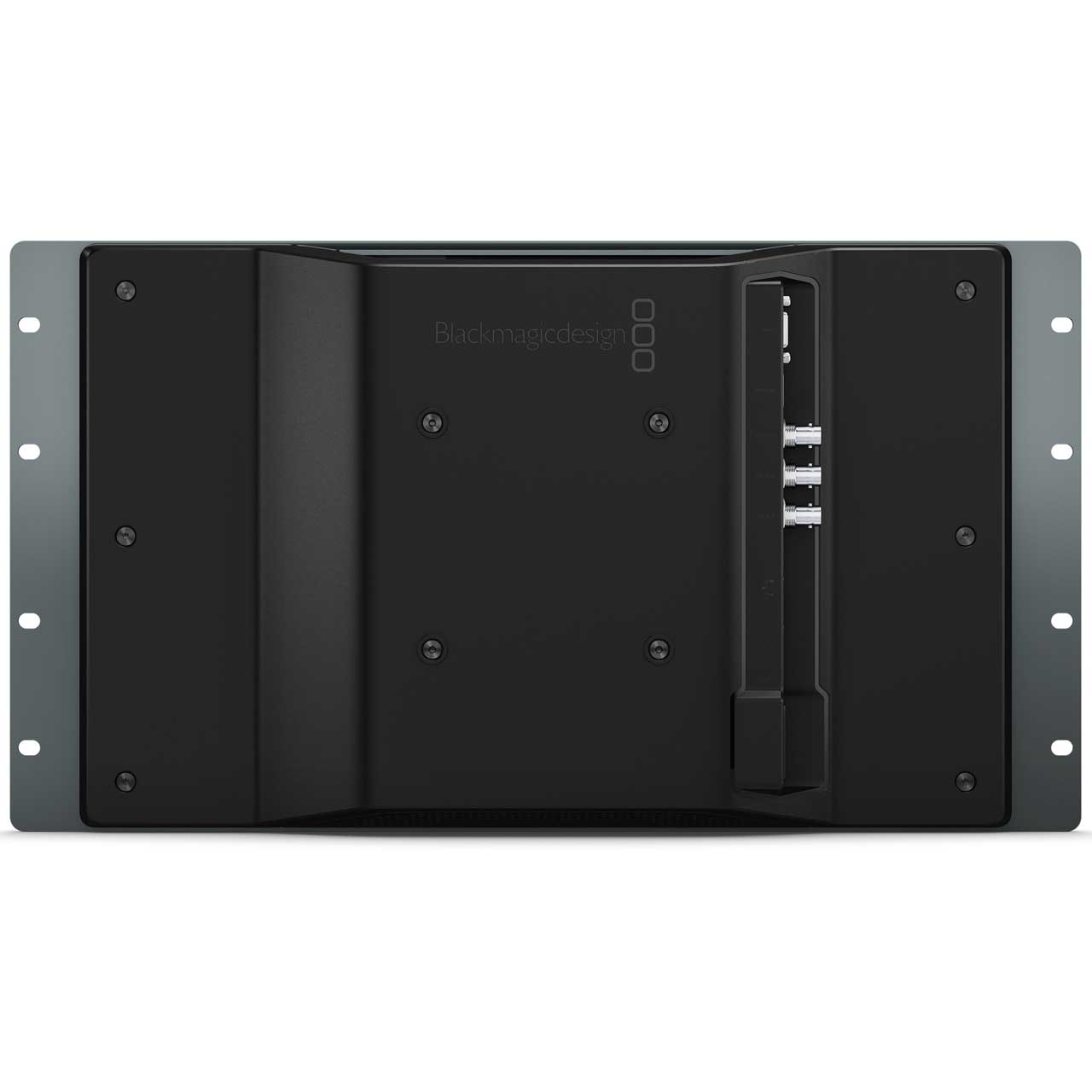

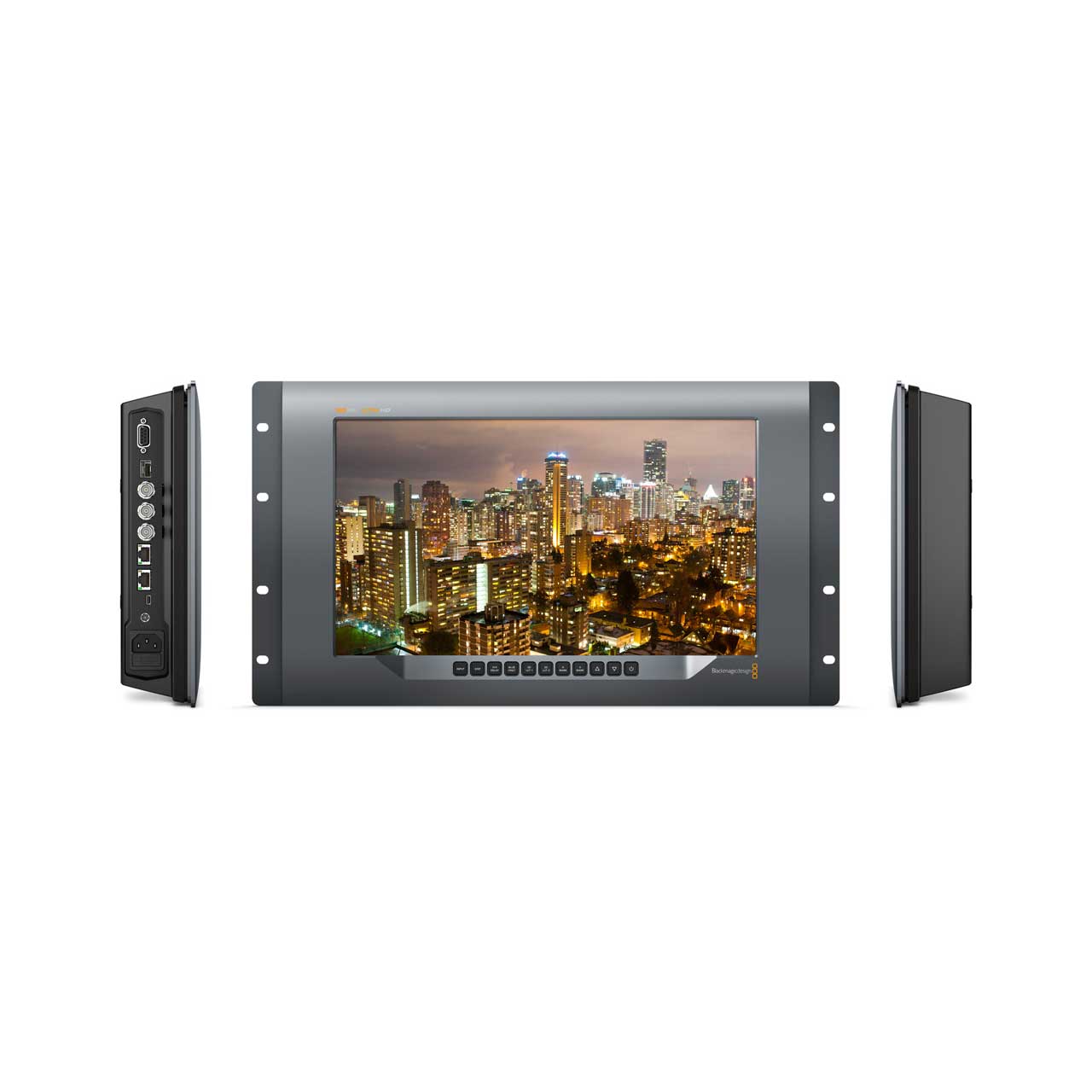

    SmartView 4K has a stunning machined metal front panel and a sleek rack mount design with backlit buttons for easy access to all controls! It fits perfectly into standard 19" racks and also has VESA mount points on the back. The professional broadcast connections are side mounted, which makes SmartView 4K thinner so it can be installed in tight locations. Standard 12G-SDI BNC connectors mean the cables won't fall out from vibrations when used in a broadcast truck. With both DC and AC power you get the flexibility of both portable or studio use. When you want to align more than a single monitor or you need remote setup, SmartView 4K can also be controlled via Ethernet.

    • Features:

      • Rack mount and VESA mount points allowing rack or non rack installation.
      • Extremely High Resolution - Full resolution allows you to see every pixel in an Ultra HD image.
      • Broadcast Features - A true professional broadcast monitor.
      • Local and Remote Control - Control all your monitors from a central location.
      • Advanced Connections - Connect via regular SDI or via optional optical fiber.
      • Ethernet Remote Control - Change all settings from your Mac or Windows computer.
      • Professional Monitoring - Broadcast quality SD, HD and Ultra HD monitoring.
      • Large, bright 15.6 inch native Ultra HD resolution LCD rack mount monitor.
      • Multi rate dual 12G-SDI connections, auto switching SD, HD and up to 2160p60 Ultra HD formats.
      • Built in Teranex processor automatically de-interlaces and scales SD and HD video up to Ultra HD resolution for improved quality on lower resolution video inputs.
      • Advanced broadcast features such as 3D LUTs, adjustable on screen markers, H/V delay and blue only.
      • Optical fiber SDI module socket so customers can add a SMPTE compatible optical fiber module.
      • Control via front panel or remotely via Ethernet using included Mac and Windows software control panel allowing remote control and adjustments from a single location.
      • Both AC and 12V DV power inputs allowing mains and battery operation.
    • Specifications:

      • Connections
      • SDI Video Input: 2 SDI inputs automatically switch between SD, HD, 3G, 6G and 12G-SDI.
      • Reclocked video output: Optical Video Input SFP Optical Fiber connector cage.
      • SDI Video Output: Automatically switches to input selection. Multi Rate Support Auto detection of 4K, 2K, HD or standard definition inputs.
      • Updates and Configuration: USB Ethernet Gigabit ethernet with loop through. Tally 9-pin D connector

      • SDI Format Support: 525i59.95 NTSC, 625i25 PAL
      • HD Format Support: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24 1080i50, 1080i59.94, 1080i60
      • 2K Format Support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
      • Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • 4K Format Support: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M.
      • SDI Color Space: REC 601, REC 709
      • SDI Auto Switching: Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
      • Video Sampling: 4:2:2 and 4:4:4

      • Internal Software Upgrade: Via included firmware updater software. Settings Control Via USB or Ethernet.
      • Operating Systems: macOS 10.12 Sierra, macOS High Sierra 10.13 or later. Windows 8.1 or Windows 10

      • Display Element: 15.6" TFT Active Matrix LCD Display
      • Resolution: 3840 x 2160 pixels
      • Response: 25 ms
      • Contrast Ratio: 1000:1
      • Color Depth: 16.7 million colors

        Power Requirements
      • Power Supply: Built in IEC 90 - 240V AC power supply, plus DC input jack for external power.
      • Power Consumption: 24 Watts

        Environmental Specifications
      • Operating Temperature: 0° to 40° C (32° to 104° F)
      • Storage Temperature: -20° to 60° C (-4° to 140° F)
      • Relative Humidity: 0% to 90% non-condensing
    • Item Includes:

      • 1x SmartView 4K
      • 1x Welcome wallet with QR code for software download
    • Warranty:

      • 12 Months Limited Manufacturer's Warranty.
