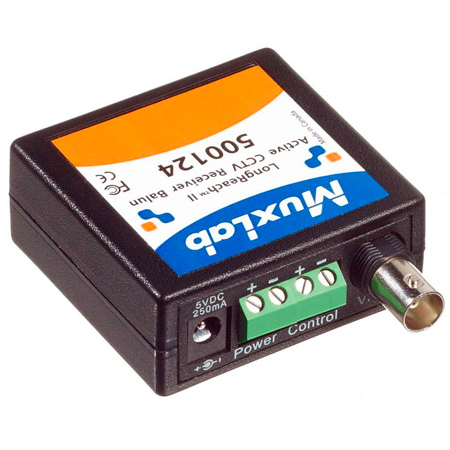

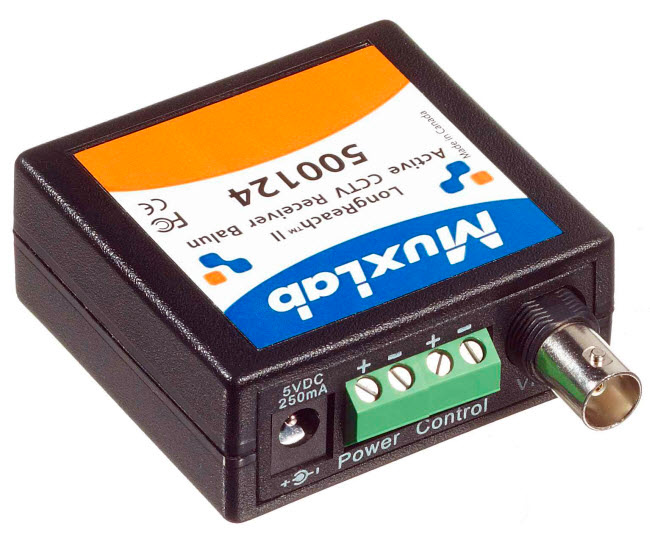

MuxLab 500124 - LongReach II Active CCTV Receiver Balun

Manufacturer: MuxLab Inc

Item #: MUX-500124   •   MFG #: 500124



List Price:$220.00
Our Price:$165.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.


Share!





Required Accessories

The LongReach II Active CCTV Receiver Balun (500124) provides extended distance between the CCTV camera and the DVR via Cat5e/6 cable. The product features Auto Gain Control (AGC), Auto-Polarity Correction and supports up to 5,000 ft (1.5 km) via Cat5e/6 cable when used in conjunction with MuxLab.
Applications
Campus, highways, airports, hotels, casinos, commercial complexes, remote parking lots, selfstorage, hospitals, car dealerships.


  • Features

    • Up to 5,000 feet (1.5 km) via Cat5e/6
    • Up to 7,000 feet (2.1 km) via Cat5e/6 with
    • 500100/101 at camera
    • Video, power and PTZ over one Cat5e/6
    • Auto Gain Control (AGC)
    • Auto Polarity Correction
    • Ground Loop Isolation (GLI)
    • LED diagnostics
    • Supports MuxLab mounting accessories
    • (500900/902/910/915)

  • Specifications

    • Compatible Baluns 500000, 500000R, 500009, 500022, 500024, 500029, 500100/101
    • Environment CCTV composite baseband video; NTSC, PAL, SECAM
    • Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV
    • equip.
    • Transmission Transparent to the user
    • Bandwidth 20 Hz to 8 MHz.
    • Input 1.5 Vp-p max, 100U, balanced (RJ45)
    • Output 1.1 Vp-p, ± 1 dB, 75U, unbalanced (BNC)
    • Insertion Loss -14 dB minimum for luma, -60 dB minimum for chroma.
    • Determined by Automatic Gain Control.
    • Return Loss Greater than 15 dB over the frequency range
    • Common Mode Rejection Greater than 40 dB @ 3.85 MHz
    • Ground Loop Isolation Up to +/-50VDC
    • Auto Polarity Correction Automatically adjusts for any polarity
    • Max. Distance via Cat5e/6 NTSC: 5,000 ft (1.5 km) with passive CCTV balun at camera
    • NTSC: 7,000 ft (2.1 km) with 500100/101 at camera
    • *Coax jumper cables must be less than 30 ft (9m)
    • LED Diagnostics Power, Video Sync
    • Auto Gain Control (AGC) Automatically adjusts for gain, sharpness and luminosity.
    • Stabilization time: under 1 second

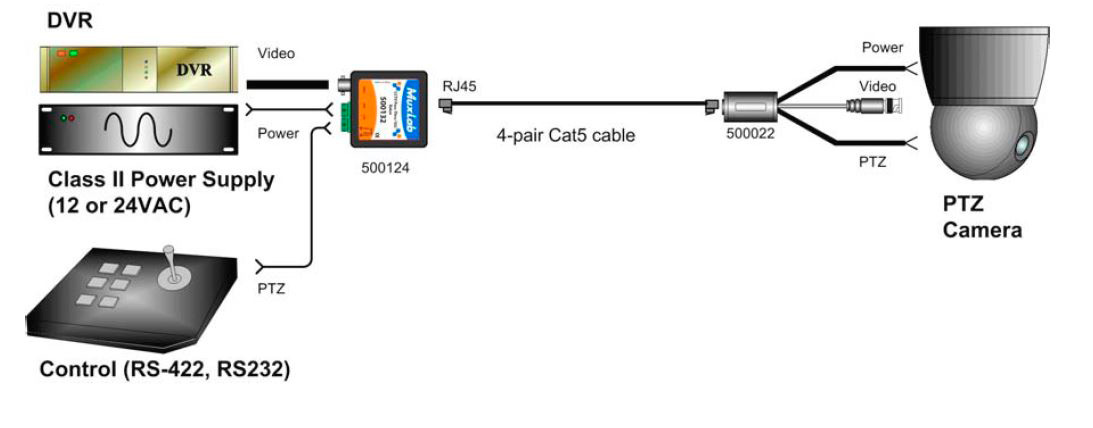

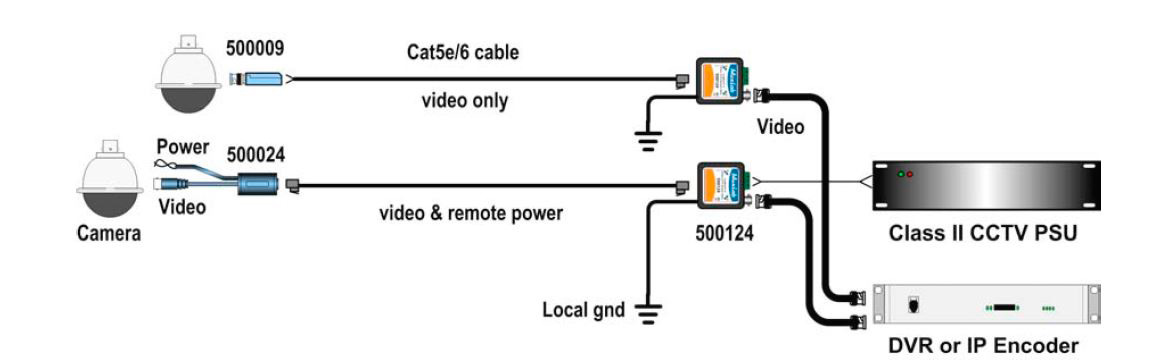

    • Wiring Remote low voltage power supported via two (2) or three (3) twisted pairs. A
    • Class II power supply is recommended.
    • Max. Distance @ 24VAC via three twisted pairs*. *Longer distances may be achieved @ 28 VAC.
    • 2 VA: 1,500 ft (457m)* 4 VA: 745 ft (227m)*
    • 10 VA: 300 ft (91m)* 20 VA: 150 ft (46m)*
    • *Based on 10% voltage drop at camera. Please consult your CCTV vendor for more info.
    • Max. Current 2.5A rms or DC.

  • Item Includes

    • Power Supply

  • Warranty

    • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products
