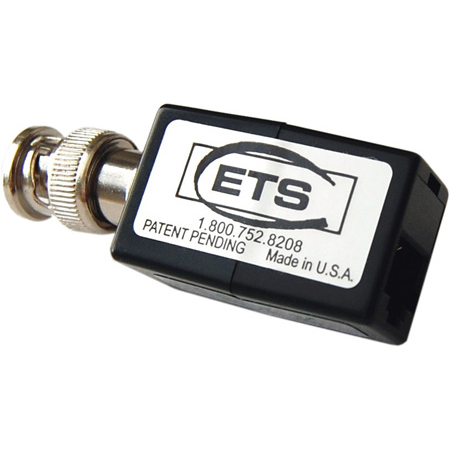

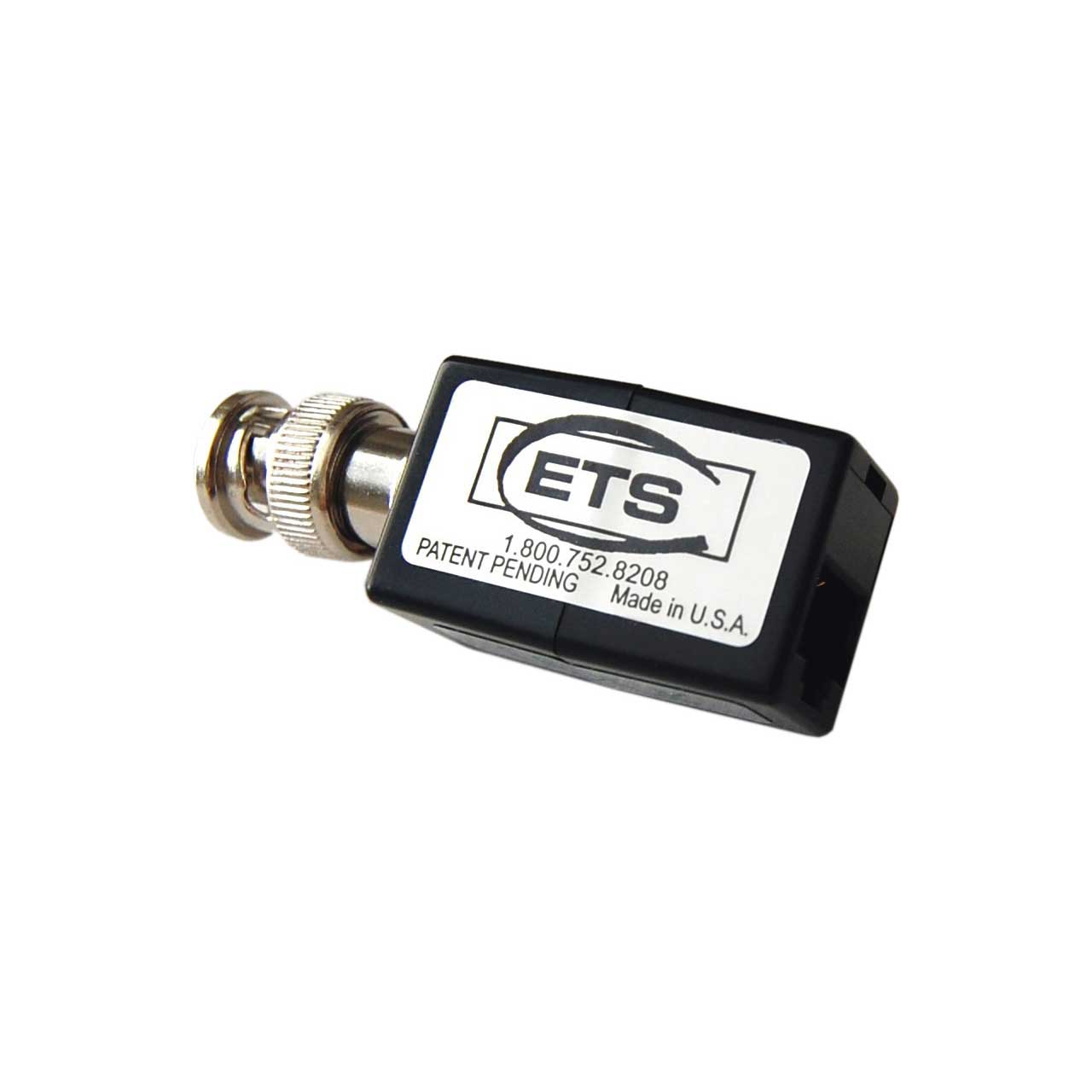

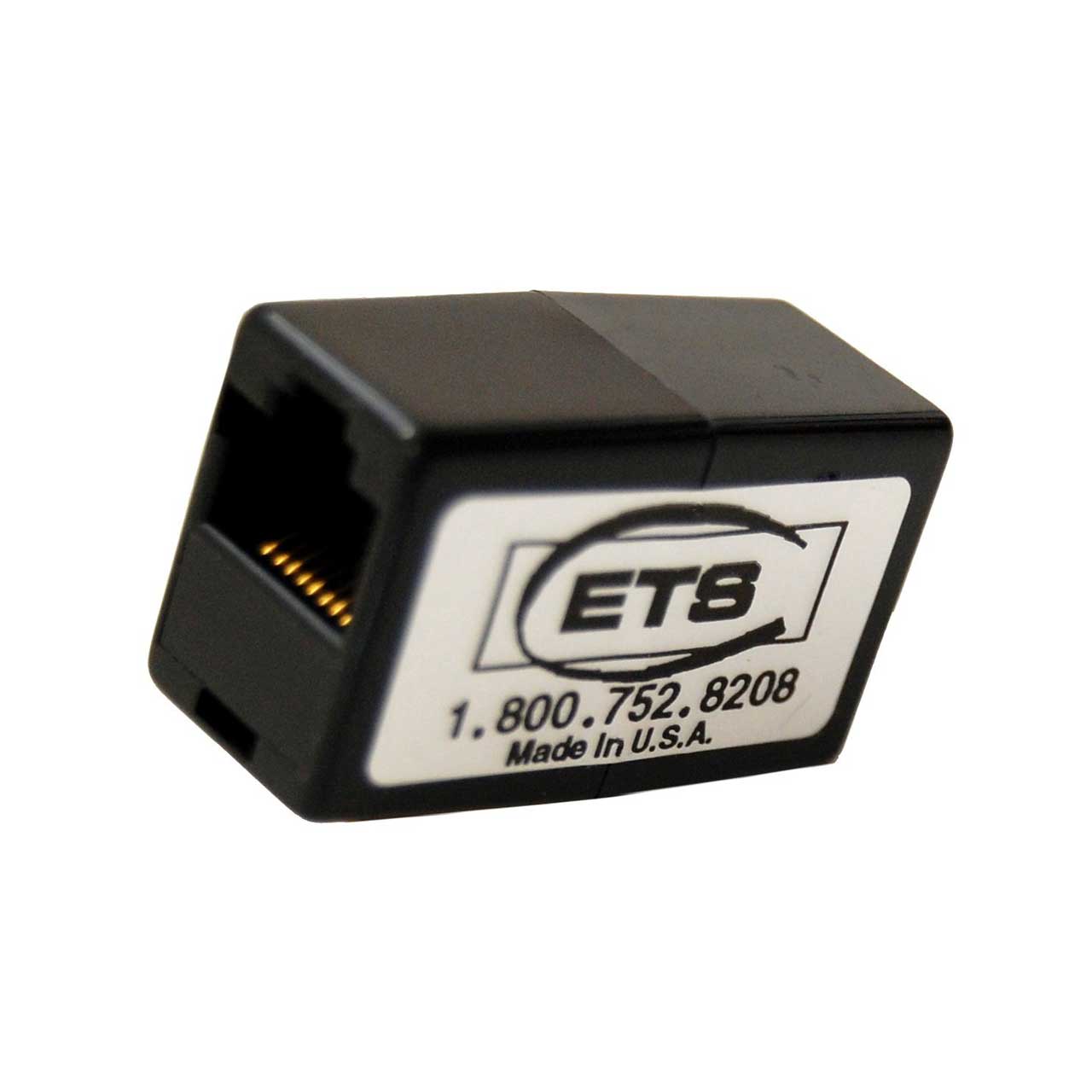

ETS PV843 Extended Baseband Composite Video Balun Male BNC to RJ45 Pins 7 & 8

ITEM #: ETS-PV843 MFG #: PV843

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    PV843 - Overview

    Composite Video is also often called Baseband video (including both NTSC-US and PAL-Europe protocols). This is the type of signal found as output on professional grade video equipment. ETS has several single and multi-channel small-form-factor baluns which permit sending these signals over UTP cable. In addition, we have NTSC-specific and electrically isolated baluns for customers with special requirements. Baseband video panels incorporating all the features of our PV840 Series video baluns in convenient, rack-mountable, 24 port panels.

    Please Note! All ETS baluns in this series are sold individually. Pairs are required!
    Only pairs of the same type will work together.These cannot be mixed and matched! i.e. a PV843 will only work with another PV843!

    Some of these part#'s indicate specific pin#'s. This indicates which pins in the unit are wired that carry the composite signal thus allowing installers or engineers to wire other components to the open pins as needed.

    The pin#'s are indicated as "positive" first and "negative" second. The PV843 has the "pos" signal carried over pin 7 while the "neg" is carried over pin 8. The PV844 has the positive signal on pin 4, negative signal on pin 5 and the PV844B has the positive signal on pin 5, negative signal on pin 4. etc.etc... Here is a list of the entire ETS PV840 series.....

    EBV: a.k.a. "Extended Baseband Video"

    PV843: EBV Balun MBNC to RJ45 jack, pins 7, 8.
    PV844: EBV Balun RCA jack to RJ45 jack, pins 4, 5.
    PV844B: EBV Balun RCA jack to RJ45 jack, pins 5, 4.
    PV845: Quad Baseband Video Balun FBNC to RJ45, all pins.
    PV846: Dual Baseband Video Balun, FBNC to RJ45 5,4 & 7, 8.
    PV847: Quad Baseband Video Balun, RCA jacks to RJ45, all pins.
    PV848: EBV Balun, MBNC to RJ45 jack pins 5, 4.
    PV849: EBV Balun, FBNC to RJ45 jack, pins 5, 4.
    PV848SL: EBV Balun, MBNC to Screwless Clamp Terminal Block.
    PV848S: EBV Balun, MBNC to Screw Terminal.
    PV849SL: EBV Balun, FBNC to Screwless Clamp Terminal Block.
    PV849S: EBV Balun, FBNC to Screw Terminal.
    PV845S: Quad Video/EBVB, FBNC to Screw Term, all pairs used.
    PV842SL: F Connector to Screwless Clamp Terminal Block.

    • Features:

      • UTP for longdistance signal transmission with superior performance and easy, low-cost installation.
      • Greater stability with wider bandwidth (0 to 60 MHz).
      • Rugged plastic cases.
      • Made in USA.
      • 100% tested.
      • ALL Baseband Video Applications.
      • Security and Surveillance.
      • Video Terminals, Displays.
      • Institutional Systems.
      • Corporate Facilities.
    • Specifications:

      • Bandwidth: Flat to 60 MHz
      • Connectors: RCA Female to RJ45 jack
      • Crosstalk: >50dB
      • Media: Category 5 or better
      • Distance 1200 ft - color; 2500 ft - B/W
      • Net Weight 0.02 kg
