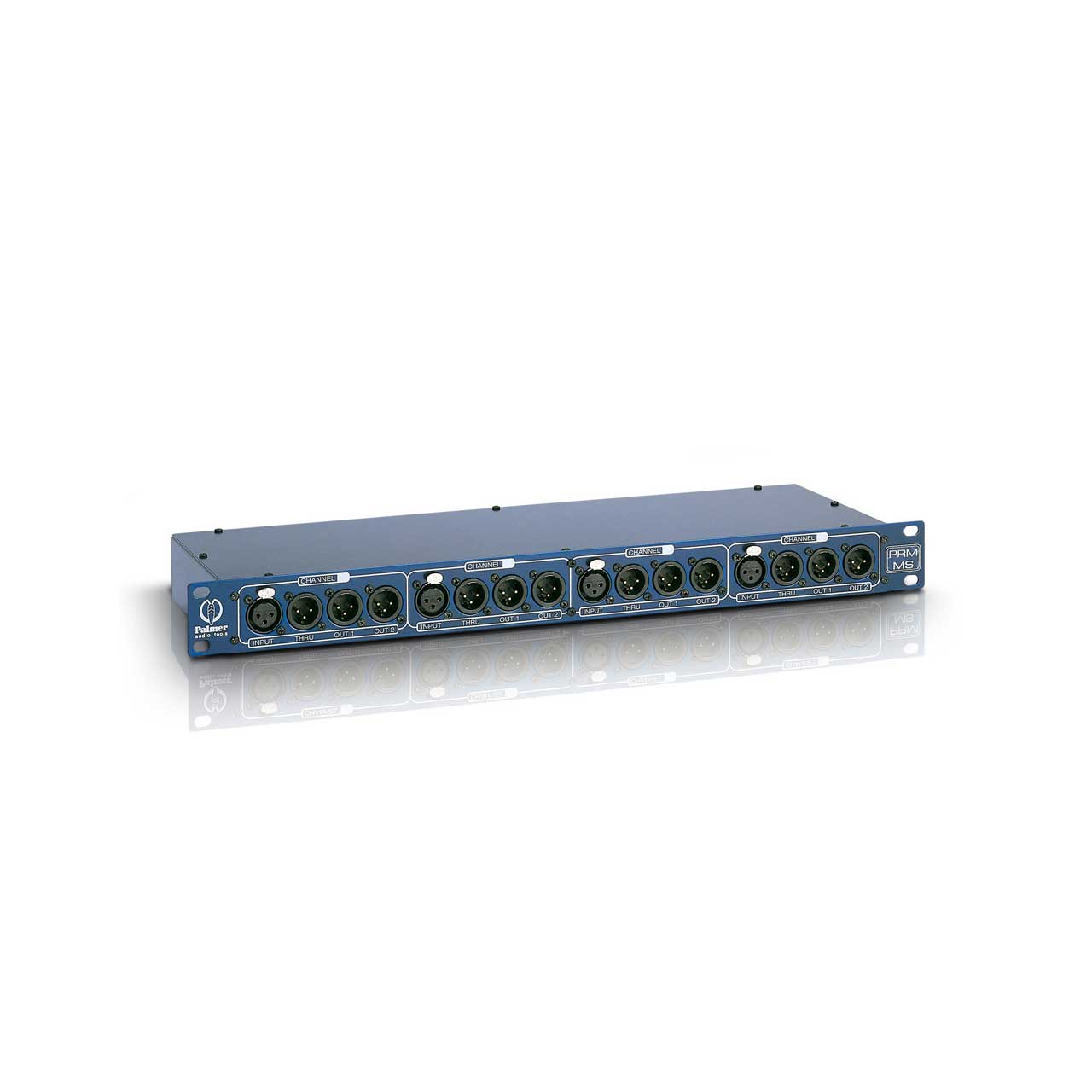

Palmer Audio PRMMS Microphone Splitbox 4 Channel

Manufacturer: Palmer Audio

Item #: PLM-PRMMS   •   MFG #: PRMMS




Share!

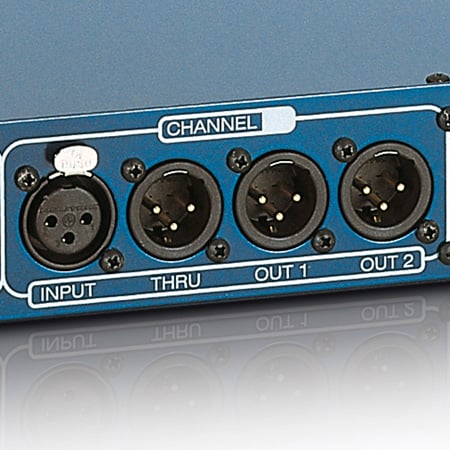

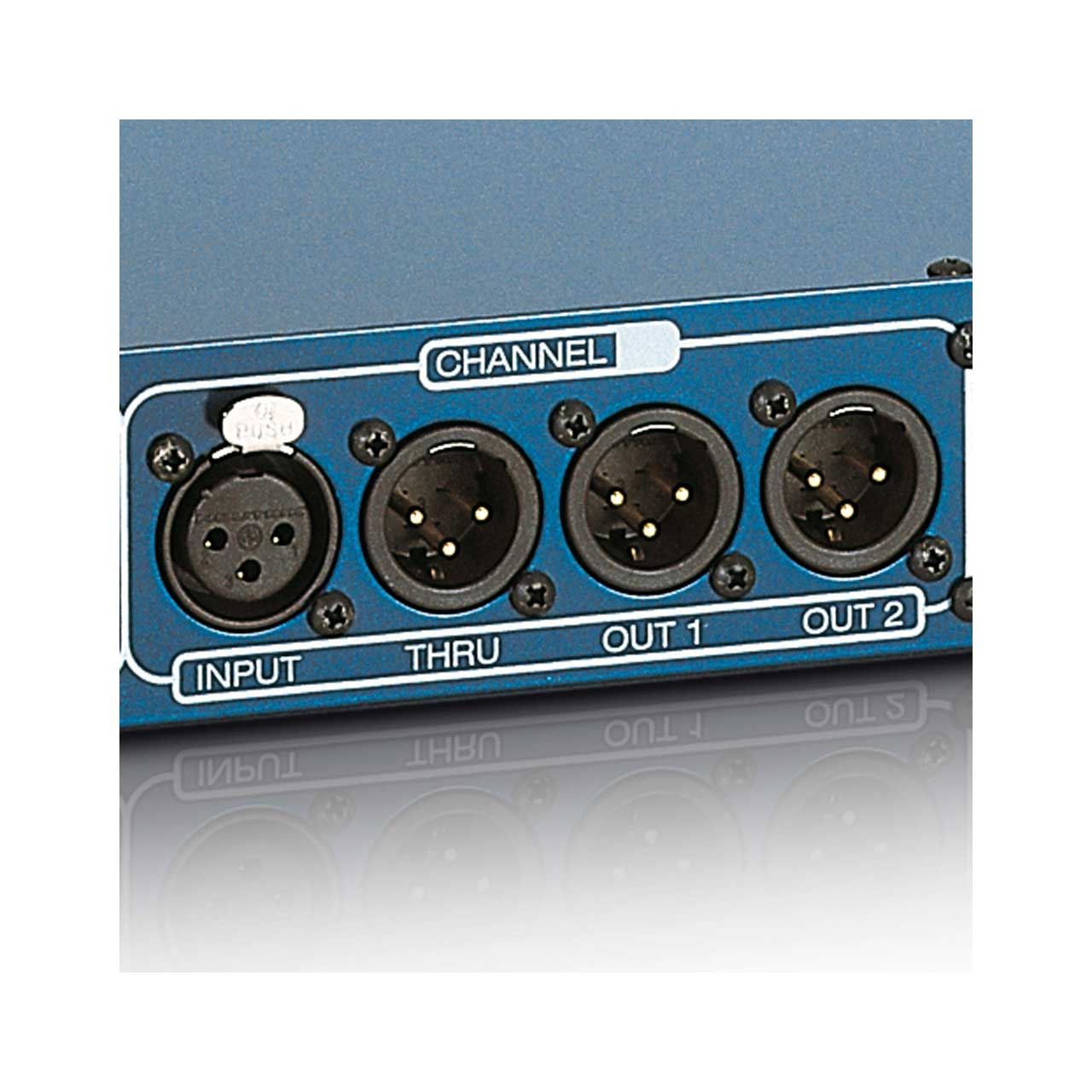

Passive splitter box for microphone signals. One module has 4 channels. Each channel has an input, an output wired in parallel for passthrough of phantom power, and two splitter transformer-isolated outputs. All outputs are also decoupled via resistors.


  • Features

    • 4 channel passive splitter box for mic signals + Output wired in parallel for passthrough of phantom power + 2 splitter transformer-isolated outputs

  • Specifications

    • Product type: splitter
    • Type: mic split
    • split type: 1 in 2 +1
    • Channels: 4
    • Inputs: 1
    • input connectors: XLR
    • max. input level: + 4 dB
    • number of split-outputs per canal: 2
    • THRU outputs/channel: 1
    • max. output level: + 4 dB
    • output connectors: XLR
    • transformer isolated outputs: yes
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated
