ART S8-3WAY Eight Channel Three-Way Mic Splitter

ITEM #: ART-S8-3WAY MFG #: S8-3WAY

free ship

List Price:

$439.99

Our Price:

$349.99

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    S8-3WAY - Overview

    The S8-3WAY eight channel three way microphone splitter is ideal for live sound, recording and broadcast applications where microphone and XLR balanced line level input signals have to go to multiple mix locations.

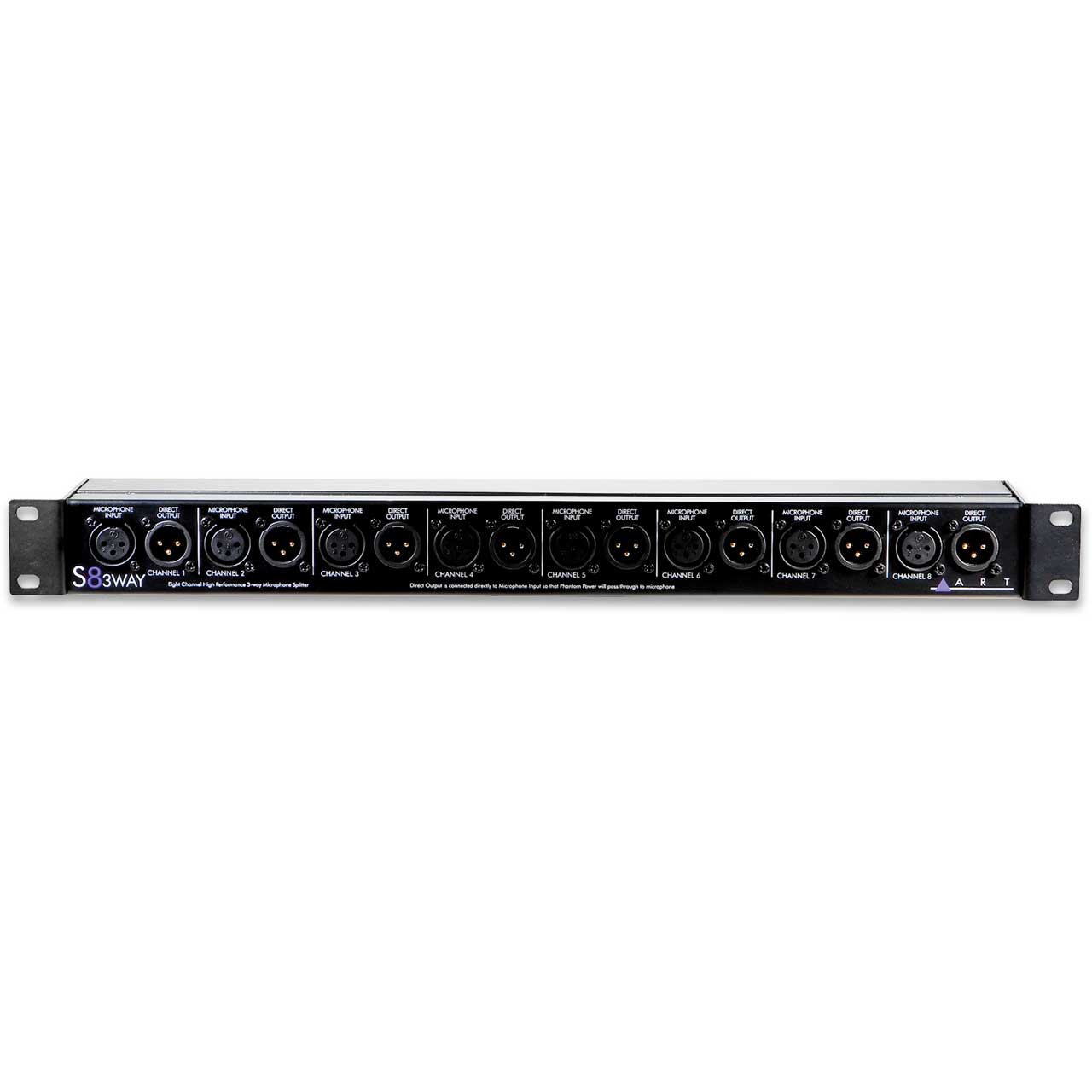

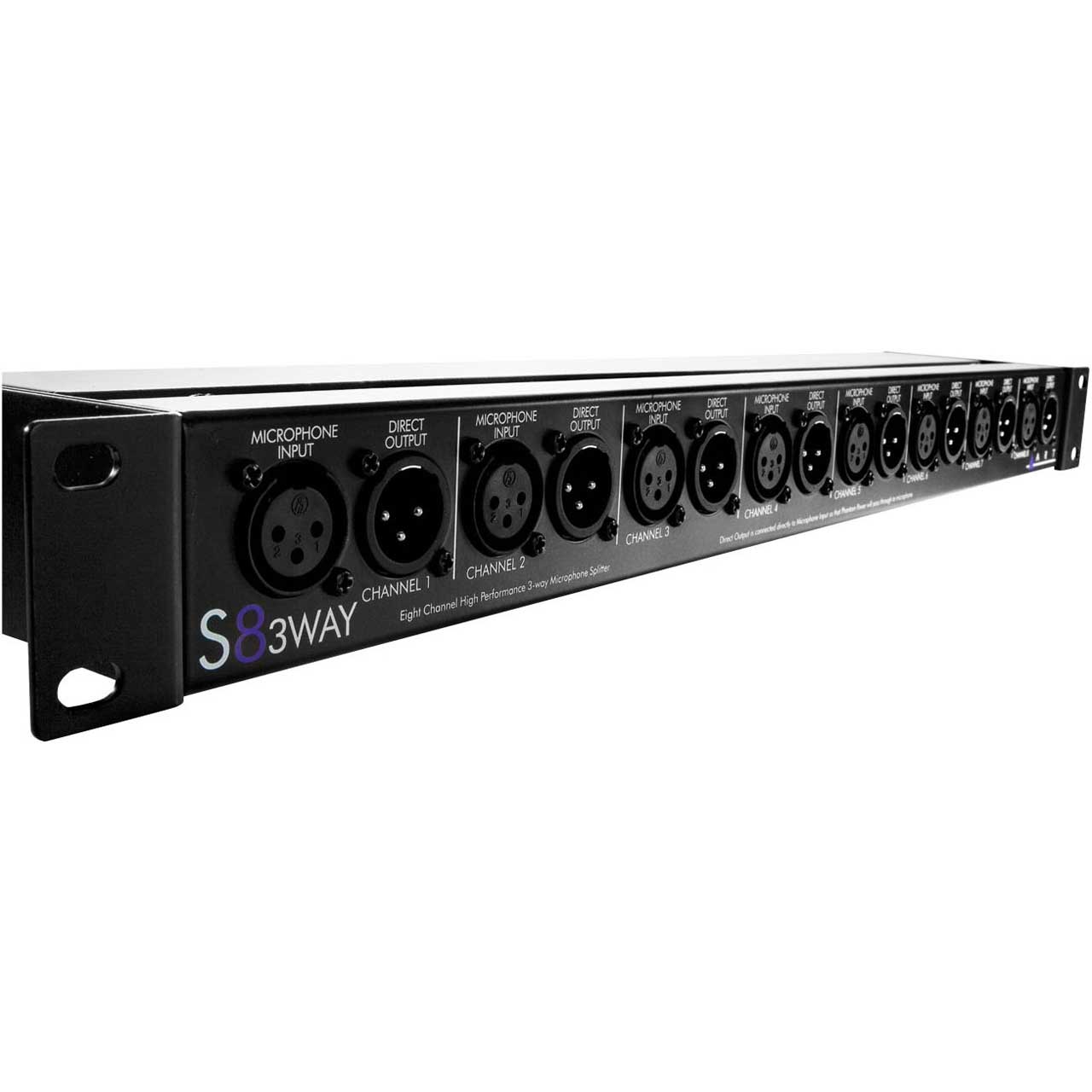

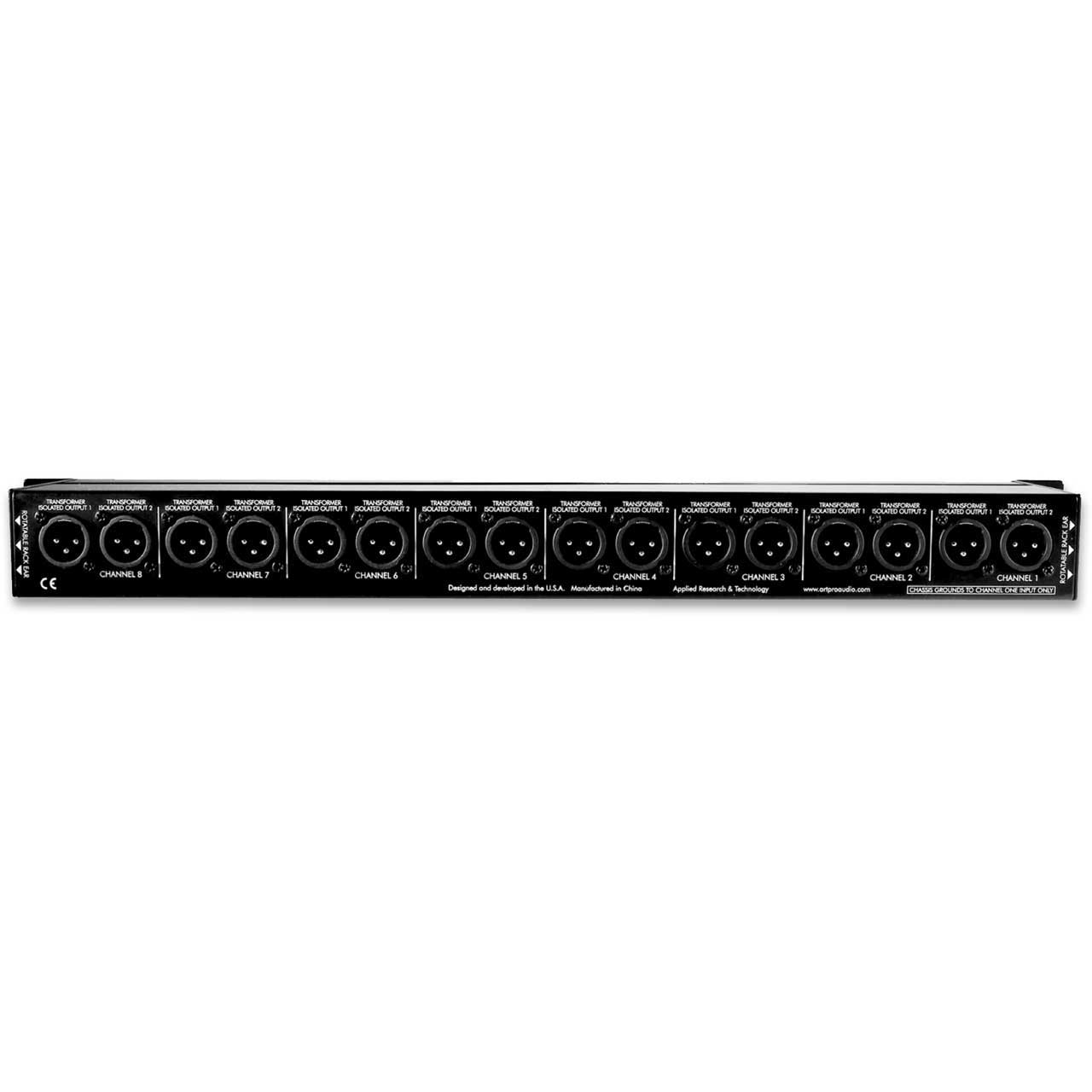

    Each channel provides one XLR input, one XLR direct output with two additional transformer isolated XLR outputs for a total of 3 balanced outputs from each single microphone input signal.

    Typical uses would include sending 8 direct signals through the S8-3WAY to a main Front-of-house mixer, with additional feeds going to a monitor mix station while transformer balanced isolated feeds are sent to remote recording desk or used for a broadcast feed.

    The ART S8-3WAY features the same high-quality musical sounding transformers used in the popular ART S8, and is housed in a standard 1U space rack-mountable steel chassis designed for years of reliable operation.

    Audio Utilities Series Overview
    Audio Utilities by Applied Research and Technology are audio devices that have been designed and engineered to exceed high standards for audio performance and functionality. These innovative, high-quality components are perfect for virtually any audio application where precision frequency tailoring, reliable performance and rugged design are of the utmost importance. ART Audio Utilities deliver extremely precise and powerful flexibility, with quality features and reliable design criteria necessary for top-level audio performance.

    • Features:

      • High quality passive interface
      • Eight high performance transformers
      • One direct and two transformer isolated output per channel
      • Balanced XLR input and 3 balanced XLR per channel
      • Extremely wide frequency response
      • Extremely low voltage insertion loss
      • Reversible rack ears for added system flexibility
      • Live Sound, Permanent/Fixed install, Studio applications

    • GTIN:

      0840402018964
