RDL DS-RLC2 Remote Level Controller - Ramp - Stainless Steel
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

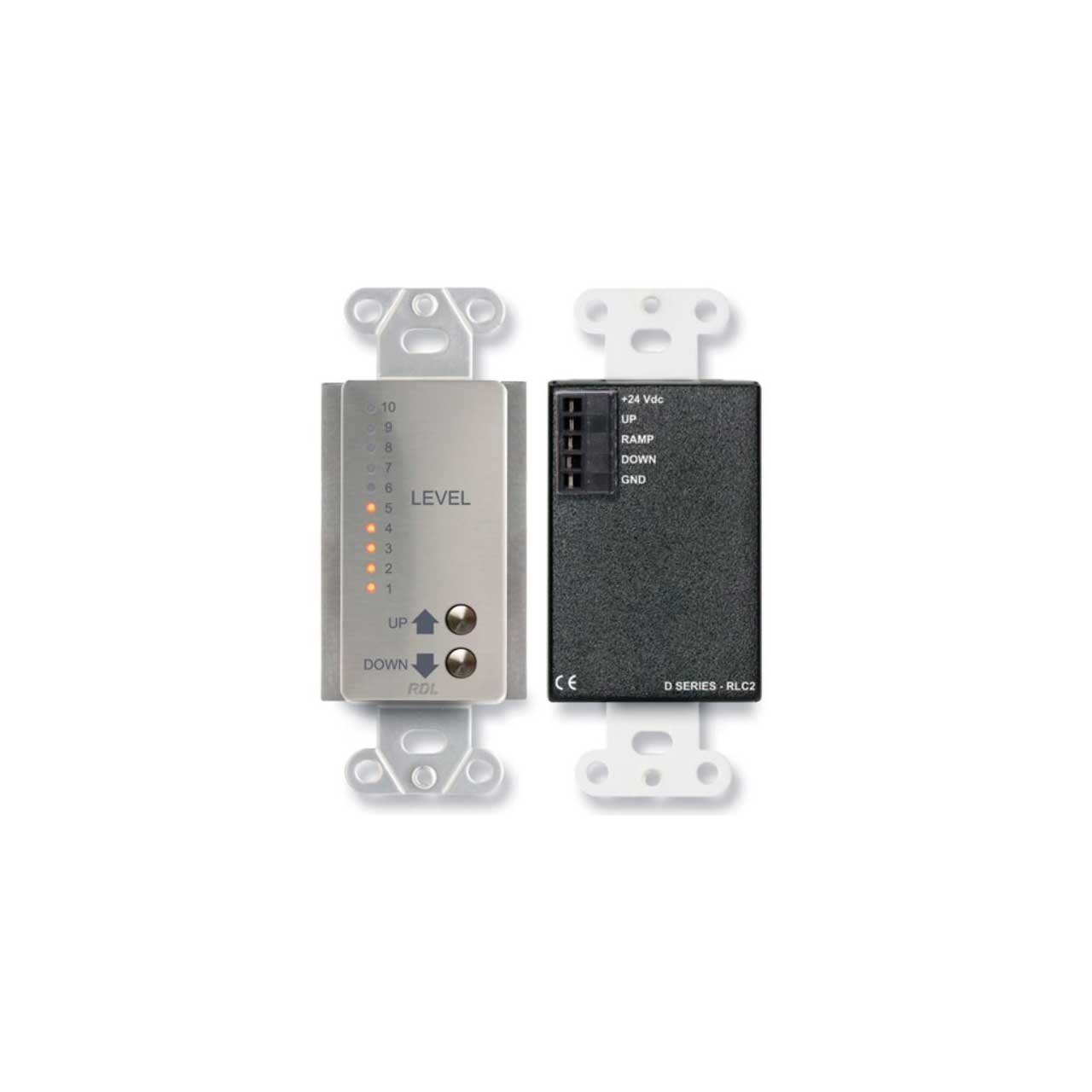

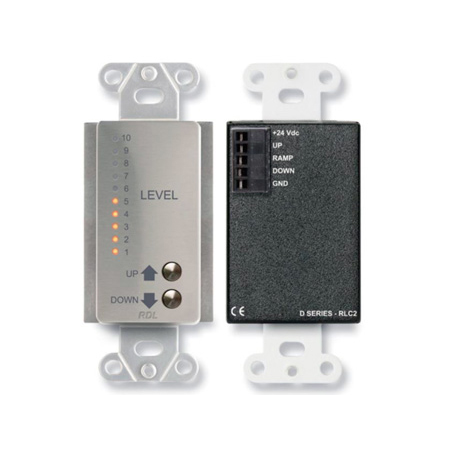

    RDL DS-RLC2 Remote Level Controller - Ramp - Stainless Steel

    Manufacturer: Radio Design Labs

    Item #: RDL-DS-RLC2   •   MFG #: DS-RLC2




    The DS-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired.

    The DS-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON series ST-RG1 Ramp Generator, or RACK-UP series RU-VCA2A Digitally Controlled Audio Attenuator. The DS-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the DS-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.

    In installations where ULTRASTYLE wall controls are preferred, use the RLC-10R Rotary Level Control.

    • Specifications

      • Ramp Input: 0 to 10 Vdc
      • Outputs: UP and DOWN, pushbutton actuated 15 Vdc @ 5 mA
      • Connections: Detachable terminal block
      • Ambient Operating Environment: 0° C to 55° C
      • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 75 mA
      • Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
      • Dimensions: Height: 4.11 in. (10.4 cm), Depth: 1.66 in. (4.21 cm), Width: 1.72 in. (4.37 cm)
