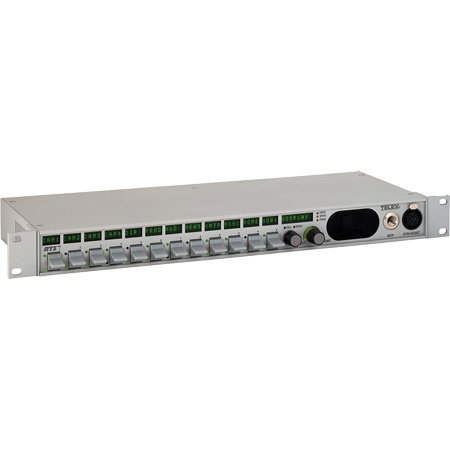

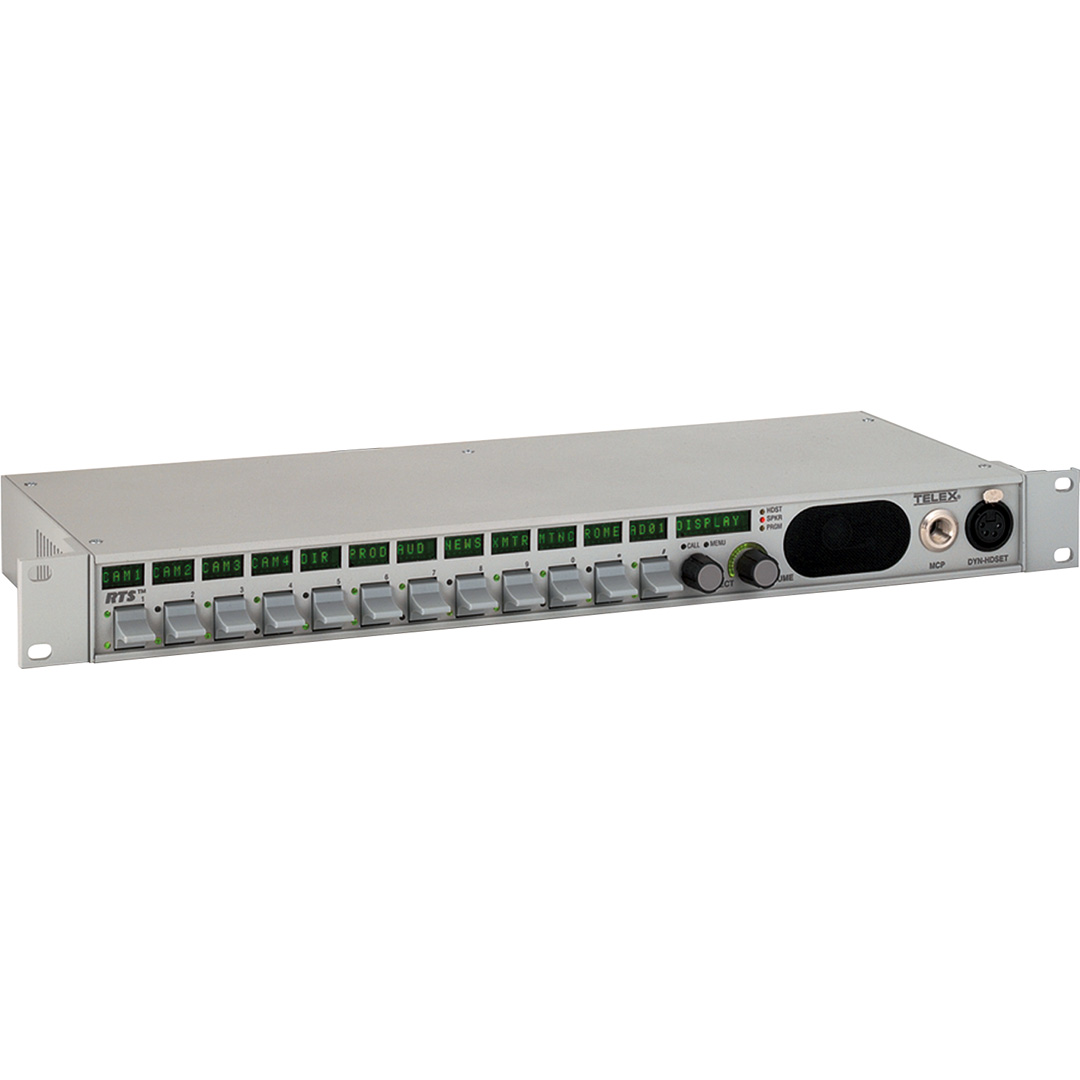

The KP-12 modular series of keypanels represents the ultimate in compact, fully-programmable user stations. Based on a common set of internal modules (modules also available separately for custom designs), the KP-12 series has a common set of very powerful features, which makes each model attractive in mobile applications and in other situations where space is limited.Available in lever-key and pushbutton versions, the basic KP-12 provides a menu driven, fully programmable, 12-key user station in 1RU of space. Expansion panels and level control panels round out the off erings in the rackmount form factor. Desktop and Tektronix WFM 3RU form factor units are also available.
Extremely long-life, high-visibility, green alphanumeric LEDs.
Fully programmable menus selected via front-panel shaft encoder.
Lever-key versions provide individual talk/listen functions on each key.
Pushbutton versions provide individually assignable talk, listen or talk/listen function on each button.
All keys assignable for all functions (point to point, IFB, ISO, PL, SL, relay, GPI).
Removable, optional MCP-90 series gooseneck microphone.
Universal power supply for 100-240 VAC, 50/60 Hz operations.

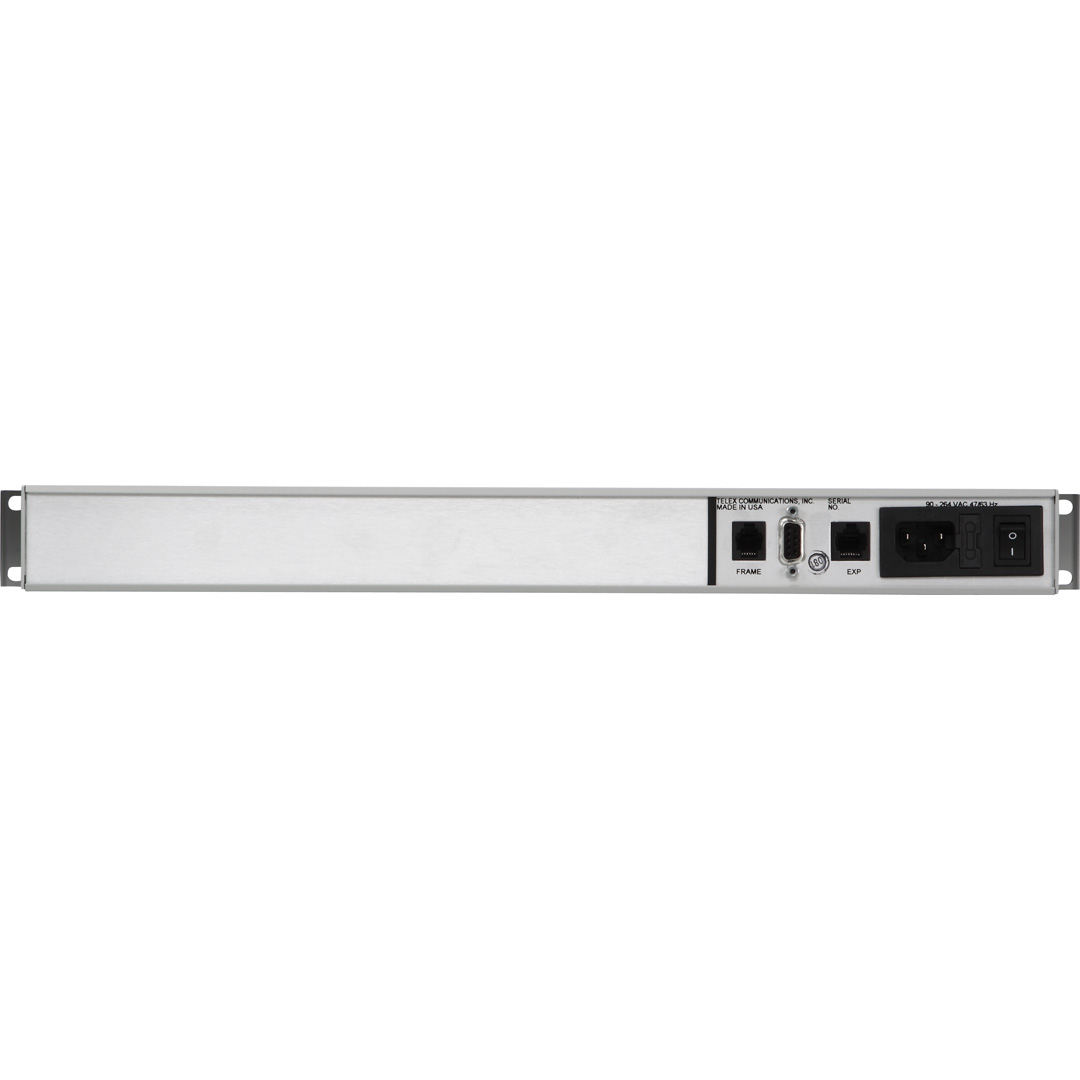

Optional rear connector and GPI options available for rackmount panels.
Wide range of keypanels and expansion panels for specific applications.
