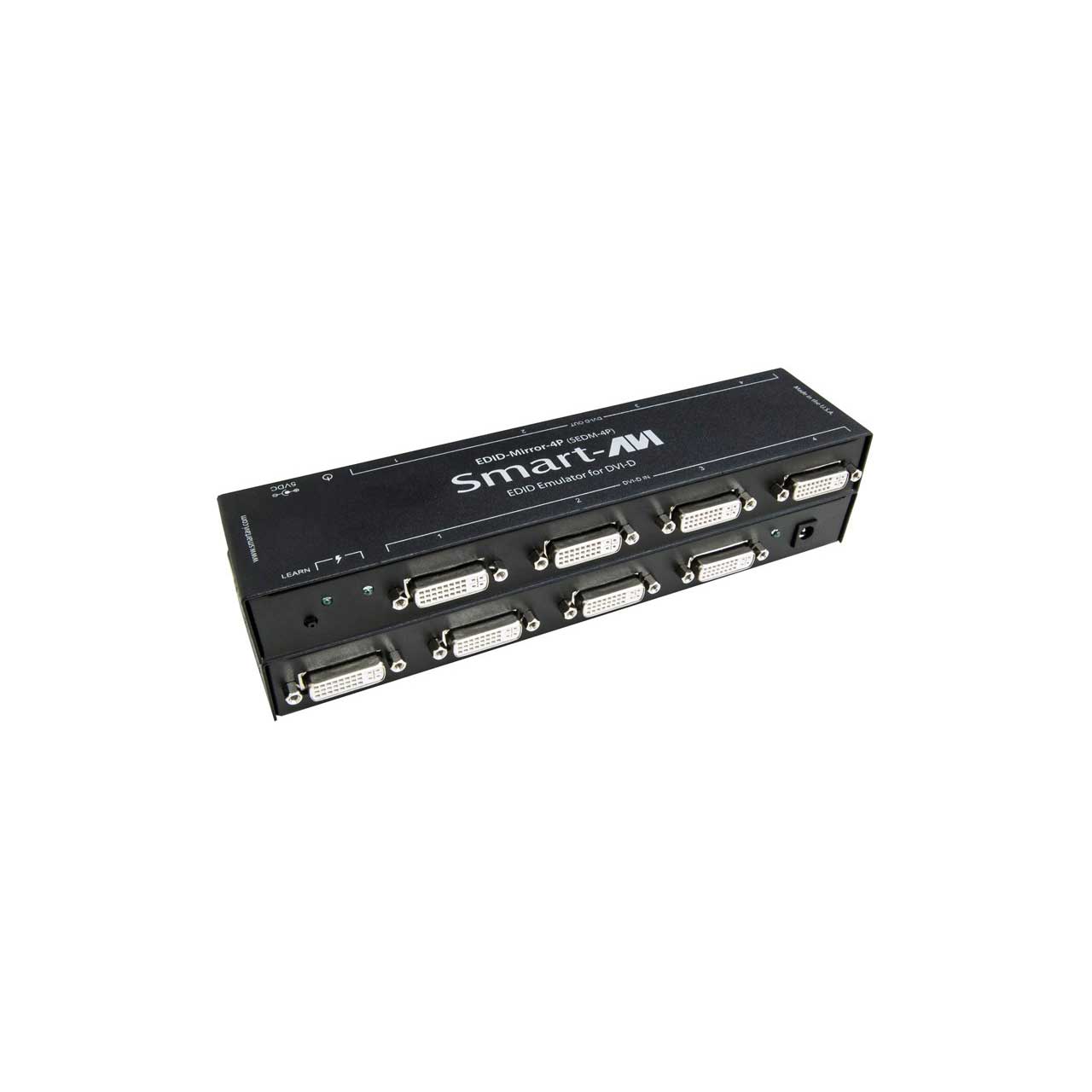

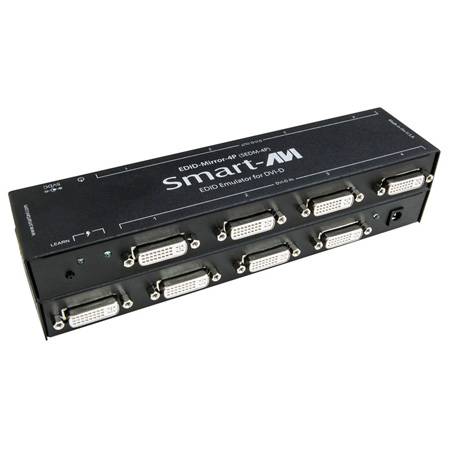

Smart-AVI EDID-Mirror-4PS EDID-Mirror 4-Port DVI-D EDID Emulator
  • Smart-AVI EDID-Mirror-4PS EDID-Mirror 4-Port DVI-D EDID Emulator
  • Smart-AVI EDID-Mirror-4PS EDID-Mirror 4-Port DVI-D EDID Emulator
Questions? Ask a Markertek Expert:
800-522-2025 Email

Smart-AVI EDID-Mirror-4PS EDID-Mirror 4-Port DVI-D EDID Emulator

Manufacturer: Smart-AVI



List Price:$399.00
Our Price:$355.25

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.

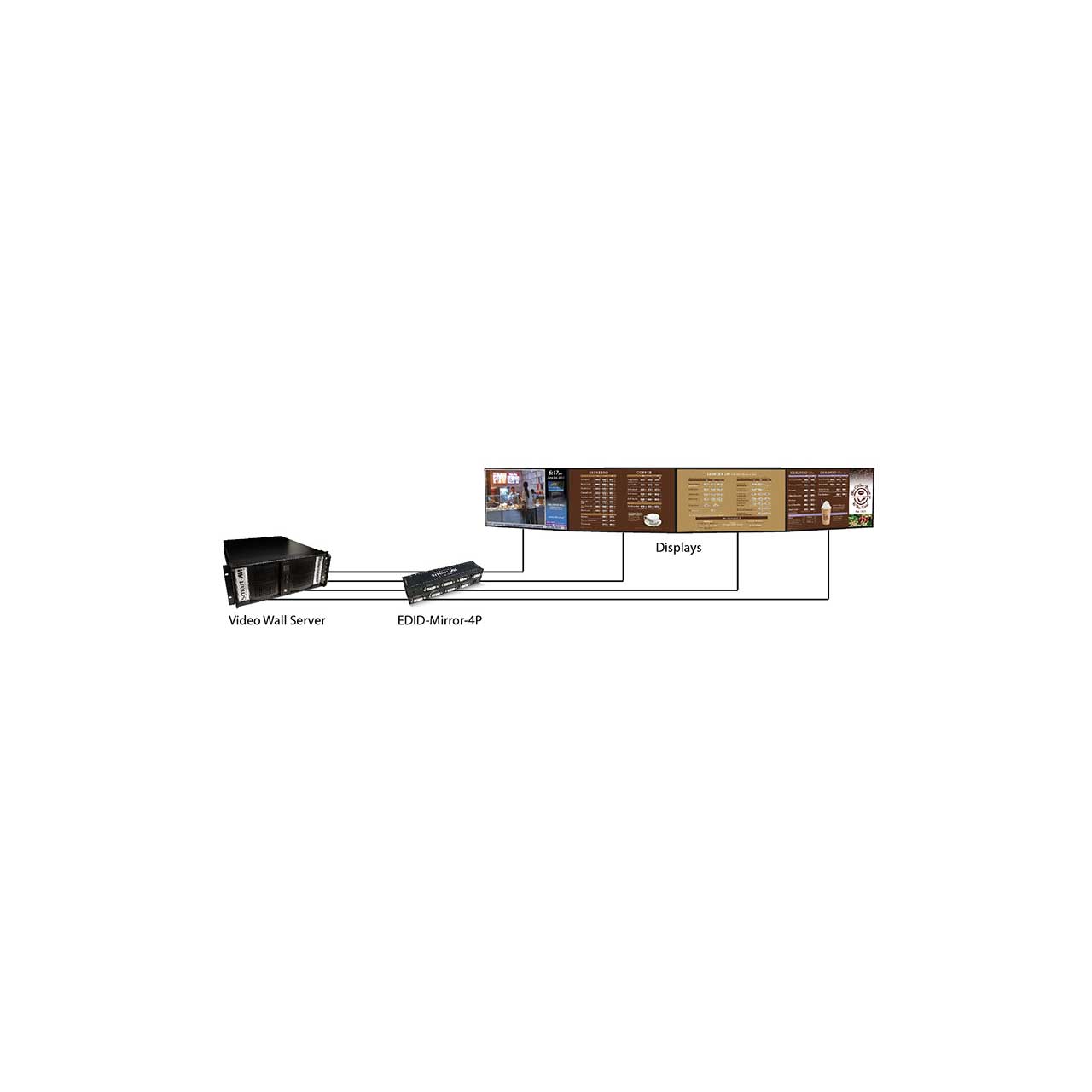

    Eliminate the Headache of Display Configuration and Auto-detection with SmartAVI’s EDID-Mirror. The EDID-Mirror prevents Windows7, XP and Linux from auto-configuring your displays if your computer is started up with the displays disconnected or turned off. Certain operating systems, especially Windows 7, have a display auto-detection feature that can reconfigure your displays if they are not powered on or connected at startup. This can lead to the frustrating task of reconfiguring your displays. The solution is the EDID-Mirror, a DVI-D EDID (Extended Display Identification Data) emulator that provides a constant signal to the computer, regardless of whether the displays are present or not. This ensures that the display configuration is not lost.

    • Features

      • Learn up to 4 EDID configurations at once
      • Stores EDID configuration in non-volatile memory so that the unit may be powered off and the configuration will not be lost
      • Displays can be disconnected as needed without losing EDID configuration
      • Uses standard EDID configuration standards
      • Compatible with most DVI-D displays and all Windows versions
    • Specifications

      • VIDEO
      • Format DVI-D Single Line
      • Maximum Pixel Clock 165 MHz
      • Input/Output Interface (4) DVI-D 29-pin female
      • Resolution Up to 1920 x 1200 @60Hz
      • DDC 5 volts p-p(TTL)
      • Input Equalization Automatic
      • Input Cable Length Up to 10 ft.
      • Output Cable Length Up to 10 ft.
      • OTHER
      • DDC Signal 5 Volts [peak-to-peak], TTL
      • TDMS Signal 1.2 Volts[peak-to-peak], TTL
      • Power External 100-240 VAC/5VDC2A @10W
      • Dimensions 8.75”W x 3”D x 1.75”H
      • Weight 0.5 lbs.
      • Approvals Device: UL, CE, ROHS Compliant
    • Item Includes

      • [EDID-Mirror-4P, PS5VDC2A.]
