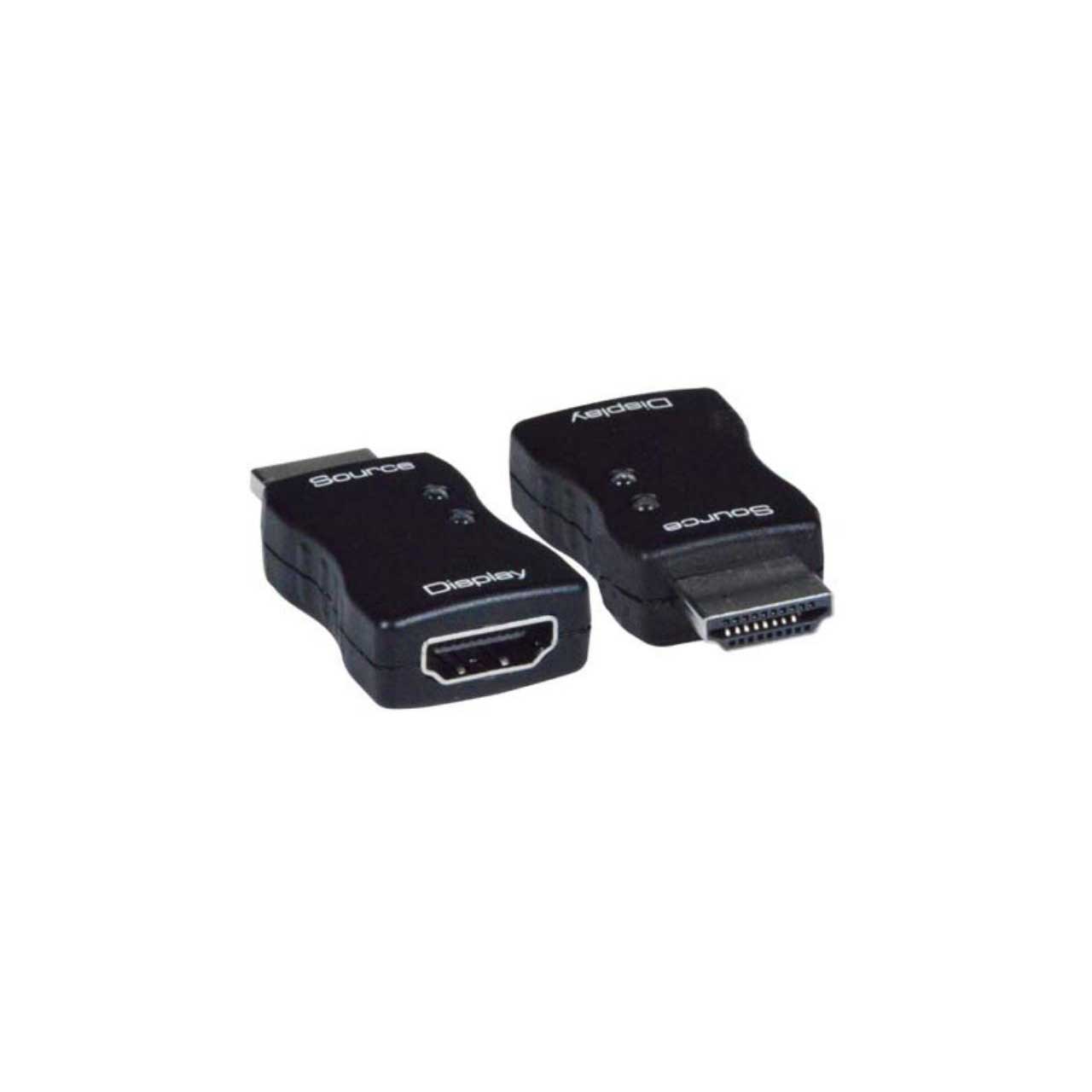

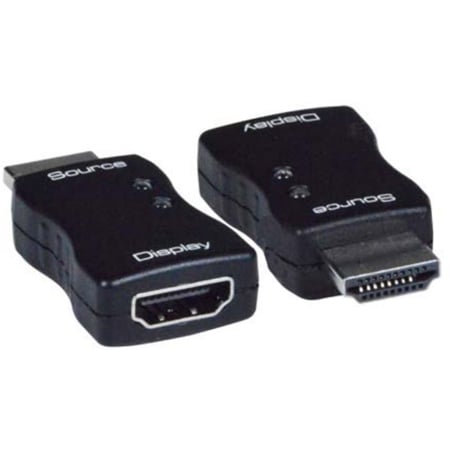

NTI HD4K-EDID-EMLTR HDMI 2.0 EDID Emulator

HD4K-EDID-EMLTR - Overview

• Features:

  • HDMI 2.0
  • 12-bit Deep Color
  • RGB, YCC 4:4:4, YCC 4:2:2
  • LPCM 2-Channel
  • Bandwidth up to 600 Mhz (18Gbps)
  • Support for CEC (consumer electronic control) compatible devices.
  • 3D
  • HDR
  • HDCP 2.2 compliant.
  • Supports Learning and Emulation modes.
  • Learning mode: store a display's EDID for later use.
  • Emulation mode: provides EDID to the HDMI source device from the emulator's internal memory.
  • Supports headless operation - no monitor attached to source.
  • Pre-programmed with many standard resolutions with native set to 1080p.
  • Use learning mode to program other resolutions.
  • LED indicators provide signal status information.
  • Compact design for easy installation and operation.
  • No power supply - powered by video source.
  • Ideal for resolving signal handshaking problems between a source and a display.


• Specifications:

  • Video Format HDMI 2.0
  • Max. Resolution 3840x2160p@60Hz
  • Default Resolution 1920x1080p@60Hz
  • Color Depth RGB/YCC444/YCC422: 12-bit
  • Support pass-through Yes
  • Support headless (no monitor
  • actually attached)
  • Yes
  • HDCP Support HDCP 2.2
  • HDR (High Dynamic Range)
  • Support
  • Yes
  • 3D Support Yes
  • CEC Support Yes
  • Audio Format LPCM (2-channel)
  • Power Supply By video source
  • Dimension 1.693 x 0.9449 x 0.3937 in
  • 43 x 24 x 10 mm
  • Weight 0.0314 lb
  • Compliance CE, FCC, RoHS
