RDL ST-LCR2 Logic Controlled Relay - Latching

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

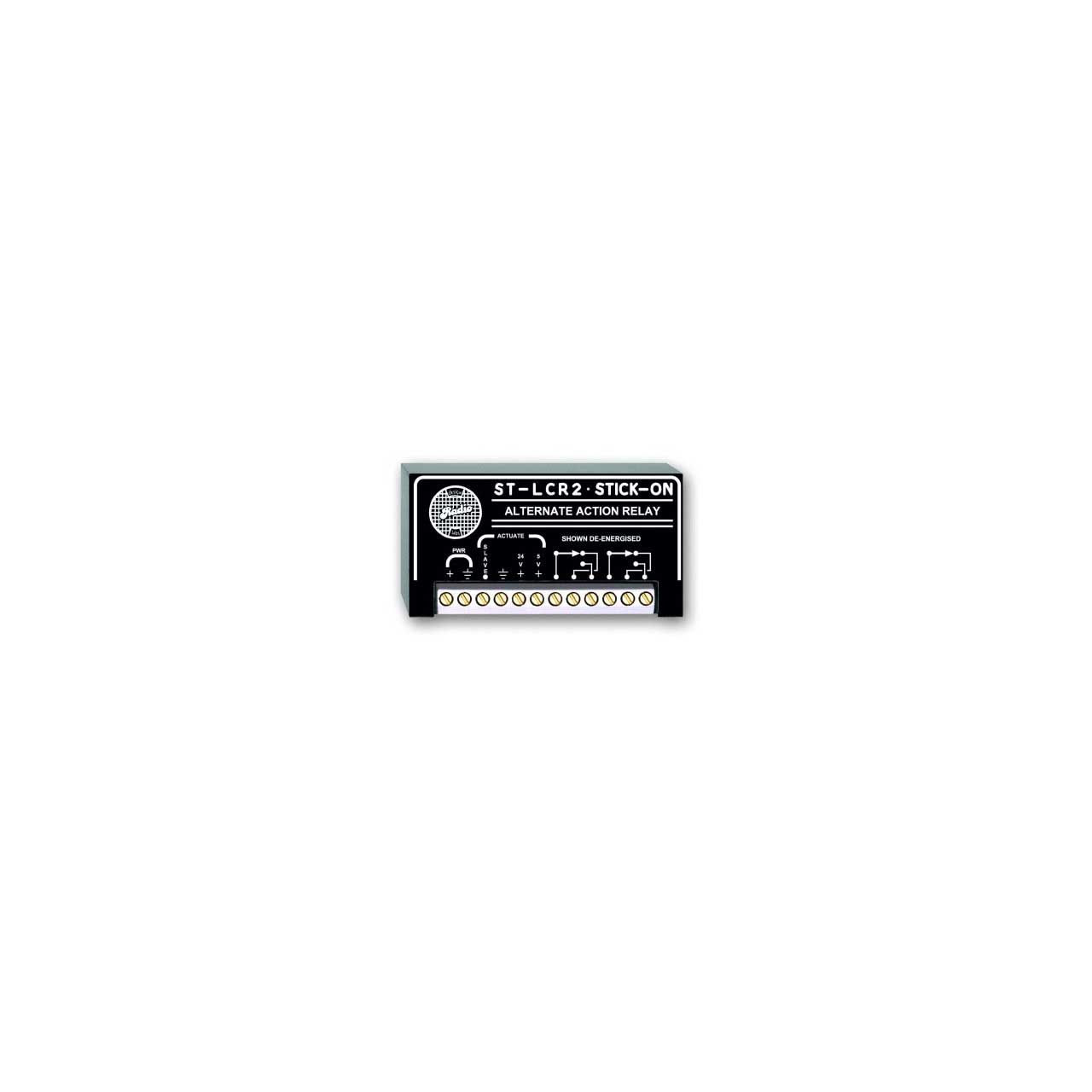

    RDL ST-LCR2 Logic Controlled Relay - Latching

    Manufacturer: Radio Design Labs

    Item #: ST-LCR2   •   MFG #: ST-LCR2



    List Price:$147.86
    Our Price:$107.49

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      Required Accessories

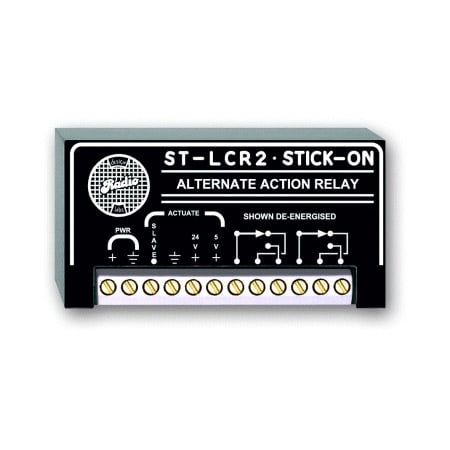

      The RDL ST‑LCR2 provides double‑pole, double‑throw dry switching contacts and LED indicator for relay closure. The ST‑LCR2 is used where momentary pulses must alternately toggle on/off switching contacts. Open‑collector slave output allows connection of remote on indicator or an ST‑LCR1 for additional relay contacts.

      Required Power Supply RDL PS24V Sold Separately


      • Features

        • Alternate‑Action Switching
        • Add Contacts to Any Control Signal
        • Activation from Logic Circuits
        • DPDT Switching Relay
        • Open‑Collector Switching
        • Control from Switch, Button, or Logic Circuits

      • Specifications

        • Control Inputs: SLAVE terminal used as an input from remote push‑button or switch turns on relay when that switch is on. Activation is by connecting slave input to ground. Input from other equipment's open‑collector output turns relay on when open‑collector is on. Note: RDL switching STICK‑ONs have available open‑collector outputs suitable for driving ST‑LCR2. 5 V+ terminal accepts 3.5 to 12 Vdc to activate control circuit. Relay turns on when this input is pulsed high then low,then turns off again the next time it is pulsed high then low. 24 V+ terminal accepts 12 to 35 Vdc to activate control circuit. Relay turns on when this input is pulsed high then low, then turns off again the next time it is pulsed high then low.

        • Output Slave: Open‑collector @ 25 mA suitable to drive indicators or slave LCRs.

        • Switching Contacts: Double‑pole, double‑throw

        • Maximum Switching Power: 60 W (220 Vdc, 125 Vac, 2 A)

        • Power Requirement: GROUND‑REFERENCED, 24 to 33 Vdc @ 50 mA (assuming 20
        • mA max load at SLAVE output)

        • Ambient Operating Environment: ‑10° C to 55° C
