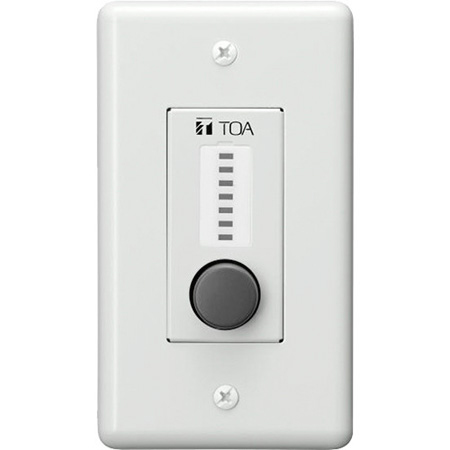

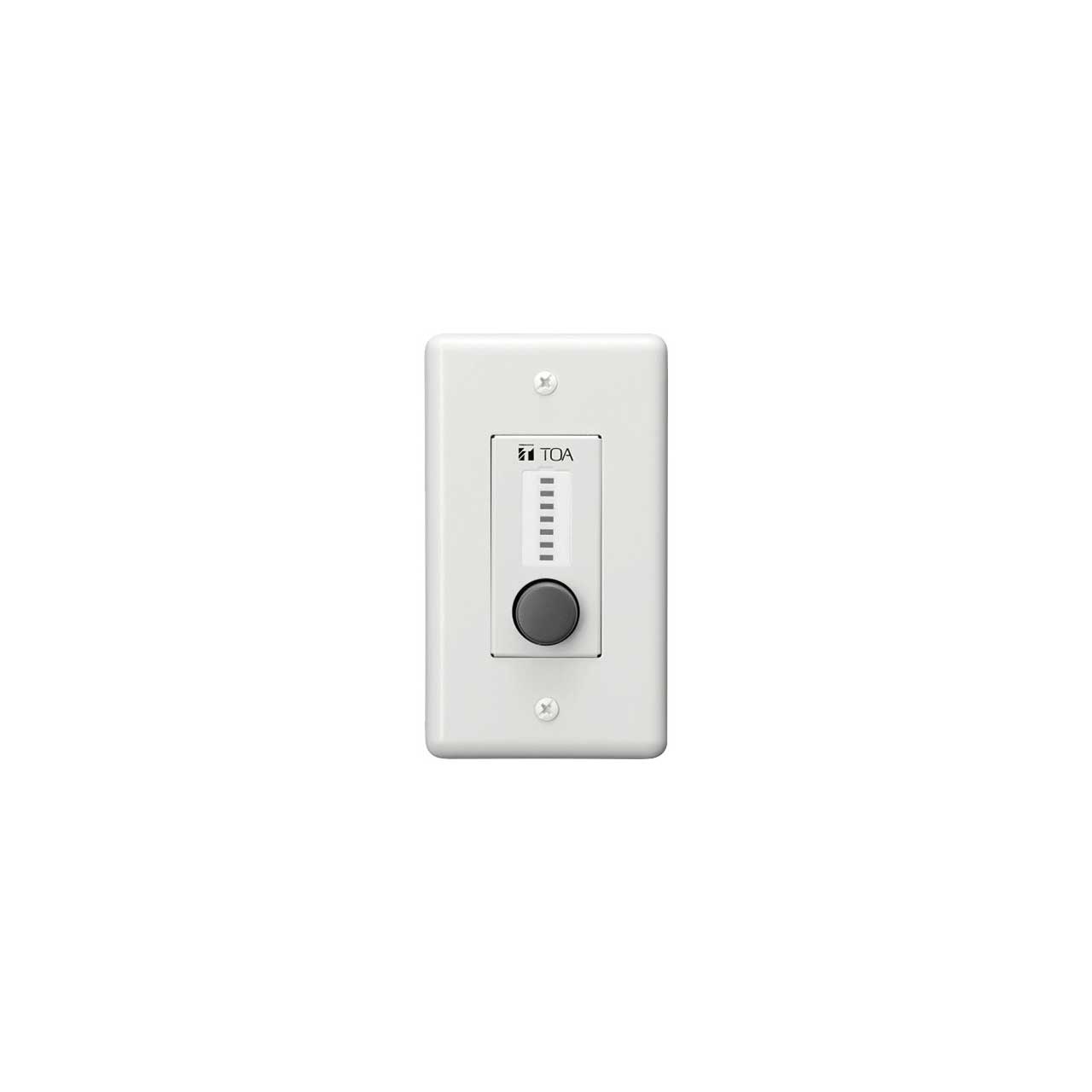

TOA ZM-9012 9000M2 Assignable Volume Remote Button Panel
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    TOA ZM-9012 9000M2 Assignable Volume Remote Button Panel

    Manufacturer: TOA Electronics, Inc.

    Item #: TOA-ZM-9012   •   MFG #: ZM-9012

    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    Required Accessories

    Designed for exclusive use with the 9000M2 Series amplifier or M-8640, the ZM-9012 is a wall mounted remote control panel having a volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 1-gang electrical box in the wall.

    • Specifications

      • Power Source: 24 V DC - supplied from RC-OOIT or M-864D
      • Current Consumption: 50 mA or less
      • Terminal Removable terminal block - 10 pins
      • Connection Cable Shielded CPEV cable [paired data line and paired power line) or
      • Category 5 twisted pair cable for LAN CAT5-STP
      • Operating Section: 1 volume control
      • Indicator Level indicators green LEDs
      • Operating Temperature 0C to +40C 132 F to 104 F
      • Operating Humidity 35 %to 80 %RH No condensation
      • Finish Surface treated steel plate, white, paint
      • Dimensions 72W X 127H X 57.5D mm 12.83 X 5 X 2.26 I
      • Weight 208G - 0.46 lb
      • Accessory: Box mounting screw - No.6 32UNC X 30
      • Box mounting screw - M4 X 30. Panel mounting screw
      • Removable terminal plug - 10 pins
      • Note: Since no electrical box is supplied with the unit, prepare it separately.
