RDL DS-RC2ST 2 Channel Remote Control for STICK-ON - Remote selection of audio or video sources

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RDL DS-RC2ST 2 Channel Remote Control for STICK-ON - Remote selection of audio or video sources

    Manufacturer: Radio Design Labs

    Item #: RDL-DS-RC2ST   •   MFG #: DS-RC2ST




    Share!





    Required Accessories

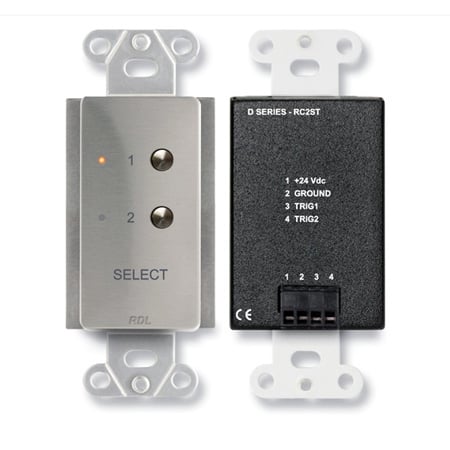

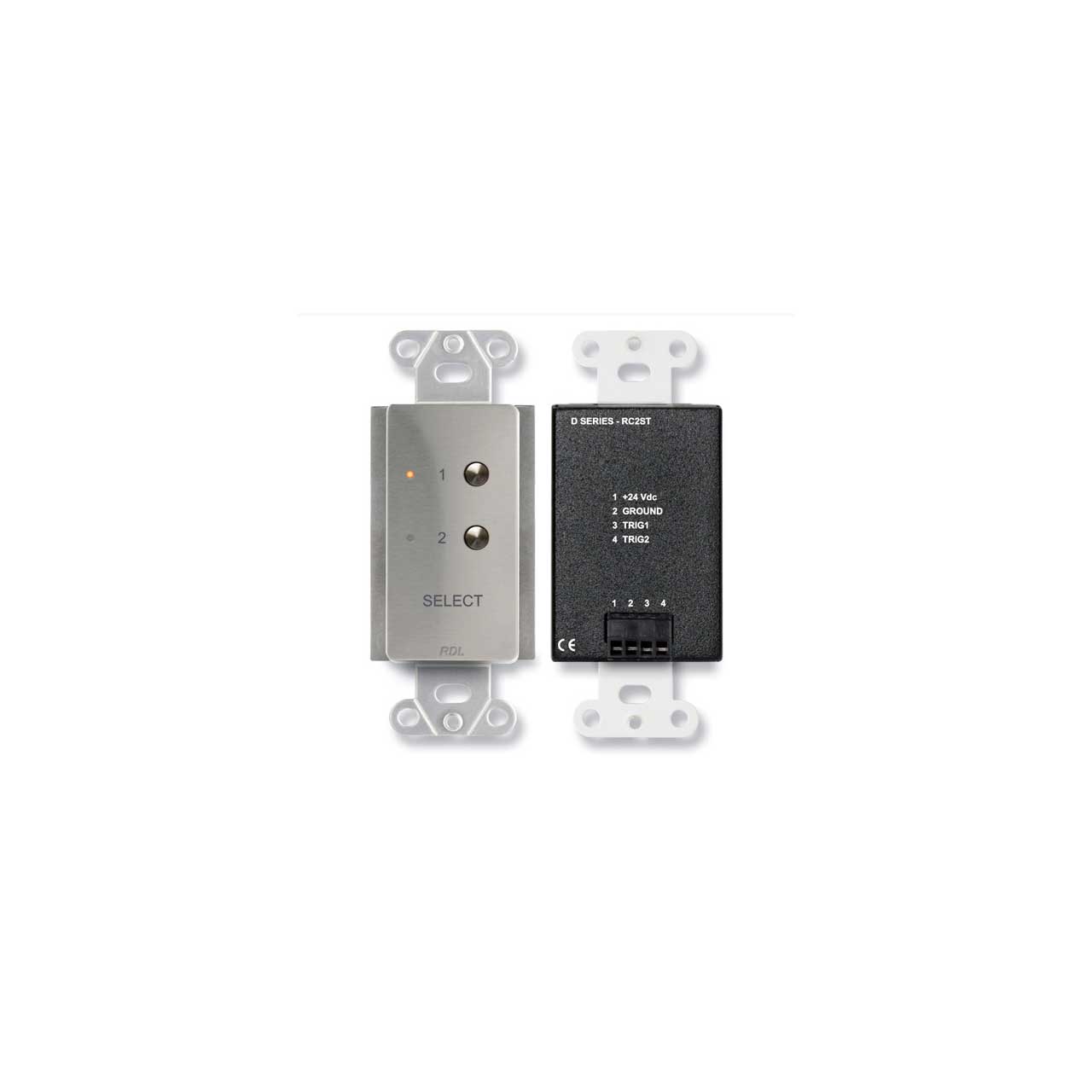

    The front panel of the DS-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected.In a typical installation, the DS-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the DS-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used.In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.


    • Features

      • Remote Selection of 2 Audio Sources, Destinations or Functions
      • Single-Button Selection for Each Source
      • Open-collector Switching of 1 of 2 Module Functions
      • 3-wire or 4-wire Remote Wiring
      • Professional Aesthetic Appearance
      • Companion to other RDL® Remote Controls

    • Specifications

      • Selectors (2): Momentary pushbuttons, (1 for each channel)
      • Indicators (2): Red LEDs, (indicates channel selected)
      • Connections: Detachable terminal block;Power input; open-collectorOutputs (25 mA current limited)Ambient Operating Environment: -10° C to 55° CPower Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
      • Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separatelyPackage Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: 0.375 lbs.
      • WEEE weight: 0.23 lbs.
      • Tariff code: 8517.62.0050




    Add Accessories for your DS-RC2ST:
